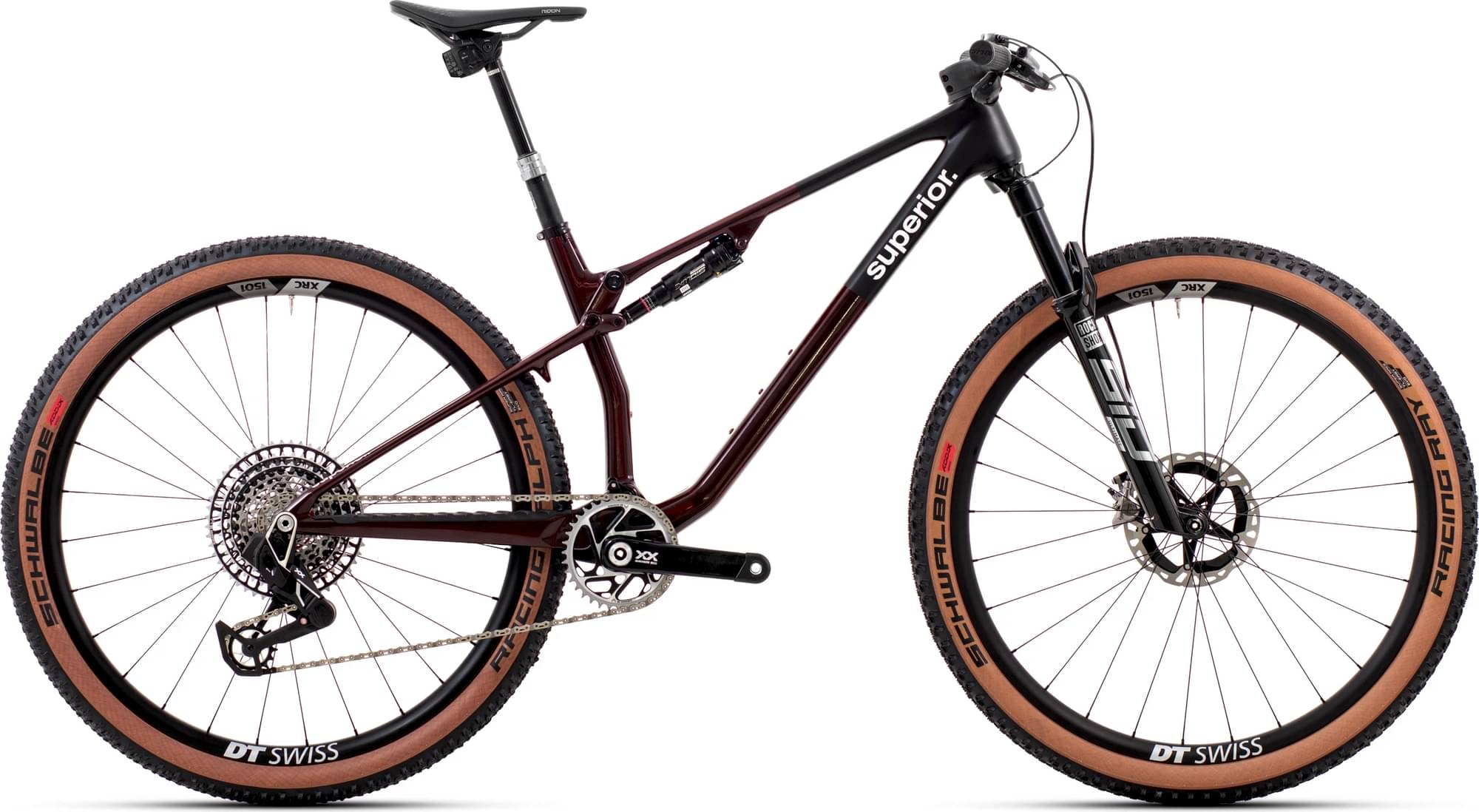

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 110mm -
Travel Rear 110mm -
Fork RockShox SID Ultimate
-
Groupset XX Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 171cm
MD
169cm - 181cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SU-01.2, Carbon MTB Race Pro, Advanced Race Geometry, Travel 110 mm, Integrated Cable routing, BB92, 3D alloy one pice link, Carbon swingarm, SR dropout, Boost Thru Axle 148x12 mm, Inner cable routing, Dropped seat post ready
Suspension Fork
RockShox SID Ultimate Charger RD 2, Tapered, DebonAir+, 3 Position, 15x110mm axle, 110mm travel
Rear Shock
RockShox SIDluxe Ultimate Remote, size 190x40mm
Drivetrain
Rear Derailleur
SRAM XX EAGLE AXS T-Type
Shift Levers
SRAM AXS POD, 12-speed
Cassette
SRAM XX XS-1299, 12-speed, T-Type, 10-52T
Crank
SRAM XX, DUB, Carbon, T-Type, 36T
Bottom Bracket
SRAM DUB , PressFit, shell 41x92 mm
Chain
SRAM XX, T-Type
Wheels
Rims
DT Swiss XRC 1501 SPLINE®, Carbon, CL, 15x110mm, Tubeless Ready
Tires
Schwalbe Racing Ray Evo, TL-Easy, SuperRace, 29x2.25", ADDIX Speed
Brakes
Brakes
SHIMANO XTR M9100, hydraulic disc brake
Cockpit
Handlebar
ONE Carbon Integrated Cockpit ICR
Headset
ACROS AZX-1052S, ICR, ZS56/28.6 - ZS56/40, BlockLock 150°, Stainless Bearings
Seat
Saddle
Fizi:k Ridon X1, Carbon
Seatpost
SRAM Reverb AXS dropper post, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.328 mm | 1.289 mm | 1.259 mm | 1.232 mm |
| Bottom Bracket Height | 332 mm | 332 mm | 332 mm | 332 mm |
| Front Center | 726 mm | 752 mm | 773 mm | 795 mm |
| Rake | 47 mm | 47 mm | 46 mm | 46 mm |
| Trail | 112 mm | 112 mm | 113 mm | 113 mm |
| Stack | 583 mm | 593 mm | 602 mm | 611 mm |
| Reach | 439 mm | 460 mm | 478 mm | 496 mm |
| Top Tube Length | 580 mm | 605 mm | 625 mm | 645 mm |
| Seat Tube Angle | 76.3 ° | 76.3 ° | 76.3 ° | 76.3 ° |
| Seat Tube Length | 393 mm | 431 mm | 482 mm | 533 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1153 mm | 1179 mm | 1200 mm | 1222 mm |
| Bottom Bracket Drop | 42 mm | 42 mm | 42 mm | 42 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 169 cm | 179 cm | 189 cm |
| Rider Max Height | 171 cm | 181 cm | 191 cm | 200 cm |
