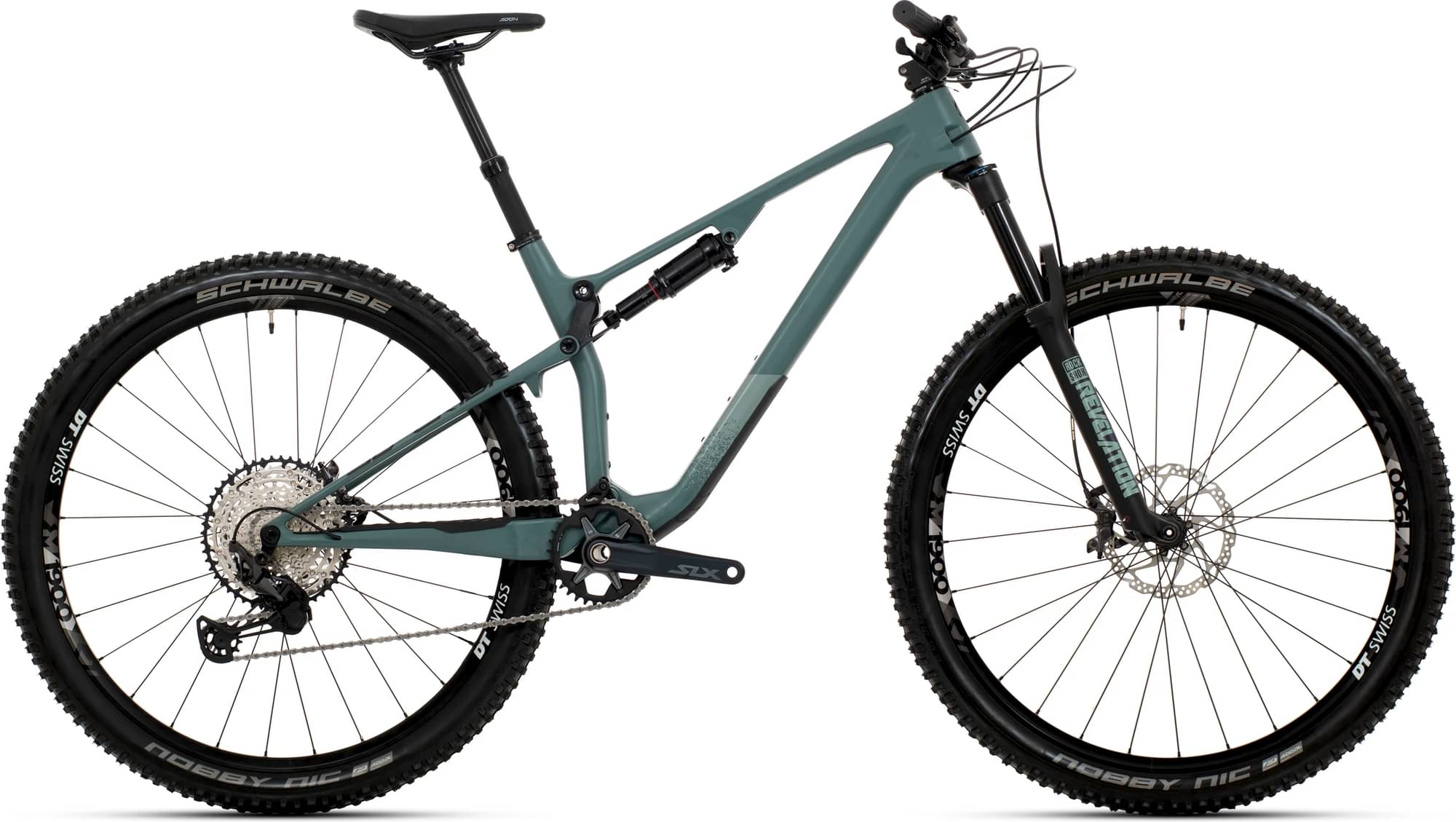

Superior XF 979 TR 2025
2025 Mountain
Estimate price |
5,350$
Weight | 12.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox Revelation RC
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 171cm
MD
169cm - 181cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SU-01, Carbon MTB Trail, Advanced Trail Geometry, Travel 130 mm, Tapered Head Tube, BB92, 3D alloy one piece link, Carbon swingarm, SR dropout, Boost 12x148 mm, Inner Cable Routing, dropper seat post ready
Suspension Fork
RockShox Revelation RC, Tapered, DebonAir, 15x110mm axle, 140mm travel
Rear Shock
RockShox Monarch RT, size 190x51mm
Drivetrain
Rear Derailleur
SHIMANO XT RD-M8100, Shadow Plus Design
Shift Levers
SHIMANO SLX SL-M7100-IR, RAPIDFIRE Plus, 12-speed
Cassette
SHIMANO SLX CS-M7101, 12-speed, 10-51T
Crank
SHIMANO SLX FC-M7120, Hollowtech II, 34T
Bottom Bracket
SHIMANO BB-MT500PA, PressFit, shell 41x92mm
Chain
SHIMANO DEORE CN-M6100
Wheels
Rims
DT Swiss M 1900 SPLINE®, CL, 15x110mm, Tubeless Ready
Tires
Schwalbe Nobby Nic, Performance, 29x2.40", ADDIX
Brakes
Brakes
SHIMANO M6120, 4 piston, hydraulic disc brake
Cockpit
Stem
ONE, Alloy, 35mm
Handlebar
ONE Alloy, 12mm rise, 35mm
Headset
ACROS AZX-220 R4, ZS44/28.6 - ZS56/40, BlockLock 150°
Seat
Saddle
Fizi:k Terra Aidon X5, Alloy
Seatpost
ONE Sport Dropper Post, Alloy, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.447 mm | 1.399 mm | 1.354 mm | 1.327 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 728 mm | 754 mm | 774 mm | 794 mm |
| Rake | 65 mm | 64 mm | 60 mm | 60 mm |
| Trail | 96 mm | 97 mm | 101 mm | 101 mm |
| Stack | 589 mm | 600 mm | 608 mm | 617 mm |
| Reach | 407 mm | 429 mm | 449 mm | 465 mm |
| Top Tube Length | 584 mm | 610 mm | 630 mm | 650 |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 393 mm | 431 mm | 482 mm | 533 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1154 mm | 1180 mm | 1200 mm | 1220 mm |
| Bottom Bracket Drop | 29 mm | 29 mm | 29 mm | 29 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 169 cm | 179 cm | 189 cm |
| Rider Max Height | 171 cm | 181 cm | 191 cm | 200 cm |
