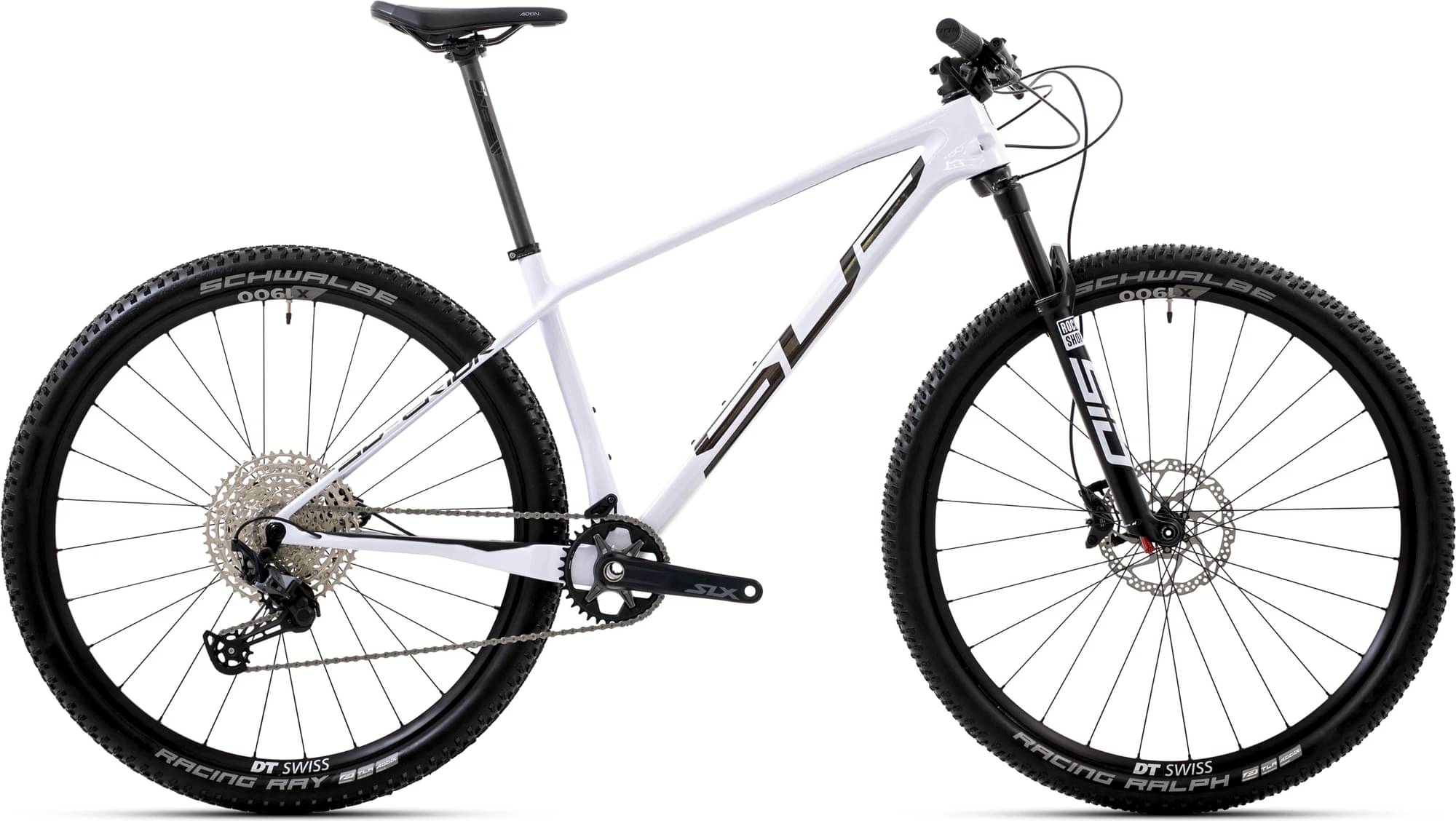

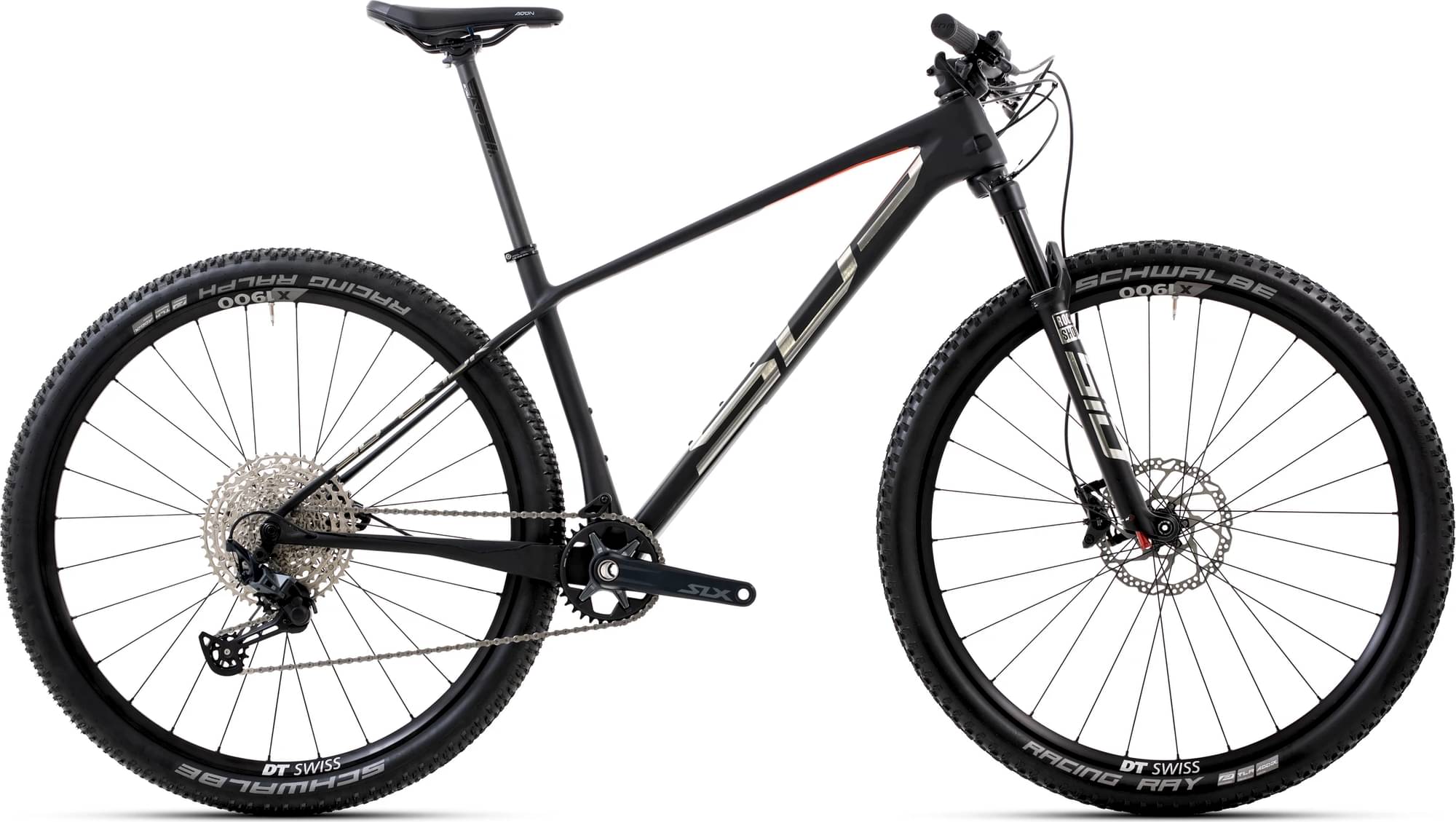

Superior XP 969 2025
2025 Mountain
Estimate price |
3,477$
Weight | 10.95 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Fork RockShox SID
-
Groupset SLX -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 171cm
MD
169cm - 181cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon MTB Mid Modulus, Advanced Race Geometry, Conical Head Tube, BB92, SH dropout, Thru Axle Boost 12x148mm, Inner cable routing
Suspension Fork
RockShox SID SL RL R, Tapered, DebonAir, 15x110mm axle, 100mm travel, 2 position
Drivetrain
Rear Derailleur
SHIMANO SLX RD-M7100, Shadow Plus Design
Shift Levers
SHIMANO SLX SL-M7100-IR, RAPIDFIRE Plus, 12-speed
Cassette
SHIMANO DEORE CS-M6100, 12-speed, 10-51T
Crank
SHIMANO SLX FC-M7100, Hollowtech II, 34T
Bottom Bracket
SHIMANO BB-MT500PA, PressFit, shell 41x92mm
Chain
SHIMANO DEORE CN-M6100
Wheels
Rims
DT Swiss X 1900 SPLINE®, CL, 15x110mm, Tubeless Ready
Tires
Schwalbe Racing Ray Performance, TL-Ready, 29x2.25", ADDIX SpeedGrip
Brakes
Brakes
SHIMANO M6100, hydraulic disc brake
Cockpit
Stem
ONE Race, Alloy, 31,8mm, -7°
Handlebar
ONE Race, Alloy, 5mm rise, 31.8mm
Headset
ACROS AZX-220 R4, ZS44/28.6 - ZS56/40, BlockLock 150°
Seat
Saddle
Fizi:k Terra Aidon X5, Alloy
Seatpost
ONE Race, Carbon, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.391 mm | 1.344 mm | 1.314 mm | 1.3 mm |
| Bottom Bracket Height | 319 mm | 319 mm | 319 mm | 319 mm |
| Front Center | 681 mm | 707 mm | 728 mm | 743 mm |
| Rake | 45 mm | 43 mm | 44 mm | 44 mm |
| Trail | 96 mm | 98 mm | 97 mm | 97 mm |
| Stack | 591 mm | 602 mm | 611 mm | 620 mm |
| Reach | 425 mm | 448 mm | 465 mm | 477 mm |
| Top Tube Length | 595 mm | 620 mm | 640 mm | 655 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 393 mm | 431 mm | 482 mm | 533 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1107 mm | 1133 mm | 1154 mm | 1169 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 169 cm | 179 cm | 189 cm |
| Rider Max Height | 171 cm | 181 cm | 191 cm | 200 cm |
