Bike details
Overview
Key information split into simple groups.

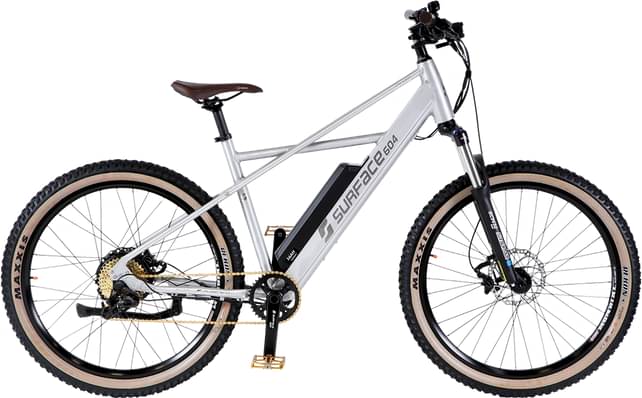

Bike summary
-
Category -
Wheels 27.5" -
Groupset X5 -
Suspension Rigid -
Motor Bafang hub-drive -
Battery Watt Hours: 672 Wh, Details: Samsung 18650 or 21700 (3,500mAh or 5,000mAh Cells), Reention Dorado Casing or Custom Casing 48 Volt, Lithium-ion, 14 Amp Hrs, (Optional 20 ah), 7.7 lbs, Weight: 7.7 lbs (3.49 kg) (672wh Battery, 10lb for 960wh Battery) -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Rear Derailleur
1x9 SRAM X5 or Shimano Alivio
Shift Levers
SRAM X5 or Shimano Alivio Triggers on Right
Cassette
1ZTTO 9S 11-36 Tooth (Nickel Chrome Gold) or 12 to 34 Tooth SRAM
Crank
Samox AF-38, Forged Alloy, 170 mm Length, Sealed Cartridge Bearings, Hollow Spindle, STYX 7075 CNC 38 Tooth Narrow-Wide Steel Chainring
Pedals
Aluminum Alloy Platform, Wide with Integrated Pins, Gold with Silver Accents (They May Switch to Black)
Wheels
Rims
27.5
Brakes
Brakes
Tektro Dorado Hydraulic Disc with 180 mm Rotors, Dual-Piston Calipers, Three-Finger Tektro Levers with Motor Inhibitors and Adjustable Reach
Cockpit
Stem
Ergotec 6+, Aluminum Alloy, 0° Rise, 50 mm Length, Base Height, 15 mm Tapered Spacer, Two 10 mm Spacers, One 5 mm Spacer, 31.8 mm Clamp Diameter
Handlebar
Aluminum Alloy, 40 mm Low-Rise, 20 mm Backsweep, 720 mm Width
Grips
Stitched Faux Leather, Ergonomic, Black, Locking
Headset
Surface 604 Branded, Integrated, Sealed Cartridge, Straight 1-1/8"
Seat
Saddle
Velo, Active, Brown
Seatpost
Aluminum Alloy with Forged Single-Bolt Clamp, 4 mm Hex Bolt for Seat Clamp (30.4 mm to 27.2 mm Shim and SR Suntour NCX Suspension Seatpost Shown on Demo Bike)
Motor & Battery
Motor
Type: Hub, Output: 500, Details: Bafang RM G360.500.DC, Weight: 7.7 lbs (3.49 kg)
Battery
Watt Hours: 672 Wh, Details: Samsung 18650 or 21700 (3,500mAh or 5,000mAh Cells), Reention Dorado Casing or Custom Casing 48 Volt, Lithium-ion, 14 Amp Hrs, (Optional 20 ah), 7.7 lbs, Weight: 7.7 lbs (3.49 kg) (672wh Battery, 10lb for 960wh Battery)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 17.5" |
|---|---|
| Wheels | 27" |
About this model
Quad completes the Surface604 E Quad model. There are 2 e-bikes that carry this model name.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry e-bikes
According to our math, the average price for a trustworthy Crosscountry e-bike is 2453$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Surface 604 Quad price was 2599$. Doing a quick comparison, we notice that Quad price is 5.95% higher than the average cost of a Crosscountry e-bike.
Quad components
Wheels
As for the wheels, Surface 604 Quad 2023, has a 27.5″ aluminum model. These wheels will provide you with more control over the e-bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Surface 604 Quad is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
