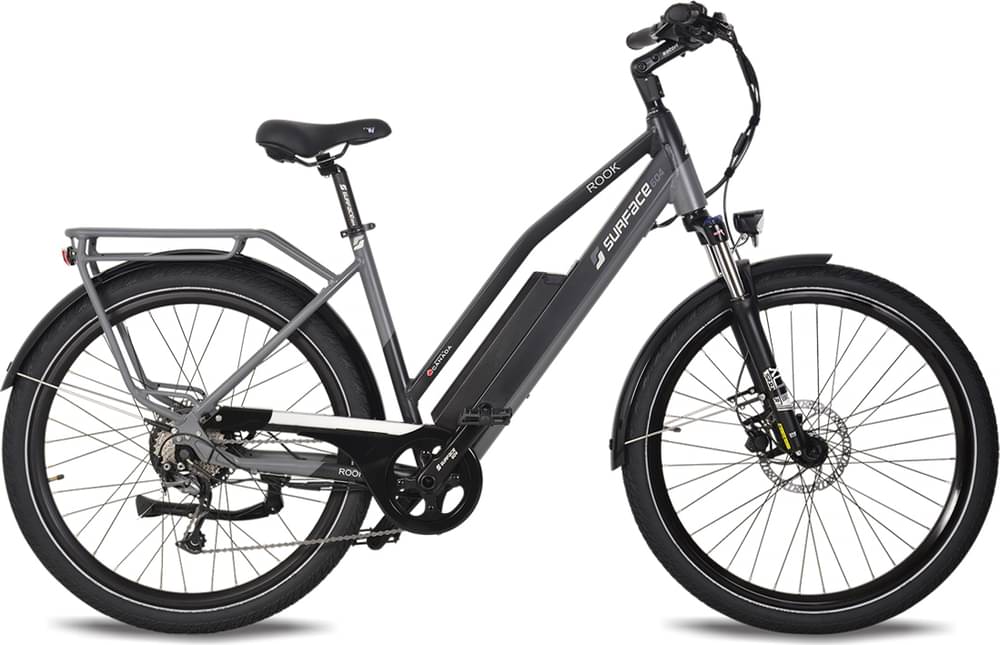

Surface 604 Rook 2021
2021 E-bike
Estimate price |
3,399$
Weight | 27.75 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b -
Travel Front 80mm -
Fork SunTour XCT
-
Groupset X5 -
Suspension Hardtail -
Motor Bafang 500W 45Nm hub-drive -
Battery Weight: 7.7 lbs (3.49 kg) (672wh Battery, 10lb for 960wh Battery), Brand: Samsung 18650 or 21700 (3,500mAh or 5,000mAh Cells), Reention Dorado Casing or Custom Casing, Voltage: 48 volts, Amp Hours: 14 ah (Optional 20ah), Watt Hours: 672 wh (Optional 960wh), Chemistry: Lithium-ion -
Drivetrain 1 × 9 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Aluminum Alloy
Suspension Fork
SR Suntour XCT Spring Suspension, 80mm Travel, 28mm Steel Stanchions, Lockout Adjust, Preload Adjust, 100mm Hub Spacing, 9mm Axle with Quick Release Skewer
Drivetrain
Shift Levers
SRAM X5 or Shimano Alivio Triggers on Right
Cassette
9 Speed 1x9 SRAM X5 or Shimano Alivio Derailleur, Shimano CS-HG201-9 Cassette 11-34 Tooth
Crank
Samox, Forged Alloy, 170mm Length, Sealed Cartridge Bearings, Hollow Spindle, 42 Tooth Steel Chainring
Pedals
Wellgo Aluminum Alloy Platform, Wide with Integrated Pins, Black
Wheels
Rims
Double Wall, 6061 Aluminum Alloy, 35mm Outer Width, 36 Hole, Black
Spokes
Stainless Steel, 13 Gauge, Black
Tires
Custom Panaracer, 27.5" x 2.40" (60-584)
Cockpit
Stem
Surface 604 Branded, Adjustable Angle 0° to 90°, 70mm Base Height, 110mm Length, One 20mm Tapered Spacer, Two 10mm Spacers, 31.8mm Clamp Diameter
Handlebar
Aluminum Alloy, 30mm Low-Rise, 700mm Length, 15° Backsweep
Grips
Stitched Faux Leather, Ergonomic, Black, Locking
Headset
Surface 604 Branded, Integrated, Sealed Cartridge, Straight 1-1/8"
Seat
Saddle
Selle Royal FreeWay, Gel
Seatpost
Aluminum Alloy with Forged Single-Bolt Clamp
Motor & Battery
Motor
Weight: 7.7 lbs (3.49 kg), Brand: Bafang RM G020.500.DC, Type: Rear-Mounted Geared Hub, Nominal Output: 500 watts, Peak Output: 750 watts, Torque: 45 Newton meters
Battery
Weight: 7.7 lbs (3.49 kg) (672wh Battery, 10lb for 960wh Battery), Brand: Samsung 18650 or 21700 (3,500mAh or 5,000mAh Cells), Reention Dorado Casing or Custom Casing, Voltage: 48 volts, Amp Hours: 14 ah (Optional 20ah), Watt Hours: 672 wh (Optional 960wh), Chemistry: Lithium-ion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm |
|---|---|
| Wheels | 650 |
| Rider Min Height | 120 cm |
Model Overview
Rook is a Surface604 E Rook model. There are 2 e-bikes that carry this model name.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Commuter e-bikes average price
Our math shows that the average cost of a dependable Commuter e-bike is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2021 for 3399$. Doing a quick comparison, we notice that Rook price is 32.31% higher than the average cost of a Commuter e-bike.
Average weight for Commuter e-bikes
Commuter e-bikes have an average weight of 25.2 kg (55.56 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 27.75 kg (61.18 lbs), the Rook model is considerably heavier than average. In other words, this model is 10.12% heavier than the average Commuter e-bike.
Rook components
Fork
Surface 604 Rook 2021 e-bike is equipped with the SunTour XCT fork, and has 80mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
When it comes to the fork, this e-bike has a steel one, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the e-bike.
Wheels size
The wheels on Rook are the aluminum type. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Rook comes with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they have problems in wet conditions.
