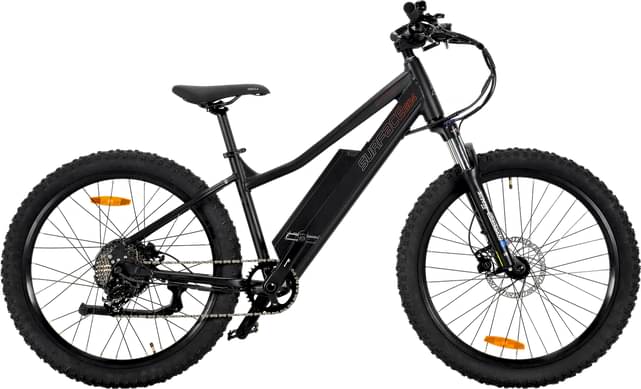

Surface 604 Shred XS 2023
2023 E-bike
Estimate price |
2,599$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Fork Suntour XCM -
Groupset X5 -
Suspension Rigid -
Motor Bafang hub-drive -
Battery Watt Hours: 672 Wh, Details: Samsung 18650 or 21700 (3,500mAh or 5,000mAh Cells), Reention Dorado Casing 48 Volt, Lithium-ion, 14 Amp Hrs, (Optional 20 ah 960 watt hour upgrade), 7.7 lbs, Weight: 7.7 lbs (3.49 kg) (672wh Battery, 10lb for 960wh Battery) -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Aluminum Alloy
Suspension Fork
SR Suntour XCM 32 Boost Spring Suspension, 110mm Travel, Compression Adjust with Lockout, Preload Adjust, 32mm Steel Stanchions, 110mm Hub Spacing, 15mm Thru Axle with 6mm Hex Bolts
Drivetrain
Rear Derailleur
SRAM X5 9-Speed 1-Piece Forged CNC with 2 Sealed Bearings
Shift Levers
SRAM X5 Triggers on Right (One-Way High Lever, Three-Shift Low Lever)
Cassette
SRAM 11-36 Tooth Cassette
Crank
Samox, Forged Alloy, Sealed Cartridge Bearings, Hollow Spindle, 170 mm Length, 38 Tooth Narrow Wide Alloy Chainring
Pedals
Wellgo Aluminum Alloy Platform with Fixed Pins
Wheels
Rims
26"
Spokes
Stainless Steel, 13 Gauge Front and 12 Gauge Rear, Black with Adjustable Nipples
Tires
Innova, 26" x 2.8" (70-559)
Brakes
Brakes
Tektro Auriga E-Comp Hydraulic Disc with 180 mm Rotors, Dual-Piston Calipers with Resin Composite Pads, Three-Finger Tektro Levers with Adjustable Reach and Motor Inhibitors
Cockpit
Stem
Surface 604 Branded, Aluminum Alloy, 0° Angle, 60 mm Length, 20 mm Tapered Base Spacer, Two 10 mm Spacers
Handlebar
Aluminum Alloy, Low-Rise, 700 mm Length
Grips
Velo, Flat Rubber, Non-Locking, Black
Headset
Integrated, Sealed Cartridge, Straight 1-1/8" to 1-1/2" Head Tube with Straight Fork Post
Seat
Saddle
Selle Royal, Royalgel Nebula
Seatpost
Alloy, Forged Head, Dual Bolt
Motor & Battery
Motor
Type: Hub, Output: 500, Details: Bafang RM G360.500.DC, Weight: 9 lbs (4.08 kg)
Battery
Watt Hours: 672 Wh, Details: Samsung 18650 or 21700 (3,500mAh or 5,000mAh Cells), Reention Dorado Casing 48 Volt, Lithium-ion, 14 Amp Hrs, (Optional 20 ah 960 watt hour upgrade), 7.7 lbs, Weight: 7.7 lbs (3.49 kg) (672wh Battery, 10lb for 960wh Battery)
Charger
1.4 lb 2 Amp Charger, Optional 4 Amp Fast Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" |
|---|---|
| Wheels | 26" |
Model Overview
Shred XS completes the Surface604 E Shred model. 3 e-bikes variations carry this model name so far.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Mountain e-bikes average price
According to our math, the average price for a trustworthy Mountain e-bike is 1448$. However, even though the average price of a Mountain e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2599$. Comparing this to the average Mountain e-bike price, we see that the price is 79.49% more expensive.
Overview of components
Fork
This e-bike has the Suntour XCM fork installed. The fork’s travel is mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
The fork is made out of steel, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the e-bike.
Wheels
When it comes to wheels, the Shred XS e-bike is equipped with the 26″ aluminum model. Being a little smaller, these wheels will fit both small and tall riders. However, they provide less traction than 29″ wheels do.
Brakes
Nothing is more important on a bike than its ability to brake properly. Surface 604 Shred XS is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
