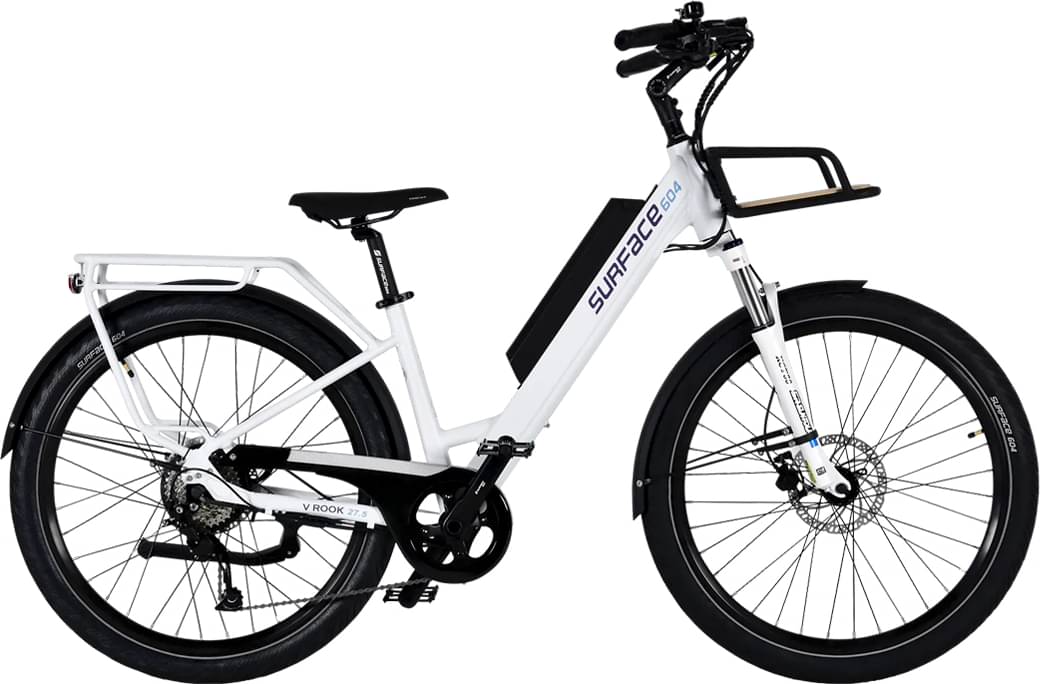

Surface 604 V Rook 2023
2023 E-bike
Estimate price |
2,599$
Weight | 30.75 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 80mm -
Fork Suntour XCT
-
Groupset Alivio -
Suspension Hardtail -
Motor Bafang 500W 45Nm hub-drive -
Battery Weight: 7.7 lbs (3.49 kg) (672wh Battery, 10lb for 960wh Battery), Brand: Samsung 18650 or 21700 (3,500mAh or 5,000mAh Cells), Reention Dorado Casing, Voltage: 48 volts, Amp Hours: 14 ah (Optional 20ah), Watt Hours: 672 wh (Optional 960wh), Chemistry: Lithium-ion -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Aluminum Alloy
Suspension Fork
SR Suntour XCT 30 Spring Suspension, 80mm Travel, Steel Stanchions, Lockout Adjust, Preload Adjust, 100mm Hub Spacing, 9mm Axle with Quick Release Skewer
Drivetrain
Shift Levers
Shimano Alivio Triggers on Right with Optical Gear Windowo (One Way High Lever, Three Shift Low Lever)
Cassette
9 Speed 1x9 Shimano Alivio Derailleur, Shimano CS-HG201-9 Cassette 11-34 Tooth
Crank
Samox, Forged Alloy, 170mm Length, Sealed Cartridge Bearings, Hollow Spindle, 42 Tooth Steel Chainring
Pedals
Wellgo Aluminum Alloy Platform, Wide with Integrated Pins, Black
Wheels
Rims
Double Wall, 6061 Aluminum Alloy, 35mm Outer Width, 36 Hole, Black
Spokes
Stainless Steel, 13 Gauge, Black
Tires
Custom Surface 604 Branded, 27.5" x 2.40" (60-584)
Brakes
Brakes
Tektro Auriga Hydraulic Disc with 180mm Rotors, Dual-Piston Calipers, Three-Finger Tektro Levers Motor Inhibitors and Brake Light Activation and Adjustable Reach
Cockpit
Stem
Surface 604 Branded, Adjustable Angle 0° to 90°, 70mm Base Height, 90mm Length, One 20mm Tapered Spacer, Two 10mm Spacers, 31.8mm Clamp Diameter
Handlebar
Aluminum Alloy, 30mm Low-Rise, 680mm Length, 45° Backsweep
Grips
Stitched Faux Leather, Ergonomic, Black, Locking
Headset
Surface 604 Branded, Integrated, Sealed Cartridge, Straight 1-1/8"
Seat
Saddle
Selle Royal Essenza Plus
Seatpost
Aluminum Alloy with Forged Single-Bolt Clamp
Motor & Battery
Motor
Weight: 7.5 lbs (3.4 kg), Brand: Bafang RM G020.500.DC, Type: Rear-Mounted Geared Hub, Nominal Output: 500 watts, Peak Output: 750 watts, Torque: 45 Newton meters
Battery
Weight: 7.7 lbs (3.49 kg) (672wh Battery, 10lb for 960wh Battery), Brand: Samsung 18650 or 21700 (3,500mAh or 5,000mAh Cells), Reention Dorado Casing, Voltage: 48 volts, Amp Hours: 14 ah (Optional 20ah), Watt Hours: 672 wh (Optional 960wh), Chemistry: Lithium-ion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16.5" |
|---|---|
| Wheels | 650 |
| Rider Min Height | 120 cm |
Model Overview
V Rook is part of the Surface604 E V model. There is 1 e-bike that carries this model name.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Commuter e-bikes average price
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
When Surface 604 released this model in 2023, its price was 2599$. Doing a quick comparison, we notice that V Rook price is 1.17% higher than the average cost of a Commuter e-bike.
Commuter e-bikes average weight
Commuter e-bikes have an average weight of 24.02 kg (52.95 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Surface 604 V Rook it’s weighing 30.75 kg (67.79 lbs). At this weight, is much heavier than average. In conclusion, the average Commuter e-bike weighs 28.02% less than V Rook.
V Rook components
Fork
This e-bike has the Suntour XCT fork installed. The fork’s travel is 80mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
When it comes to the fork, this e-bike has a steel one, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels size
When it comes to wheels, the V Rook e-bike is equipped with the aluminum model. After 700c wheels, 650b is the second most popular choice for road bikes. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
