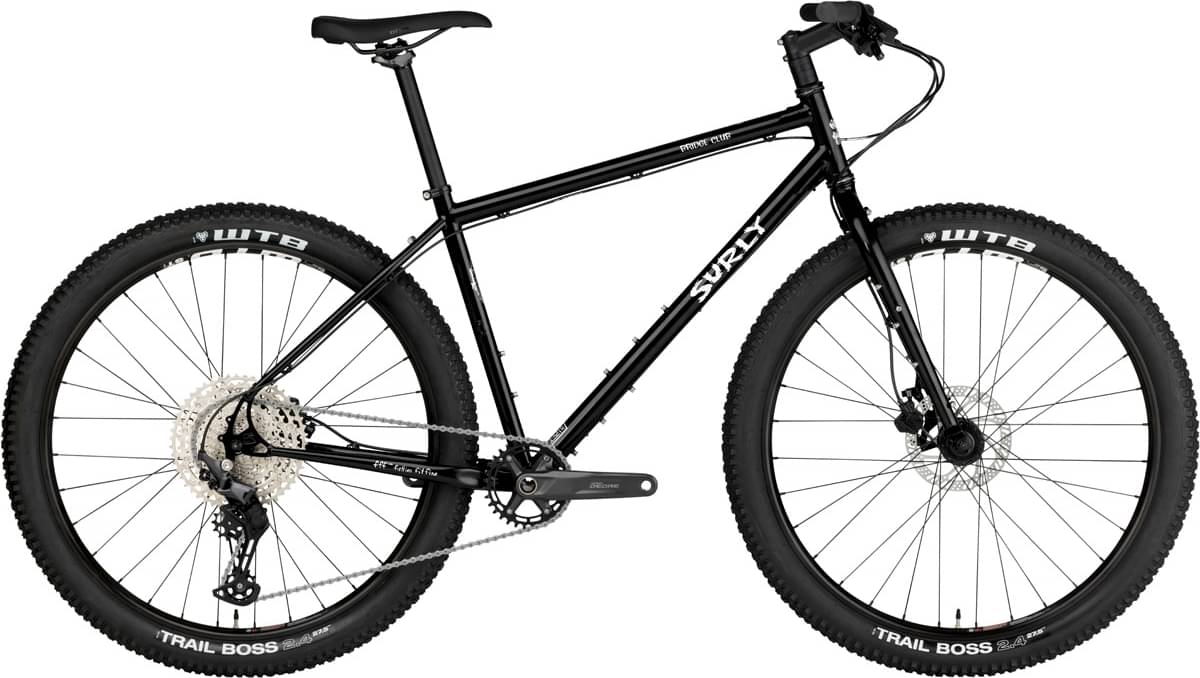

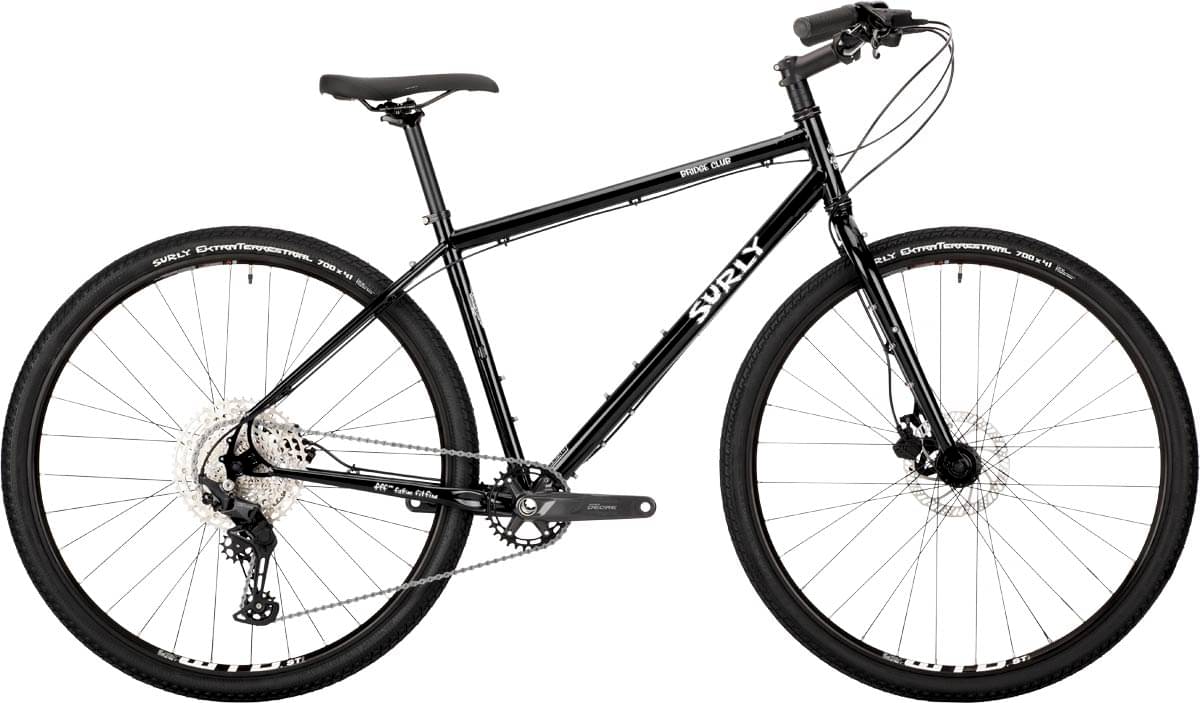

Surly Bridge Club Black, 700c 2024
2024 Road
Estimate price |
1,499$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Groupset Deore -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Surly Bridge Club
Suspension Fork
Surly Bridge Club
Drivetrain
Rear Derailleur
Shimano Deore M5100 Shadow Plus
Front Derailleur
N/A
Shift Levers
Shimano Deore M5100 Rapid Fire
Cassette
Shimano Deore CSM5100 11-51t
Crank
Shimano Deore M5100 32t
Bottom Bracket
Shimano BSA
Chain
KMC X11 EPT
Wheels
Front Hub
Novatec 9x100 QR
Rear Hub
Novatec 9x141 QR 11-spd
Rims
WTB ST i21 TCS
Tires
Surly Extraterrestrial 700x41, 60tpi Tubeless Ready
Brakes
Brakes
Tektro HD-M275
Brake Levers
Tektro HD-M275
Cockpit
Stem
Promax, 31.8mm
Handlebar
Surly Terminal Bar, XS,S - 718mm, M,L,XL - 735m
Headset
Cane Creek 40
Seat
Saddle
WTB Volt 142
Seatpost
Promax, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.471 mm | 1.428 mm | 1.375 mm | 1.358 mm | 1.372 mm |
| Front Center | 604 mm | 620 mm | 645 mm | 665 mm | 681 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 74 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Stack | 553 mm | 567 mm | 576 mm | 590 mm | 609 mm |
| Reach | 376 mm | 397 mm | 419 mm | 434.5 mm | 444 mm |
| Top Tube Length | 545 mm | 570 mm | 595 mm | 615 mm | 630 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 335.6 mm | 406.4 mm | 457.2 mm | 508 mm | 558.8 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 145 mm | 165 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1032 mm | 1047 mm | 1073 mm | 1093 mm | 1109 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 709 mm | 750 mm | 780 mm | 812 mm | 845 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
