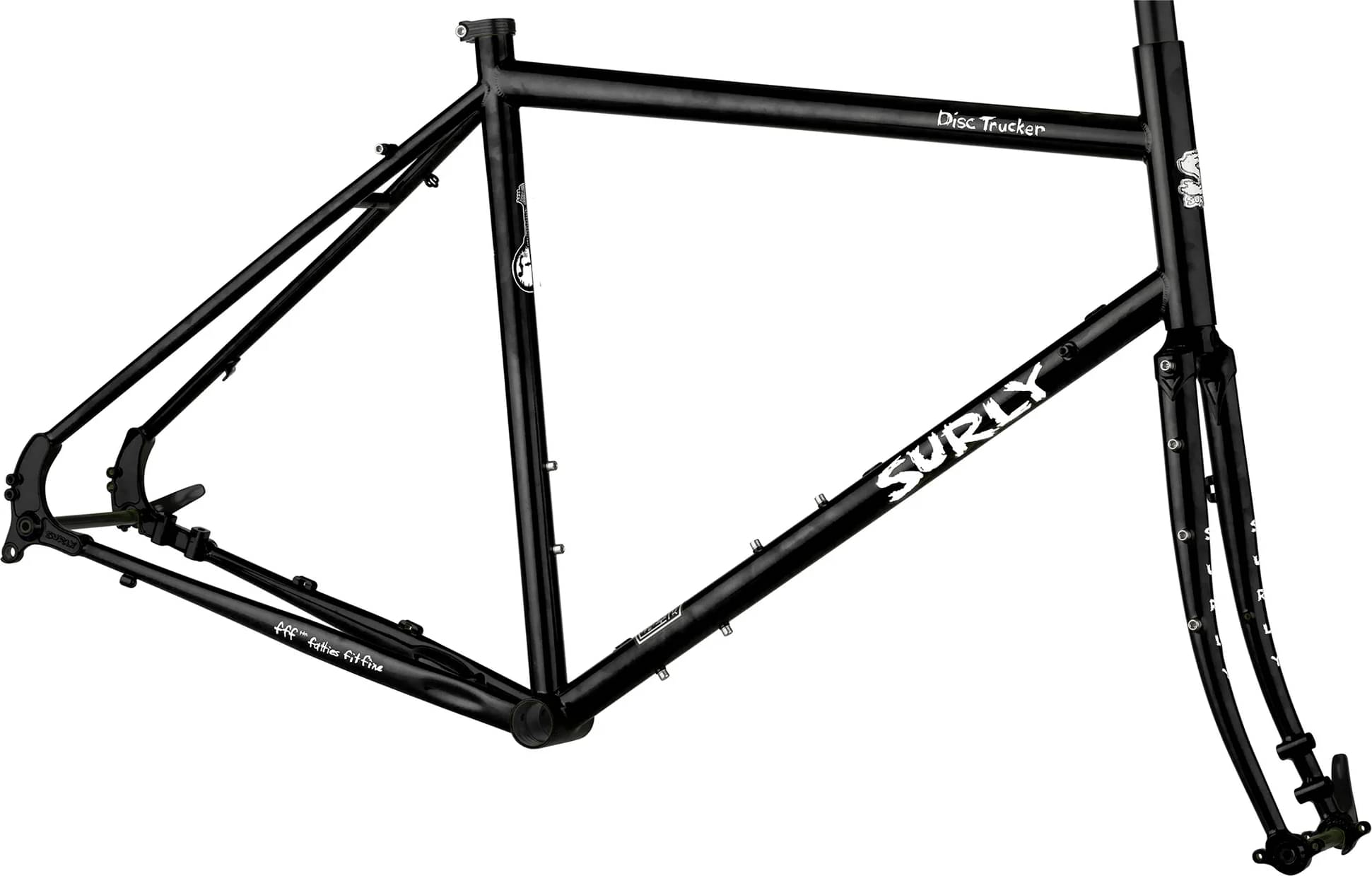

Surly Disc Trucker 26" Frameset 2025

Bike details

Overview

Key information split into simple groups.

Parts list

Components

Surly Disc Trucker: 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated

Surly Disc Trucker: 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated

68mm threaded (1.37" x 24TPI)

26 x 2.0" or 700c x 47mm

Disc - Flat Mount (160mm max rotor) – 25mm thick mount / 32mm bolt length

Ø27.2mm

Fit data

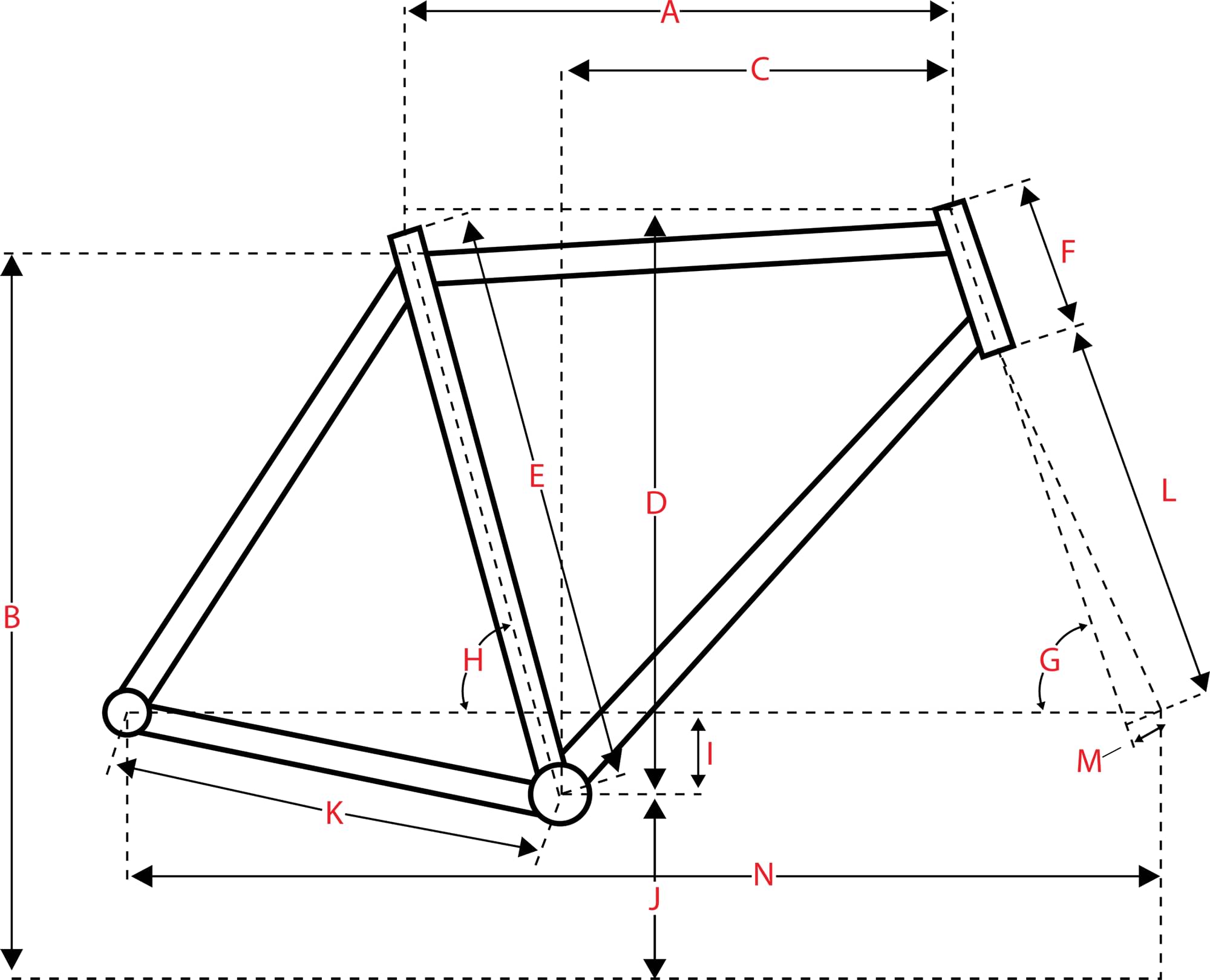

Geometry

Numbers for sizing and ride feel.

Size	42cm	46cm	50cm	52cm	54cm	56cm
Stack Reach Ratio	1.423 mm	1.402 mm	1.52 mm	1.537 mm	1.573 mm	1.582 mm
Front Center	581 mm	592 mm	595 mm	605 mm	615 mm	631 mm
Rake	45 mm	45 mm	45 mm	45 mm	45 mm	45 mm
Trail	63 mm	63 mm	57 mm	57 mm	57 mm	57 mm
Stack	515 mm	520 mm	561 mm	575.5 mm	594.5 mm	613 mm
Reach	362 mm	371 mm	369 mm	374.5 mm	378 mm	387.5 mm
Top Tube Length	500 mm	515 mm	530 mm	545 mm	560 mm	575 mm
Seat Tube Angle	75 °	74.5 °	74 °	73.5 °	73 °	73 °
Seat Tube Length	420 mm	460 mm	500 mm	520 mm	540 mm	560 mm
Head Tube Angle	70 °	70 °	71 °	71 °	71 °	71 °
Head Tube Length	125 mm	130 mm	170 mm	185 mm	205 mm	225 mm
Chainstay Length	450 mm	450 mm	450 mm	450 mm	450 mm	450 mm
Wheelbase	1026 mm	1037 mm	1040 mm	1050 mm	1060 mm	1076 mm
Bottom Bracket Drop	50 mm	50 mm	50 mm	50 mm	50 mm	50 mm
Standover Height	710 mm	731 mm	766 mm	782 mm	800 mm	819 mm
Wheels	26"	26"	26"	26"	26"	26"
