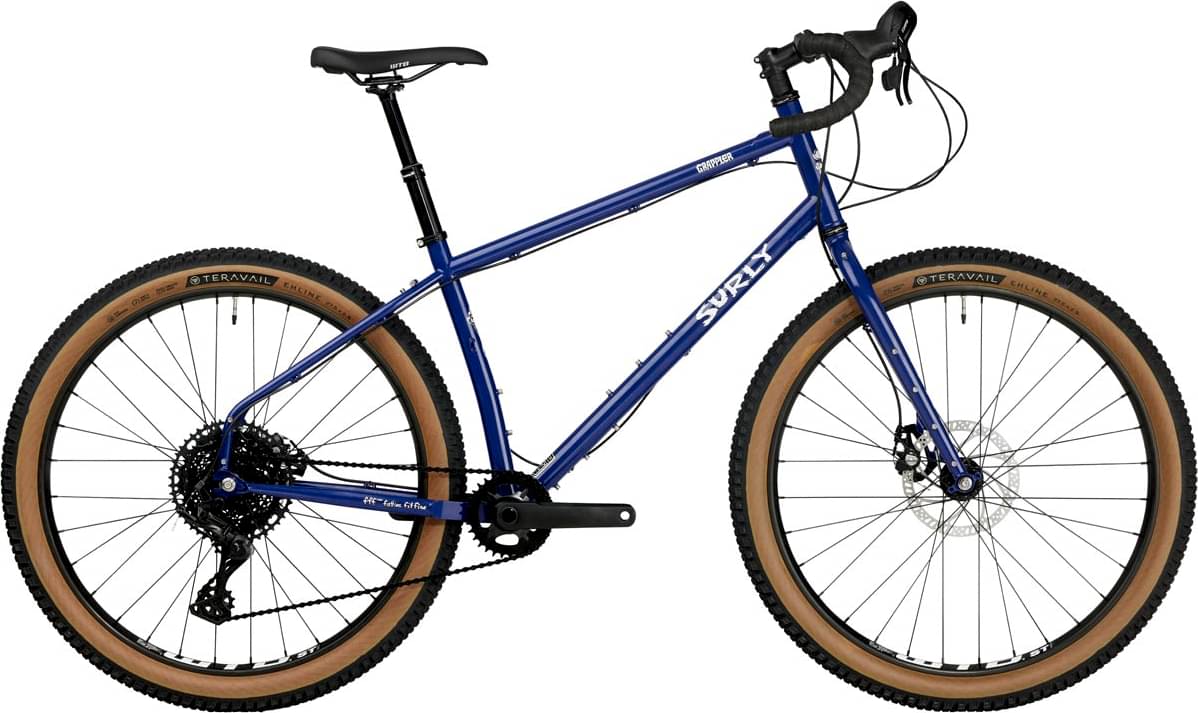

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Groupset microSHIFT Advent X -
Suspension Rigid -
Drivetrain 1 × 10 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
100% Chromoly Steel frame, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
Suspension Fork
Surly Dinner Fork, 100% Chromoly Steel fork, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated
Drivetrain
Rear Derailleur
microSHIFT M6205
Front Derailleur
N/A
Shift Levers
microSHIFT SB-M100A, AdventX Dual Control Levers
Cassette
microSHIFT 11-48t
Crank
Samox BSA 2PCS Boost 32t
Bottom Bracket
Samox BSA
Chain
KMC X10 Black
Wheels
Front Hub
Novatec 15x110mm, 32h
Rear Hub
Novatec 12x148mm, 32h
Rims
WTB ST i40 TCS
Tires
Teravail Ehline, 27.5 x 2.5", 60tpi
Brakes
Brakes
Tektro Mira MD-C400
Brake Levers
microSHIFT AdventX Dual Control Levers
Cockpit
Stem
Promax DA-296, 31.8mm
Handlebar
Salsa Cowchipper 31.8mm
Headset
Cane Creek 40
Seat
Saddle
WTB Volt 142
Seatpost
TransX YSP15 Dropper, 360mm, 100mm travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.535 mm | 1.491 mm | 1.483 mm | 1.444 mm | 1.441 mm |
| Front Center | 637 mm | 668 mm | 689 mm | 720 mm | 742 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 64 mm | 65 mm | 66 mm | 65 mm | 65 mm |
| Stack | 585 mm | 604 mm | 623 mm | 641 mm | 660 mm |
| Reach | 381 mm | 405 mm | 420 mm | 444 mm | 458 mm |
| Top Tube Length | 560 mm | 590 mm | 610 mm | 640 mm | 660 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 316 mm | 386 mm | 437.2 mm | 488 mm | 539 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 160 mm | 180 mm | 200 mm | 220 mm | 240 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1057 mm | 1088 mm | 1109 mm | 1140 mm | 1162 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 719 mm | 762 mm | 796 mm | 830 mm | 863 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 142 cm | 152 cm | 165 cm | 175 cm | 185 cm |
