Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset 105 Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Shimano 105 Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Quadro Racevox Full Carbon Mitsubishi Light Weight Hr40/Mr60.
Suspension Fork
Racevox Full Carbon, Espiga Cônica, Eixo E-Thru 12x100mm, Sistema De Freio Flat Mount.
Drivetrain
Shift Levers
Shimano 105 Di2 De 12 Velocidades Di2 Wirelles St-R7170 / Br-R7170.
Cassette
Shimano 105 Cs-R7101, 12 Velocidades - 11-12-13-14-15-17-19-21-24-27-30-34t.
Crank
Shimano 105 Fc-R7100 Hollowtech Ii 52-36t, 170mm 49cm E 172.5mm 51/54/56cm - 175mm 59cm.
Bottom Bracket
Pf30 Fsa Com Tecnologia Bb386evo Incluso Redutores Para Eixo De 24mm Shimano.
Chain
Shimano 105 Cn-M7100, 112links De 12 Velocidades.
Wheels
Rims
Mavic Ksyrium 30 Disc, Altura Do Aro: 30mm, E-Thru 12x100mm, Center Lock, Largura Interna: 19 Mm Ust Tubeless - 823g - Etrto Size: 622x19tc - 24 Raios TLR, *As cores dos adesivos podem sofrer variações de tamanhos e cor sem prévio aviso*
Tires
Michelin 700x28c Power Cup Em Kevlar.
Brakes
Brakes
Shimano 105 Hidráulico St-R7170.
Cockpit
Stem
Swift Alloy Al6061-T6, Ø31.8mm, Ângulo -8° - 90mm 49cm /100mm 51/54cm - 110mm 56/59cm.
Handlebar
Swift Alloy 6061 Ergonômico, Ø31.8mm, Flare: 4° Drop: 125mm, Bar Reach:78mm - 400mm (49) - 420mm (52/54) - 440mm (56/59cm)Rota Interna De Cabeamento.
Headset
Token Hs-958, Compressor 1-1/8' Para Garfo Em Carbono
Seat
Saddle
Fizik Argo Vento R5 140mm
Fit data

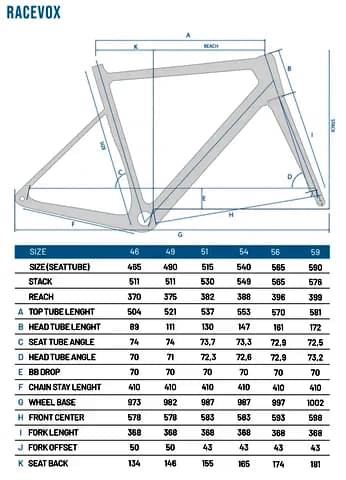

Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 51cm | 54cm | 56cm | 59cm |
|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 |
