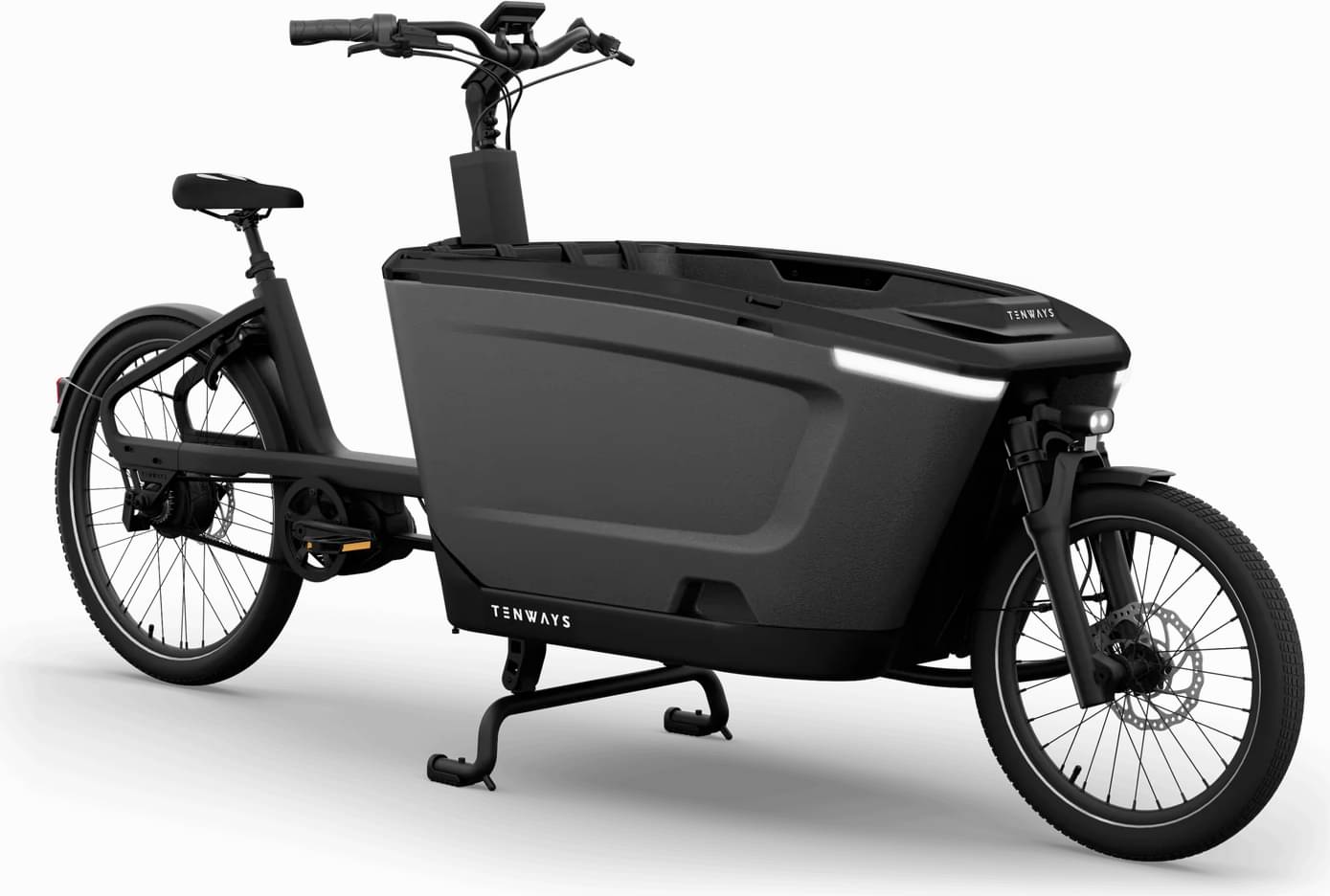

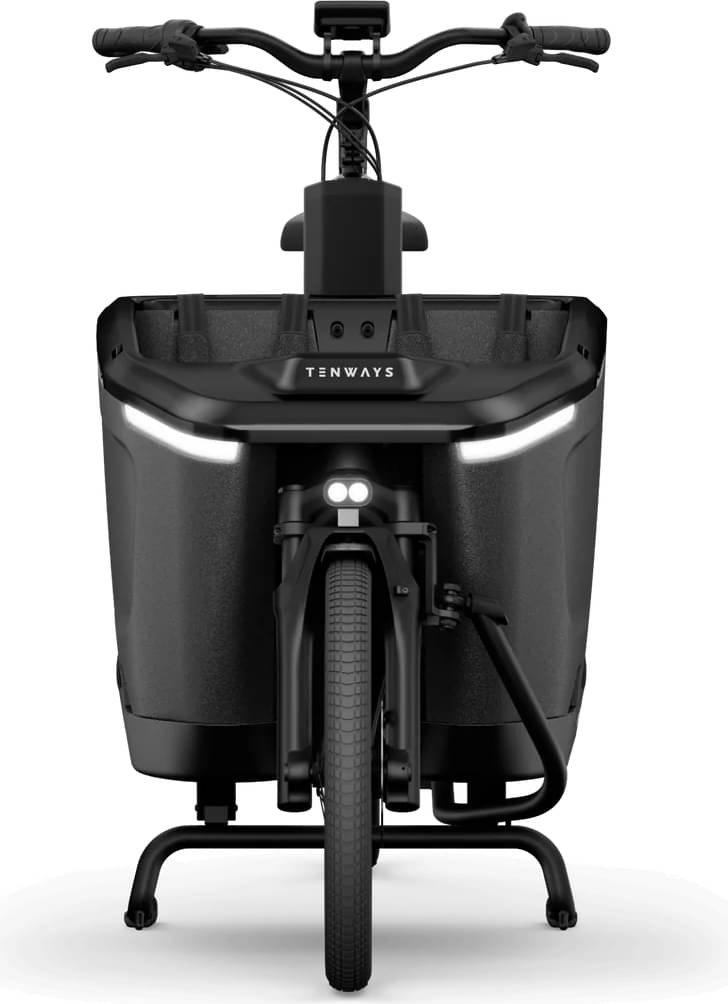

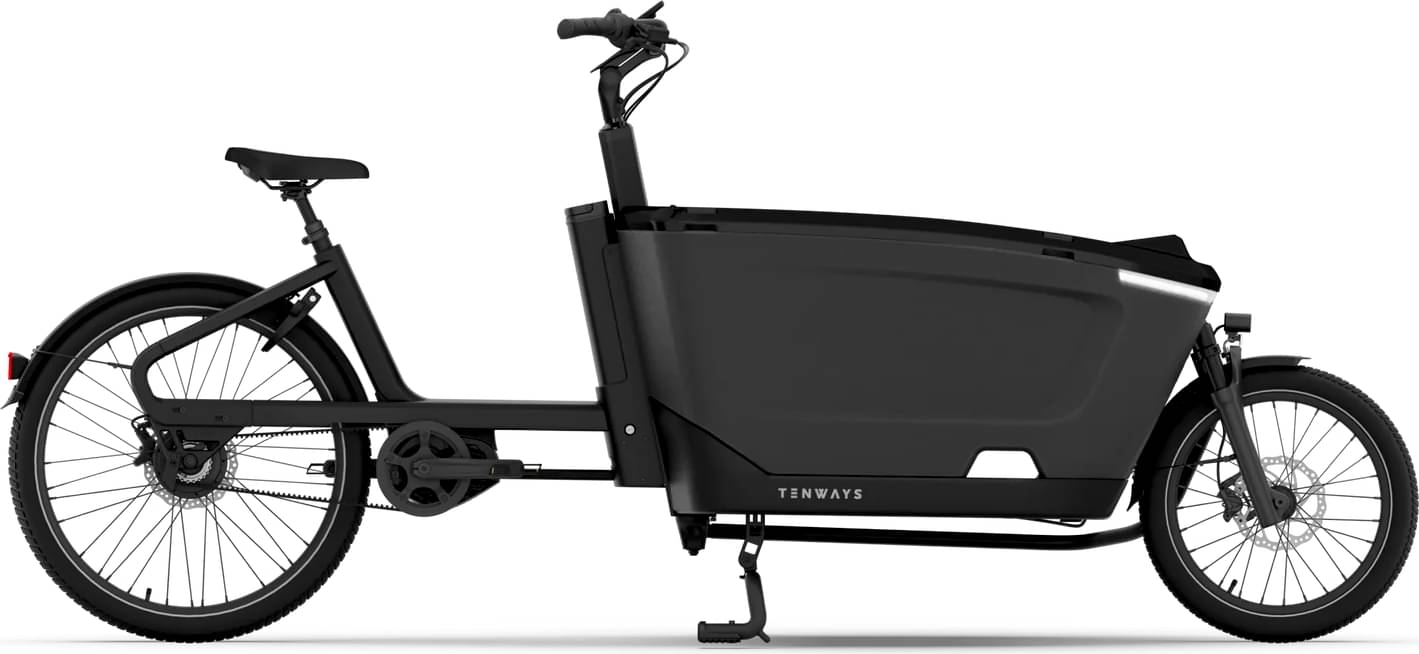

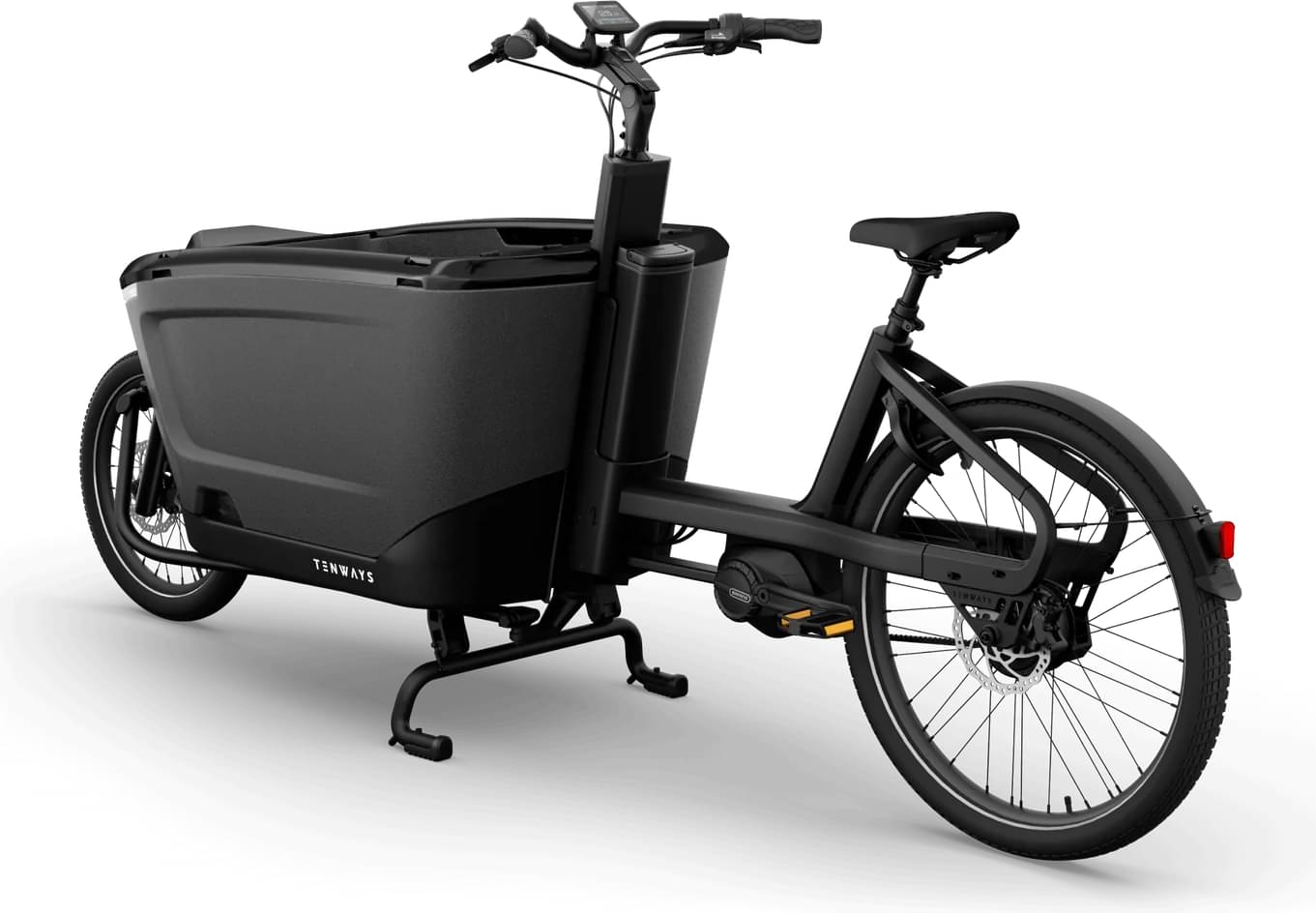

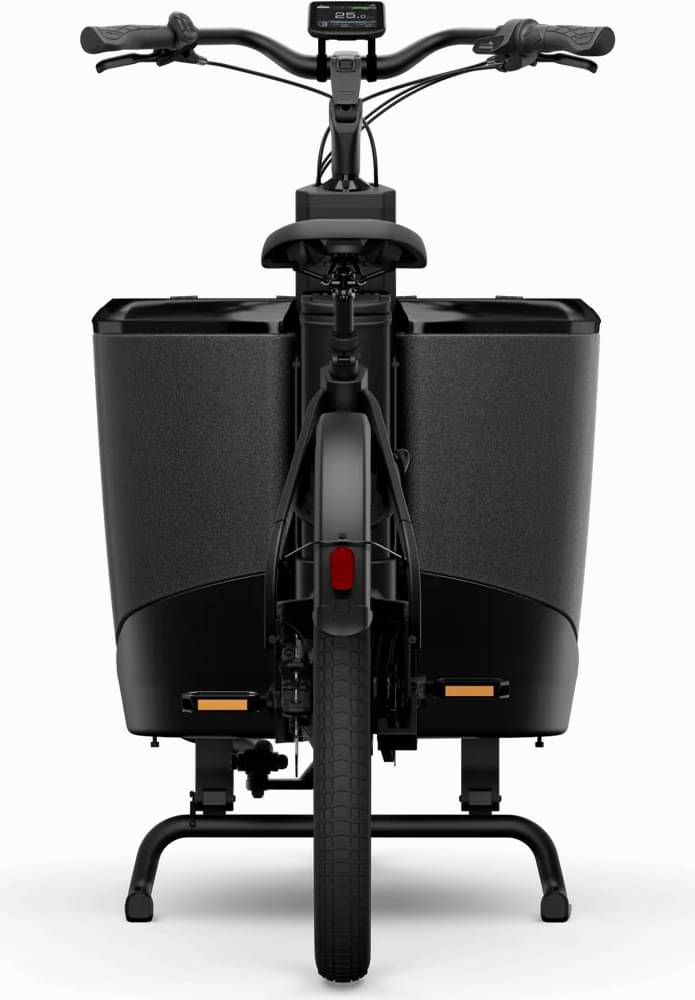

tenways CARGO ONE Electric Cargo Bike 2024

2024 E-bike
Estimate price | 5,816$
E-bike

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Frame Aluminum
  • Fork Suntour
  • Suspension Hardtail
  • Motor Bafang 250W 100Nm mid-drive
  • Battery 960Wh (48V, 20Ah) Lithium-ion Battery with LG Cells
  • Brakes Hydraulic Disc

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

6061 Aluminium Frame

Suspension Fork

SR SUNTOUR Suspension Front Fork

Drivetrain

Rear Derailleur

Enviolo Stepless Shifting Hub

Crank

Aluminium Alloy Crankset

Bottom Bracket

Fully-concealed Bottom Bracket

Wheels

Rims

6061 Aluminium Rims

Tires

SCHWALBE 20''*2.15/26''*2.15 Puncture-proof Tires

Brakes

Brakes

Tektro Four-piston Hydraulic Disc Brakes

Seat

Saddle

Selle Royal Saddle

Motor & Battery

Motor

Bafang M600 Cargo (250W Power, 100 Nm Max. Torque)

Battery

960Wh (48V, 20Ah) Lithium-ion Battery with LG Cells

Remote

Integrated Controller of the Mid-drive Motor

Fit data

Geometry

Numbers for sizing and ride feel.

SizeSIZE (mm)One Size
Top Tube Length
653.5 mm mm
Seat Tube Angle
69.1 ° °
Seat Tube Length
485 mm mm
Head Tube Angle
64.4 ° °
Head Tube Length
85 mm mm
Chainstay Length
436 mm mm
Wheelbase
2030 mm mm
Standover Height
443 mm mm
Wheels26"26"
