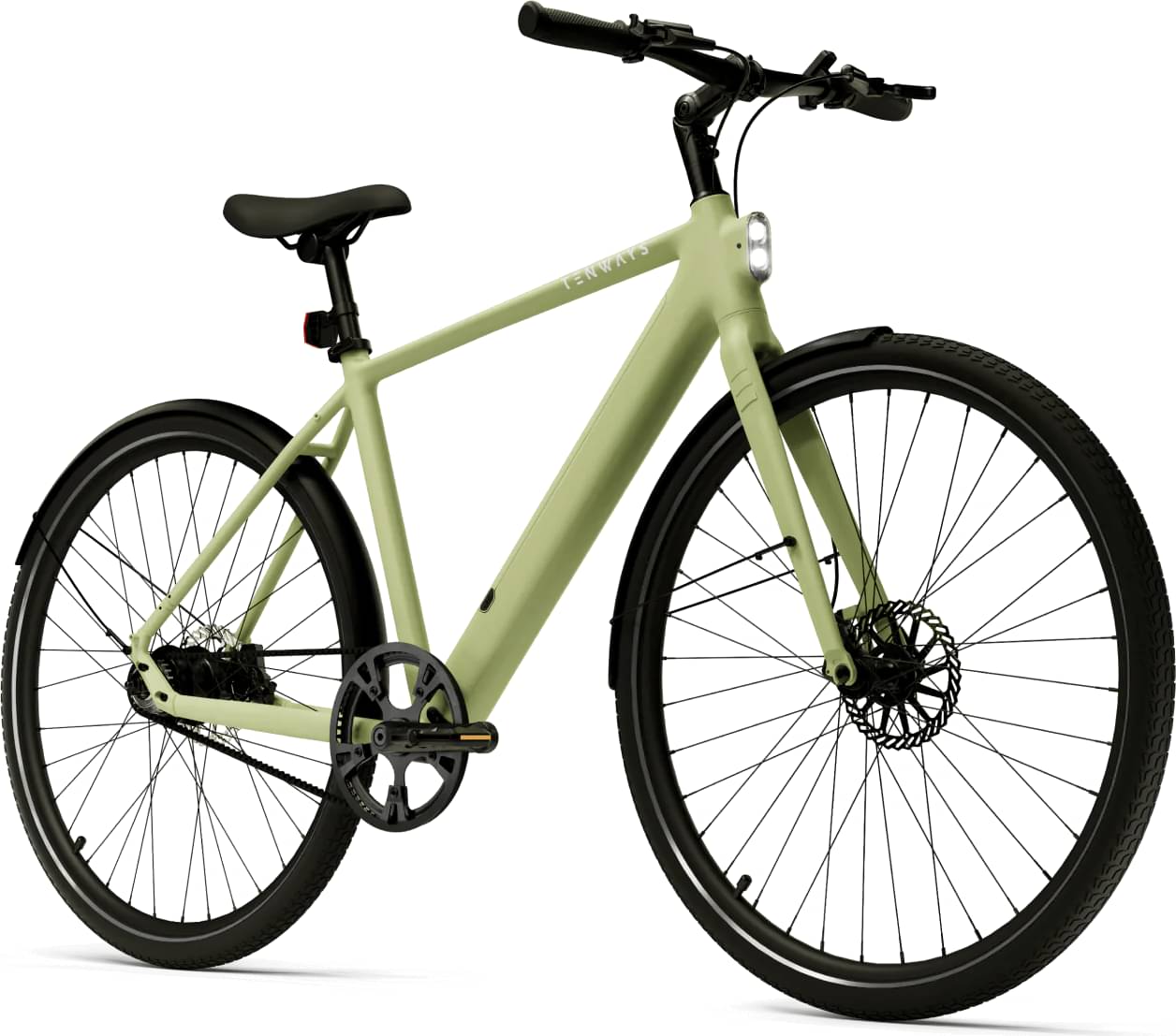

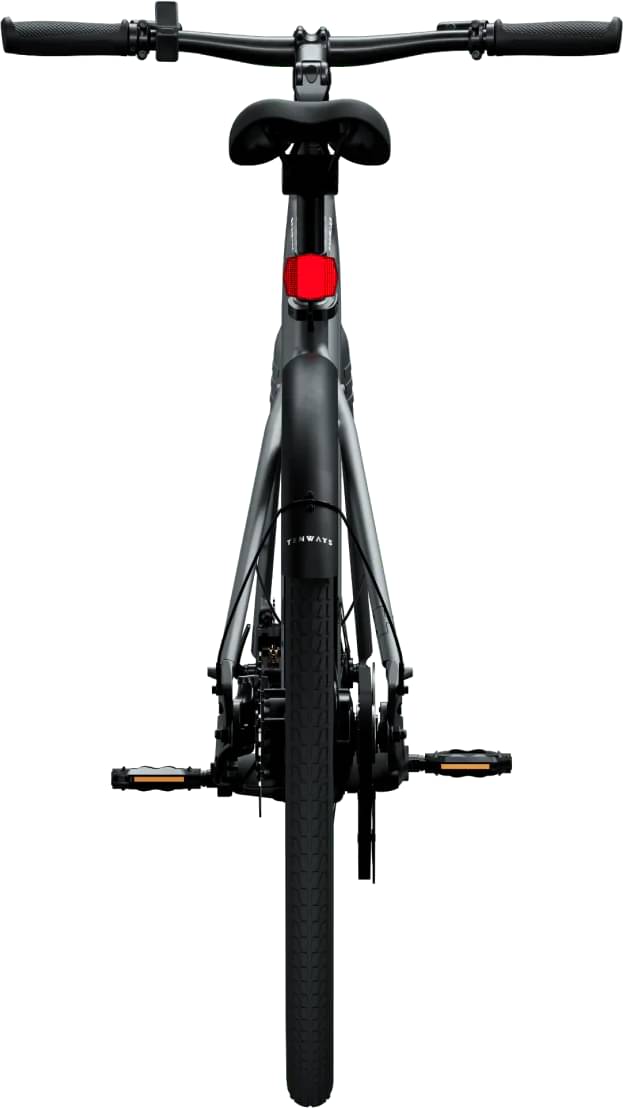

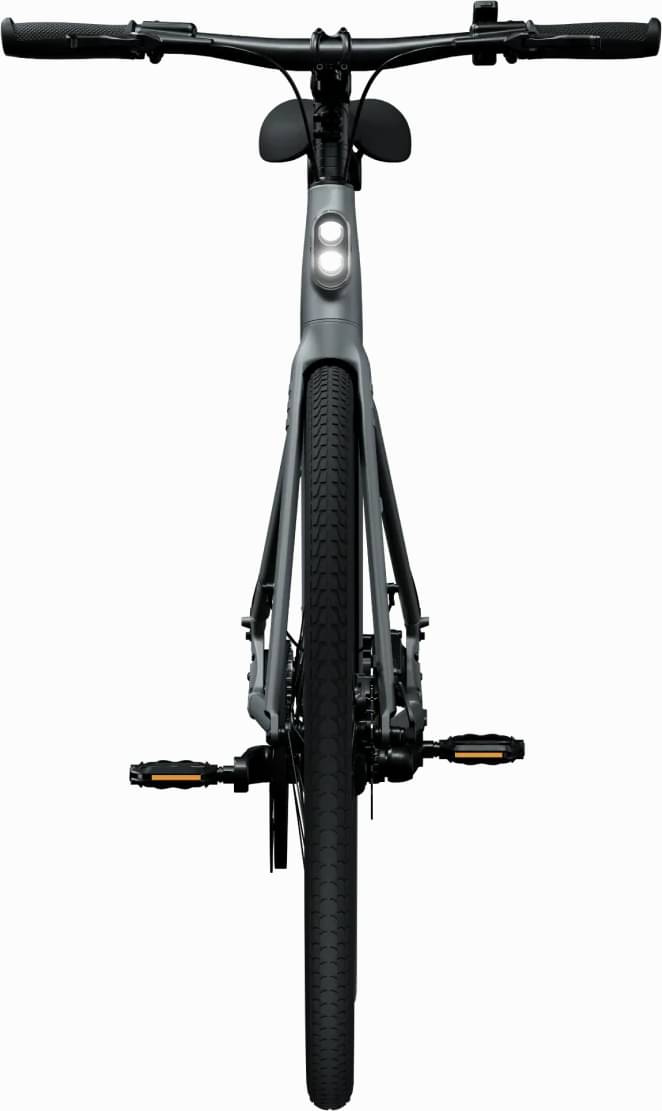

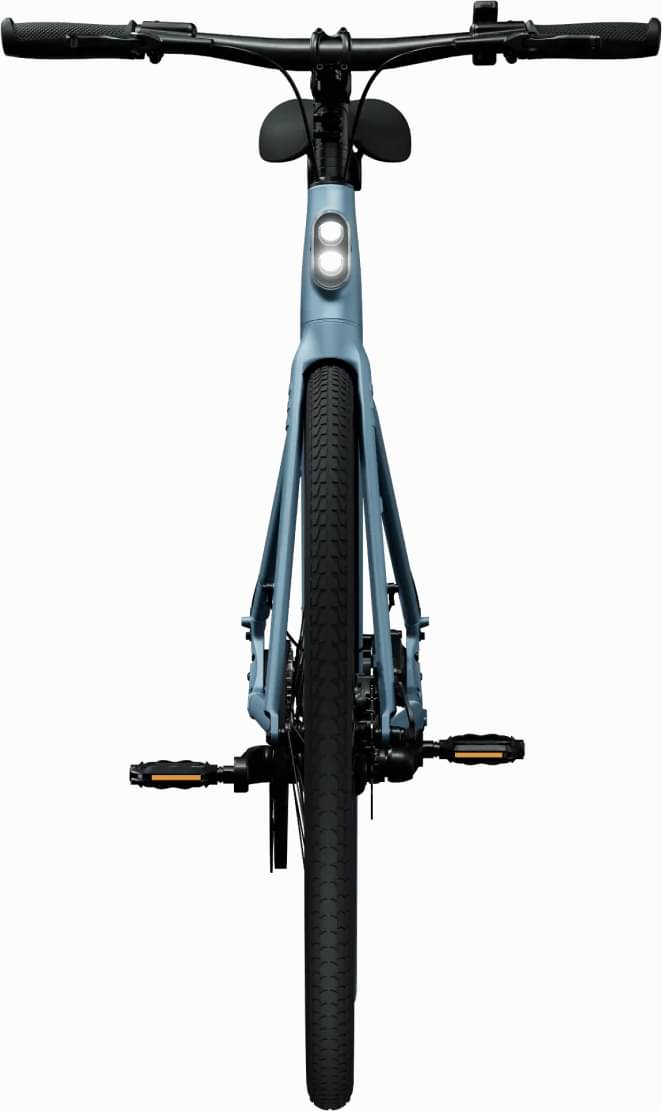

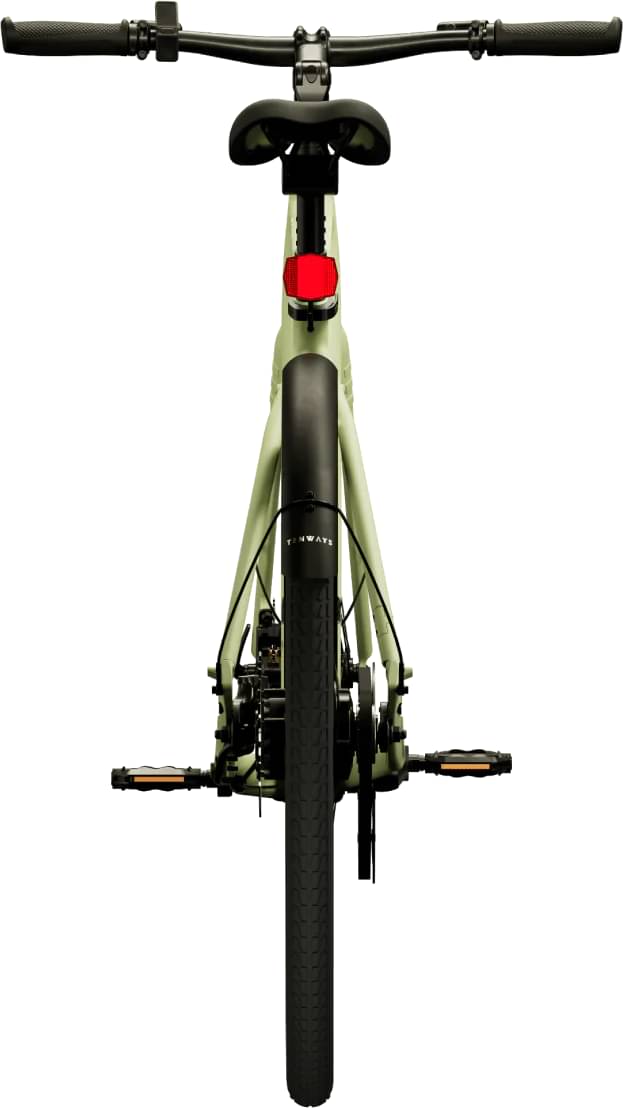

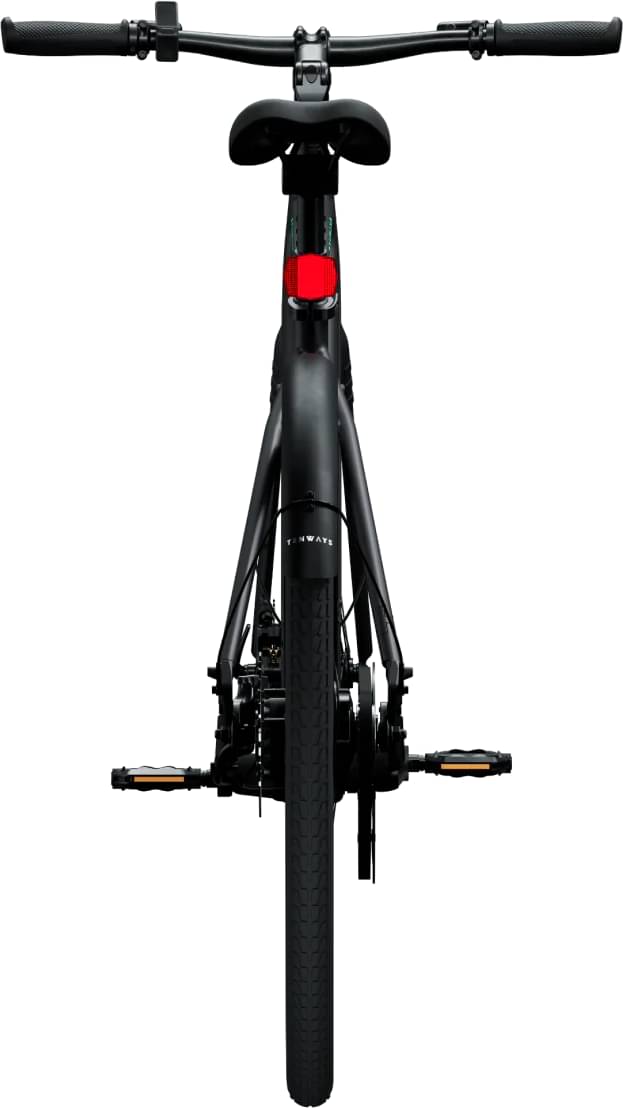

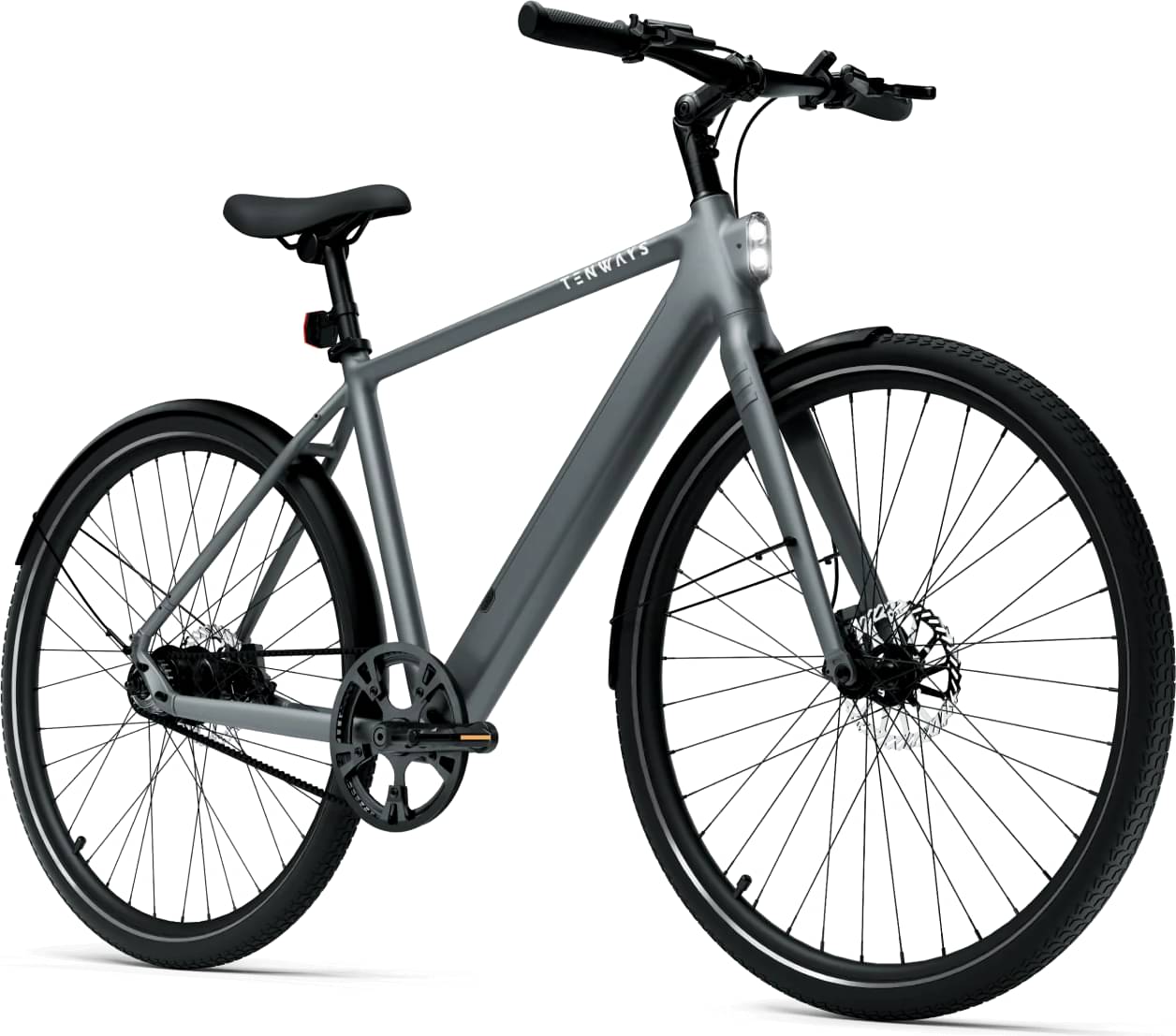

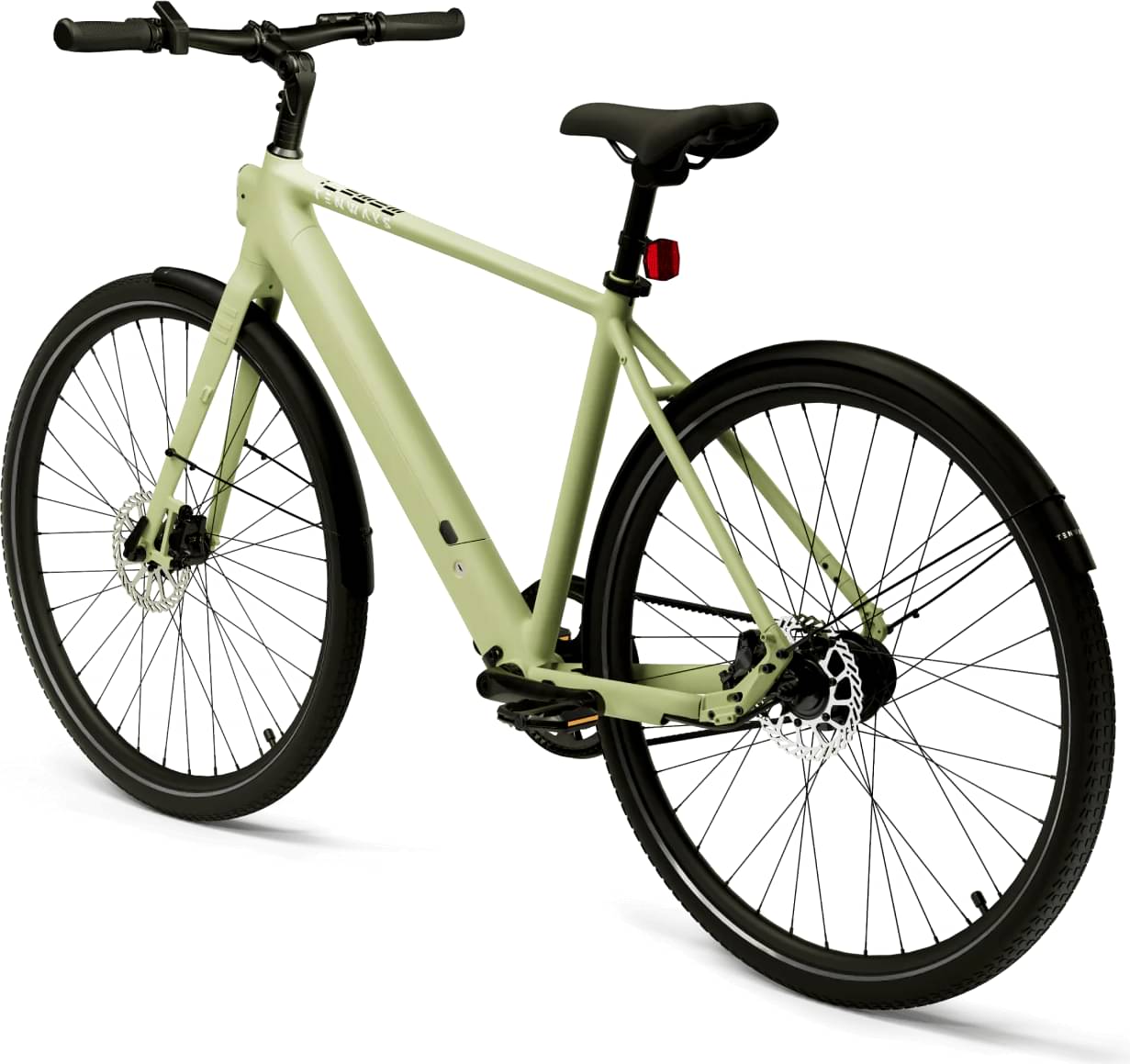

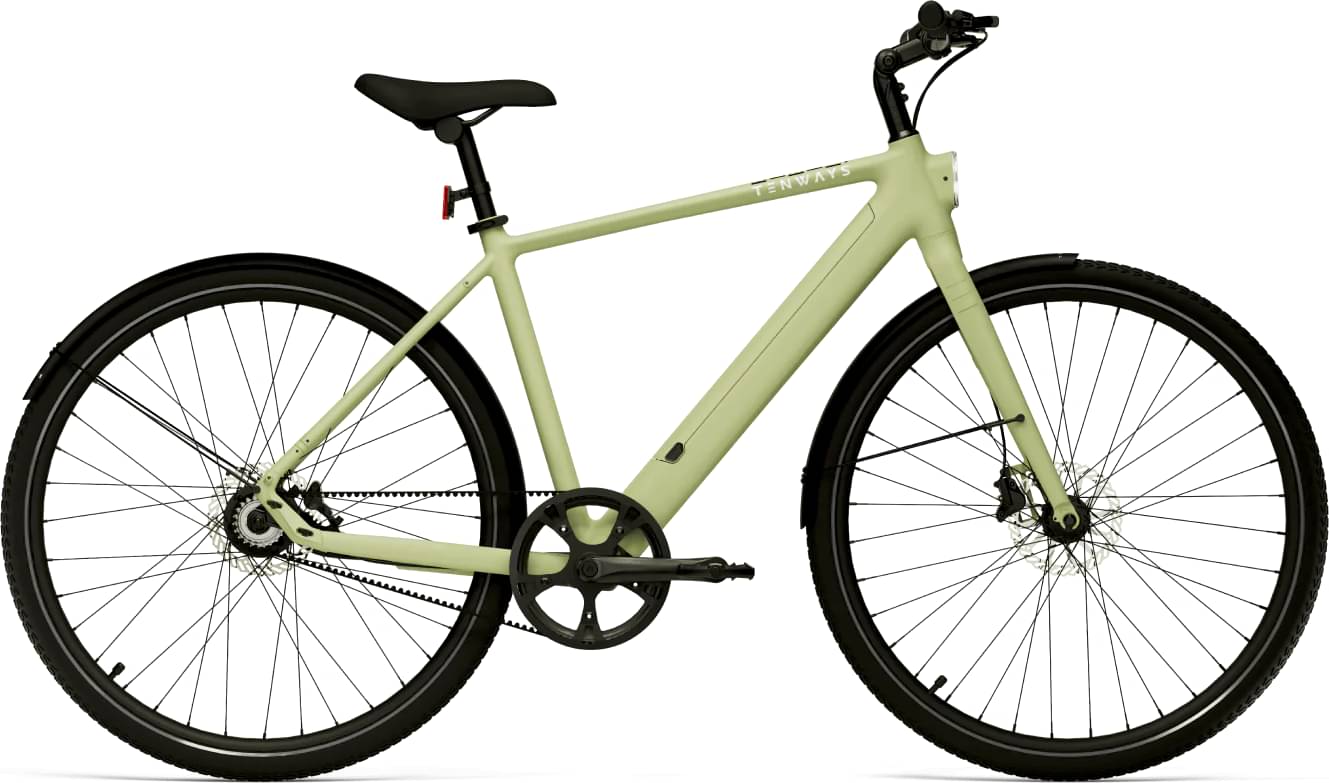

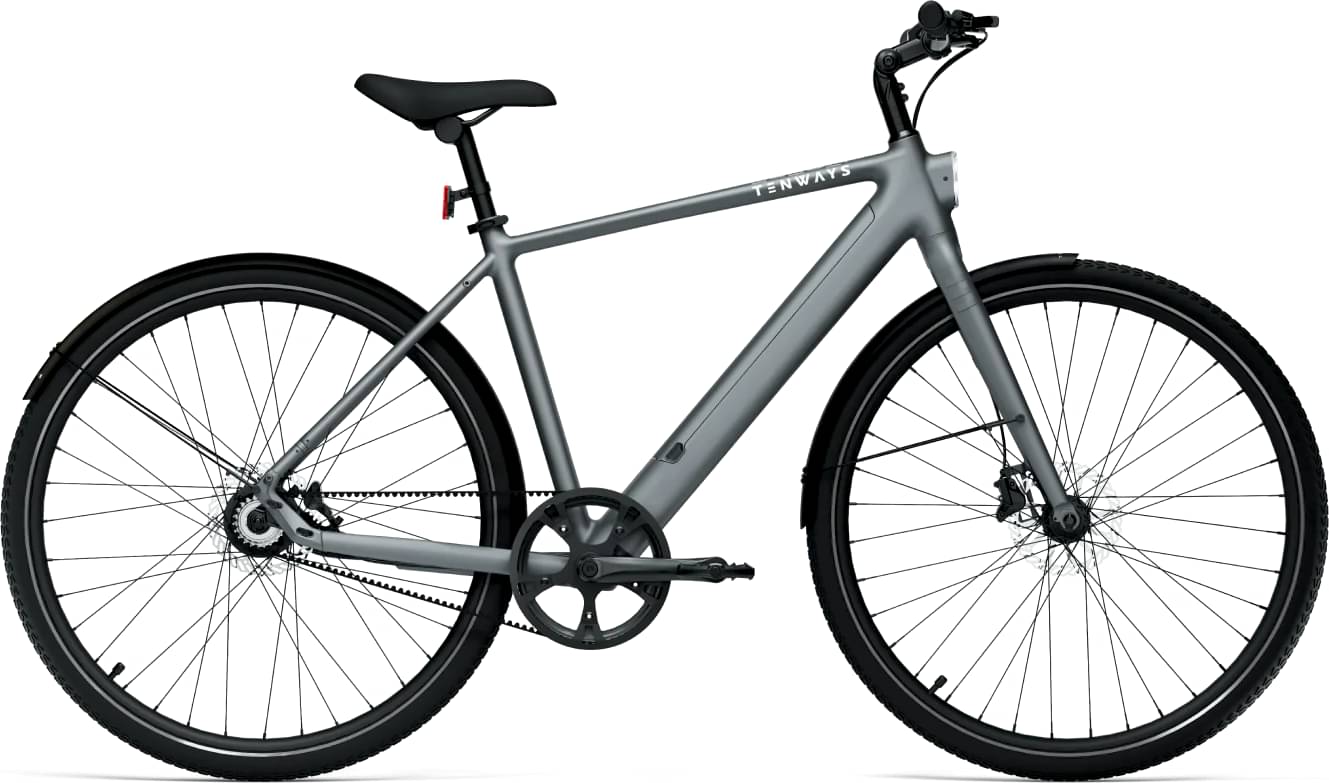

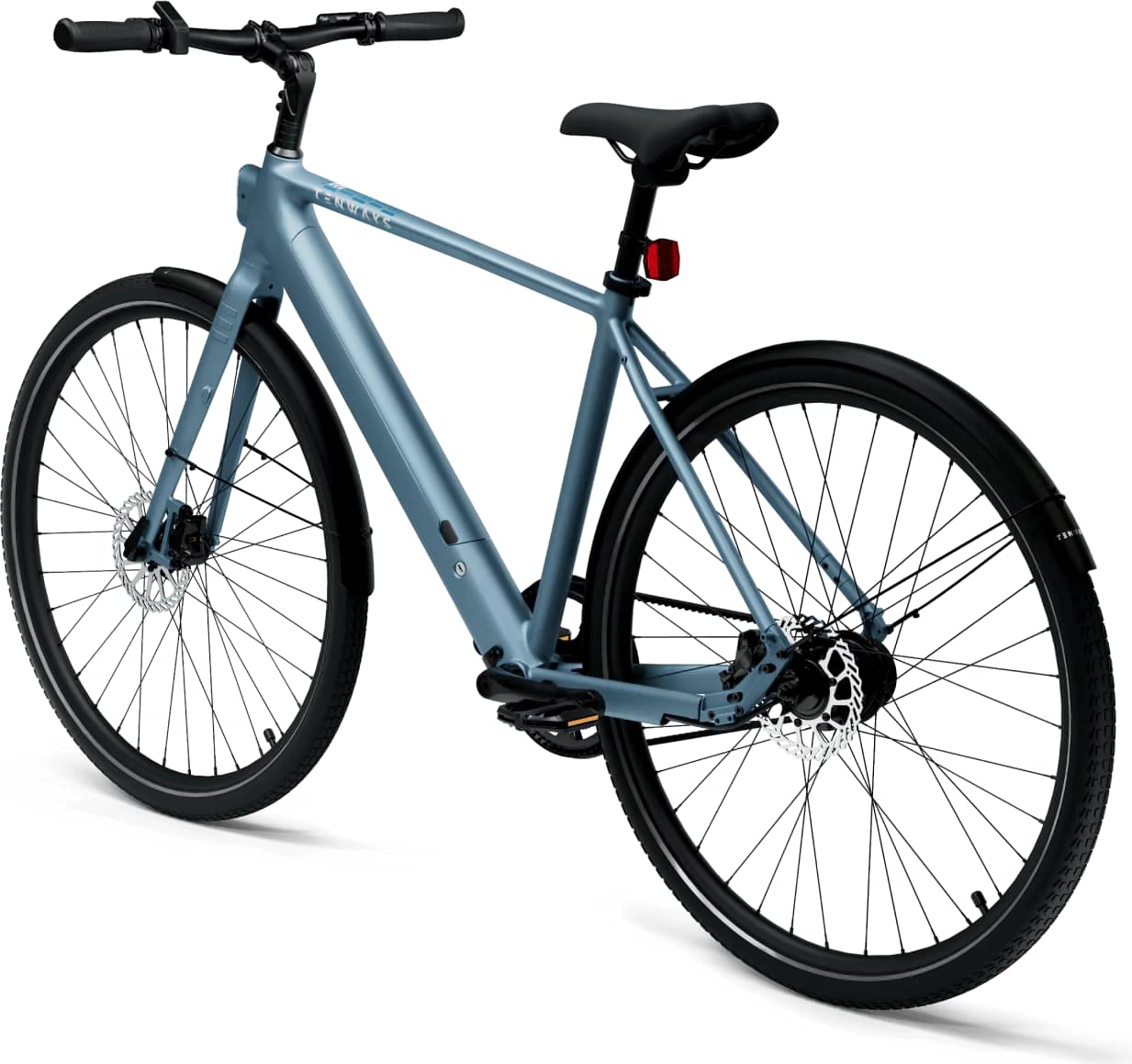

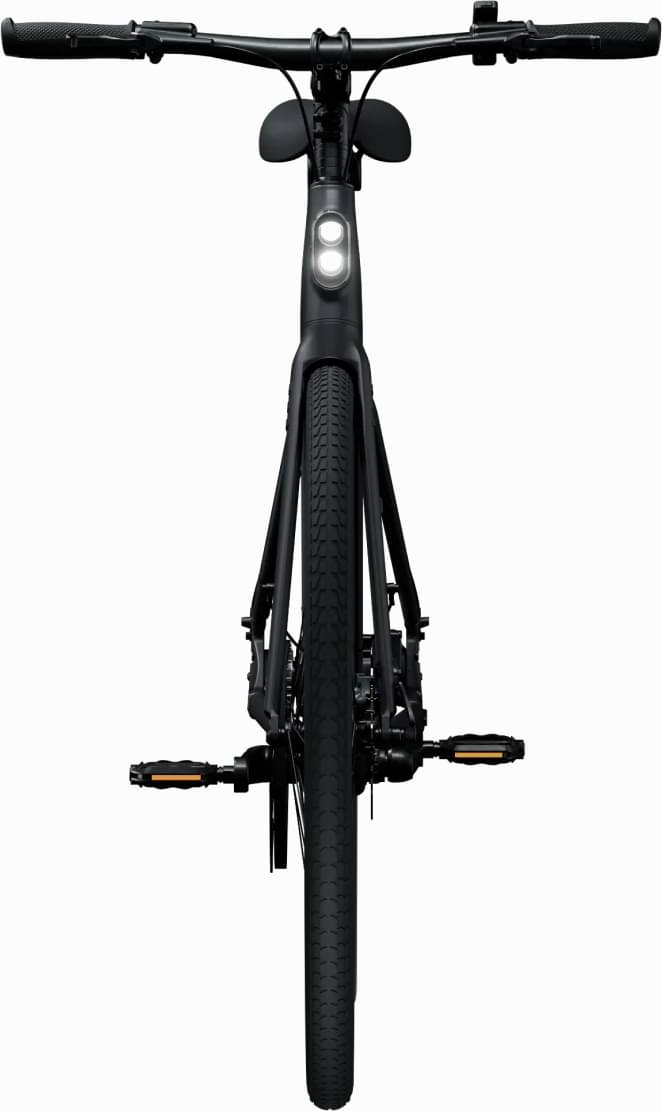

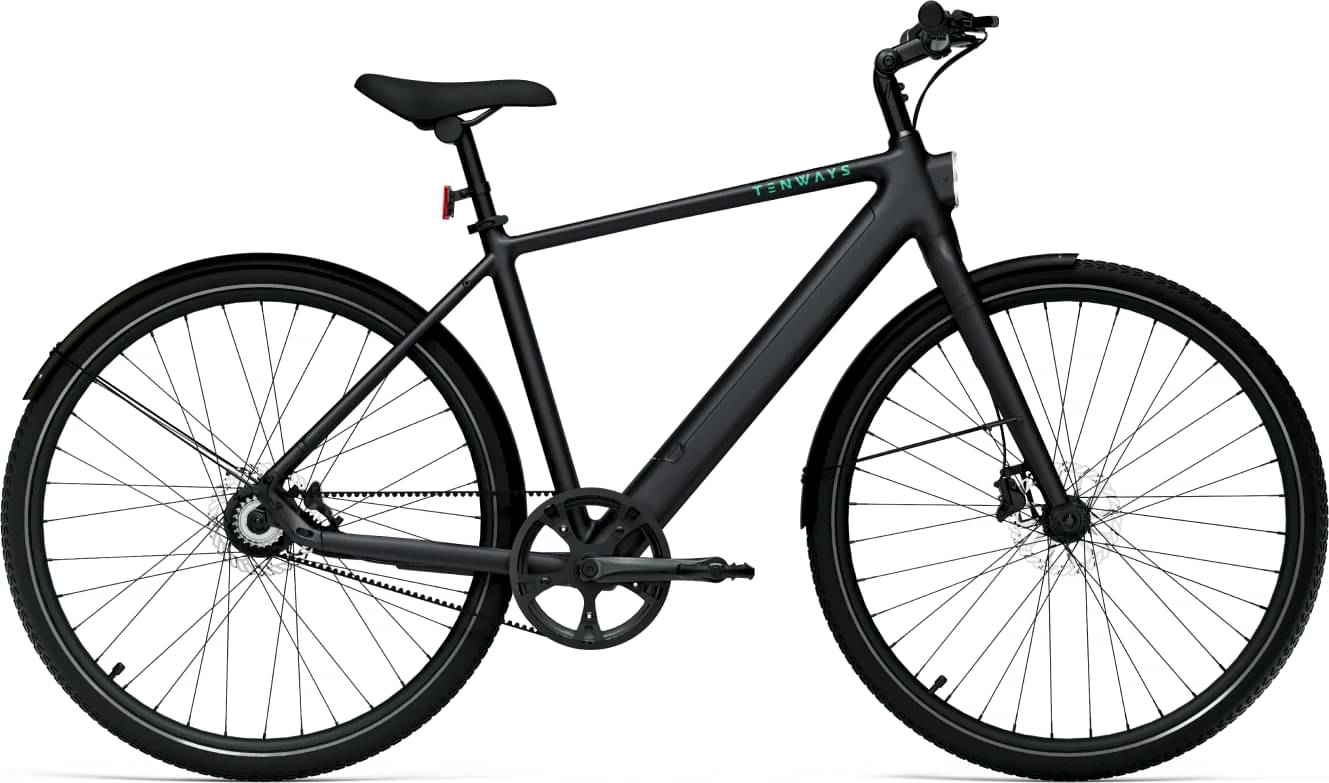

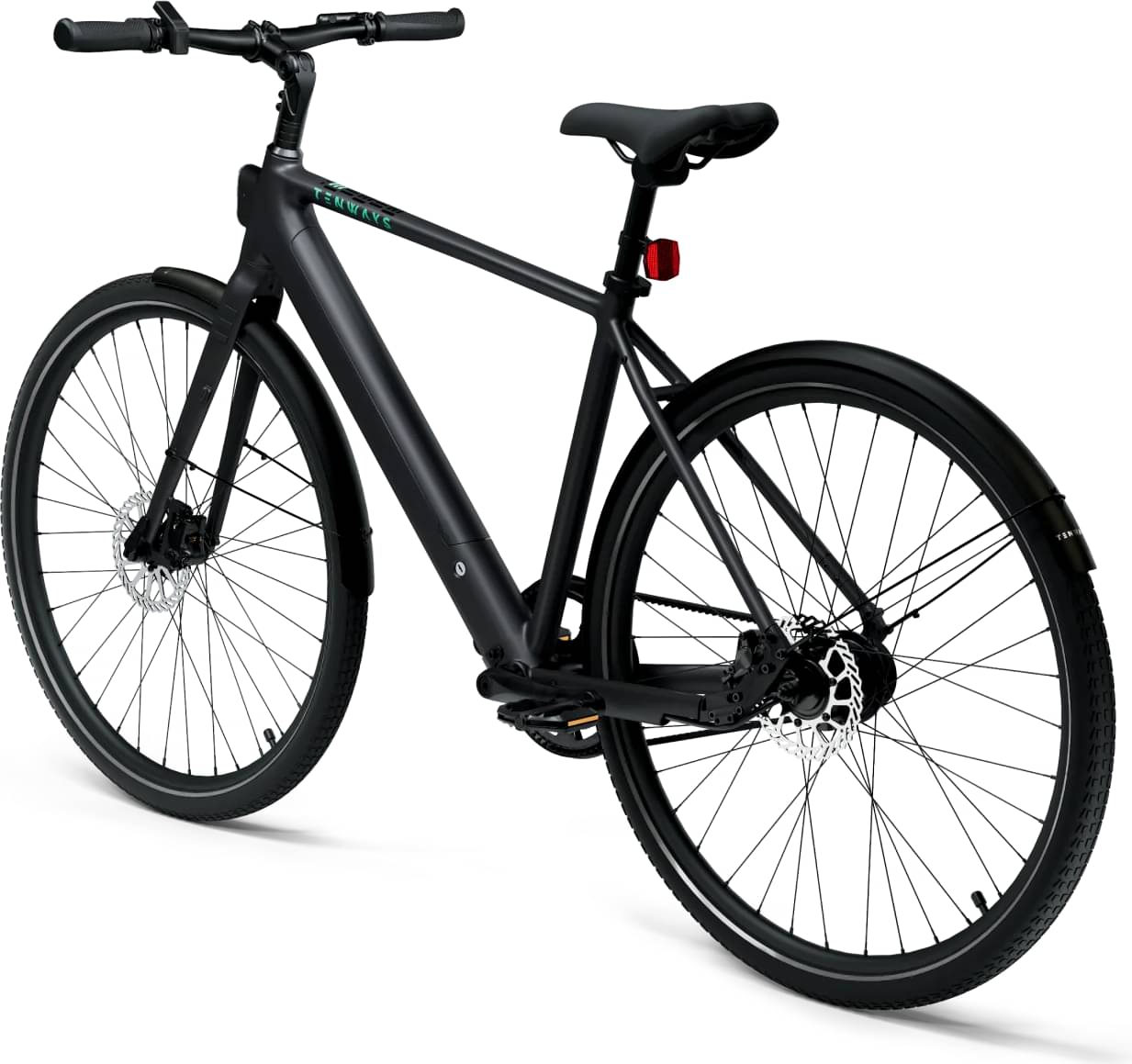

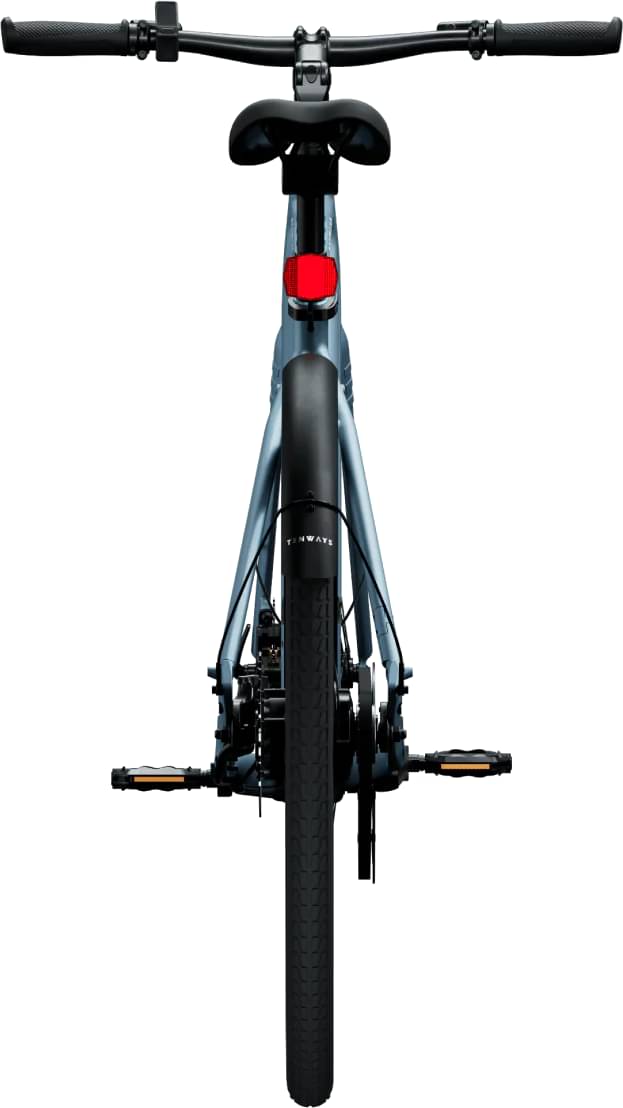

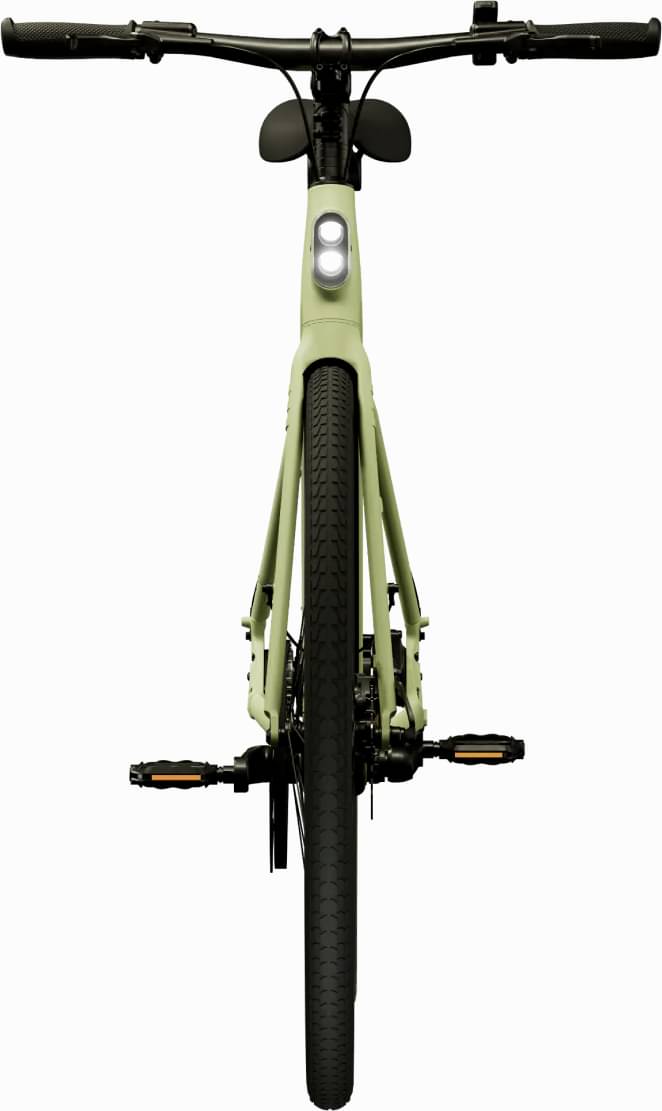

tenways CGO600 Pro 2024
2024 E-bike
Estimate price |
2,093$
Weight | 16.78 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Gates CDX -
Suspension Rigid -
Motor 350W hub-drive -
Battery 36V, 10Ah Lithium-ion Battery with LG Cells -
Drivetrain Belt Drive -
Brakes Rim
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Aluminium Frame
Suspension Fork
6061 Aluminium Front Fork
Drivetrain
Crank
Gates CDX Crankset
Bottom Bracket
Fully-concealed Bottom Bracket
Wheels
Rims
700C Aluminium Rims
Tires
Puncture-proof
Brakes
Brakes
All-weather stopping power.
Motor & Battery
Motor
Mivice M080 350W Rear Hub Motor
Battery
36V, 10Ah Lithium-ion Battery with LG Cells
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Top Tube Length | 605 mm | 615 mm | 630 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 500 mm | 540 mm | 580 mm |
| Head Tube Angle | 71.5 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 140 mm | 140 mm | 140 mm |
| Chainstay Length | 457 mm | 457 mm | 457 mm |
| Wheelbase | 1105 mm | 1115 mm | 1130 mm |
| Standover Height | 805 mm | 823 mm | 841 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
