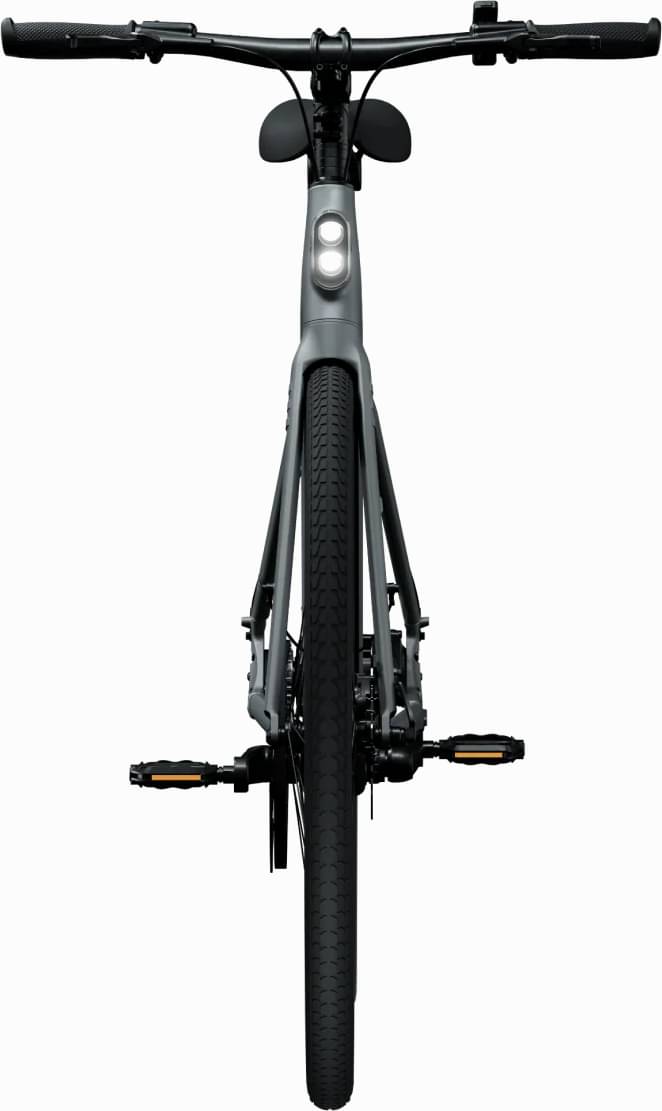

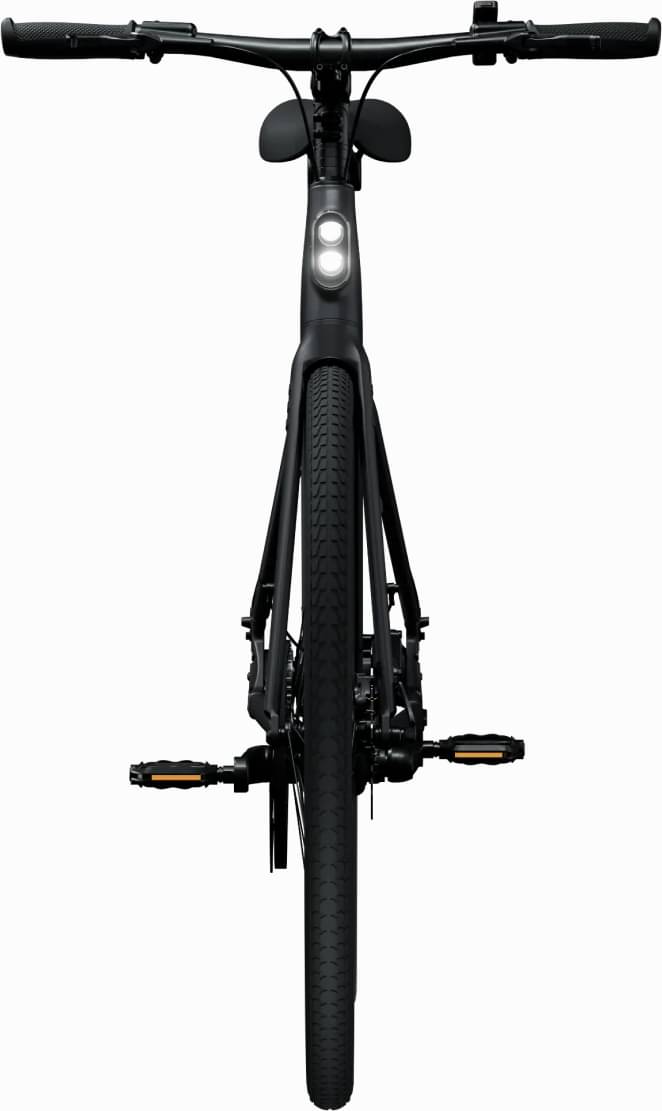

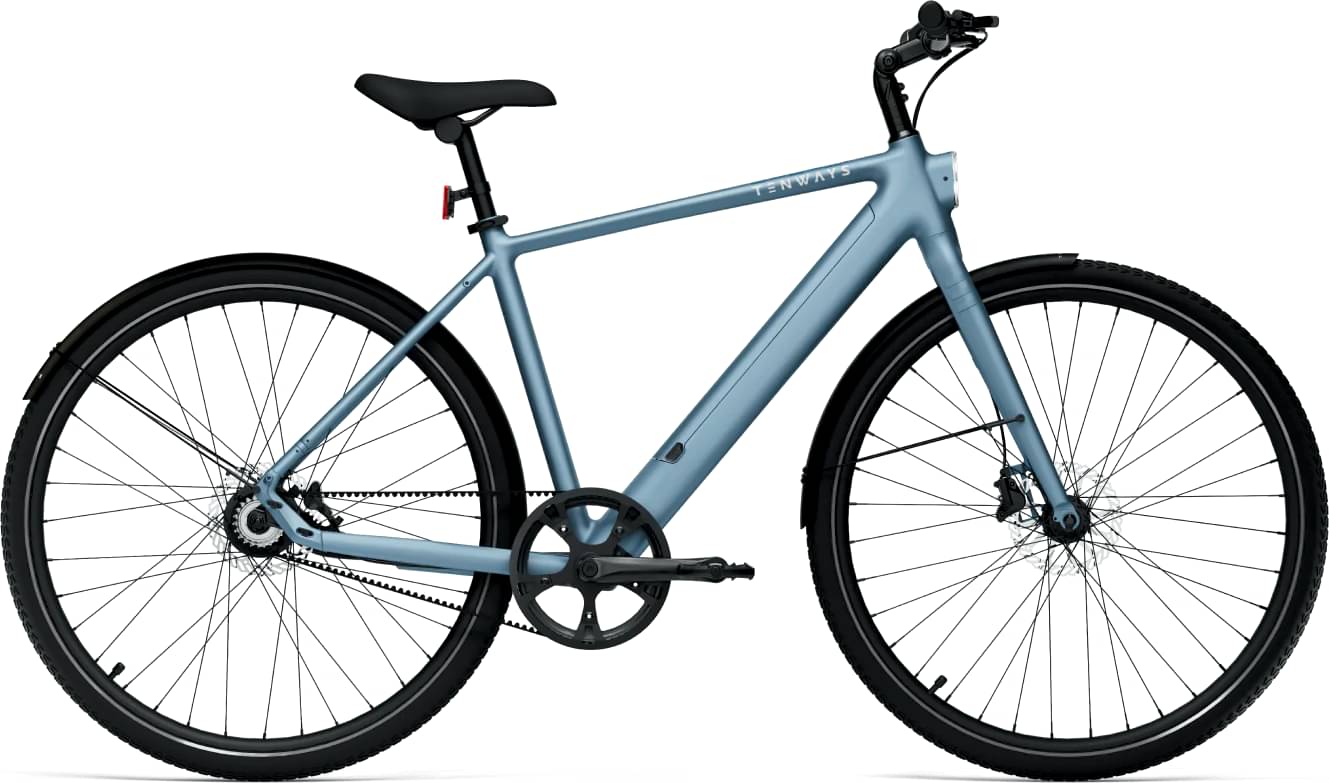

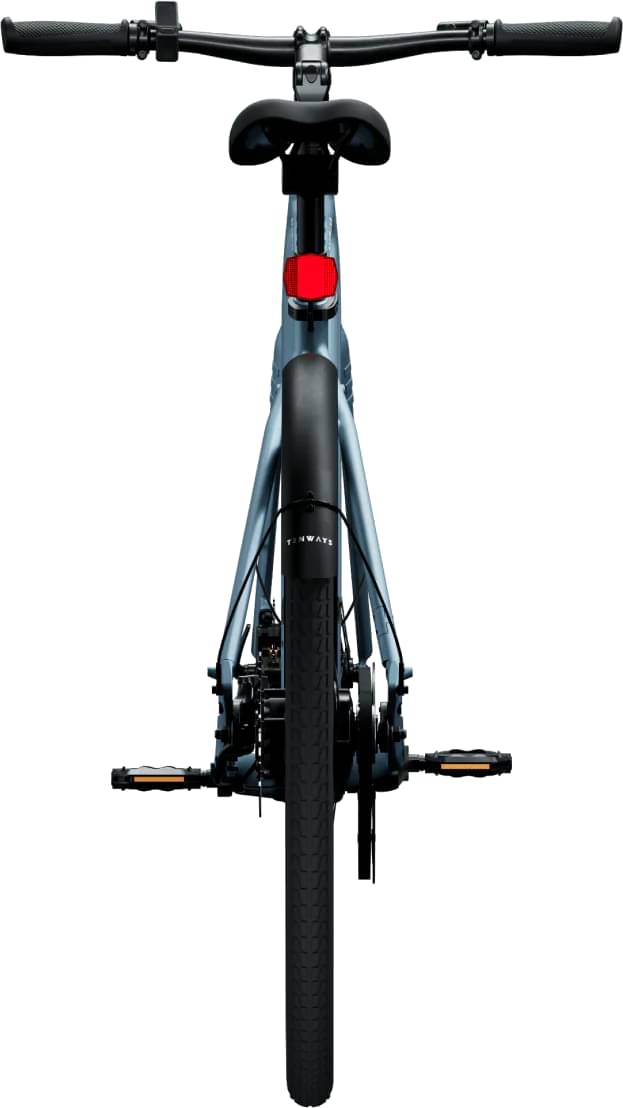

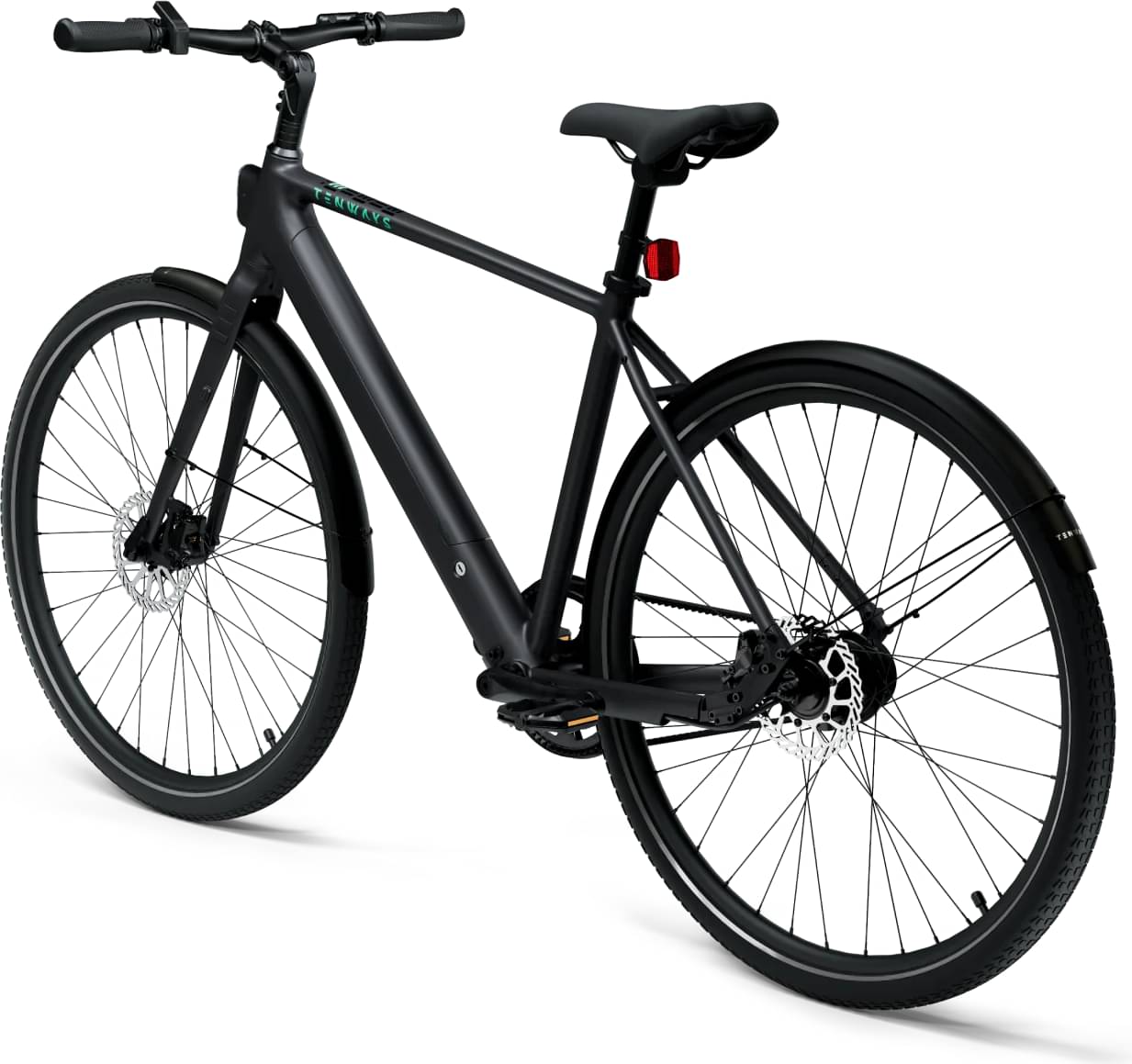

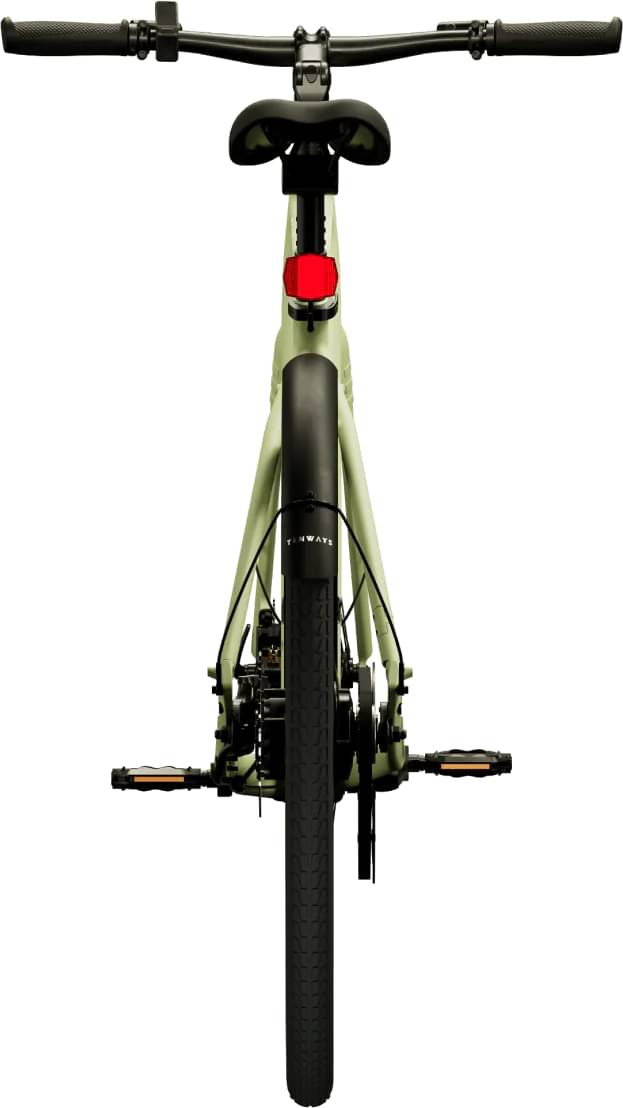

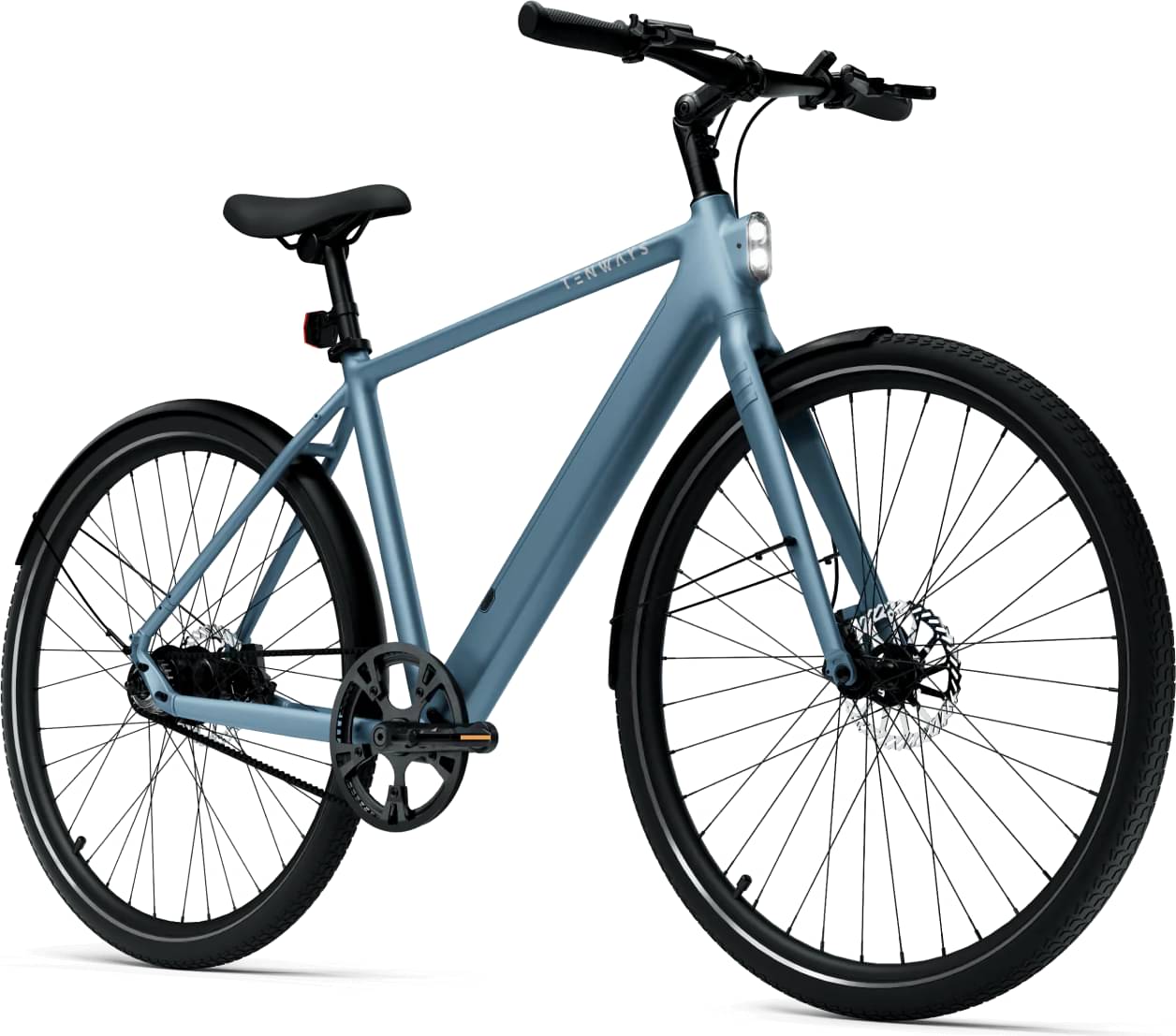

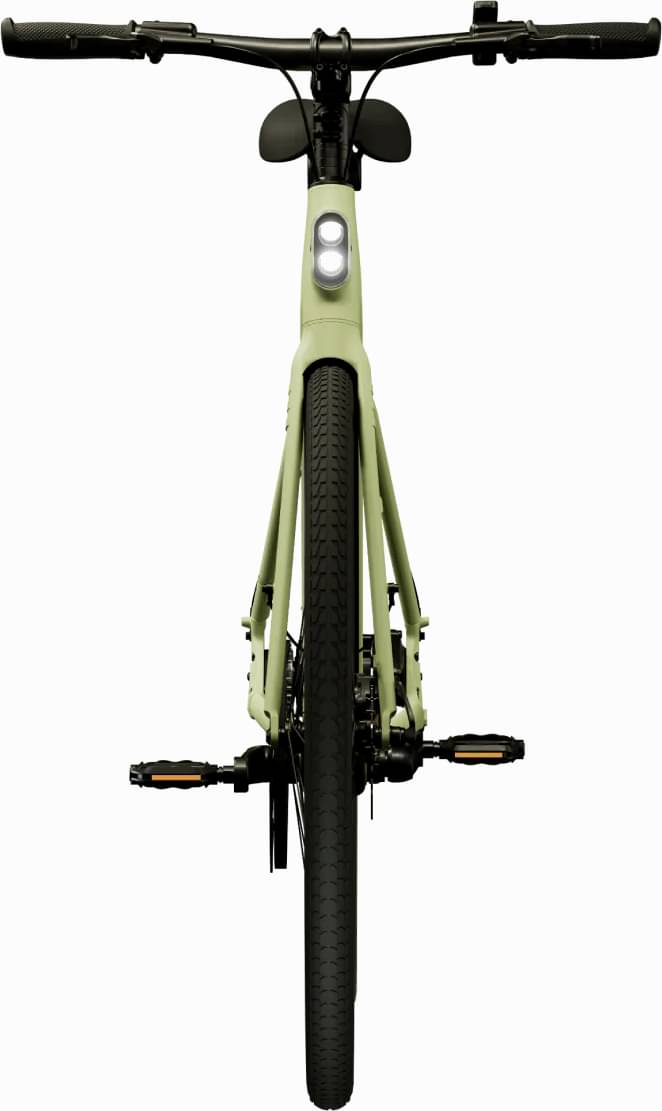

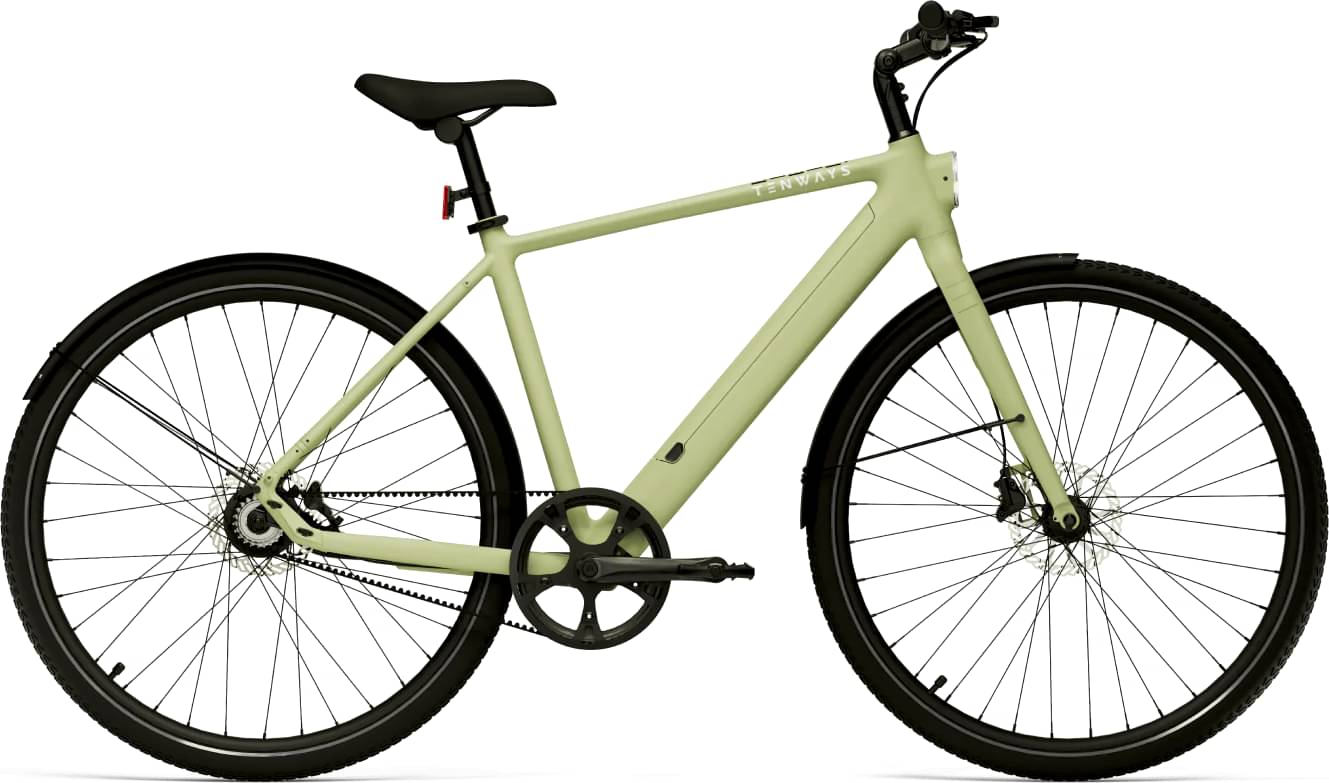

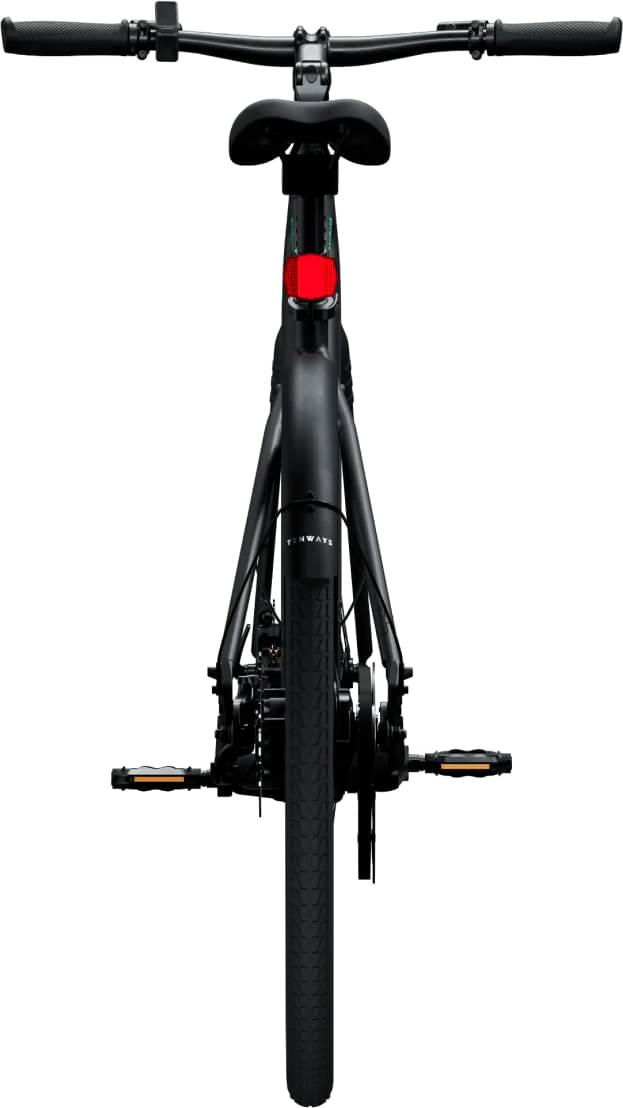

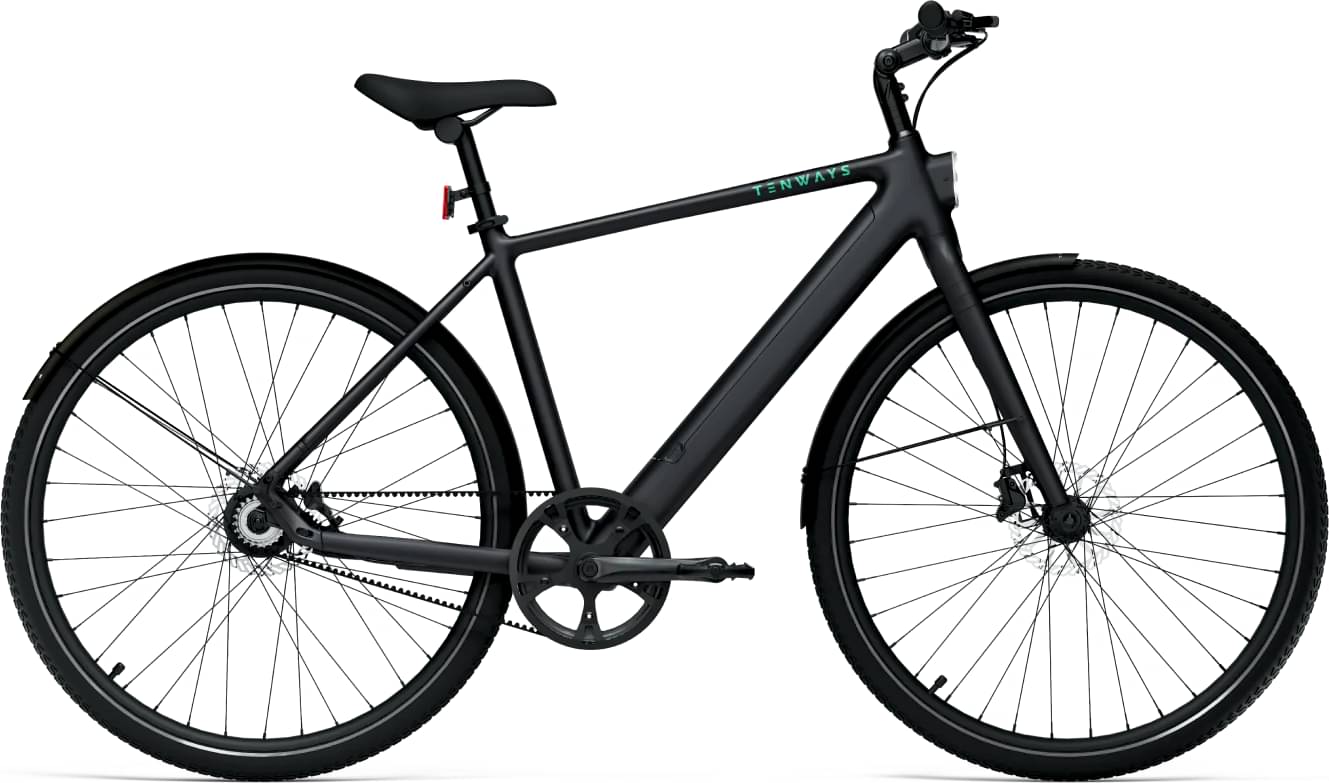

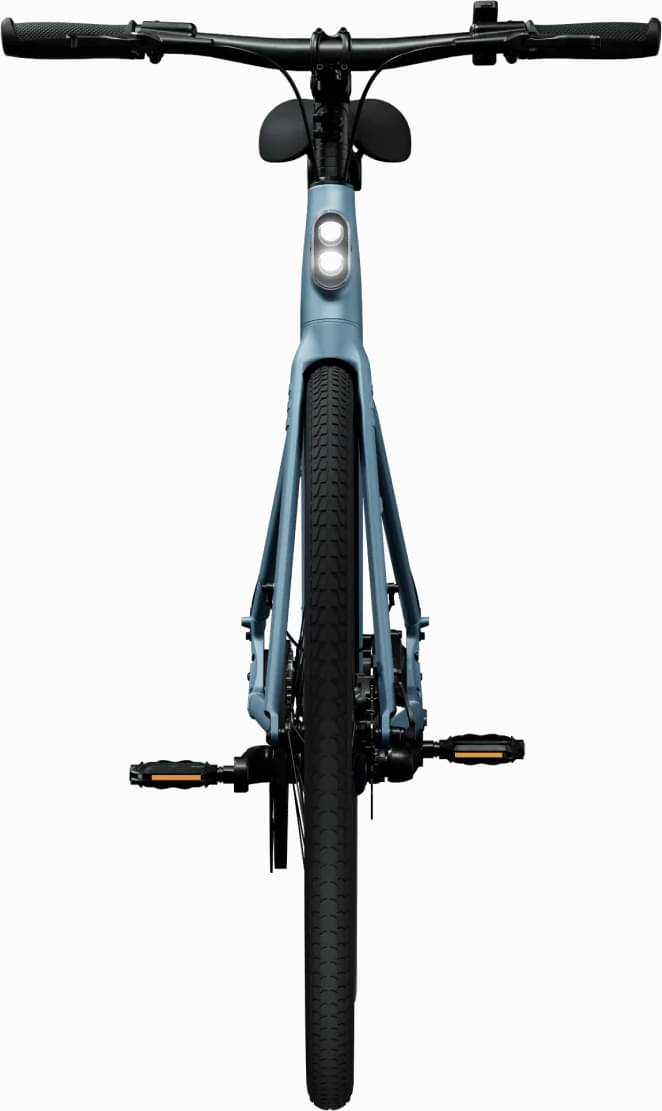

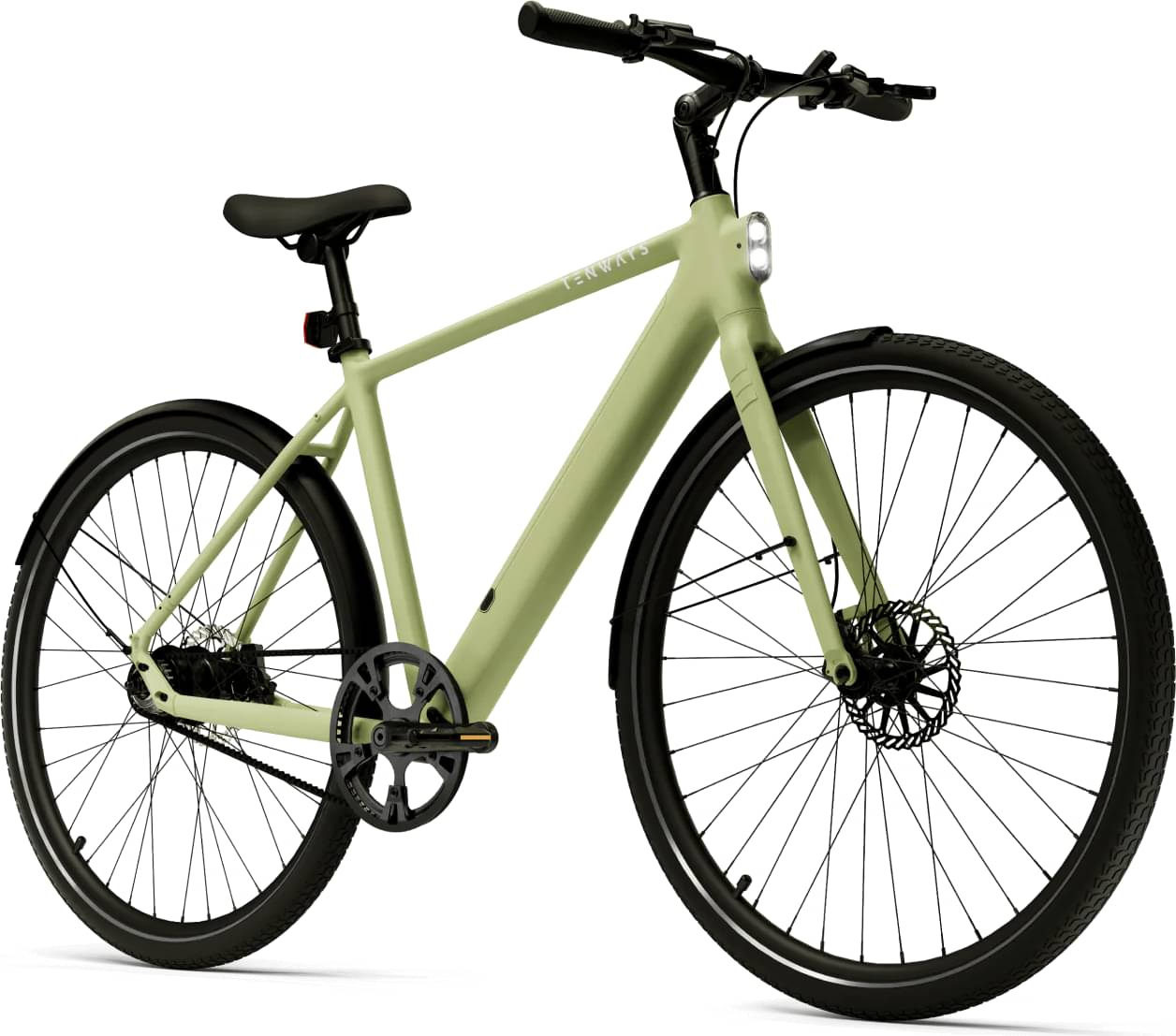

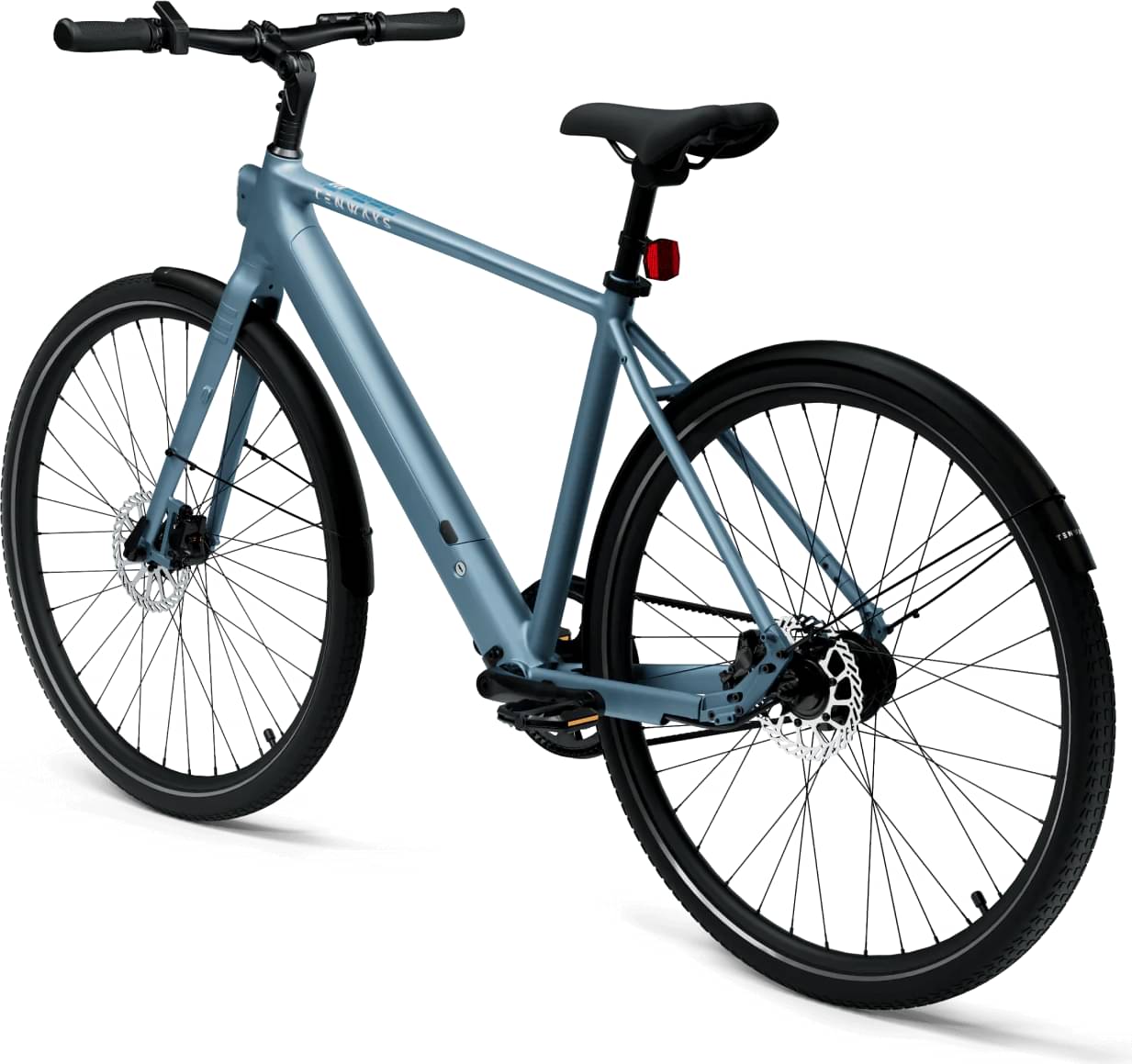

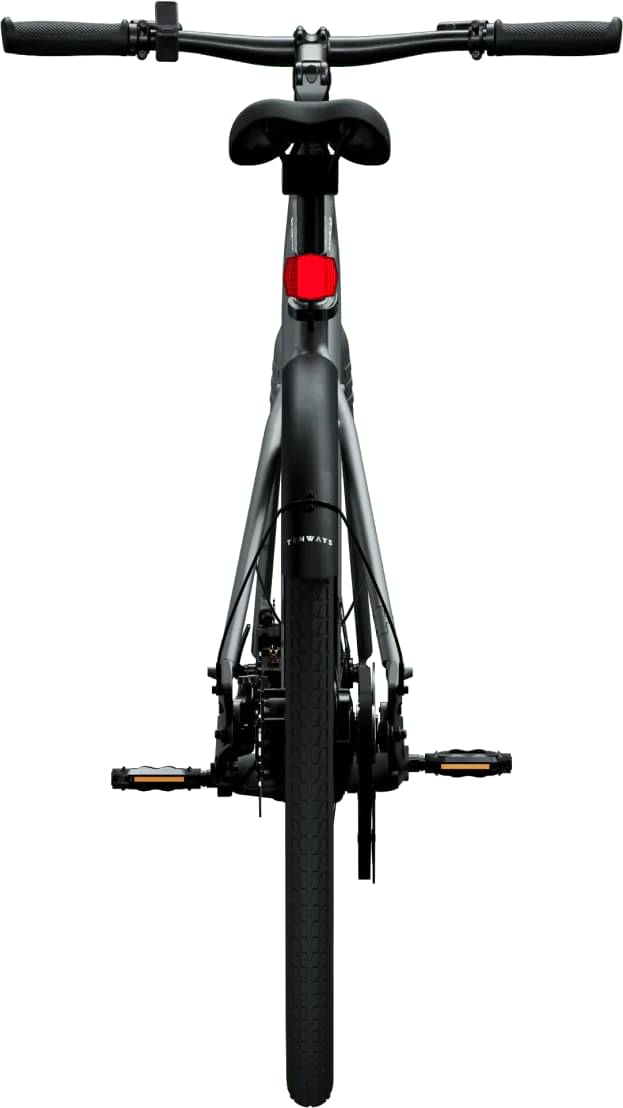

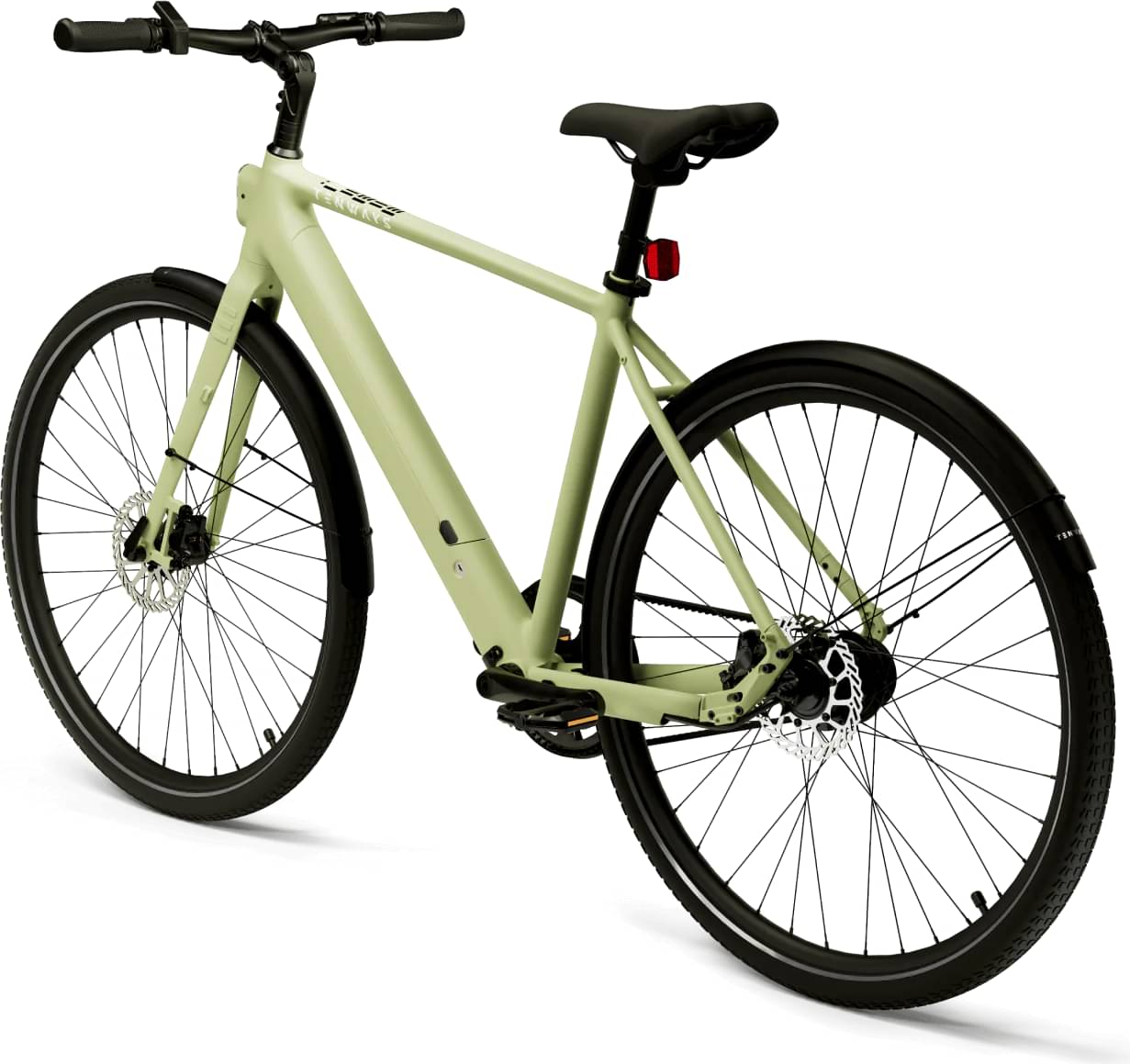

tenways CGO600 Pro Commuter Urban E-bike 2024
2024 E-bike
Estimate price |
2,093$
Weight | 16 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Gates CDX -
Suspension Rigid -
Motor 250W 40Nm hub-drive -
Battery 36V, 10Ah Lithium-ion Battery with LG Cells -
Drivetrain Belt Drive -
Brakes Rim
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Aluminium Frame
Suspension Fork
6061 Aluminium Front Fork
Drivetrain
Crank
Gates CDX Crankset
Bottom Bracket
Fully-concealed Bottom Bracket
Wheels
Rims
700C Aluminium Rims
Tires
Extra width, extra traction.
Brakes
Brakes
All-weather stopping power.
Motor & Battery
Motor
Mivice M070 Rear Hub Motor (250W Power, 40 Nm Max. Torque)
Battery
36V, 10Ah Lithium-ion Battery with LG Cells
Remote
Mivice C201 Controller
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Top Tube Length | 598 mm | 605 mm | 615 mm | 630 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 460 mm | 500 mm | 540 mm | 580 mm |
| Head Tube Angle | 71.5 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 140 mm | 140 mm | 140 mm | 140 mm |
| Chainstay Length | 457 mm | 457 mm | 457 mm | 457 mm |
| Wheelbase | 1099 mm | 1105 mm | 1115 mm | 1130 mm |
| Standover Height | 787 mm | 805 mm | 823 mm | 841 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
