Tern GSD S00 LX 2024
2024 E-bike
Estimate price |
5,899$
Weight | 34.98 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 70mm -
Fork Suntour
-
Groupset Gates CDX -
Suspension Hardtail -
Motor Bosch 85Nm mid-drive -
Battery Bosch Dual Battery system, 500 Wh or 1000 Wh -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Tern GSD, 6061-AL, patented MultiTruss design, EFBE Tri-Test approved: 200 kg
Suspension Fork
Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 200 kg
Drivetrain

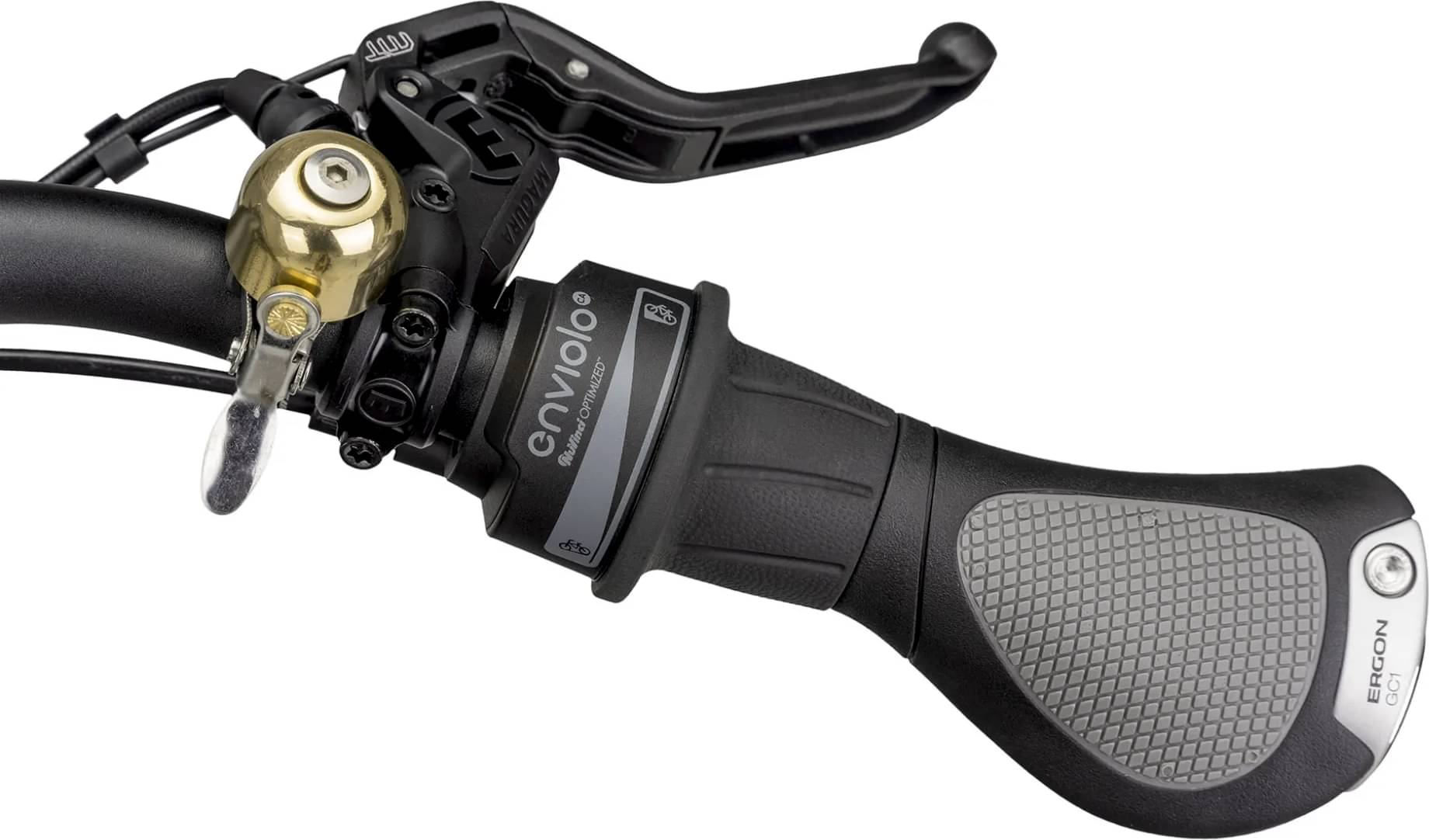

Shift Levers
Enviolo, Twist
Cassette
Gates CDX, precision CNC machined cog
Crank
Tern GSD custom, Gates CDX CNC machined beltring
Bottom Bracket
Motor integrated
Chain
Gates Carbon Drive CDX belt
Chain Guide
Tern Custom, full chain cover
Pedals
Urban with non-slip surface, sealed bearings
Wheels
Front Hub
Tern Atlas, Boost Thru-Axle, Cargo-optimized design, sealed cartridge bearing

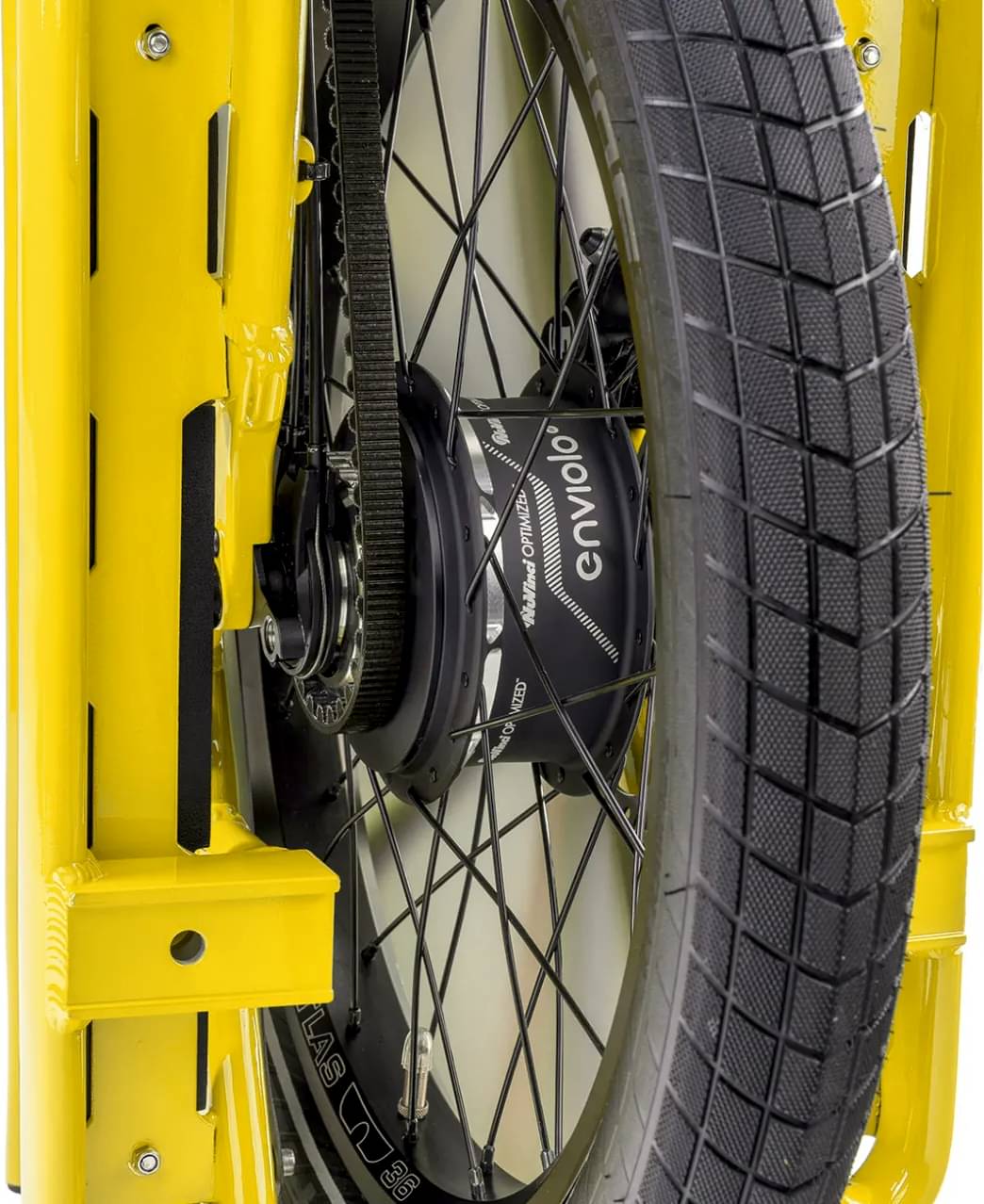

Rear Hub
Enviolo SP, 380% continuously variable range, Boost
Rims
Tern Atlas, ultra wide 36 mm, dual reinforced joint
Tires
F: Schwalbe Big Ben Plus, 55-406, Green Guard puncture protection, Reflex R: Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex
Brakes
Brakes
Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
Brake Levers
Magura MT5 e-stop, hydraulic, with brake sensor

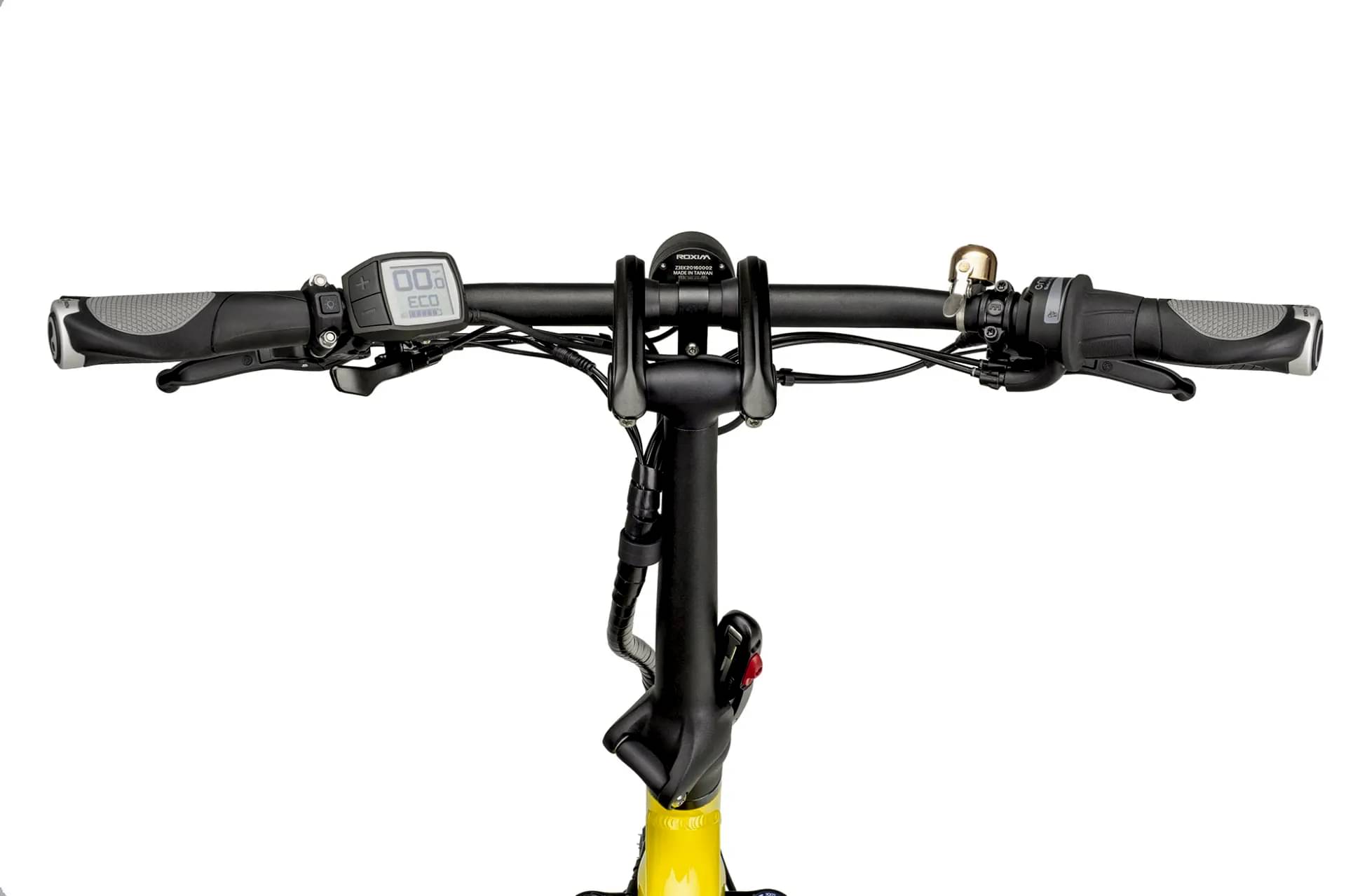

Cockpit
Stem
Tern Andros, adjustable, forged construction, patented technology
Handlebar
Tern Sweep, 6061-AL, Tern Andros adapted
Headset
Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated
Seat
Saddle
Tern GSD by Velo, with rear handle
Seatpost
Cane Creek Thudbuster G4, Tern Telescope, 34.9/30.9 mm
Motor & Battery
Motor
Class 1, Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
Battery
Bosch Dual Battery system, 500 Wh or 1000 Wh
Charger
220V, 4A (EU); 100-240V, 4A (US)
