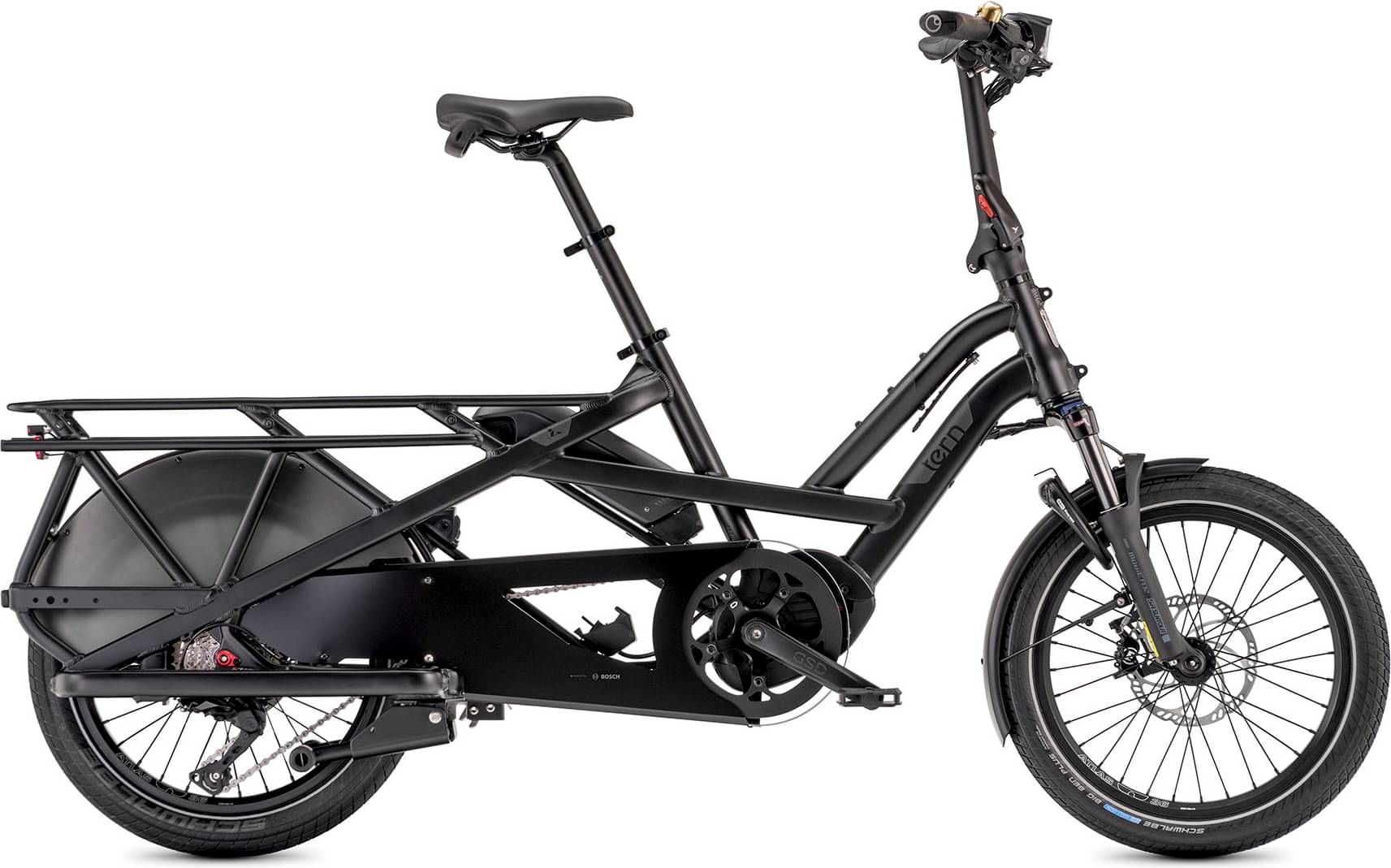

Tern GSD S10 2024
2024 E-bike
Estimate price |
6,048$
Weight | 33.58 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 70mm -
Fork Suntour
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 85Nm mid-drive -
Battery Bosch Dual Battery system, 400 Wh/900 Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Tern GSD, 6061-AL, patented MultiTruss design, EFBE Tri-Test approved: 200 kg
Suspension Fork
Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 200 kg
Drivetrain
Rear Derailleur
Shimano Deore Shadow+
Shift Levers
Shimano Deore, 1 x 10 spd
Cassette
Shimano 11-42T, 10 spd
Crank
Tern GSD custom, forged 6061-AL DH crankarm
Bottom Bracket
Motor integrated
Chain
10 spd, DHT for eBike, GST corrosion resistant coating
Chain Guide
Tern Custom, full chain cover
Pedals
Urban with non-slip surface, sealed bearings
Wheels
Front Hub
Tern Atlas, Boost Thru-Axle, Cargo-optimized design, sealed cartridge bearing
Rear Hub
Tern Atlas, Boost Thru-Axle, Syntace X-12 standard, Cargo-optimized design
Rims
Tern Atlas, ultra wide 36 mm, dual reinforced joint
Tires
F: Schwalbe Big Ben Plus, 55-406, Green Guard puncture protection, Reflex R: Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex
Brakes
Brakes
Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
Brake Levers
Magura MT5 e-stop, hydraulic, with brake sensor
Cockpit
Stem
Tern Andros, adjustable, forged construction, patented technology
Handlebar
Tern Sweep, 6061-AL, Tern Andros adapted
Headset
Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated
Seat
Saddle
Tern GSD by Velo, with rear handle
Seatpost
Tern Telescope, 34.9/30.9 mm, 2014-AL
Motor & Battery
Motor
Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
Battery
Bosch Dual Battery system, 400 Wh/900 Wh
Charger
220V, 4A (EU); 100-240V, 4A (US)
