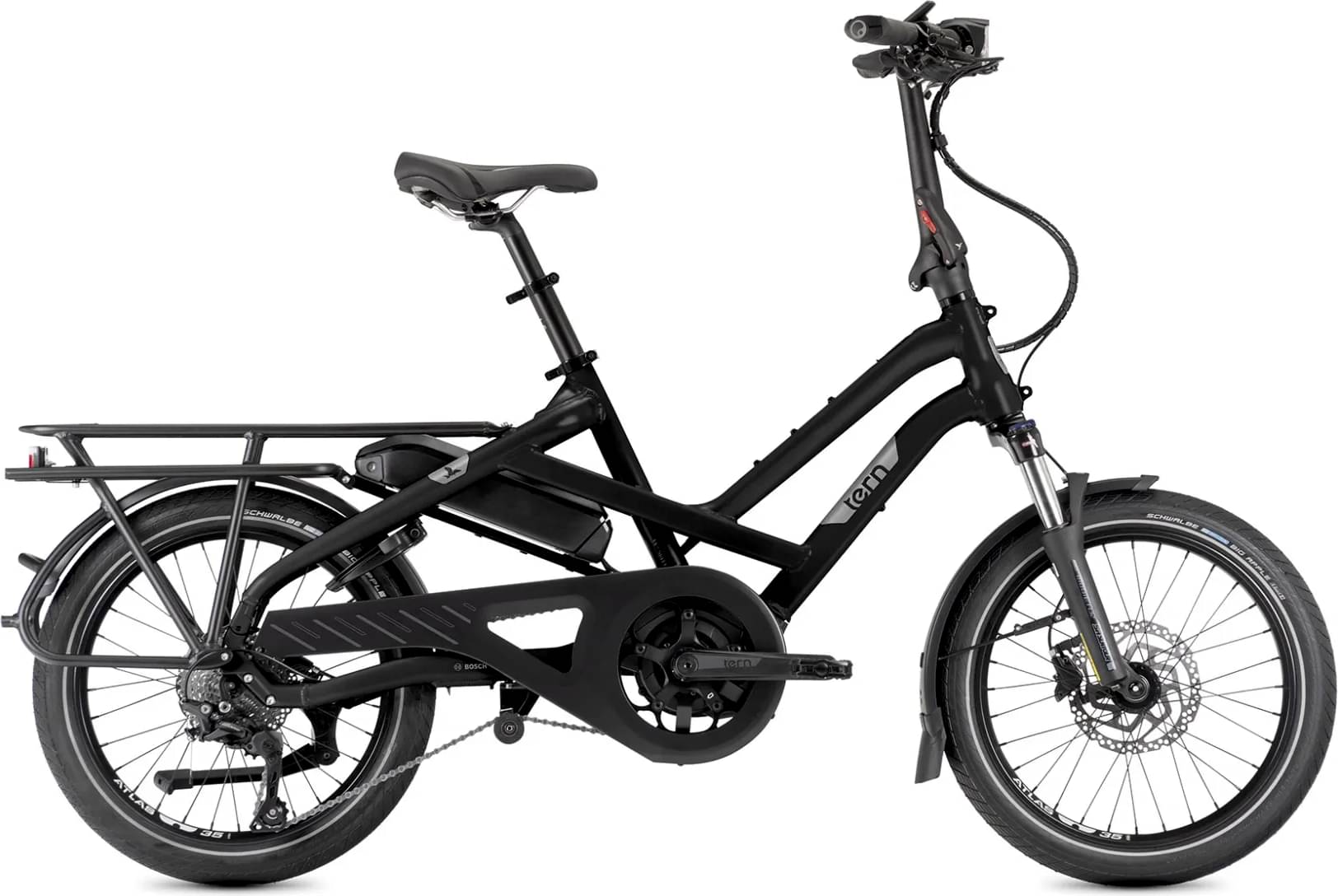

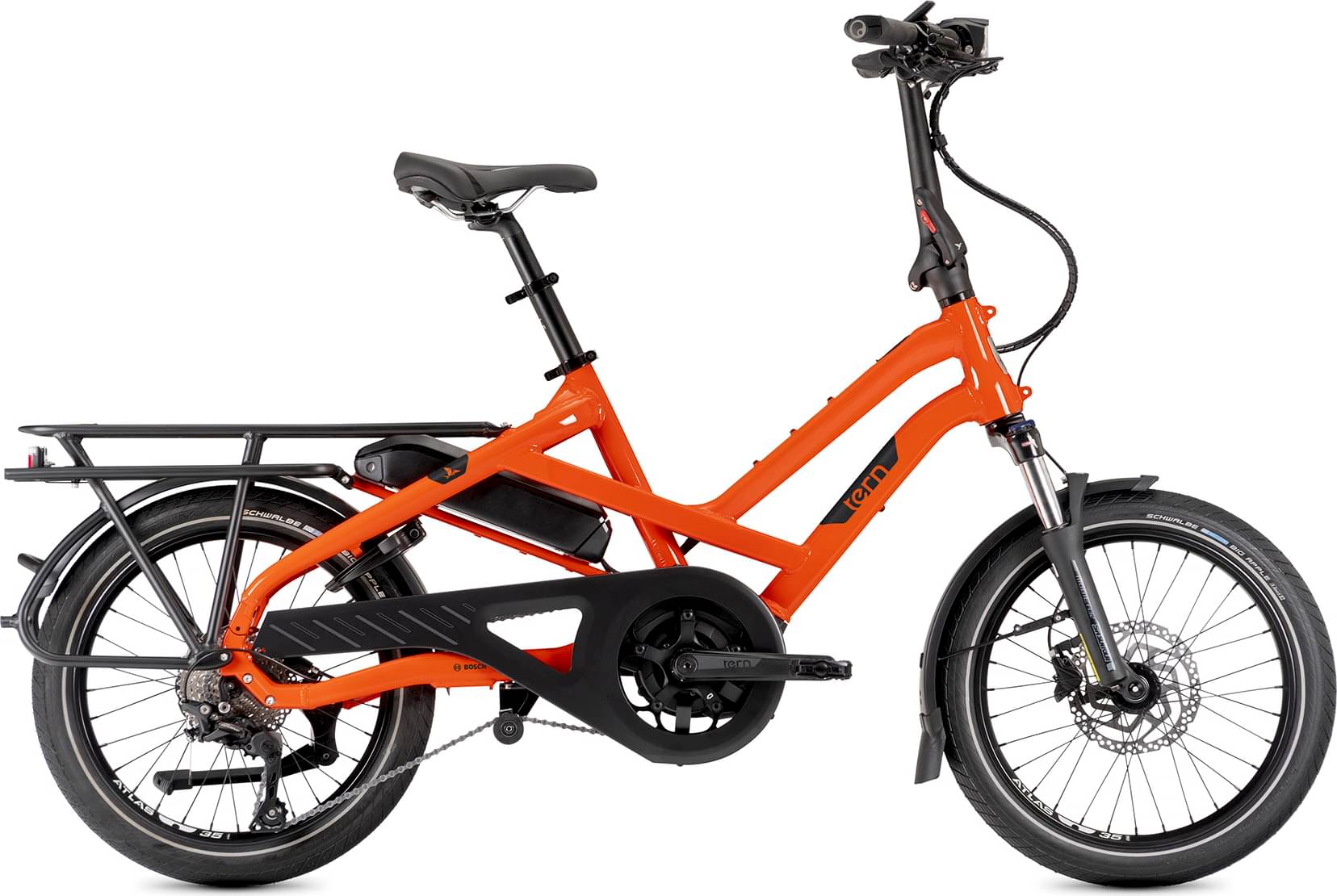

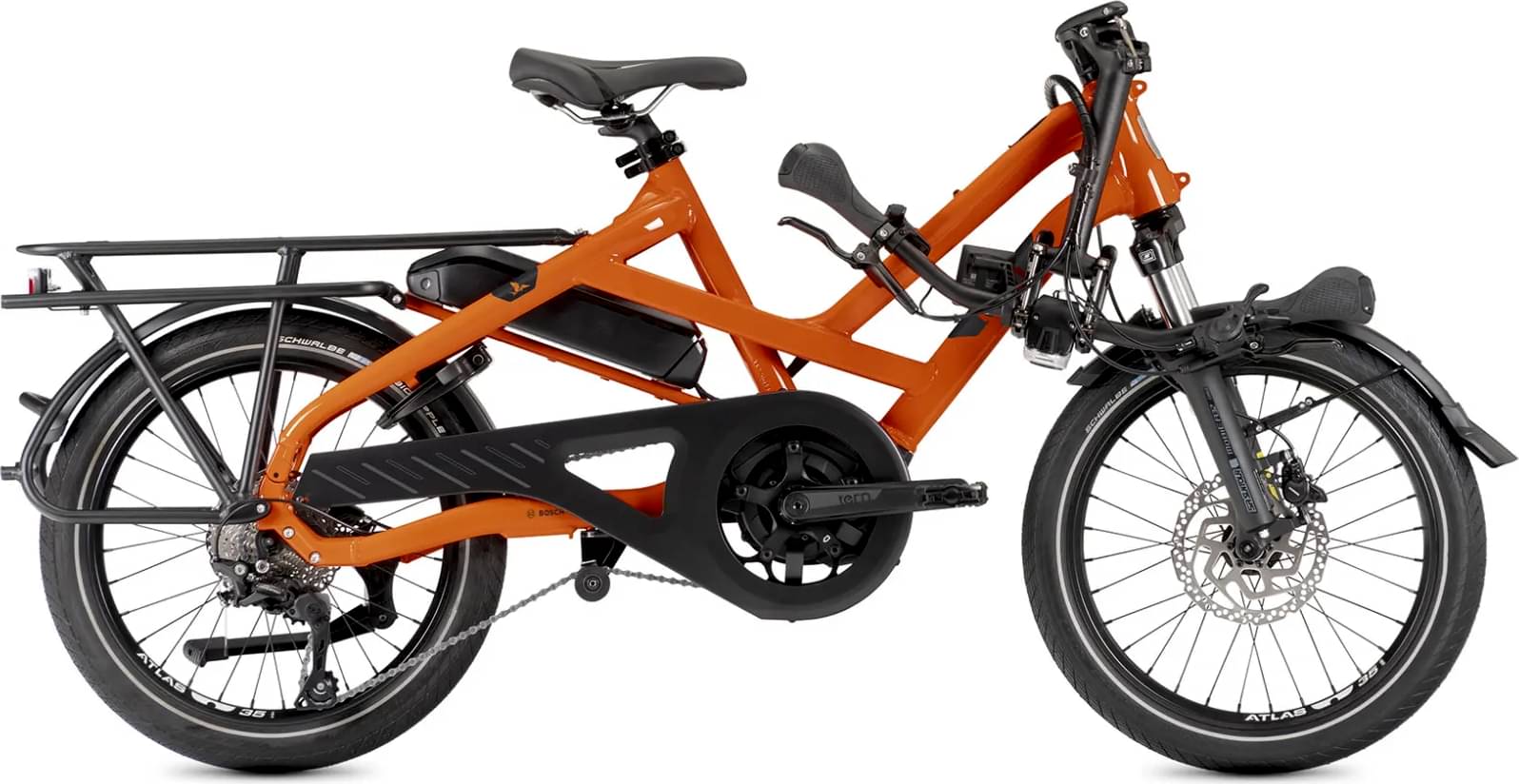

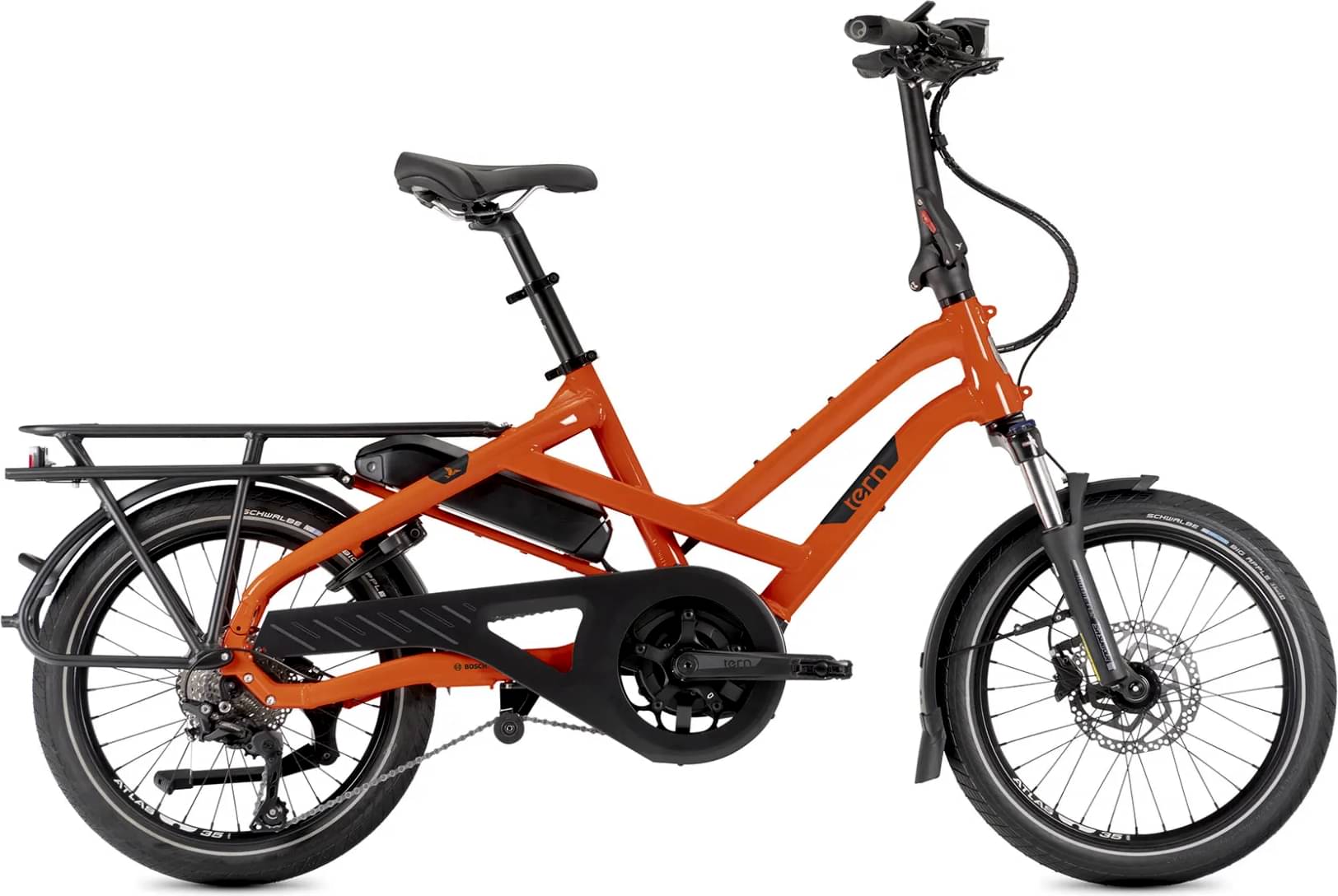

Tern HSD P10 2024
2024 E-bike
Estimate price |
5,504$
Weight | 27.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 70mm -
Fork Suntour
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 600W 75Nm mid-drive -
Battery Bosch PowerPack 545 -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components

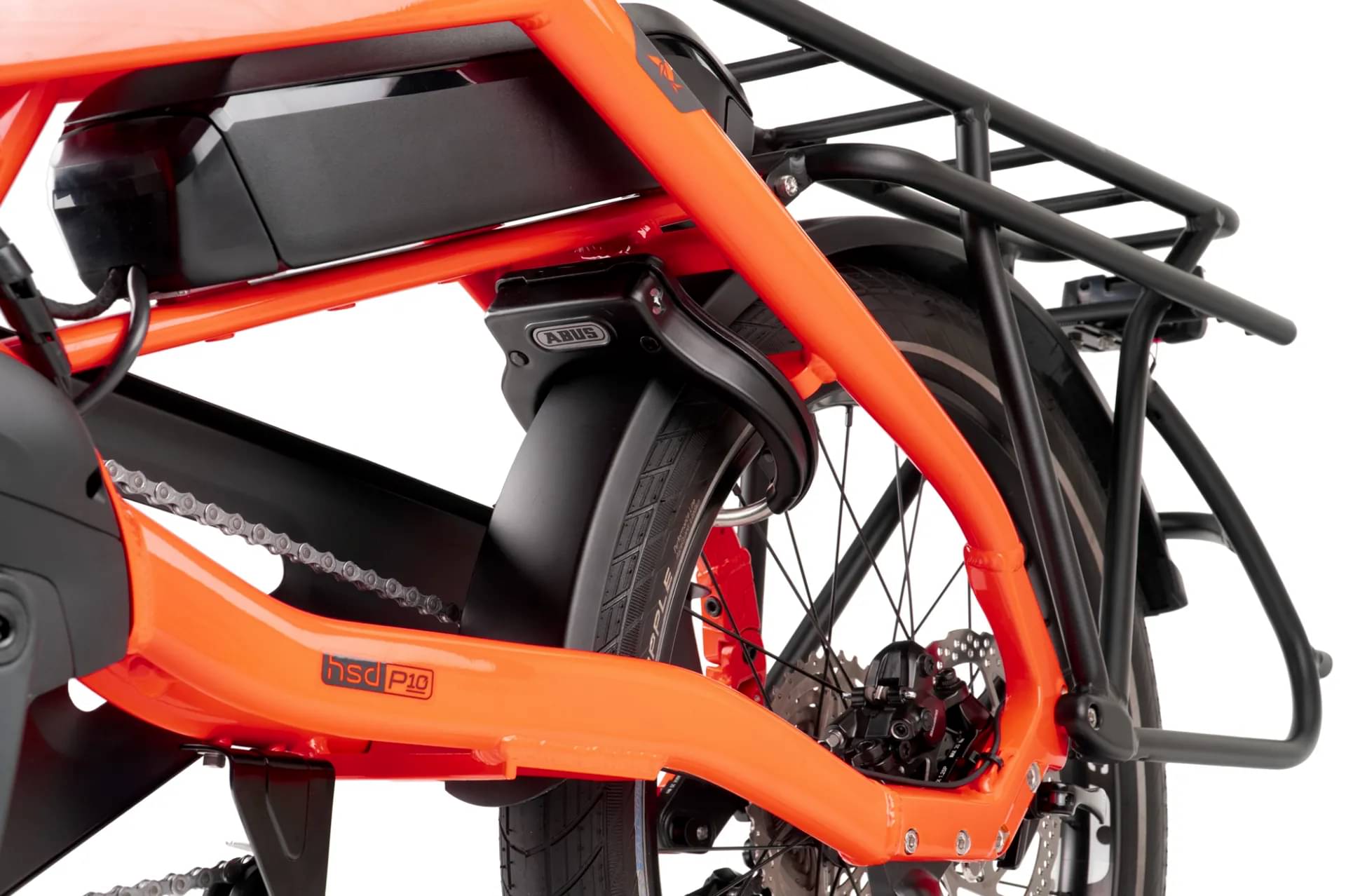

Frame
Frame
Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 180 kg
Suspension Fork
Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 180 kg
Drivetrain
Rear Derailleur
Shimano Deore Shadow+
Shift Levers
Shimano Deore, 1 x 10 spd, trigger
Cassette
Shimano 11-36T, 10 spd
Crank
Tern HSD custom
Bottom Bracket
Motor integrated
Chain
KMC 10 spd, for eBike, EPT corrosion resistant coating
Chain Guide
Tern Custom, full chain cover
Pedals
Urban with non-slip surface
Wheels
Front Hub
Novatec, Thru-axle, sealed bearings
Rear Hub
Novatec, sealed cartridge bearing, disc
Rims
Tern Atlas H, wide 35 mm
Tires
Schwalbe Big Apple, 55-406, puncture protection, Reflex
Brakes
Brakes
Tektro, hydraulic disc, 180 mm rotor
Brake Levers
Tektro, hydraulic disc

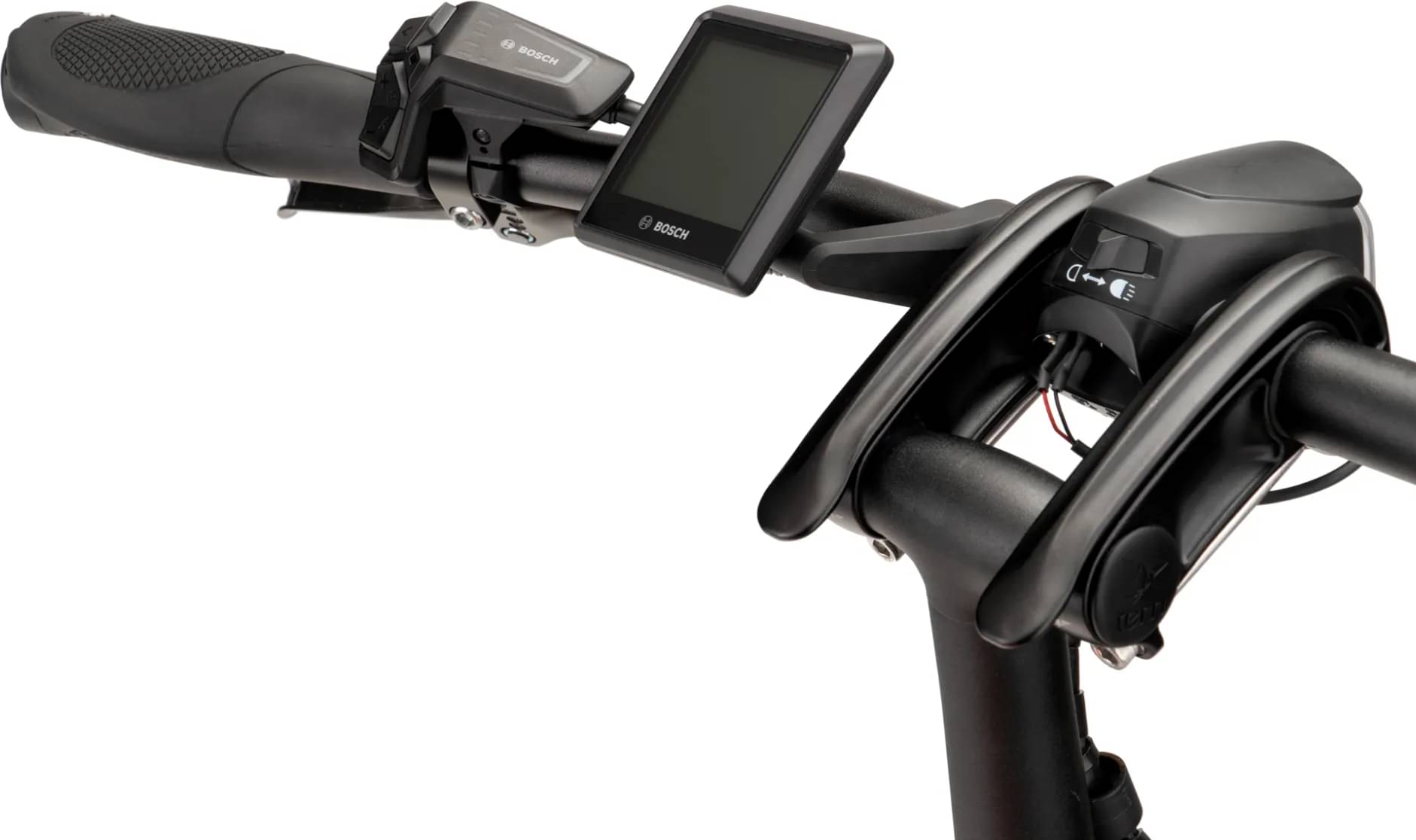

Cockpit
Stem
Tern Andros, adjustable, forged construction, patented technology
Handlebar
Tern Sweep, 6061-AL, Tern Andros adapted
Headset
Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
Seat
Saddle
Tern Upright by Velo
Seatpost
Tern Telescope, 34.9/30.9 mm, 2014-AL
Motor & Battery

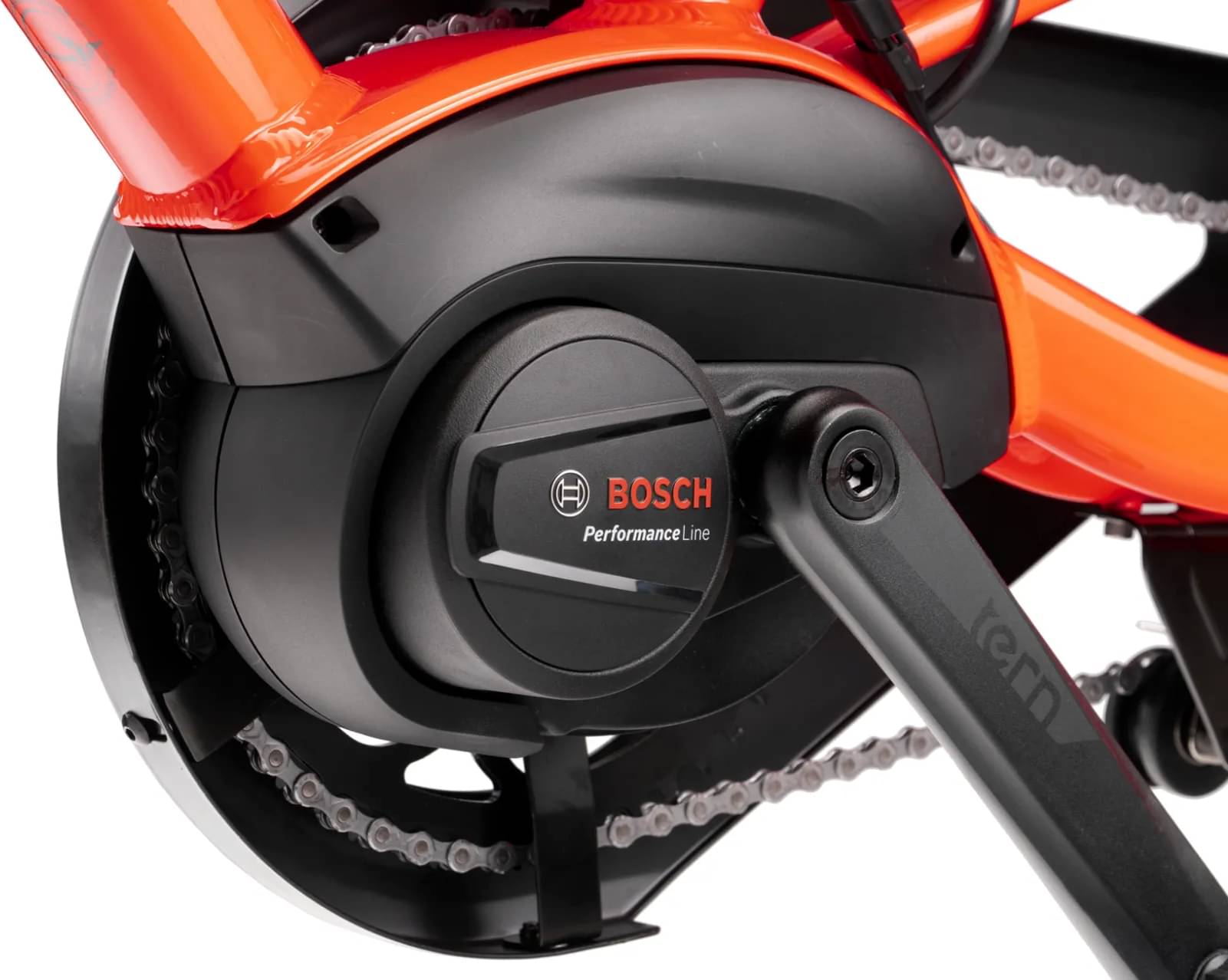

Motor
Bosch Performance, 340% Assist, 75 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
Battery
Bosch PowerPack 545
Charger
220V, 4A (EU); 100-240V, 4A (US)
