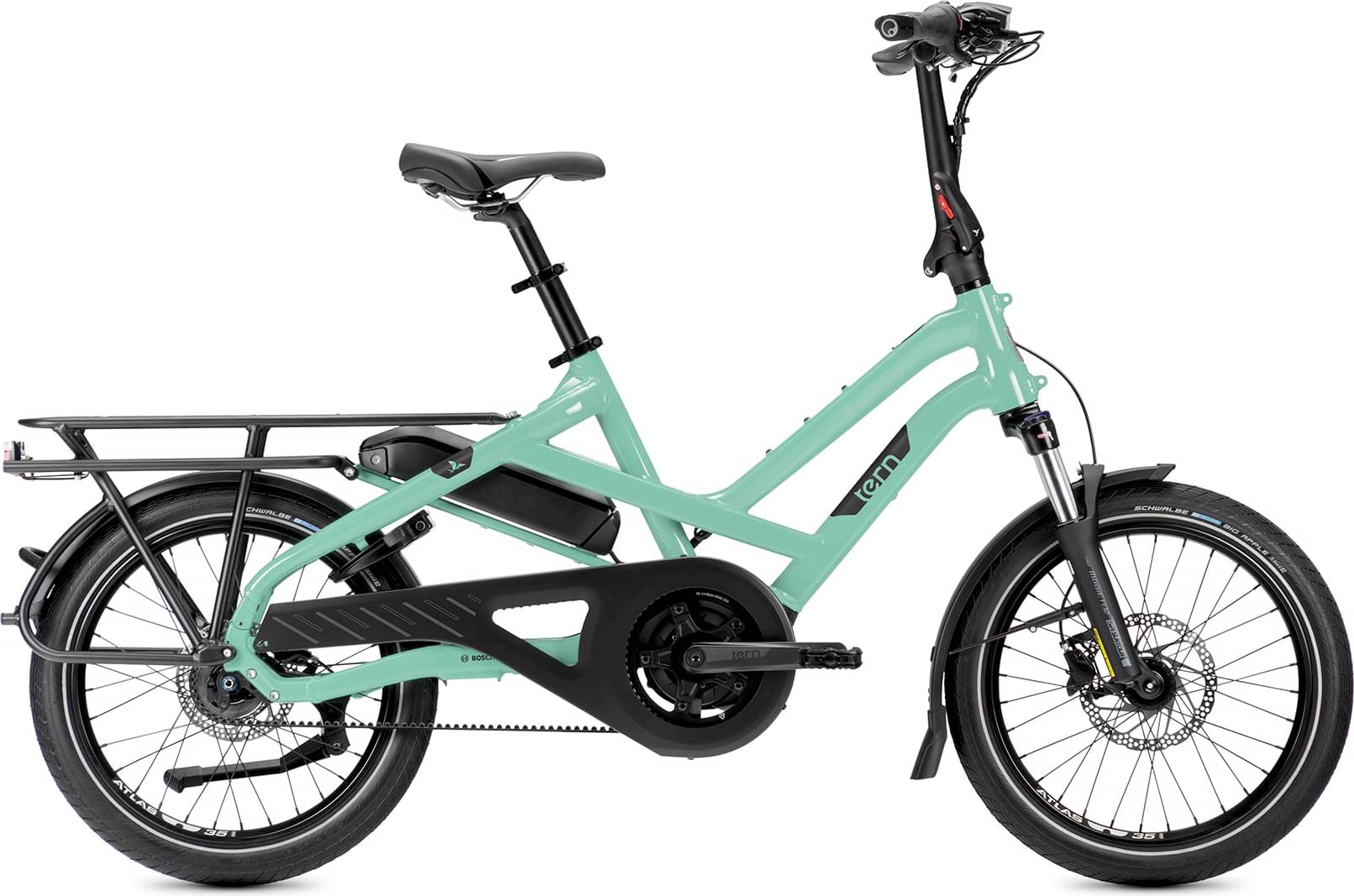

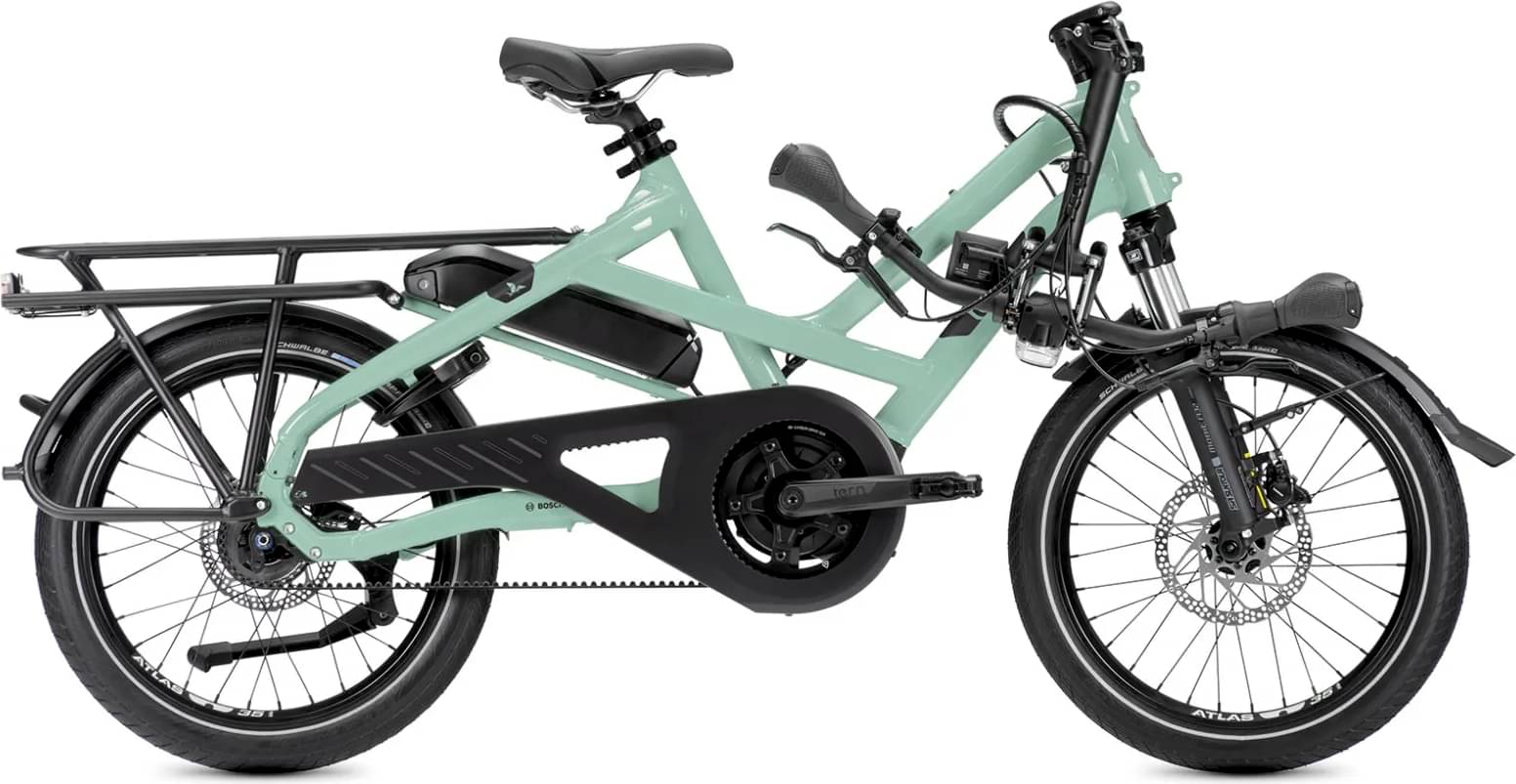

Tern HSD P5i 2024
2024 E-bike
Estimate price |
5,734$
Weight | 27.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 70mm -
Fork Suntour
-
Groupset Gates CDX, Nexus -
Suspension Hardtail -
Motor Bosch 600W 75Nm mid-drive -
Battery Bosch PowerPack 545 -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 180 kg
Suspension Fork
Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 180 kg
Drivetrain
Shift Levers
Shimano Nexus INTER-5E
Cassette
Gates CDX, precision CNC machined cog
Crank
Tern HSD custom, Gates CDX CNC machined beltring
Bottom Bracket
Motor integrated
Chain
Gates Carbon Drive CDX belt
Chain Guide
Tern Custom, full chain cover
Pedals
Urban with non-slip surface
Wheels
Front Hub
Novatec, Thru-axle, sealed bearings
Rear Hub
Shimano Nexus INTER-5E
Rims
Tern Atlas H, wide 35 mm
Tires
Schwalbe Big Apple, 55-406, puncture protection, Reflex
Brakes
Brakes
Shimano, hydraulic disc, 180 mm rotor
Brake Levers
Shimano, hydraulic disc
Cockpit
Stem
Tern Andros, adjustable, forged construction, patented technology
Handlebar
Tern Sweep, 6061-AL, Tern Andros adapted
Headset
Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
Seat
Saddle
Tern Upright by Velo
Seatpost
Tern Telescope, 34.9/30.9 mm, 2014-AL
Motor & Battery

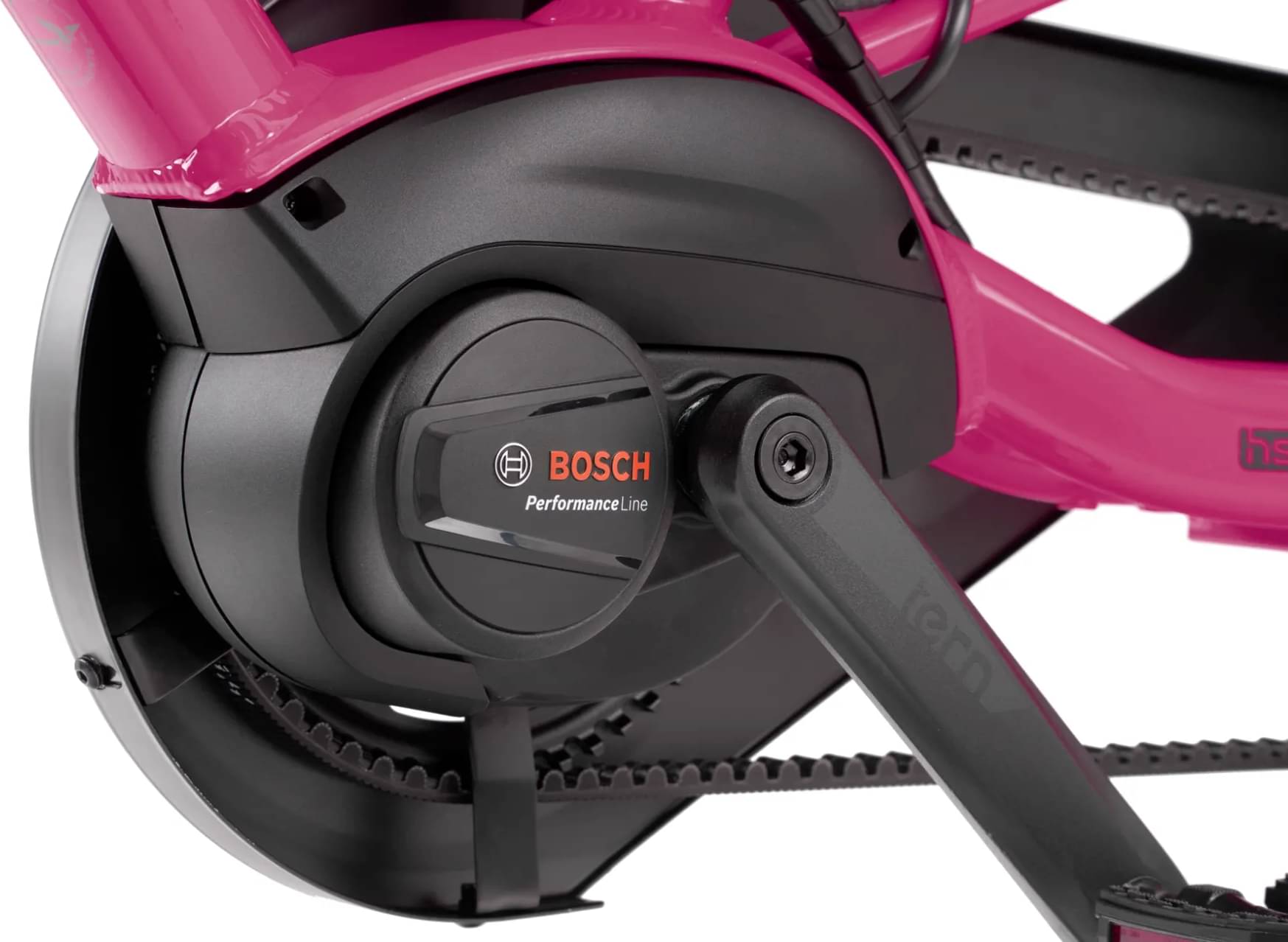

Motor
Bosch Performance, 340% Assist, 75 Nm Torque, Class 1 max speed 20 mph (US)

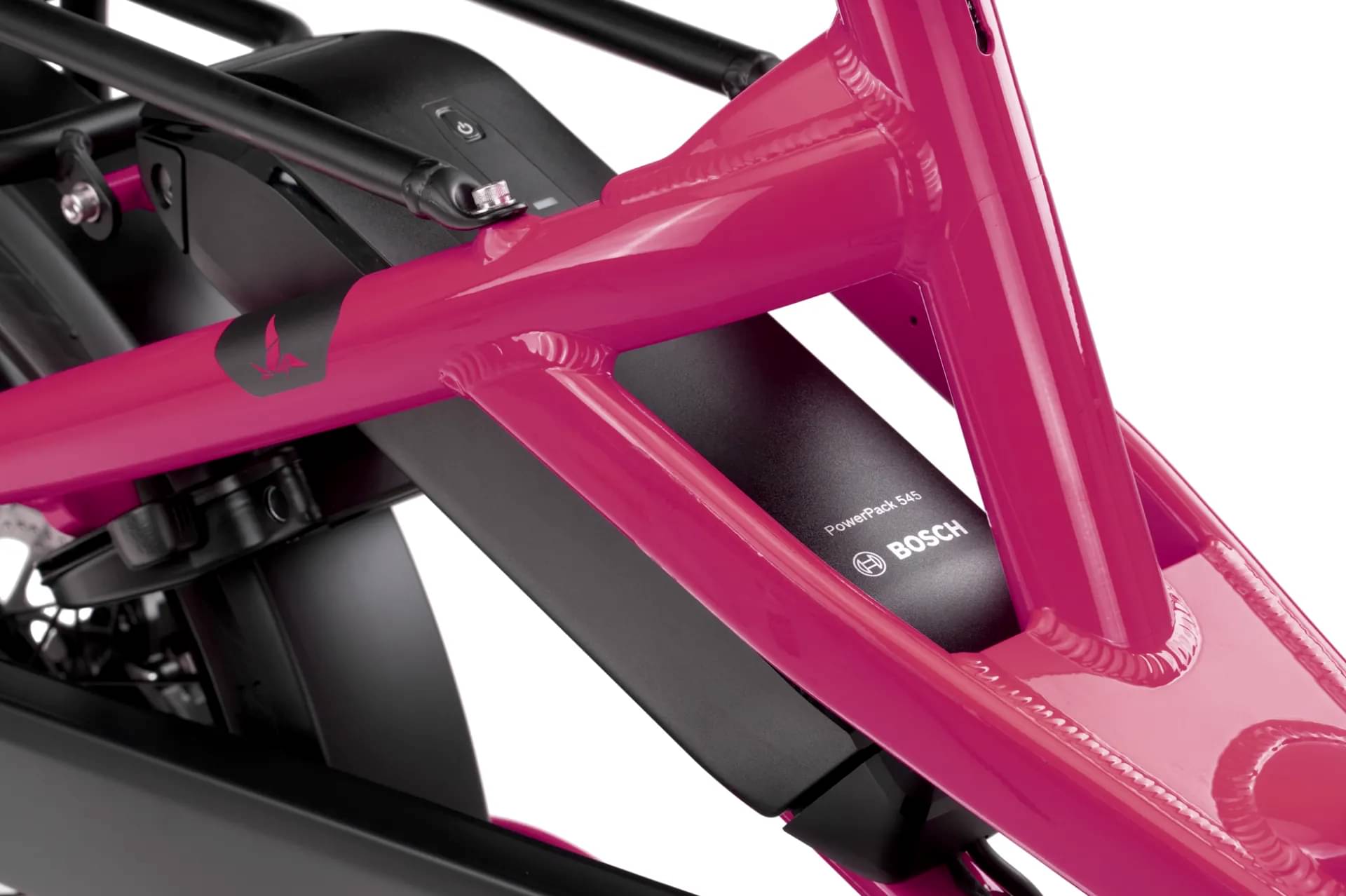

Battery
Bosch PowerPack 545
Charger
220V, 4A (EU); 100-240V, 4A (US)
