Tern HSD P9 2024
2024 E-bike
Estimate price |
4,329$
Weight | 25.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Suntour -
Groupset Alivio -
Suspension Hardtail -
Motor Bosch 600W 50Nm mid-drive -
Battery Bosch PowerPack 400 -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 170 kg
Suspension Fork
Suntour custom for Tern, Chromoly steerer, 32 mm stanchions, Thru-axle, EFBE tested for 170 kg
Drivetrain

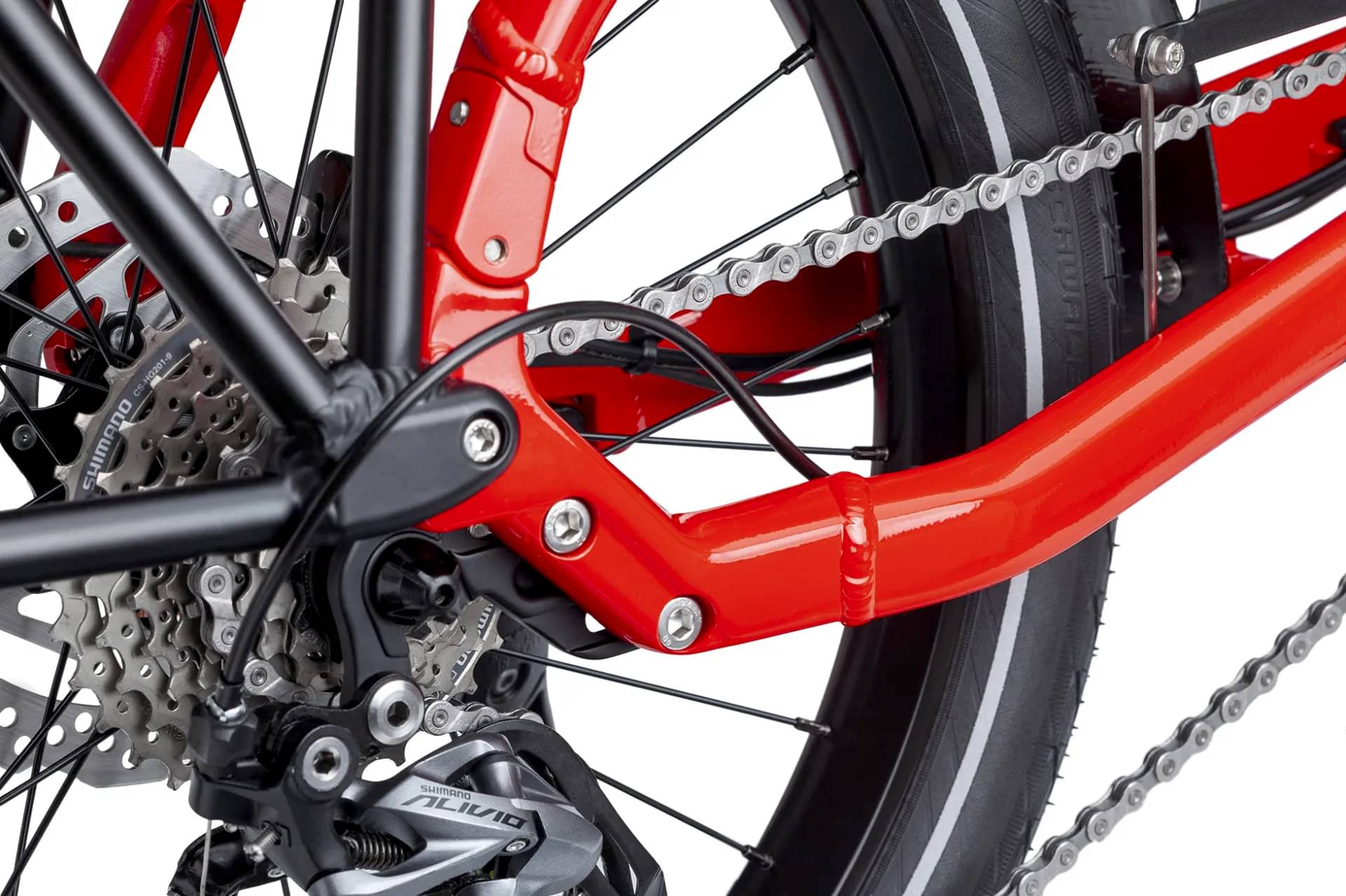

Rear Derailleur
Shimano Alivio Shadow
Shift Levers
Shimano Alivio, 1 x 9 spd, trigger
Cassette
Shimano 11-32T, 9 spd
Crank
Tern HSD custom
Bottom Bracket
Motor integrated
Chain
9 spd, DHT for eBike, GST corrosion resistant coating
Chain Guide
SKS Chainblade
Pedals
Urban with non-slip surface
Wheels
Front Hub
Novatec, Thru-axle, sealed bearings
Rear Hub
Shimano disc
Rims
Tern Atlas H, wide 35 mm
Tires
Schwalbe Big Apple, 55-406, puncture protection, Reflex
Brakes
Brakes
Shimano, hydraulic disc, 180 mm rotor
Brake Levers
Shimano, hydraulic disc
Cockpit
Stem
Tern Andros (G2), adjustable, forged construction, patented technology
Handlebar
Tern Sweep, 6061-AL, Tern Andros adapted
Headset
Tern Flux, cartridge bearings, Physis integrated
Seat
Saddle
Tern HSD
Seatpost
Tern Telescope, 34.9/30.9 mm, 2014-AL
Motor & Battery
Motor
Bosch Active Line Plus (Gen 3), max speed 25 kph (EU); max speed 20 mph (US)

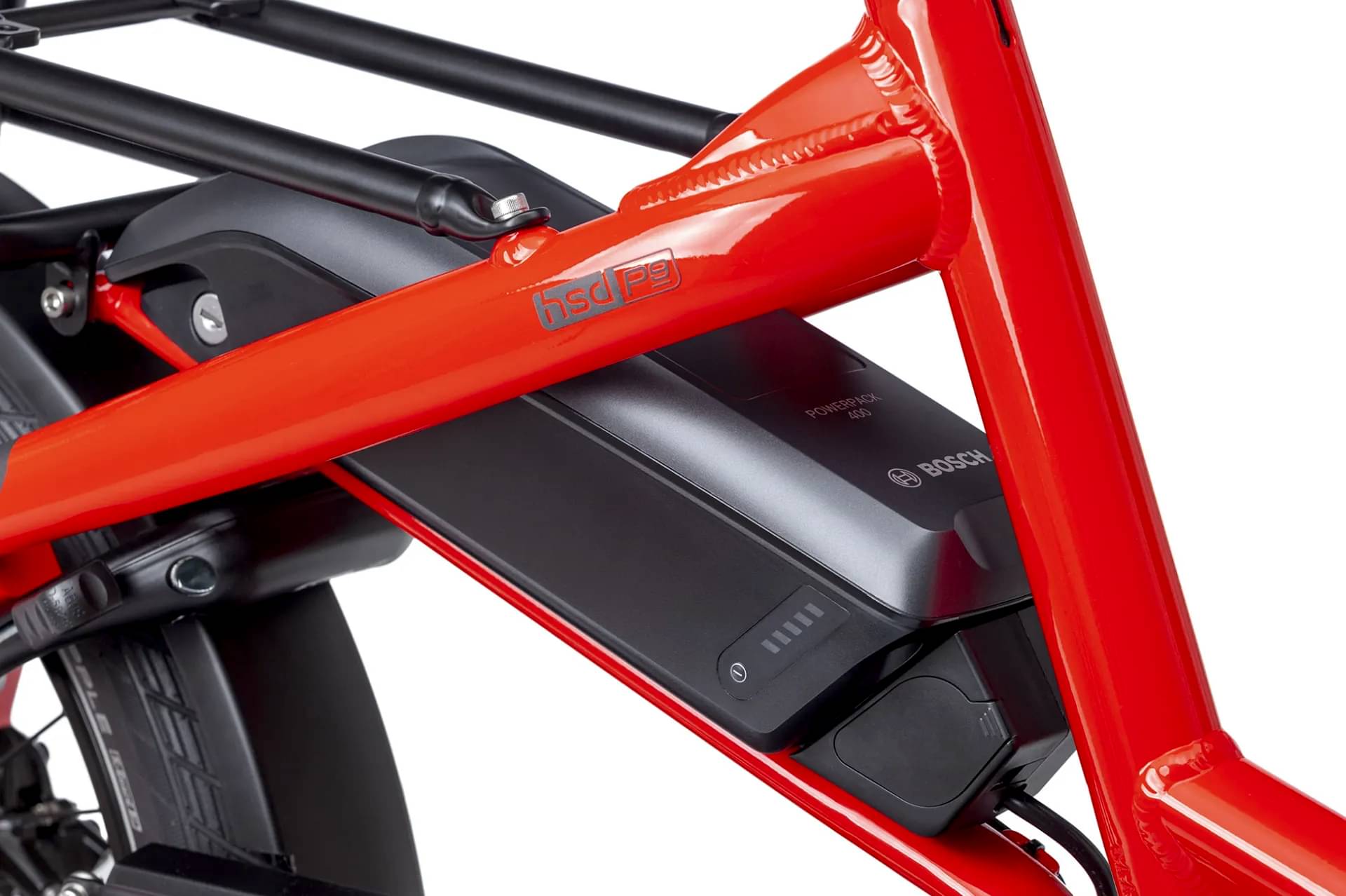

Battery
Bosch PowerPack 400
Charger
Bosch Standard Charger/ Bosch Compact Charger
