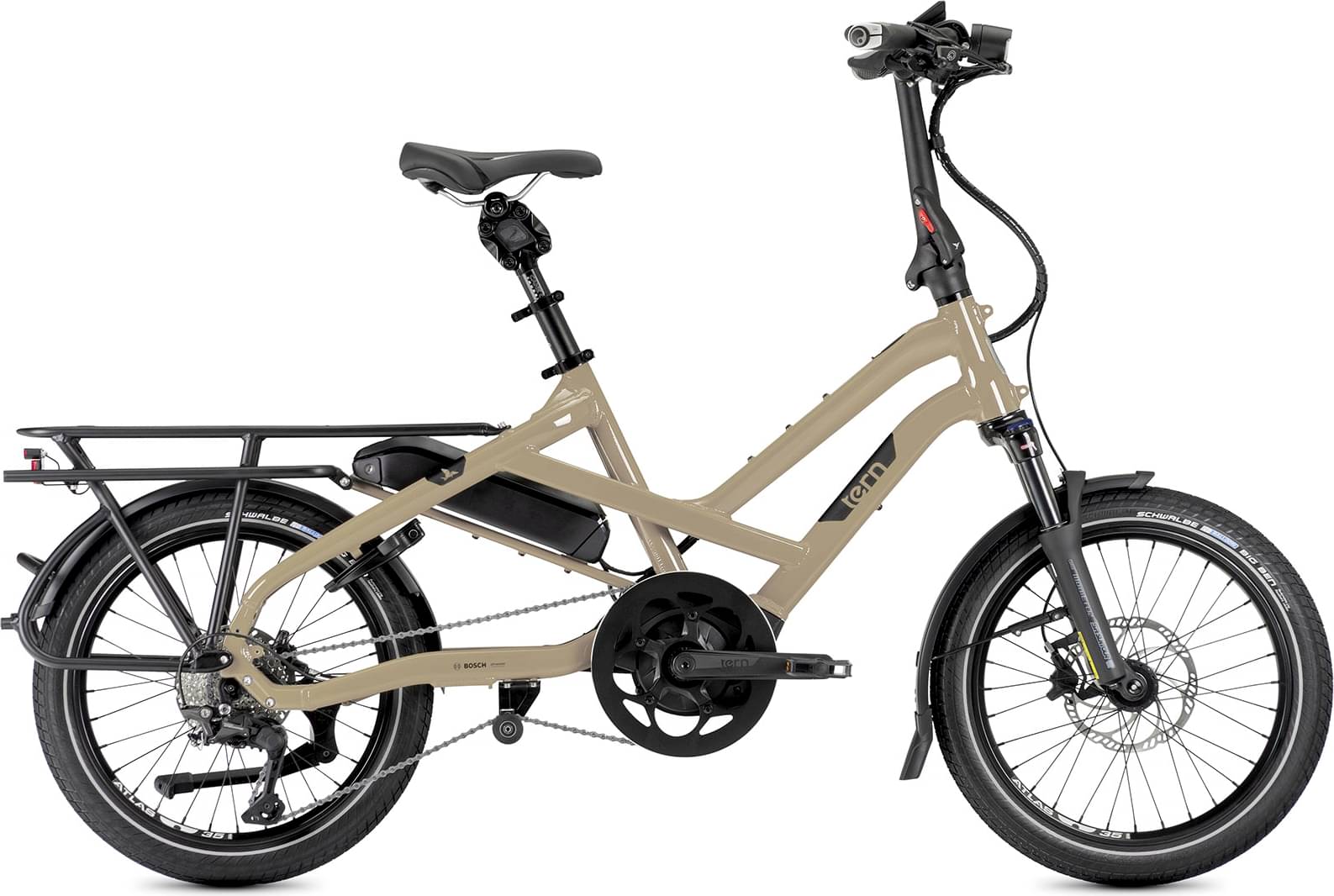

Tern HSD S11 2024
2024 E-bike
Estimate price |
4,899$
Weight | 28.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 70mm -
Fork Suntour
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 600W 75Nm mid-drive -
Battery Bosch PowerPack 545 -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 180 kg
Suspension Fork
Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 180 kg
Drivetrain
Rear Derailleur
Shimano Deore Shadow+
Shift Levers
Shimano Deore, 1 x 11 spd
Cassette
11-36T, 11 spd
Crank
Tern HSD custom
Bottom Bracket
Motor integrated
Chain
KMC 11 spd, for eBike, EPT corrosion resistant coating
Chain Guide
Custom Bash Guard
Pedals
Urban with non-slip surface, sealed bearings
Wheels
Front Hub
Novatec, Thru-axle, sealed bearings
Rear Hub
Novatec, sealed cartridge bearing, disc
Rims
Tern Atlas H, wide 35 mm

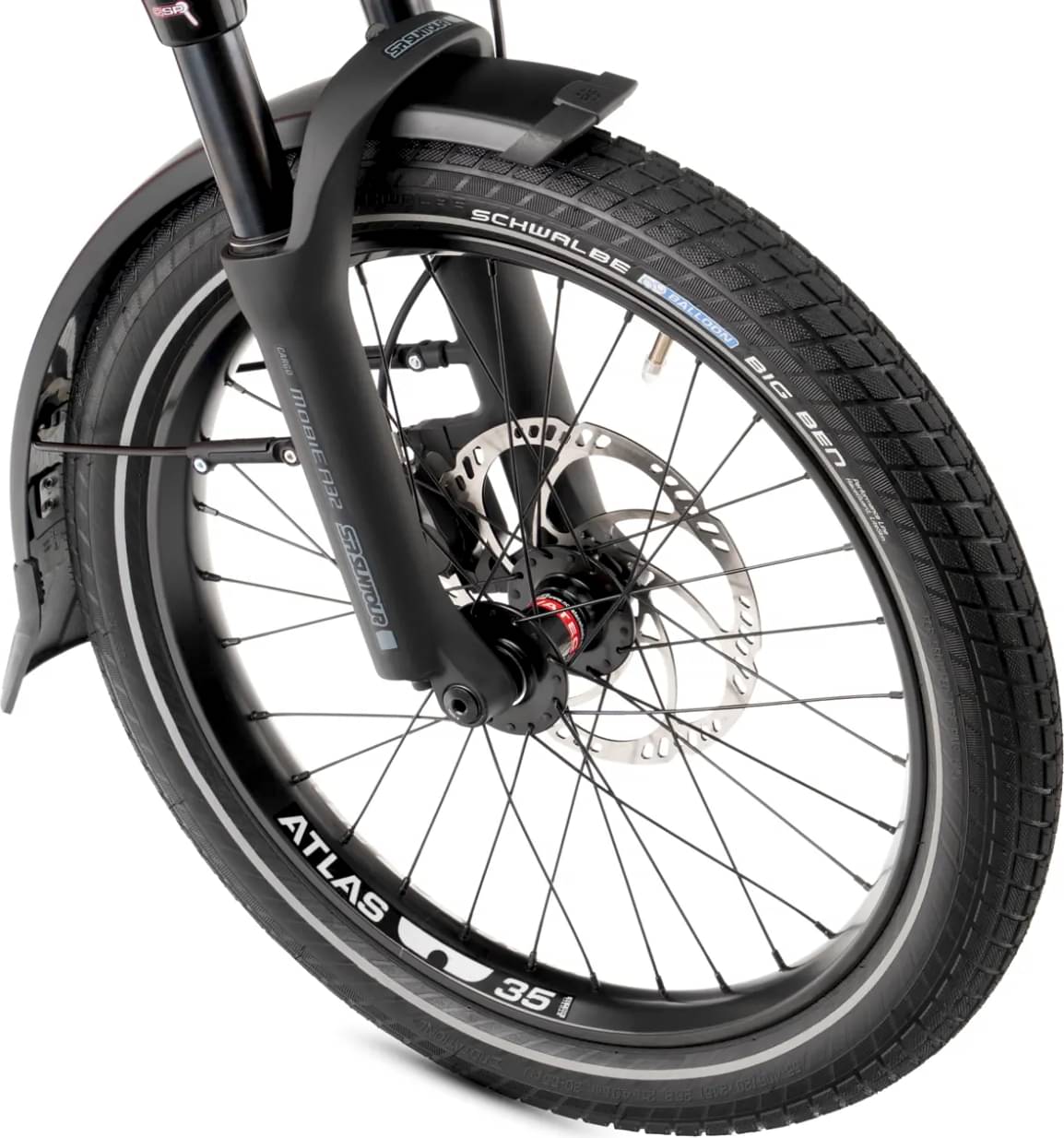

Tires
Schwalbe Big Ben, 55-406, RaceGuard puncture protection, ECE-R75 ebike certification
Brakes

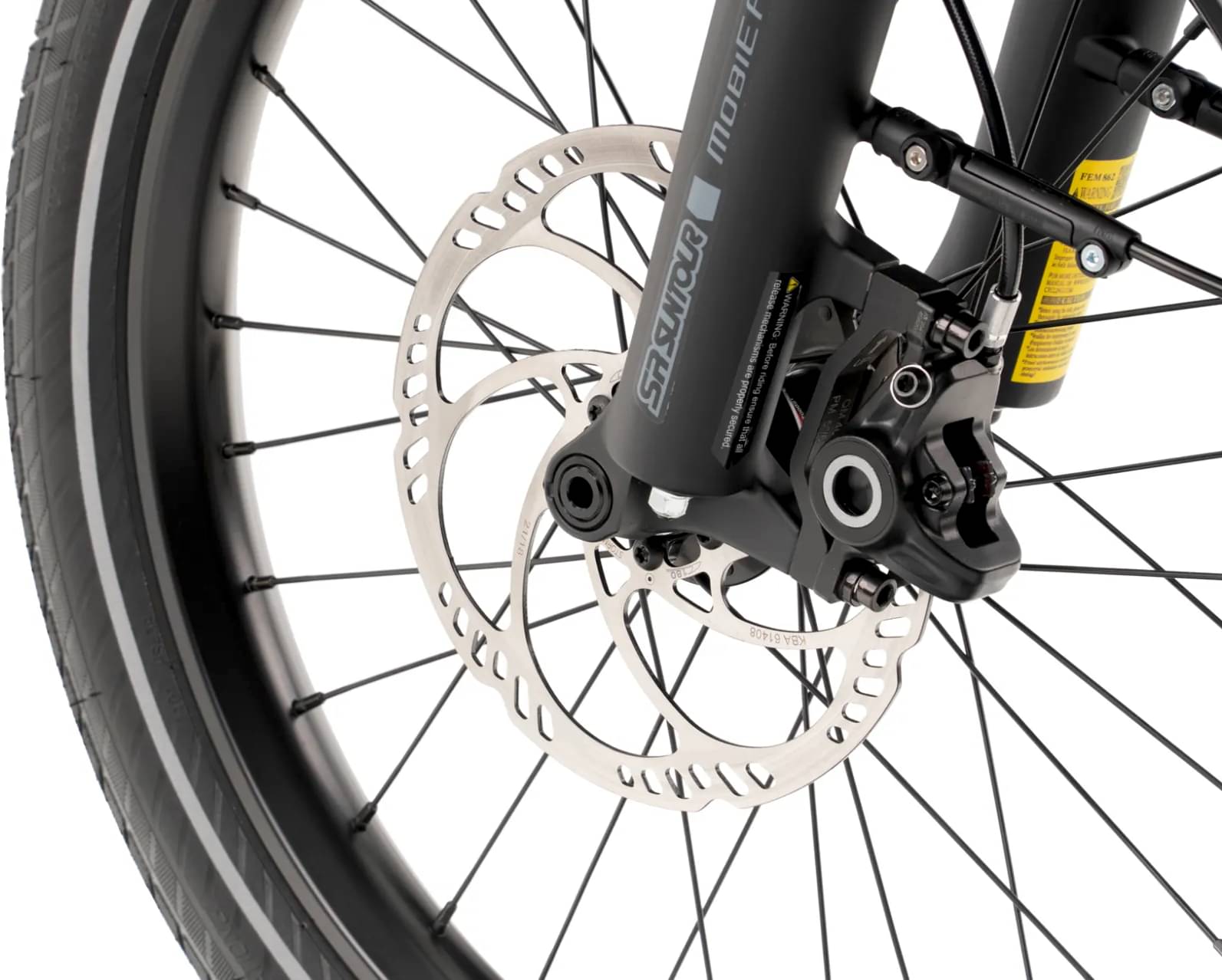

Brakes
Magura MT4, hydraulic disc, 180 mm rotor
Brake Levers
Magura MT4 e-stop, hydraulic, with brake light sensor
Cockpit
Stem
Tern Andros, adjustable, forged construction, patented technology
Handlebar
Tern Sweep, 6061-AL, Tern Andros adapted
Headset
Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
Seat
Saddle
Tern Upright by Velo

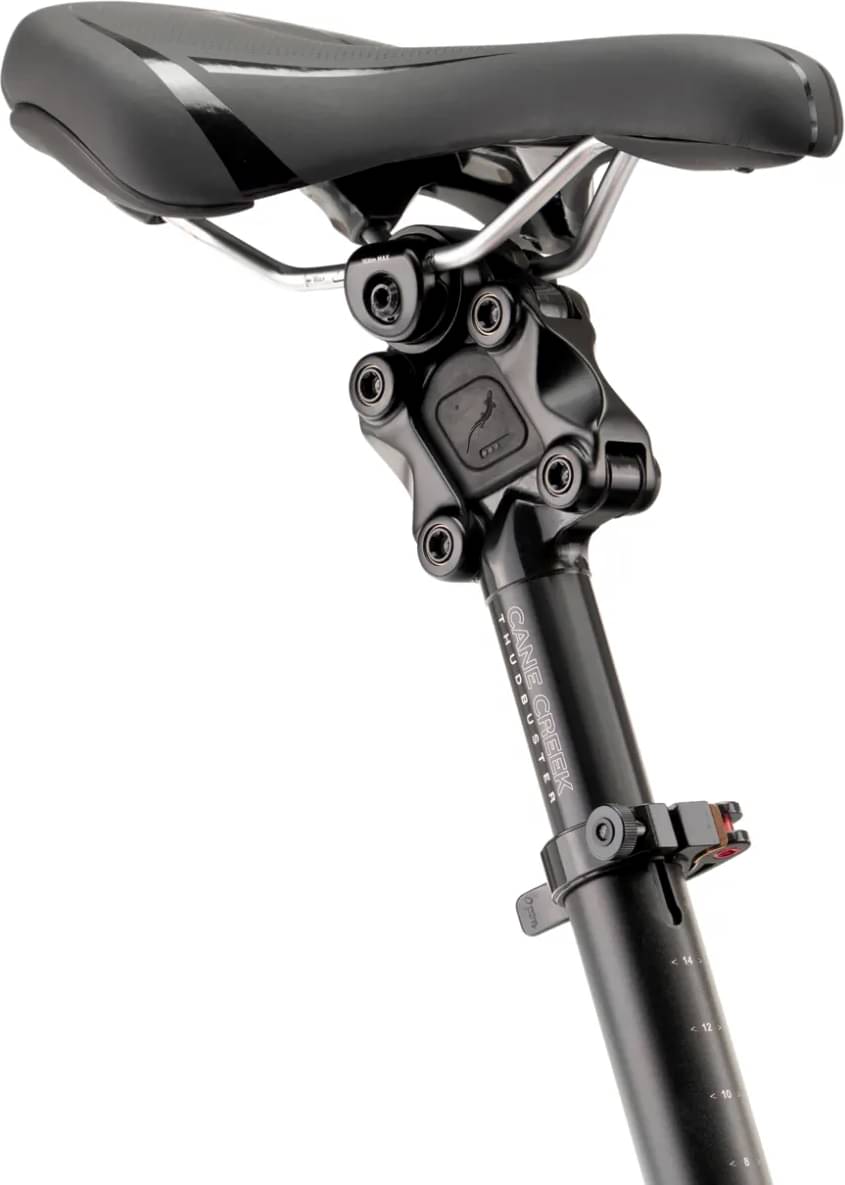

Seatpost
Cane Creek Thudbuster G4, Tern Telescope, 34.9/30.9 mm
Motor & Battery
Motor
Bosch Performance Sport, 340% Assist, 75 Nm Torque, Class 3 max speed 28 mph
Battery
Bosch PowerPack 545
Charger
100-240V, 4A (US)
