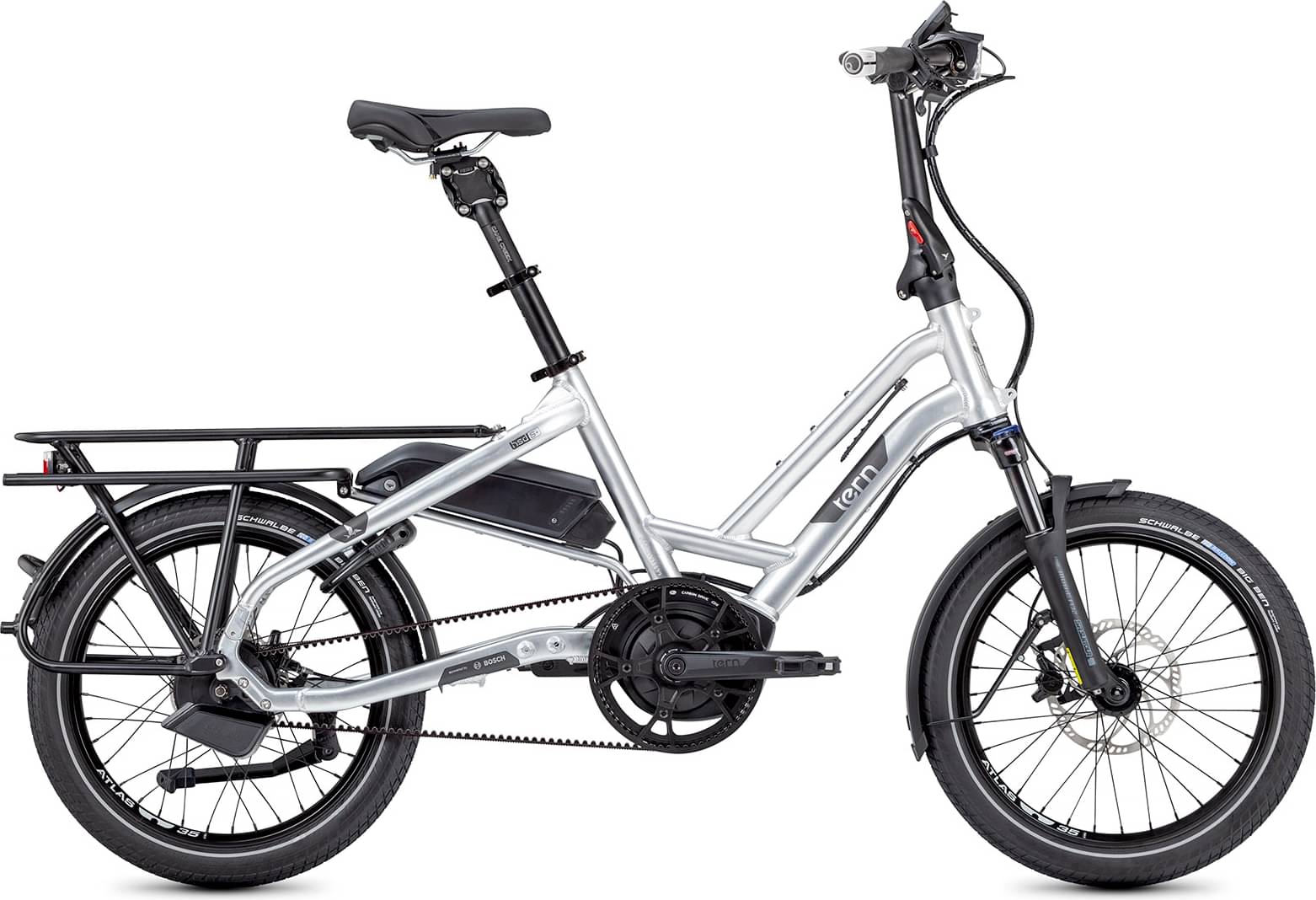

Tern HSD S+ 2024
2024 E-bike
Estimate price |
7,587$
Weight | 26.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 70mm -
Fork Suntour
-
Groupset Gates CDX -
Suspension Hardtail -
Motor Bosch 600W 63Nm mid-drive -
Battery Bosch PowerPack 500 -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 170 kg
Suspension Fork
Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE tested for 170 kg
Drivetrain
Shift Levers
Enviolo AUTOMATiQ
Cassette
Gates CDX, precision CNC machined cog
Crank
Tern HSD custom, Gates CDX CNC machined beltring
Bottom Bracket
Motor integrated
Chain
Gates Carbon Drive CDX belt
Chain Guide
Gates integrated
Pedals
Urban with non-slip surface, sealed bearings
Wheels
Front Hub
Novatec, Thru-axle, sealed bearings
Rear Hub

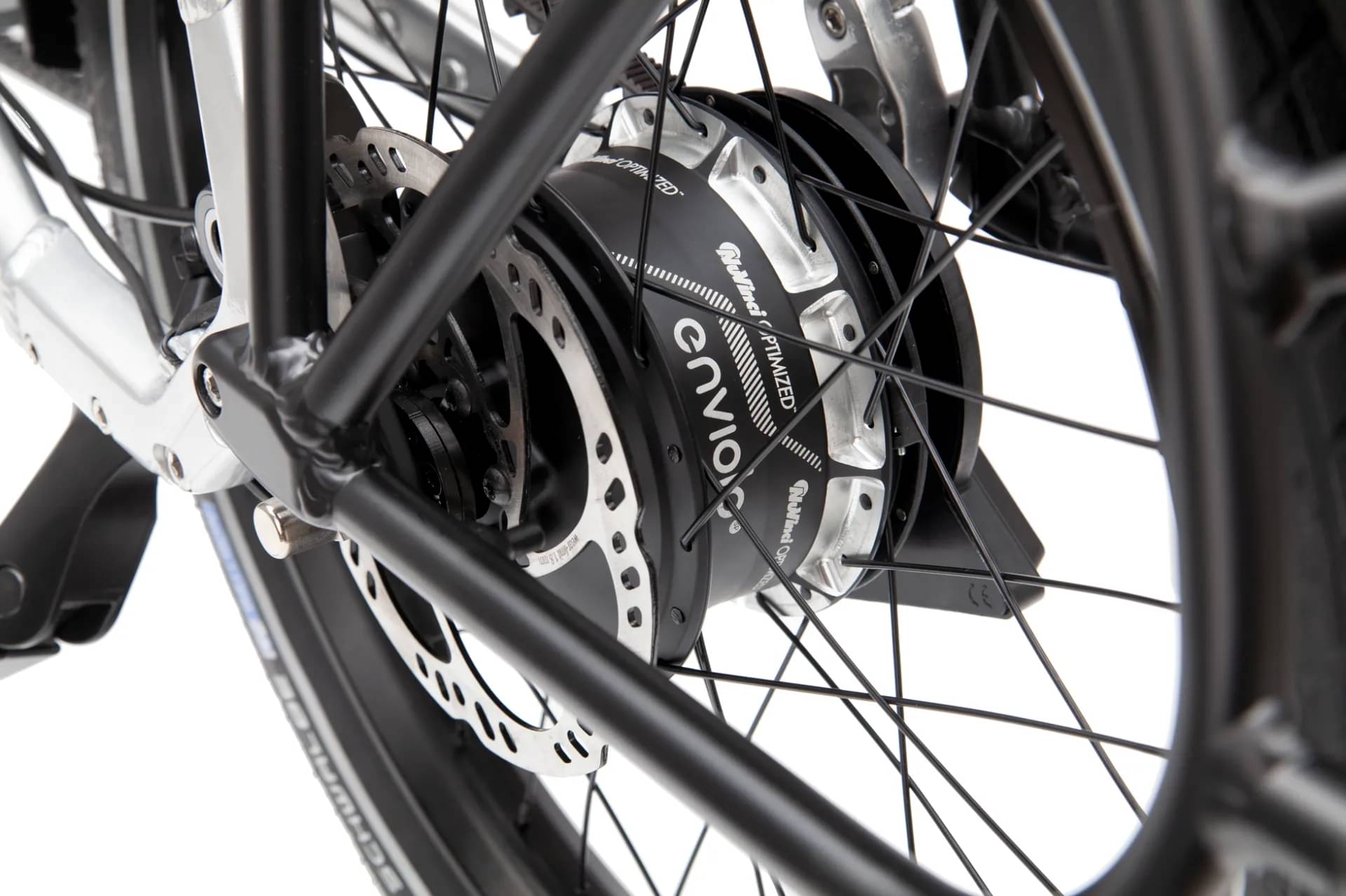

Integrated automatic shifting (more info soon)
Rims
Tern Atlas H, wide 35 mm
Tires
Schwalbe Big Ben, 55-406, RaceGuard puncture protection, ECE-R75 ebike certification
Brakes
Brakes
Magura MT4, hydraulic disc, 180 mm rotor
Brake Levers
Magura, hydraulic
Cockpit
Stem
Tern Andros (G2), adjustable, forged construction, patented technology
Handlebar
Tern Sweep, 6061-AL, Tern Andros adapted
Headset
Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated
Seat
Saddle
Tern HSD
Seatpost
Cane Creek Thudbuster ST, Tern Telescope, 34.9/30.9 mm
Motor & Battery
Motor
Bosch Performance (Gen 3), max speed 25 kph (EU); max speed 20 mph (US)
Battery
Bosch PowerPack 500
Charger
Bosch Standard Charger
