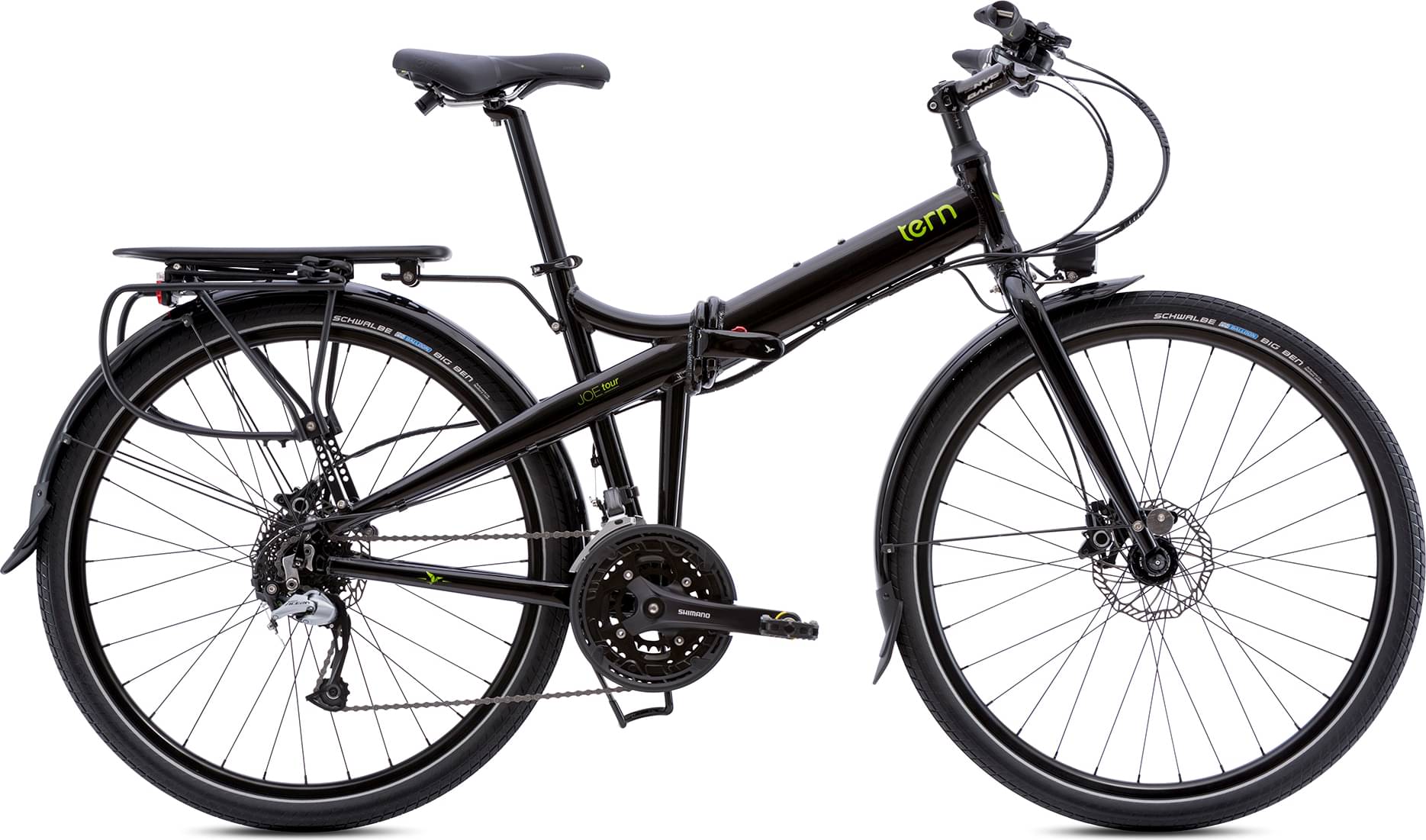

Tern Joe Tour 2024
2024 Urban
Estimate price |
2,032$
Weight | 16 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Acera, Altus -
Suspension Rigid -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Tern Joe, 7005-AL, OCL+ joint, 2 patented technologies
Suspension Fork
Aluminum, 6061-Al
Drivetrain
Rear Derailleur
Shimano Acera, Shadow RD
Front Derailleur
Shimano Altus
Shift Levers
Shimano, integrated shift/brake lever set, 3x9 spd
Cassette
Shimano, 11-32T, 9 spd
Crank
Shimano Altus, 48-36-26T, w/ chainguard
Bottom Bracket
Cartridge, sealed bearings
Chain
KMC 9 spd
Pedals
VP Alloy Cage
Wheels
Front Hub

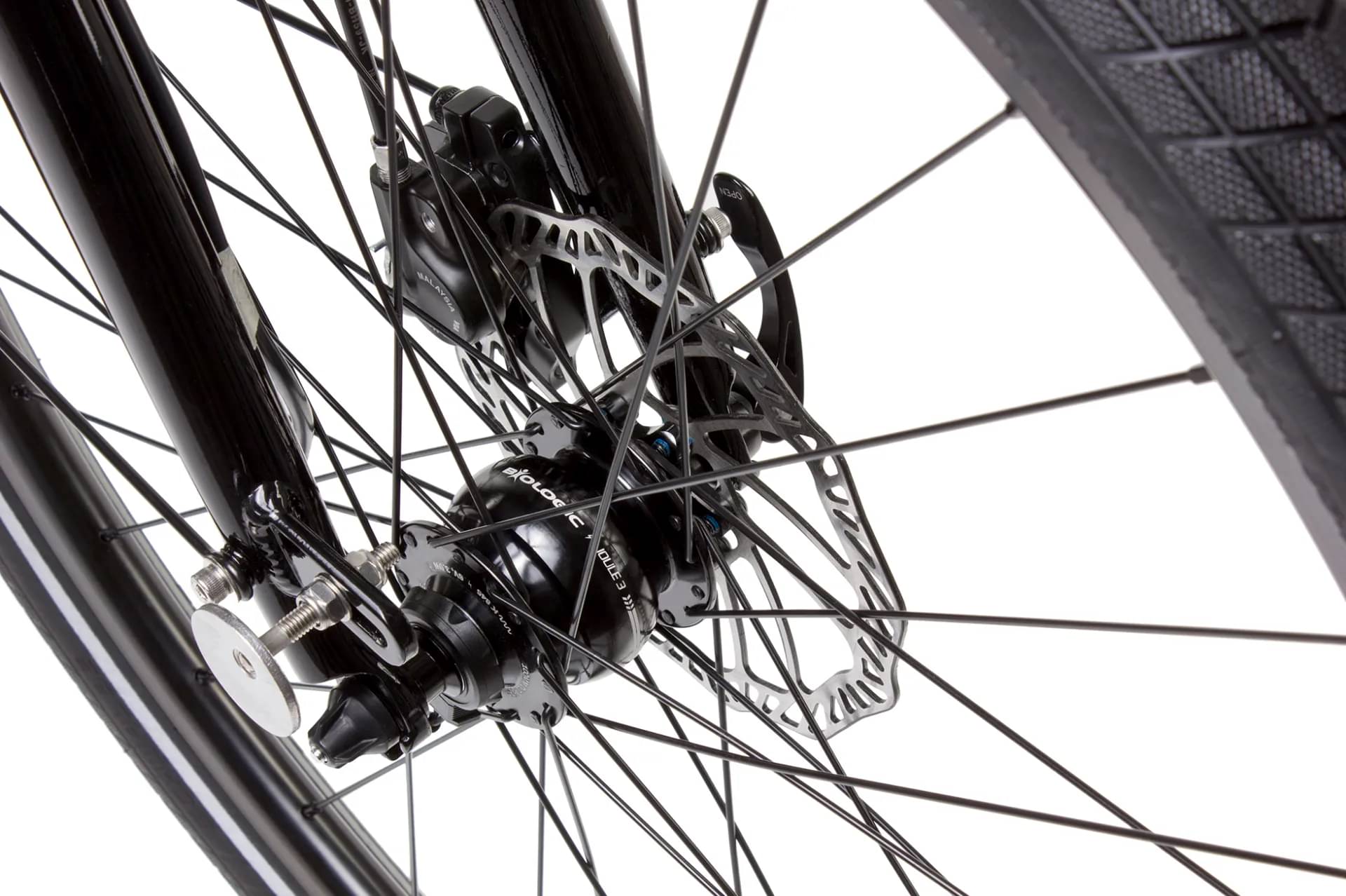

BioLogic Joule 3 dynamo, disc
Rear Hub
Formula disc, 9 spd aluminum, QR
Rims
Doublewall aluminum, disc only
Tires
Schwalbe Big Ben, 50-584, puncture protection, Reflex
Brakes
Brakes

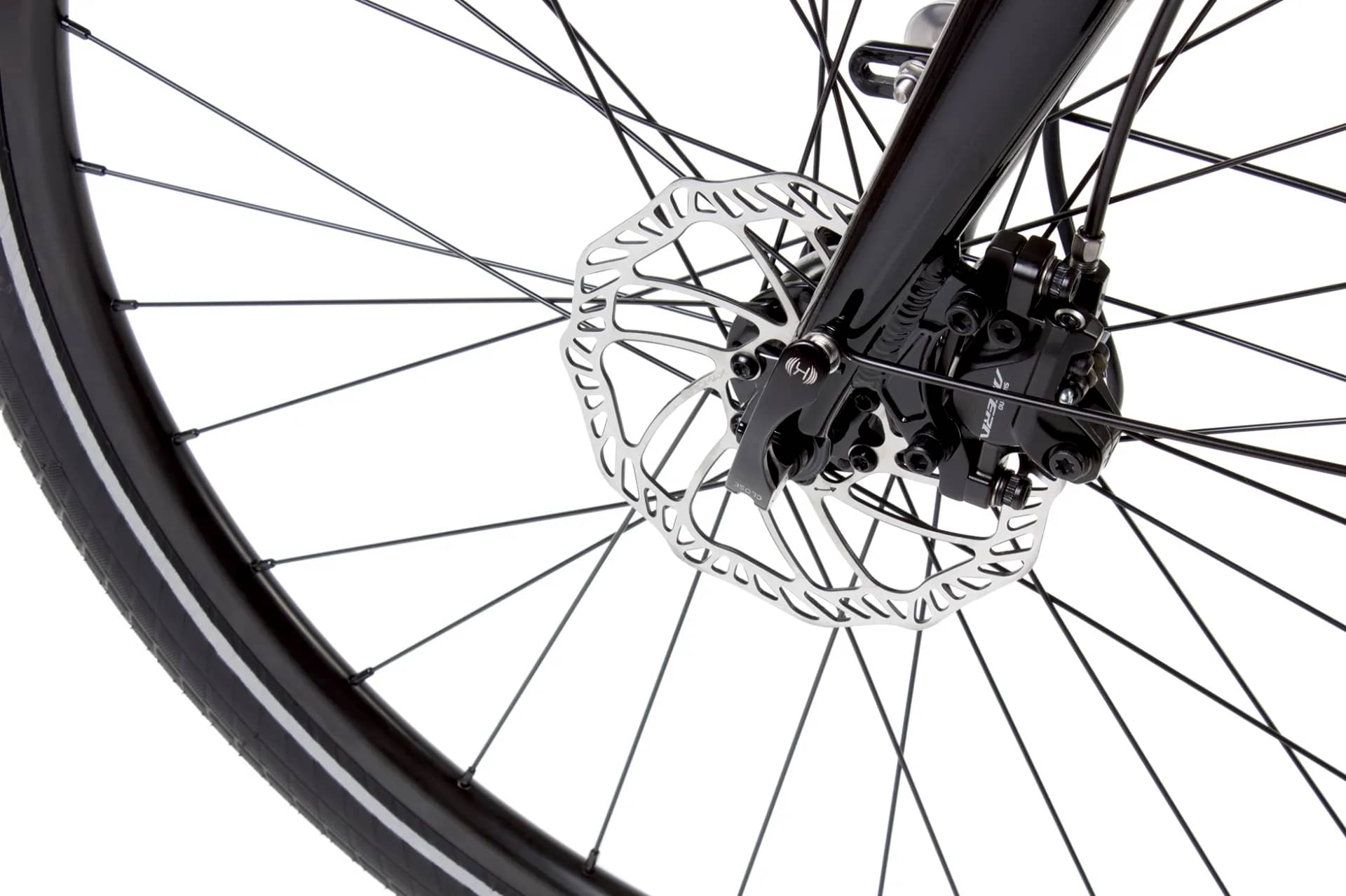

Shimano, hydraulic disc
Brake Levers
Shimano, hydraulic disc
Cockpit
Stem
NVO, adjustable, patented ATS Technology
Handlebar
Riser, double-butted 6061-Al, 31.8 mm
Headset
Cartridge bearings
Seat
Saddle
Tern Porter+, patented GripPad design, PrimeGel padding
Seatpost
6061-Al, forged clamp
