Tern Orox R14 (27.5″) 2024
2024 E-bike
Estimate price |
8,999$
Weight | 33.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Groupset Gates CDX -
Suspension Rigid -
Motor Bosch 250W 85Nm mid-drive -
Battery 800 Wh, Bosch Dual Battery pack ready -
Drivetrain Belt Drive -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Tern Orox, 6061-AL, patented design, EFBE tested and approved
Suspension Fork
Atlas X, butted chromoly steel, EFBE tested and approved
Drivetrain
Shift Levers
Rohloff, Twist
Cassette
Gates CDX, precision CNC machined cog
Crank
Tern Orox custom, Gates CDX CNC machined beltring
Bottom Bracket
Motor integrated
Chain
Gates Carbon Drive CDX belt
Chain Guide
Custom Bash Guard
Pedals
MTB, non-slip
Wheels
Front Hub
Tern Atlas X, CNC body, disc cooling fins, Boost Thru-Axle, integrated Tern Tool with 5mm hex/T20 Torx

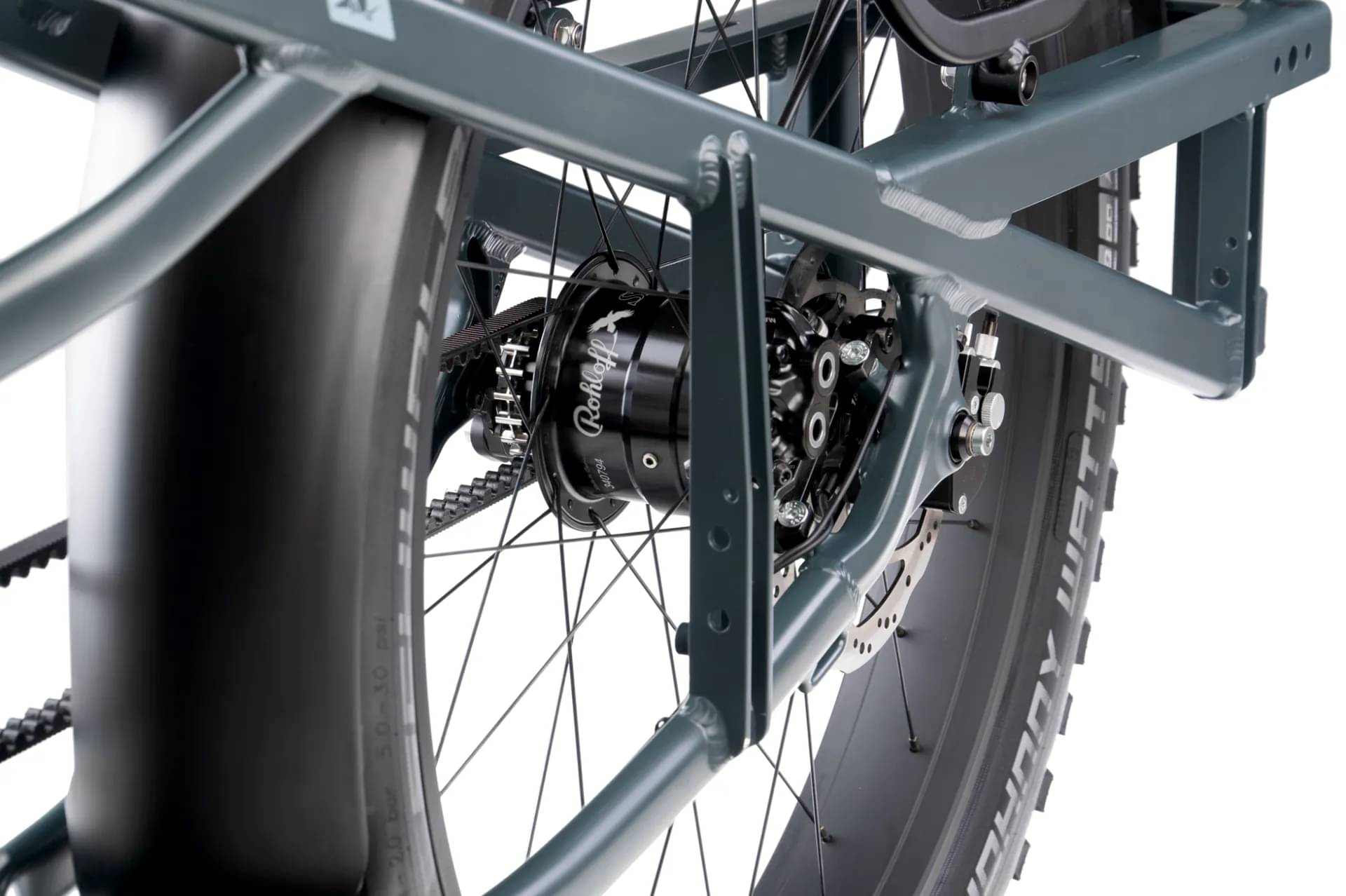

Rear Hub
Rohloff, 526% range, Boost
Rims
Tern Atlas X, custom doublewall construction

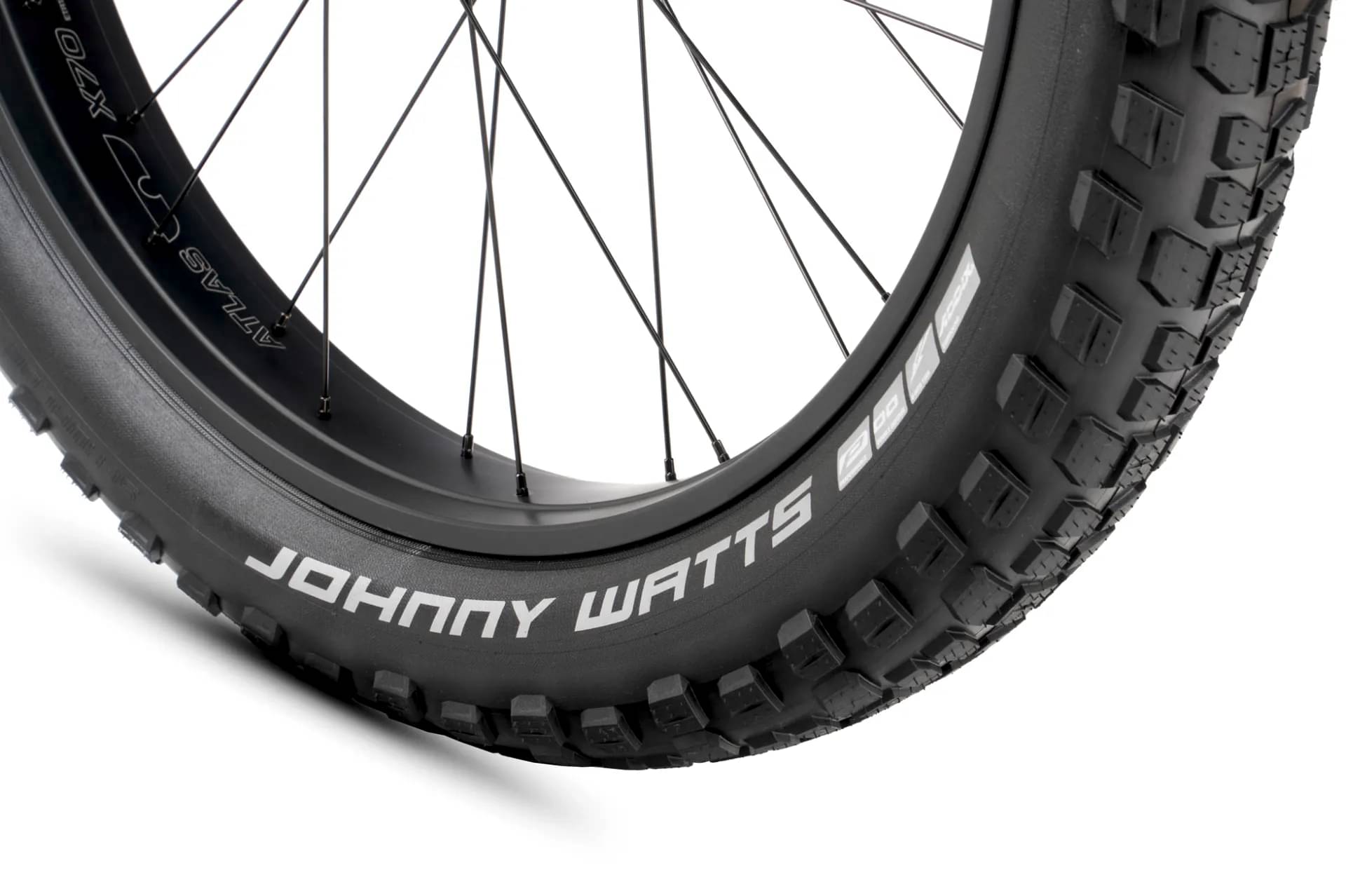

Tires
Schwalbe Johnny Watts 27.5" x 4"
Brakes
Brakes
Hydraulic Disc
Brake Levers
Magura MT5, hydraulic
Cockpit
Stem
Level Nine, 45 mm (M), 65 mm (L), Syntace VR-3 certified
Handlebar
Level Nine, AL-7050, 800 mm, riser, eMTB approved
Headset
FSA, 1.5", angular contact bearings
Seat
Saddle
Ergon SM, E-Mountain Sport, CrMo Rail
Seatpost
Syntace P6 AL7050, 34.9 mm, Syntace VR-3 SP-approved
Motor & Battery

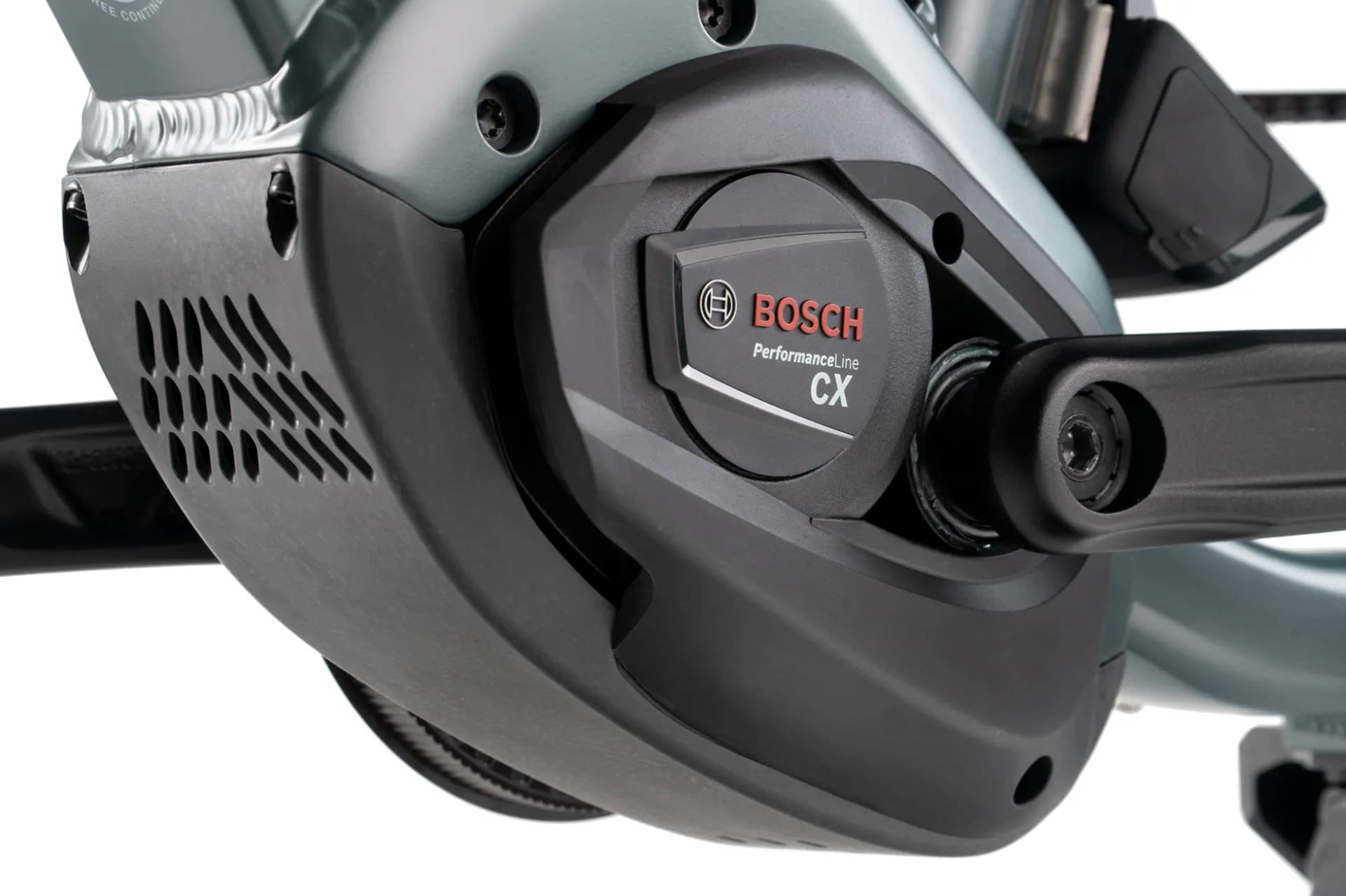

Motor
Bosch Performance CX, max speed 20 mph (US)

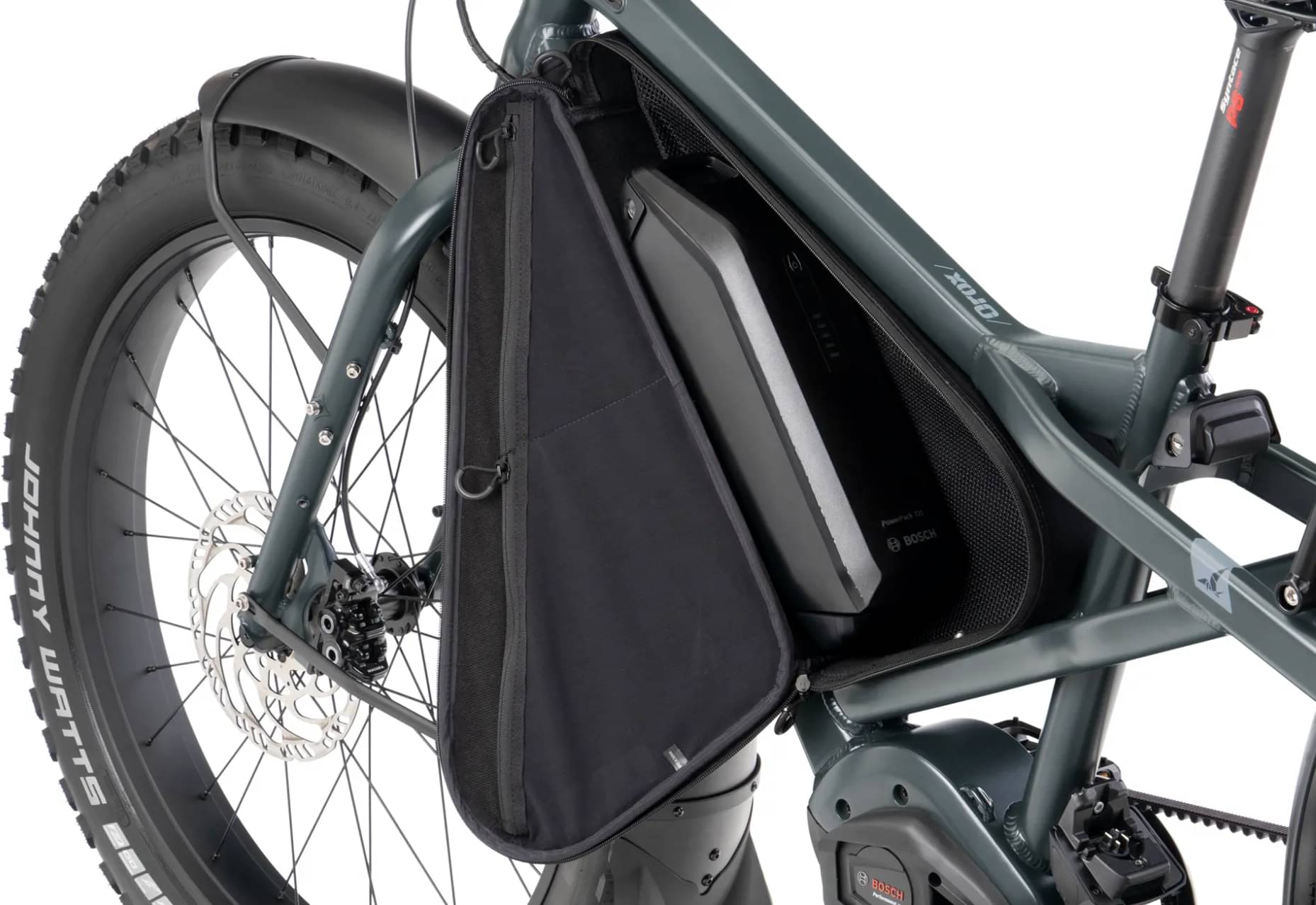

Battery
800 Wh, Bosch Dual Battery pack ready
