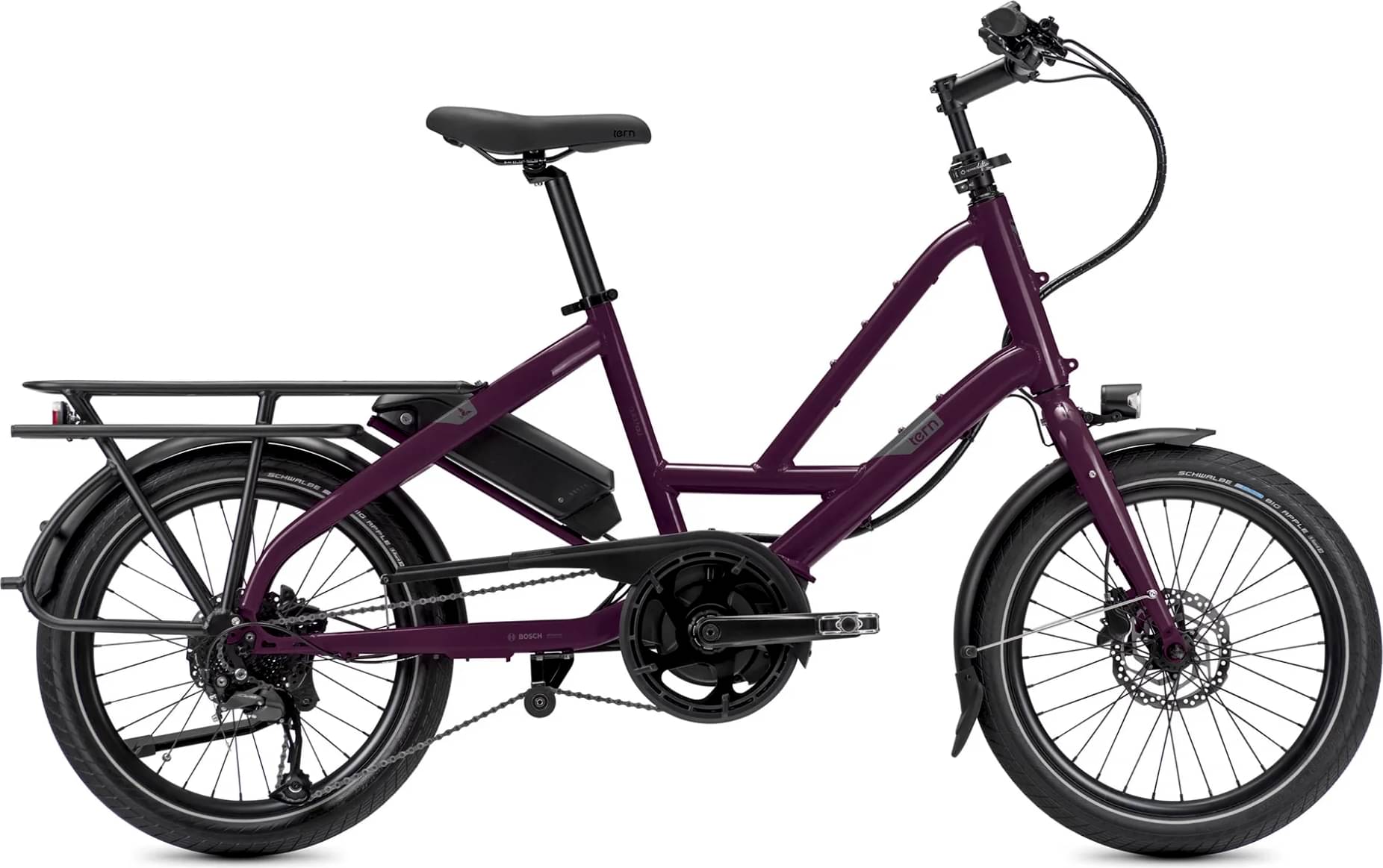

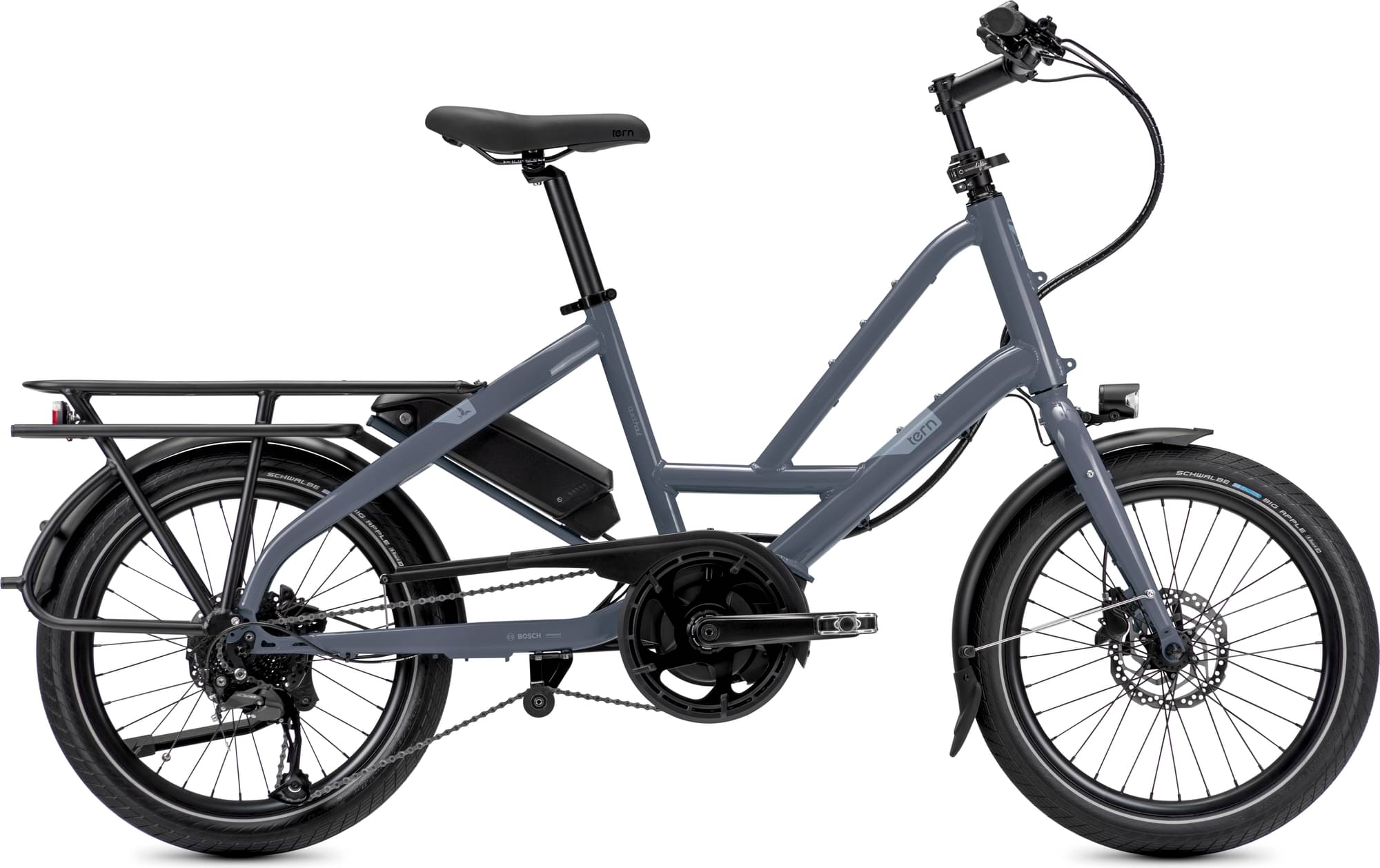

Tern Quick Haul P9 Sport 2024
2024 E-bike
Estimate price |
2,899$
Weight | 23 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Alivio -
Suspension Rigid -
Motor Bosch 600W 65Nm mid-drive -
Battery Bosch PowerPack 400 -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame

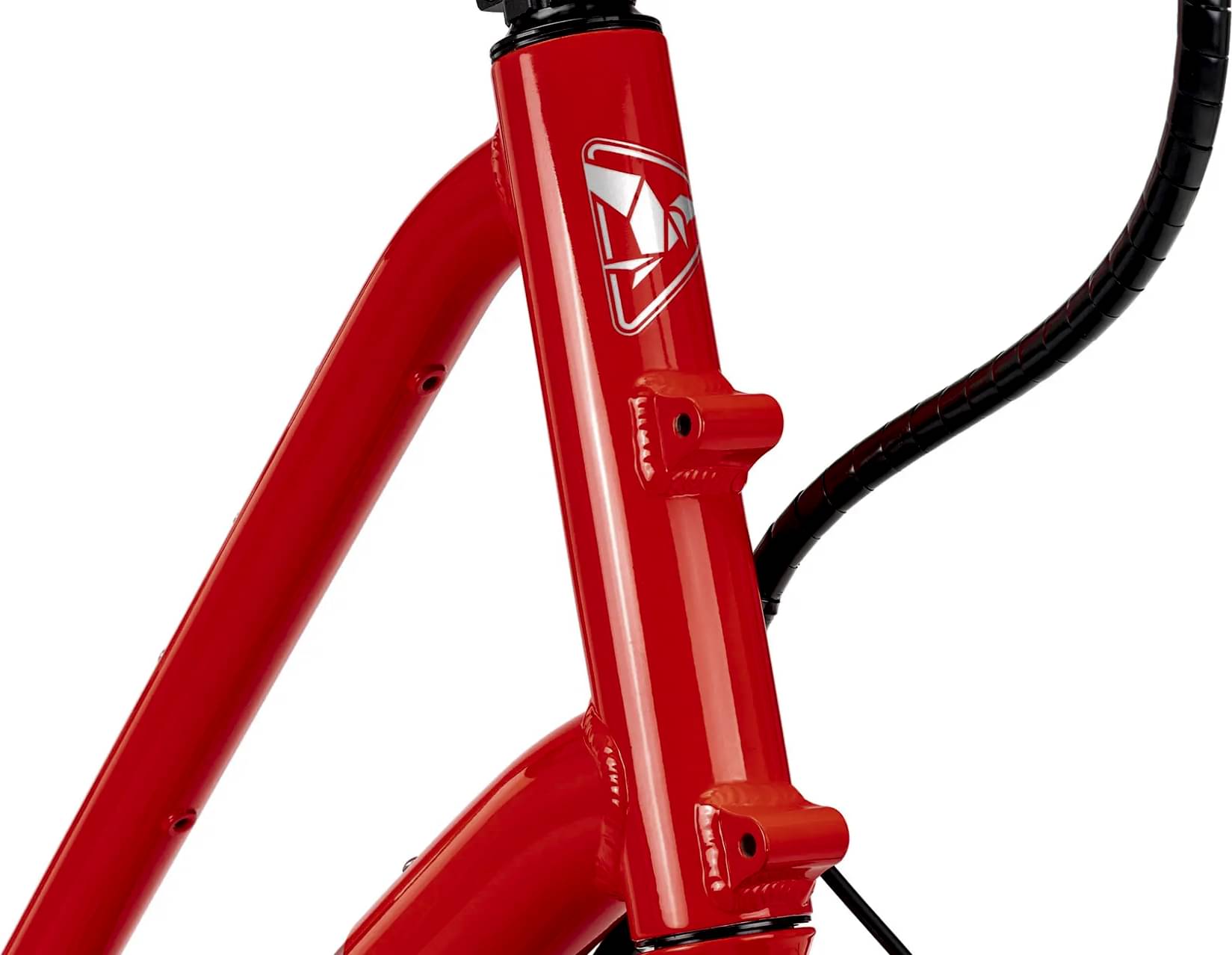

Frame
Tern Quick Haul, Patented Design, 6061-AL, EFBE Tri-Test approved: 150 kg
Suspension Fork
Cargo, steel, EFBE approved: 150 kg
Drivetrain
Rear Derailleur
Shimano Alivio Shadow
Shift Levers
Shimano Alivio, 1 x 9 spd, trigger
Cassette
Shimano 11-34T, 9 spd
Crank
Tern custom, forged 6061-AL crankarm
Bottom Bracket
Motor integrated
Chain
KMC for eBike, 9 spd
Chain Guide
SKS Chainblade
Pedals
Urban with non-slip surface
Wheels
Front Hub
Shimano disc
Rear Hub
Shimano disc
Rims
Kinetix Comp, for disc
Tires
Schwalbe Big Apple, 55-406, puncture protection, Reflex
Brakes
Brakes
Shimano, hydraulic disc
Brake Levers
Shimano, hydraulic disc
Cockpit
Stem
Speedlifter, 150 mm extension, 3D Forged stem, 31.8
Handlebar
Low riser, 31.8, 6061-AL
Headset
TH, cartridge bearings
Seat
Saddle
Velo Comfort
Seatpost
31.6 mm, 6061-AL, micro-adjust clamp
Motor & Battery

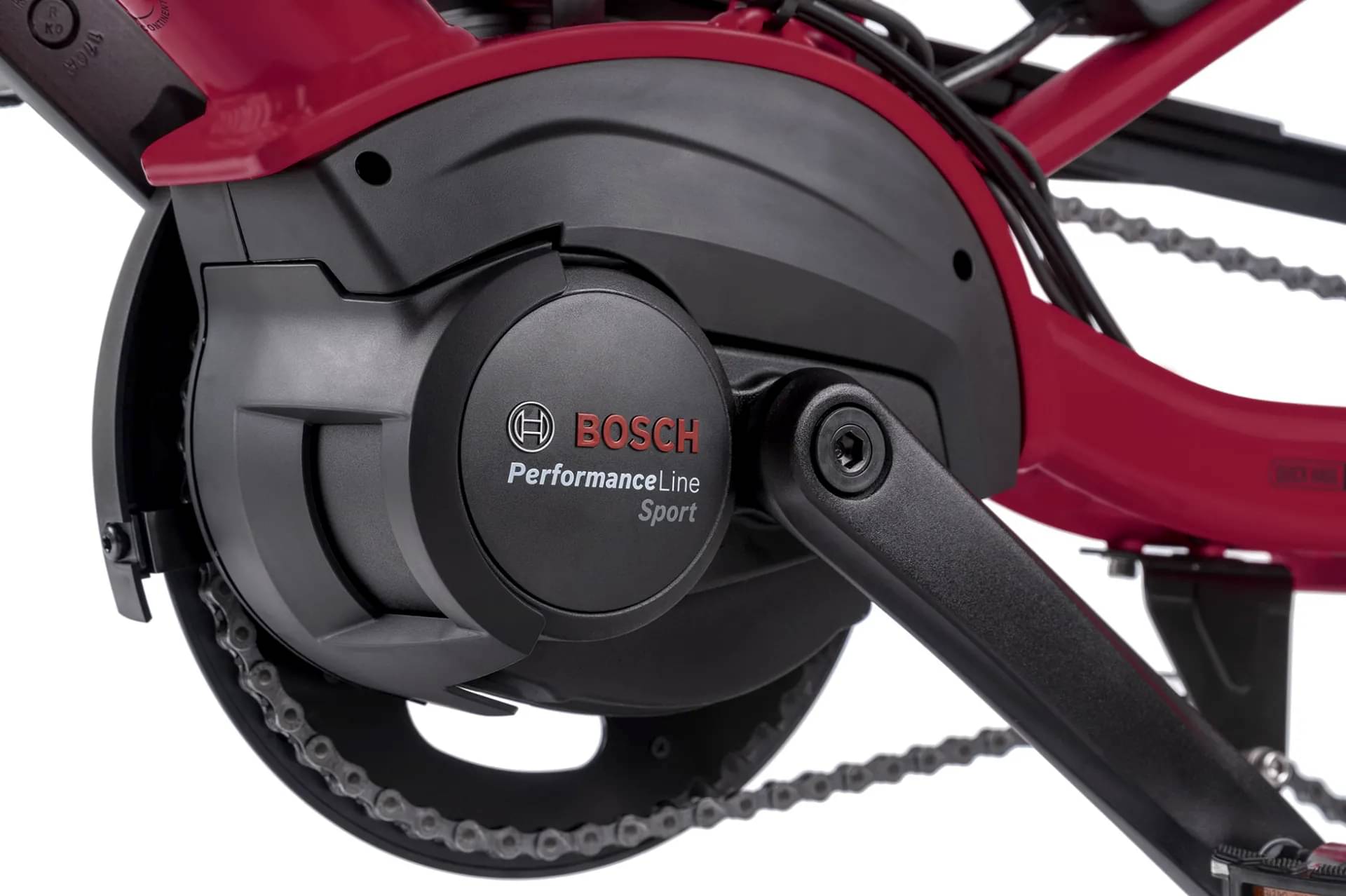

Motor
Class 3, Bosch Performance Sport, 300% Assist, 65 Nm Torque, max speed 28 mph

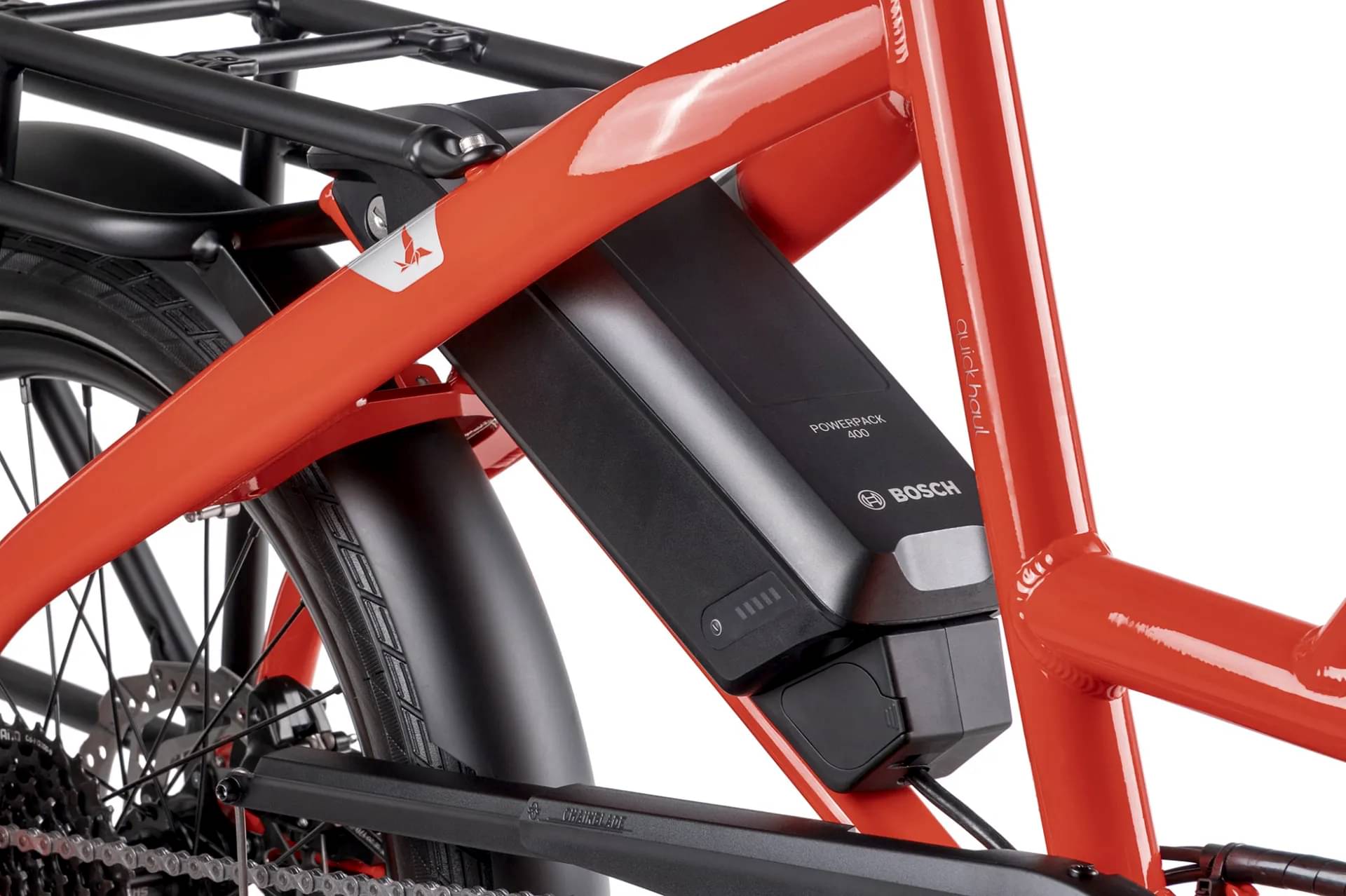

Battery
Bosch PowerPack 400
Charger
Compact Charger, 100-240V, 2A
