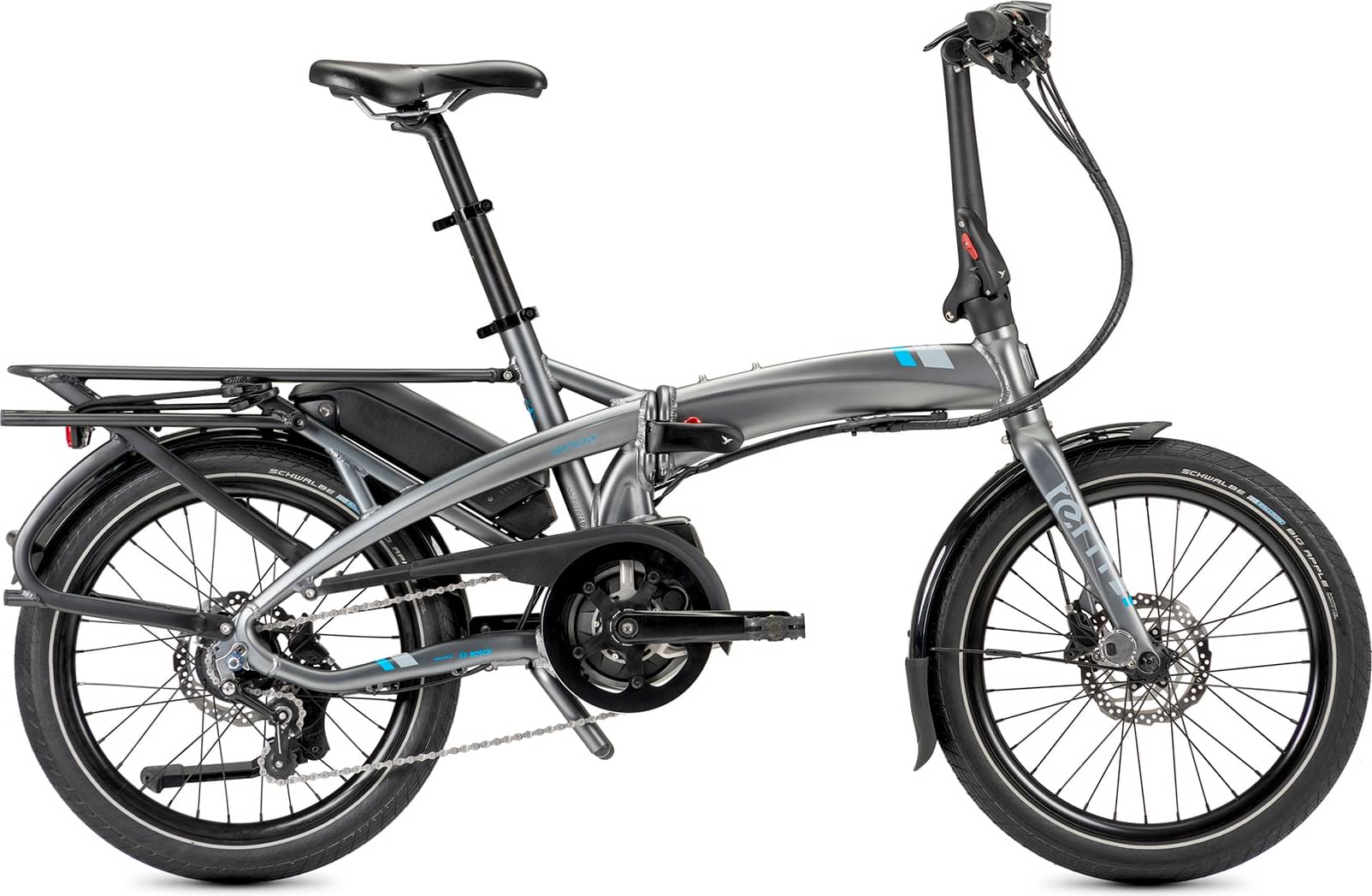

Tern Vektron P7i 2024
2024 E-bike
Estimate price |
4,187$
Weight | 22.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Nexus -
Suspension Rigid -
Motor Bosch 600W 50Nm mid-drive -
Battery Bosch PowerPack 400 Wh -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Tern Vektron, hydroformed 7005-AL, OCL+ joint, 3 patented technologies
Suspension Fork
Tern Tarsus, 6061-Al, hydroformed
Drivetrain
Shift Levers
Shimano Nexus, 7 spd
Cassette
16T
Crank
Vektron custom, forged 6061-AL crankarm
Bottom Bracket
Motor integrated
Chain
DHT for eBike, GST corrosion resistant coating
Chain Guide
SKS Chainblade
Pedals
MKS EZY
Wheels
Front Hub
Shimano disc

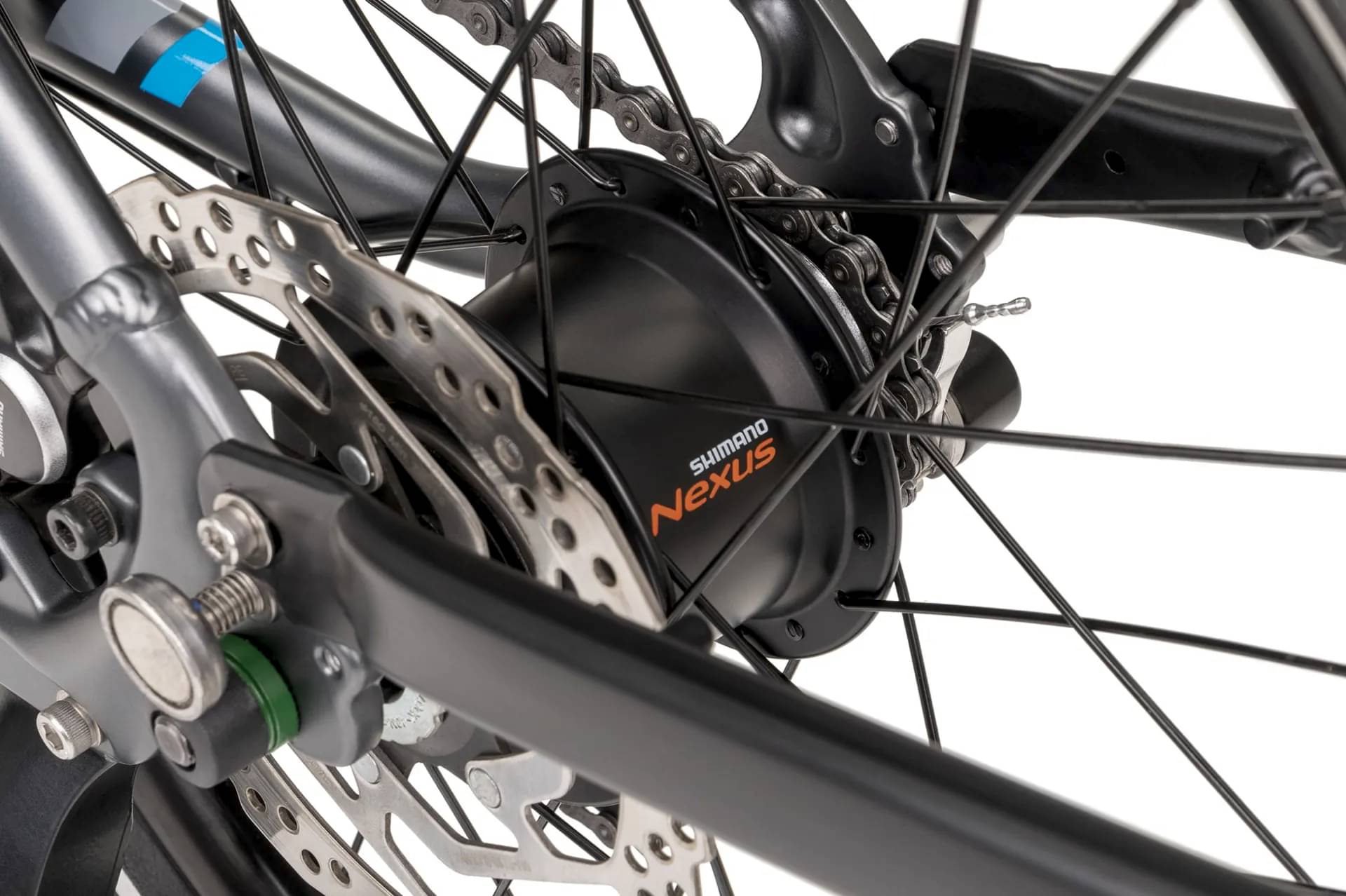

Rear Hub
Shimano Nexus 7, disc
Rims
Kinetix Comp, for disc
Tires
Schwalbe Big Apple, 55-406, puncture protection, Reflex

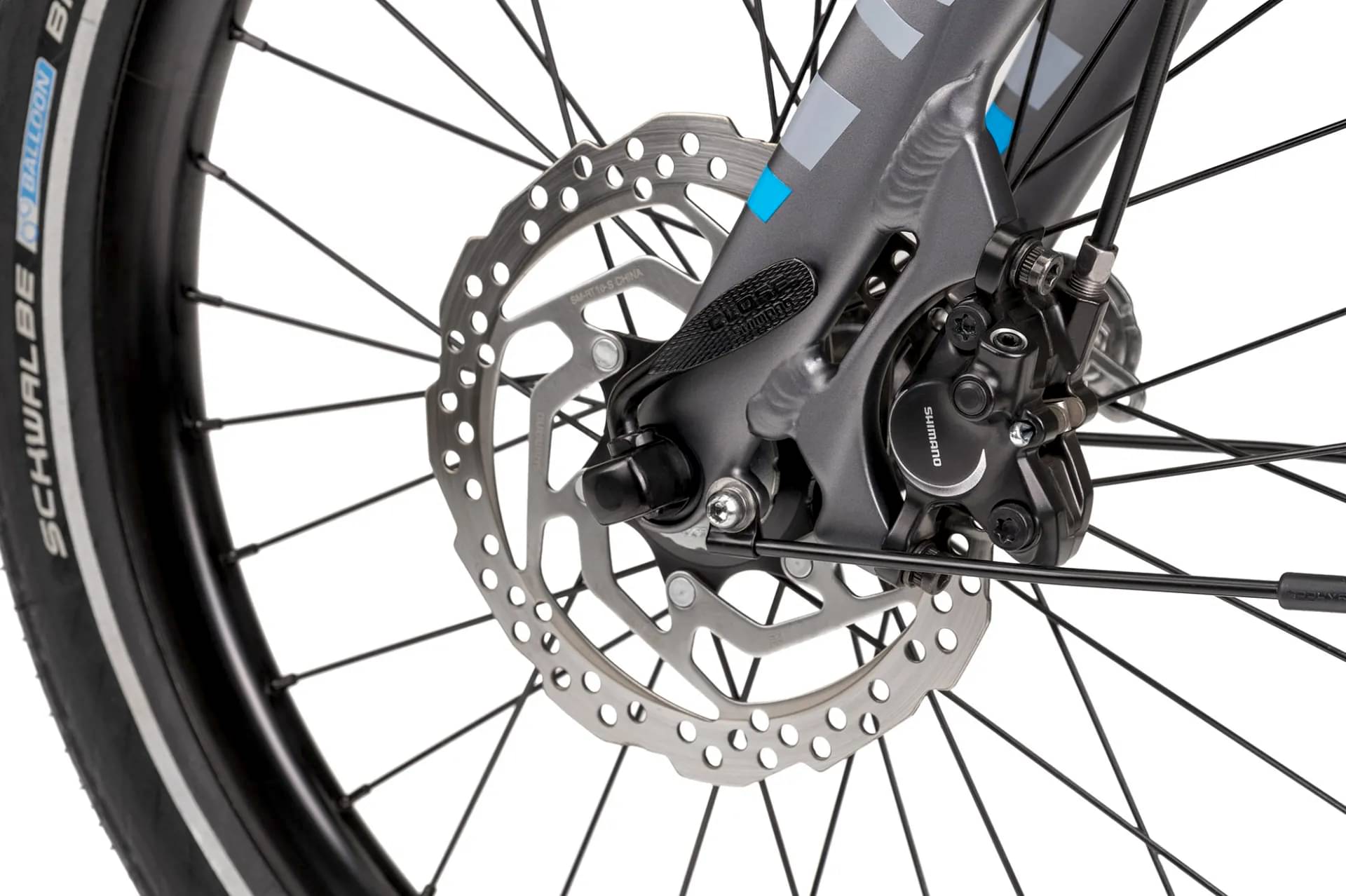

Brakes
Brakes
Shimano, hydraulic disc
Brake Levers
Shimano, hydraulic disc
Cockpit
Stem
Tern Andros, adjustable, forged construction, patented technology
Handlebar
Flat bar, 6061-AL, Tern Andros adapted
Headset
Tern Flux, cartridge bearings, Physis integrated
Seat
Saddle
Tern Porter+ by Velo, patented GripPad design, PrimeGel padding
Seatpost
Tern Telescope, 34.9/30.9 mm, 2014-AL
Motor & Battery

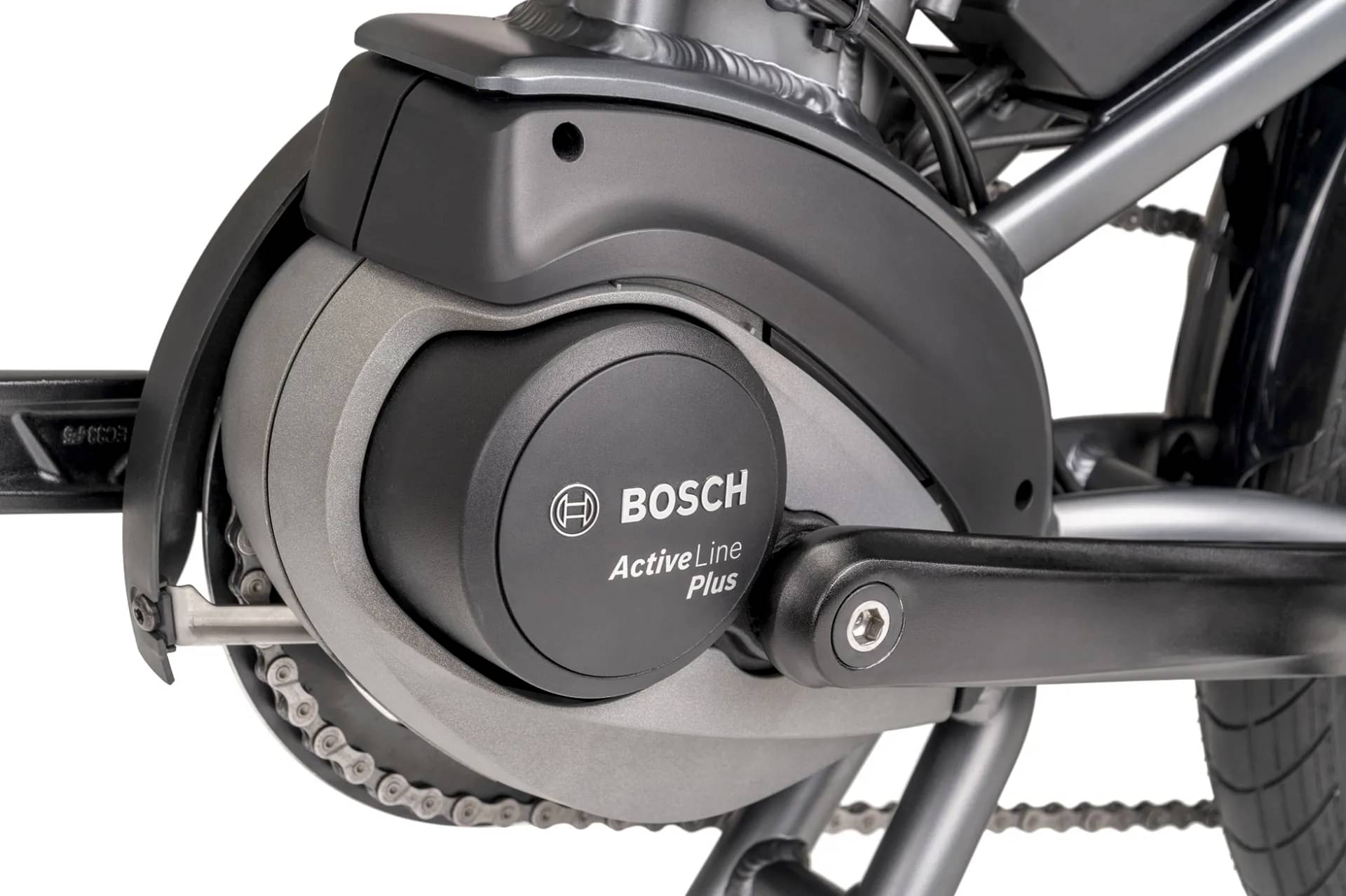

Motor
Bosch Active Line Plus, 270% Assist, 50 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
Battery
Bosch PowerPack 400 Wh
Charger
220V, 4A (EU); 100-240V, 4A (US)
