Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Force, Tiagra -
Suspension Rigid -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Tern Verge, hydroformed aluminum, OCL+ joint, 3 patented technologies

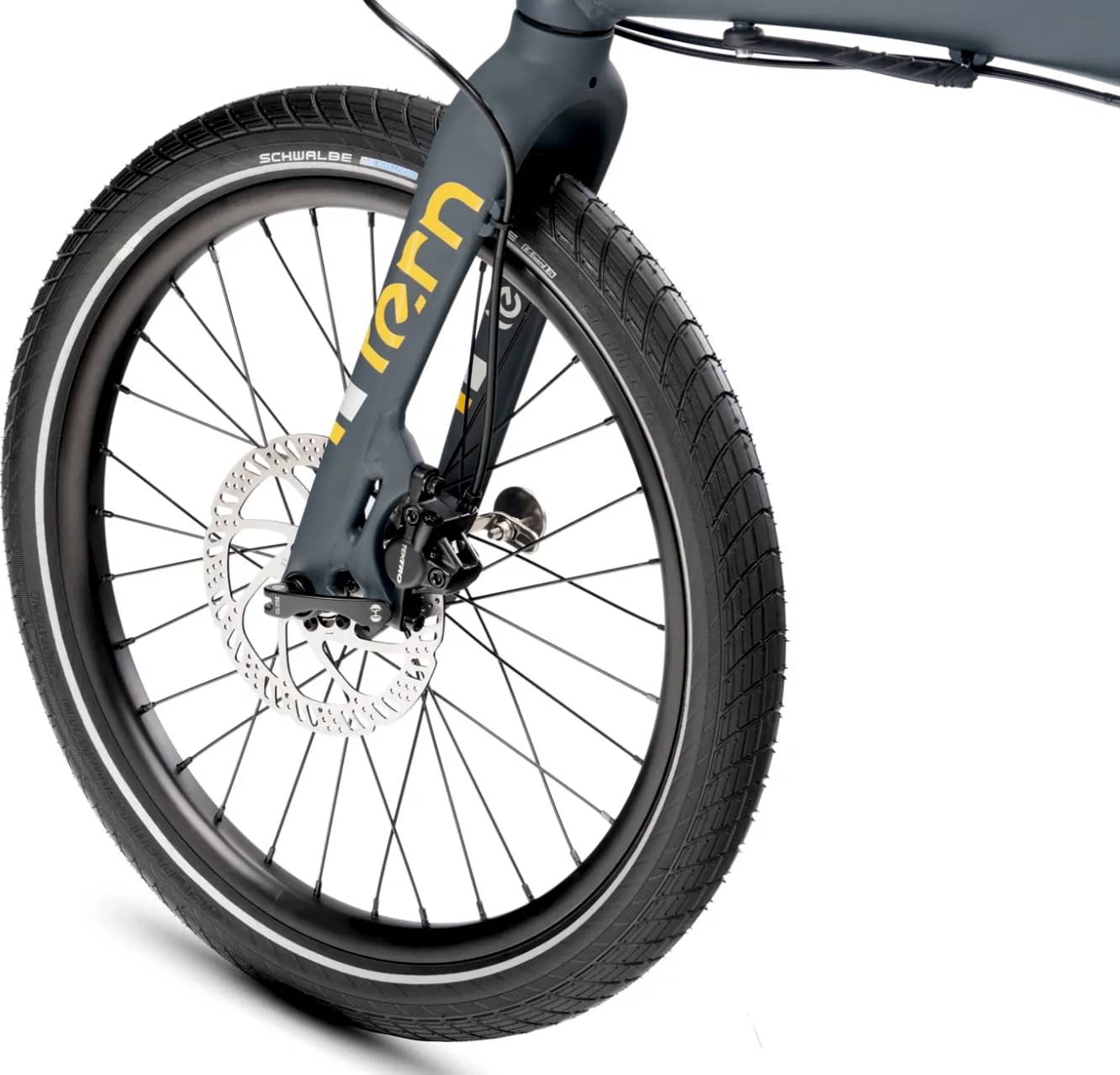

Suspension Fork
Tern Tarsus, 6061-AL, hydroformed
Drivetrain
Rear Derailleur
Shimano Tiagra
Shift Levers
Shimano Tiagra, 1x10 spd
Cassette
Shimano 11-32T, 10 spd
Crank
SRAM Force 1 carbon, X-SYNC chainring, 52T
Bottom Bracket
SRAM GXP
Chain
KMC X10
Pedals
LiteForm QR, alloy body, QR right/standard left
Wheels
Front Hub
Novatec, sealed cartridge bearing, disc
Rear Hub
Novatec, sealed cartridge bearing, disc
Rims
Doublewall aluminum
Tires
Schwalbe Big Apple, 50-406
Brakes
Brakes
Tektro, hydraulic disc
Brake Levers
Tektro, hydraulic disc
Cockpit

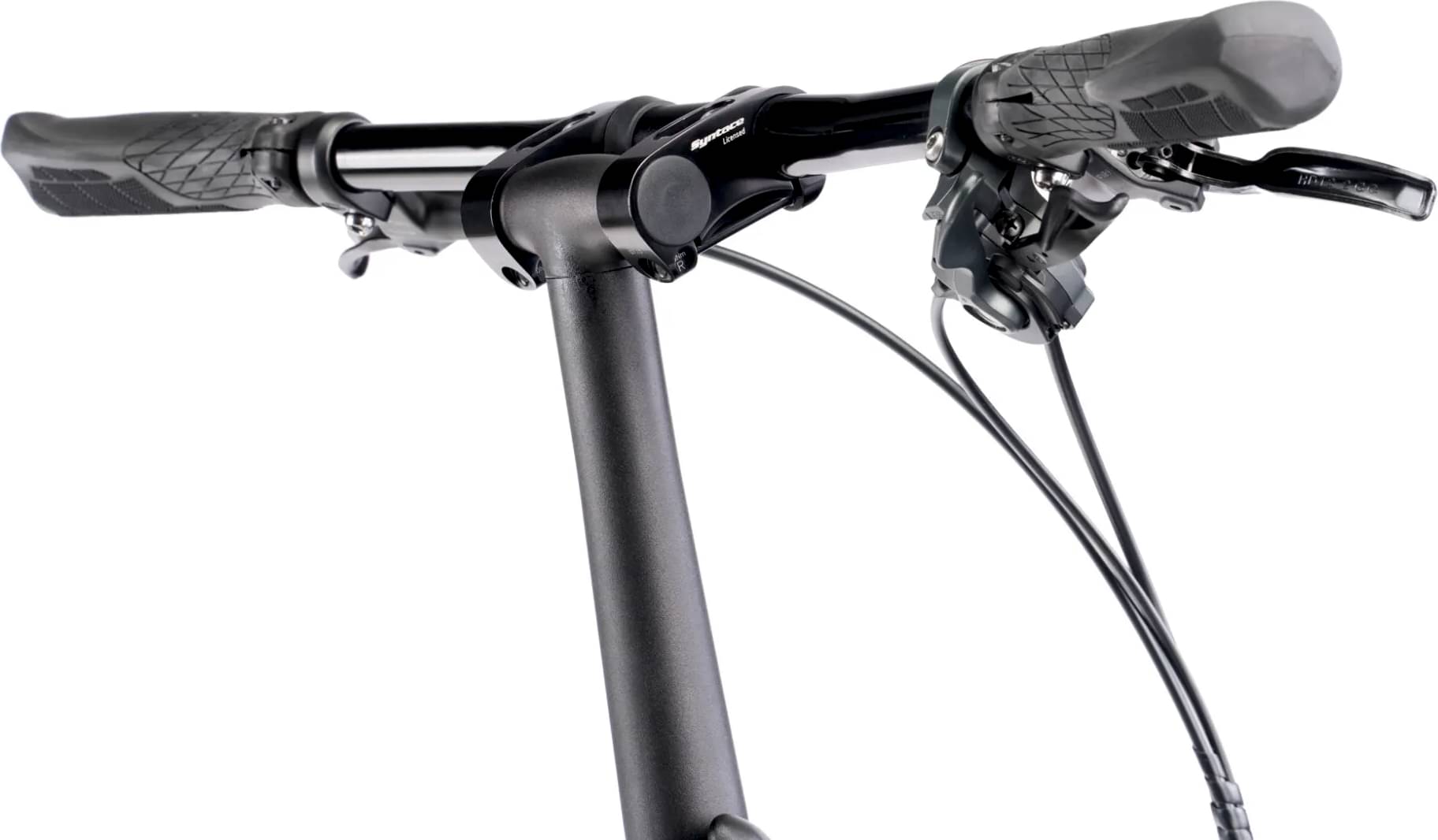

Stem
Syntace VRO, adjustable, Built for Tern
Handlebar
Kinetix Comp, double-butted 6061-AL, for VRO
Headset
Flux, cartridge bearings, Physis integrated
Seat
Saddle
Tern Porter+, patented GripPad design, PrimeGel padding
Seatpost
Tern Strut, 2014-AL, 2 bolt clamp
