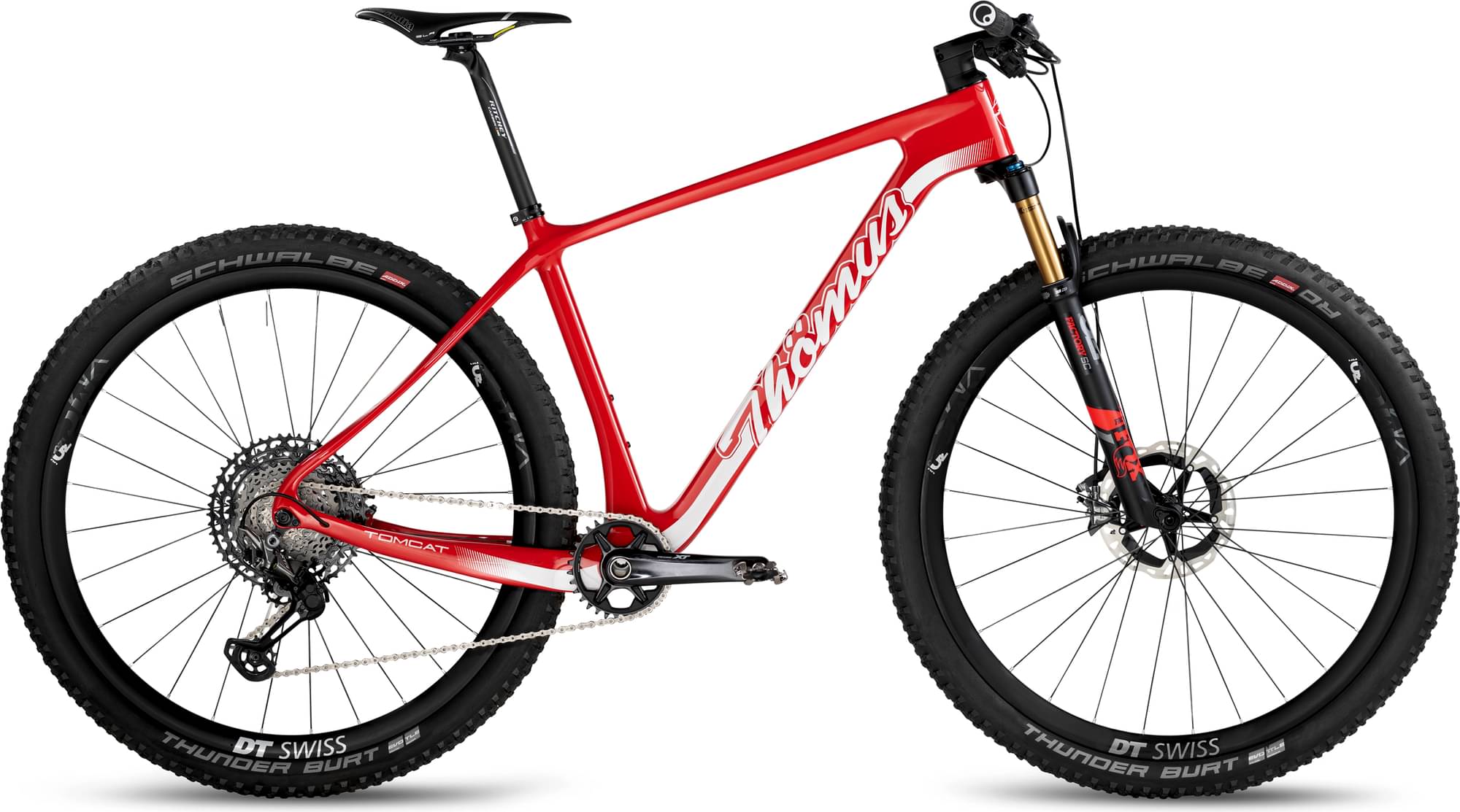

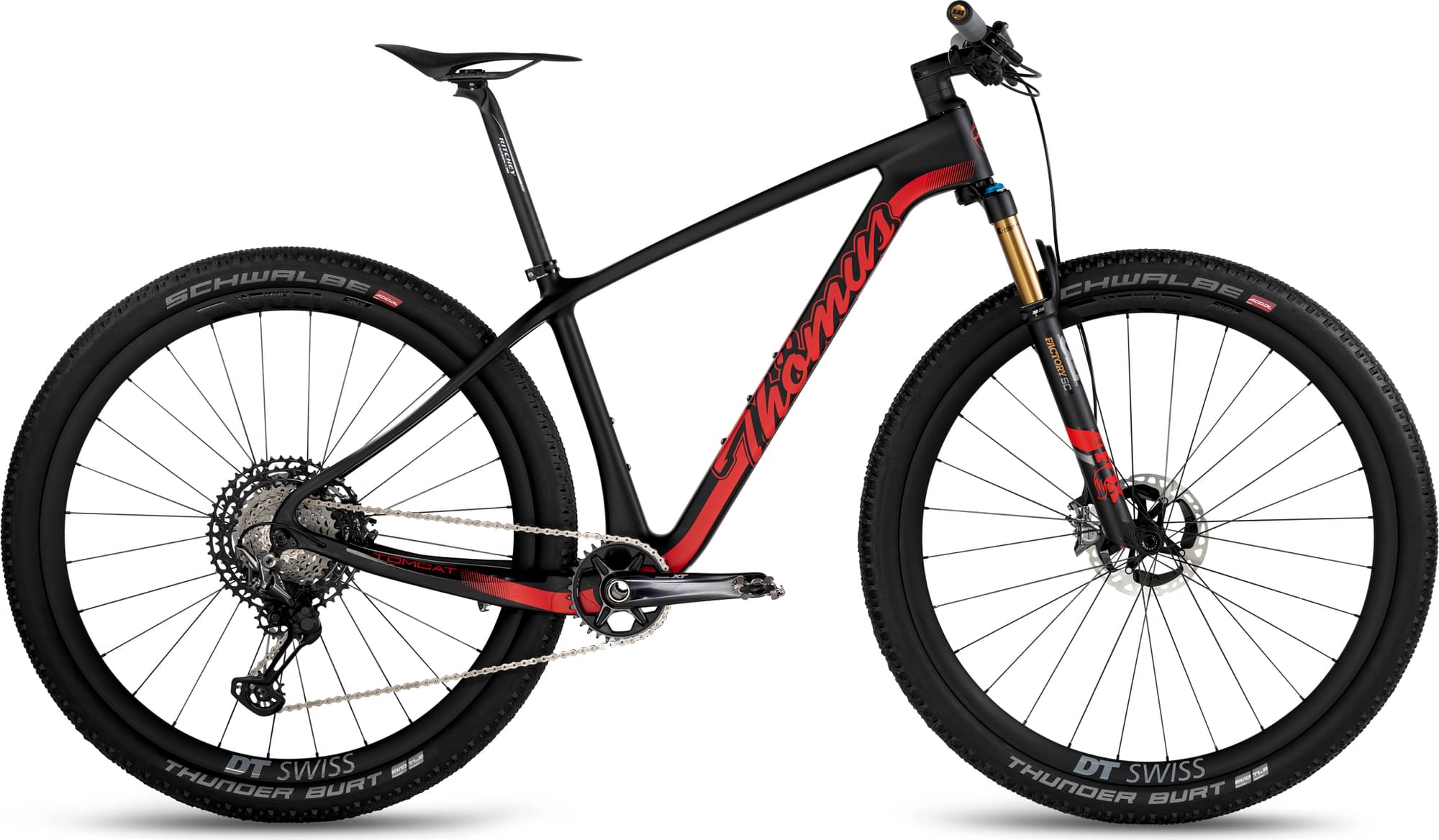

thoemus Tomcat Worldcup XT 2024
2024 Mountain
Estimate price |
9,215$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Fork Fox
-
Groupset XT -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 178cm
MD
175cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Fox Float32-K SC 29 100mm RACE
Drivetrain
Rear Derailleur
XT, 12-speed, 32, 10/51
Cassette
XT 10/51T
Crank
XT 32T
Pedals
Shimano XTR Race
Wheels
Tires
Install tubeless tires
Brakes
Brakes
Ø 203 mm at the front
Cockpit
Stem
Stem Thömus TIC, 120 mm
Handlebar
Thömus Carbon Flat 740 mm
Seat
Saddle
Selle Italia SLR C59 Carbon
Seatpost
Thömus Carbon seat post
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.548 mm | 1.47 mm | 1.383 mm | 1.332 mm |
| Bottom Bracket Height | 308 mm | 310 mm | 310 mm | 310 mm |
| Stack | 602.4 mm | 604.7 mm | 609.2 mm | 616.2 mm |
| Reach | 389.2 mm | 411.3 mm | 440.4 mm | 462.5 mm |
| Top Tube Length | 558 mm | 581 mm | 615 mm | 645 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 380 mm | 425 mm | 470 mm | 520 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 69.5 ° | 70 ° |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 432 mm |
| Bottom Bracket Drop | 66 mm | 64 mm | 64 mm | 64 mm |
| Wheels | 29" | 29" | 29" | 29" |
