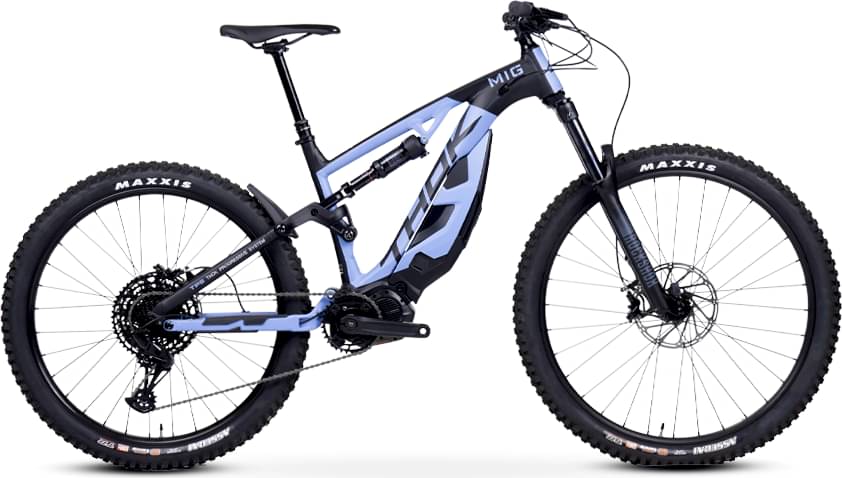

thok MIG 630 COLOR EDITION 2024
2024 Mountain
Estimate price |
8,713$
Weight | 23.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox 35 Gold RL
-
Groupset FSA -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy frame 6061 T4 T6 with 140mm rear travel, forged and CNC parts, hydroformed tubes, geometry 29?/27.5?, semi-integrated battery
Suspension Fork
ROCK SHOX – 35 RC, Boost 150 mm travel
Rear Shock
ROCK SHOX – DELUXE Select R Air, custom tuned Thok, 210 x 55
Drivetrain
Shift Levers
Cyclo Computer SC-E7000 with 1,39? display – SW-E7000 ergonomic controller (Eco, Trail, Boost e Power-Walk)
Cassette
SRAM – SX Eagle 12s, 11-50
Crank
FSA 165 mm with chainring 34 T
Chain
SRAM – 12 S
Pedals
NW 482S in polietilen
Wheels
Rims
THOK Drift – 29?x30 mm (Size S 27.5?x35 mm) front & 27.5?x35 mm rear
Tires
MAXXIS – Assegai 29? (Size S 27,5?) / 27,5? x 2.6 3C / EXO+ / TR
Brakes
Brakes
SRAM – GUIDE T 4 calipers, with 200mm rotor disks
Cockpit
Stem
THOK CNC, oversize 35 mm, lenght 45mm
Handlebar
THOK Oversize bar 35 mm, size 20 mm
Seat
Saddle
THOK – Fit in Chromo
Seatpost
THOK – Dropper post (125 mm size S – 150 mm other size)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.443 mm | 1.403 mm | 1.368 mm | 1.329 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 715 mm | 739 mm | 779 mm | 805 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 124 mm | 124 mm | 115 mm | 125 mm |
| Stack | 596 mm | 606 mm | 624 mm | 642 mm |
| Reach | 413 mm | 432 mm | 456 mm | 483 mm |
| Top Tube Length | 560 mm | 600 mm | 630 mm | 665 mm |
| Seat Tube Angle | 74.7 ° | 74.7 ° | 74.7 ° | 74.7 ° |
| Seat Tube Length | 400 mm | 435 mm | 470 mm | 520 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 110 mm | 130 mm | 150 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1165 mm | 1189 mm | 1229 mm | 1255 mm |
| Bottom Bracket Drop | 13 mm | 13 mm | 13 mm | 13 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
