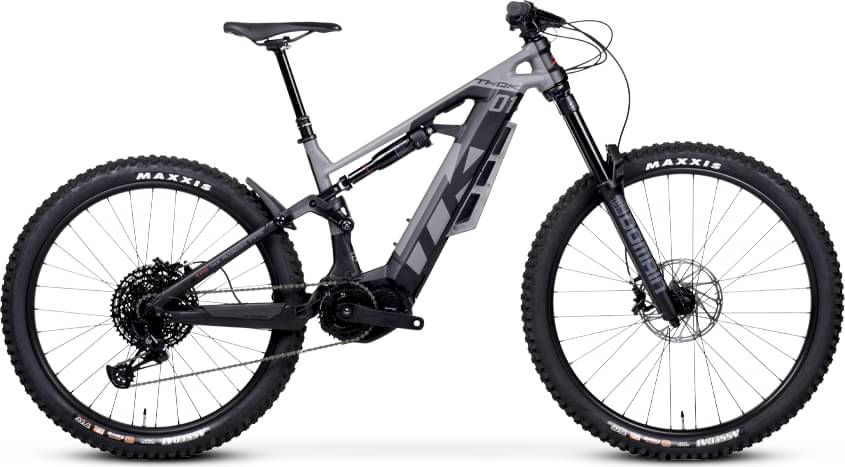

thok TK01 2024
2024 Mountain
Estimate price |
6,387$
Weight | 24.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 170mm -
Travel Rear 170mm -
Fork RockShox Domain
-
Groupset FSA -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy frame 6061 T4 T6 with 170mm rear travel, forged and CNC parts, hydroformed tubes, geometry 29?/27.5?, integrated battery
Suspension Fork
ROCK SHOX – DOMAIN 29? Boost, DebonAir 170 mm, E-MTB, 44 OFFSET, 1.8 Tapered
Rear Shock
ROCK SHOX – DELUXE Select R, THOK Custom tuned
Drivetrain
Shift Levers
Cyclo Computer SC-EN600 with 1,4? color LCD display -with remote control SW-EN600-L
Cassette
SRAM – Eagle 12S, 11-50
Crank
FSA 165 mm with chainring 34 T
Chain
SRAM – Eagle 12S
Pedals
NW 482S in polietilen
Wheels
Rims
THOK Drift – 29?x30 mm ant. e 27.5?x35 mm
Tires
MAXXIS Assegai 29×2.6 ant. e 27.5×2.6 post. 3C / EXO+ / TR
Brakes
Brakes
SRAM – Guide T, 4 pistons, 203 mm Centerline rotor
Cockpit
Stem
THOK forged, front clamp oversize da 35mm, lenght 35mm
Handlebar
THOK da 35mm, rise 20mm, 780mm
Seat
Saddle
THOK – Fit in Chromo
Seatpost
THOK – Dropper post (125 mm size S – 150 mm size M – 170 mm size L and XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.452 mm | 1.419 mm | 1.375 mm | 1.332 mm |
| Bottom Bracket Height | 355 mm | 355 mm | 355 mm | 355 mm |
| Front Center | 759 mm | 780 mm | 812 mm | 845 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 133.6 mm | 133.6 mm | 133.6 mm | 133.6 mm |
| Stack | 614 mm | 623 mm | 638 mm | 654 mm |
| Reach | 423 mm | 439 mm | 464 mm | 491 mm |
| Top Tube Length | 582 mm | 600 mm | 629 mm | 660 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 385 mm | 415 mm | 450 mm | 495 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 105 mm | 115 mm | 131 mm | 149 mm |
| Chainstay Length | 453 mm | 453 mm | 453 mm | 453 mm |
| Wheelbase | 1212 mm | 1233 mm | 1265 mm | 1298 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 783 mm | 783 mm | 783 mm | 783 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
