thok TP4-R 2025

2025 E-bike
Estimate price | 6,978$
E-bike
Open compare Use advisor

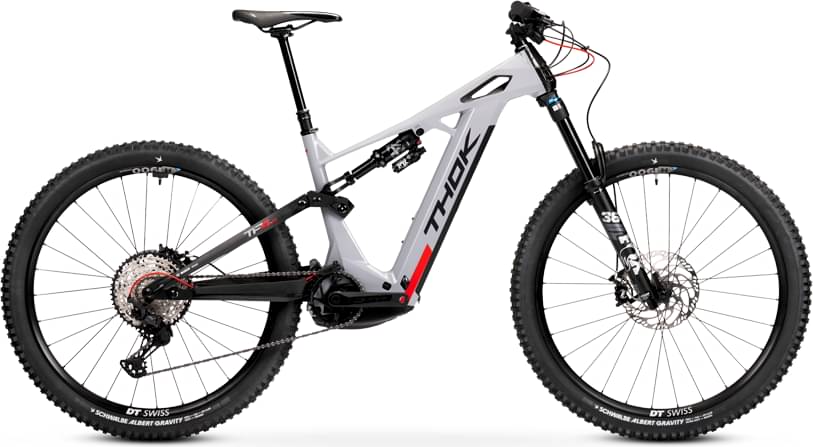

Thok Tp4 R 2025

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Carbon
  • Travel Front 160mm
  • Travel Rear 150mm
  • Fork Fox Performance Float 36
  • Groupset XT, SLX
  • Suspension Full
  • Motor Bosch 250W 85Nm mid-drive
  • Battery BOSCH – Performance Line CX (250W – 85Nm) – Internal BOSCH Powetube battery 800 Wh (compatibility with PT600 and PT400) – *optional Bosch Powermore range extender 250Wh.
  • Drivetrain 1 × 12
  • Brakes Magura MT5 Hydraulic Disc

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

THOK – Carbon fiber (also High Module), headtube tapered 1.5, 29” geometry with flipchip, 27,5” compatibility, integrated down tube battery, UDH Hanger tecnology, enclosed internal cable, fully sealed cartridge bearing, 150 mm travel.

Suspension Fork

FOX – 36 Float Performance, P-S E-Optimized, 29? Boost, GRIP, 160 mm travel, 44mm offset, 1.5 tapered, 3POS.

Rear Shock

FOX – Float X, 2 Pos Adj, THOK Custom tuned, 210×55.

Drivetrain

Rear Derailleur

SHIMANO – XT 12S.

Shift Levers

SHIMANO – SLX 12S.

Cassette

SHIMANO – SLX 12S 10-51T.

Crank

FSA 165 mm with chainring 34T.

Chain

SHIMANO – 12S.

Pedals

Flat polyethylene pedals.

Wheels

Rims

Front: DT-SWISS – H1900 Alloy, 29?x 30 mm, 15×110., Rear: DT-SWISS – H1900 Alloy, 29?x 30 mm, 12×148, MS freehub body.

Tires

Front: SCHWALBE – Albert Gravity Pro 29? x 2.6 Ultra Soft TLR., Rear: SCHWALBE – Albert Gravity Pro 29? x 2.6 Soft TLR.

Brakes

Brakes

MAGURA – MT5, 4 piston, MDR-C 203mm rotors.

Cockpit

Stem

THOK – Alloy with front clamp oversize 35 mm, ext 50 mm.

Handlebar

THOK – Alloy 6061 oversize 35 mm DB, rise 20 mm, width 780mm.

Grips

THOK – Lock-On grips.

Headset

ACROSS – BlockLock 135°.

Seat

Saddle

THOK – Fit in hollow Cr.Mo rail.

Seatpost

THOK – dropper post micro height adjustable, remote control (S/125 mm – M/170 mm- L/XL 200 mm).

Motor & Battery

Motor

BOSCH – Performance Line CX (250W – 85Nm) – Internal BOSCH Powetube battery 800 Wh (compatibility with PT600 and PT400) – *optional Bosch Powermore range extender 250Wh.

Battery

BOSCH – Performance Line CX (250W – 85Nm) – Internal BOSCH Powetube battery 800 Wh (compatibility with PT600 and PT400) – *optional Bosch Powermore range extender 250Wh.
