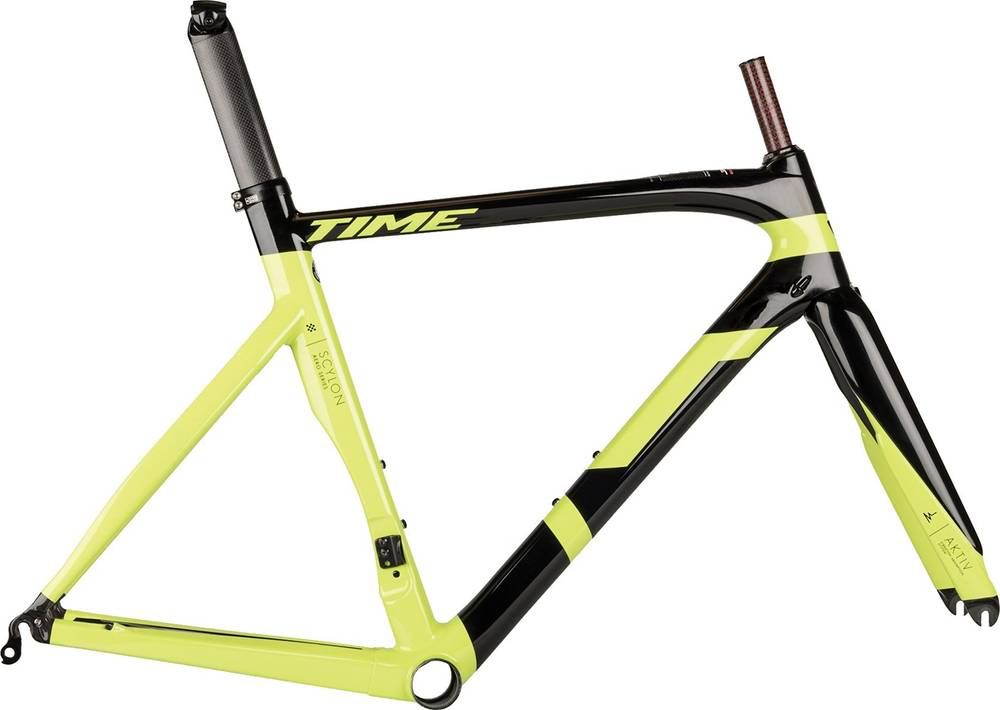

Time Scylon Aktiv Frameset 2020
2020 E-bike
Estimate price |
5,475$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Full Carbon RTM, CMT inserts (Carbon Matrix Technology )
Suspension Fork
Time Full Carbon RTM Scylon AKTIV, 1 1/8"-1 1/4"
Drivetrain
Bottom Bracket
BB386 Required
Cockpit
Headset
TIME Quickset - 1 1/8"-1 1/4"
Seat
Seatpost
Time Carbon RTM Scylon translink
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.4 mm | 1.45 mm | 1.46 mm | 1.48 mm | 1.51 mm |
| Stack | 514 mm | 527 mm | 544 mm | 563 mm | 582 mm | 602 mm |
| Reach | 373 mm | 376 mm | 375 mm | 385 mm | 393 mm | 398 mm |
| Top Tube Length | 516 mm | 531 mm | 541 mm | 556 mm | 571 mm | 581 mm |
| Seat Tube Angle | 74.7 ° | 73.7 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 435 mm | 450 mm | 480 mm | 500 mm | 530 mm | 550 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 73 ° | 73 ° | 73.5 ° |
| Head Tube Length | 122 mm | 133 mm | 149 mm | 166 mm | 186 mm | 204 mm |
| Chainstay Length | 403 mm | 403 mm | 405 mm | 405 mm | 405 mm | 405 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
Scylon Aktiv Frameset completes the Time E Scylon model. Time released 2 e-bikes variations of this model so far.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Aero e-bikes average price
According to our calculations, the average cost of an Aero e-bike that is reliable is 4258$. However, you could also get a good Aero e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Time Scylon Aktiv Frameset price was 5475$. In conclusion, this e-bike price is 28.58% higher than the price of the average Aero e-bike.
Overview of components
Fork material
The fork on this e-bike is made out of carbon, so, it won’t add up to much weight to your e-bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The Scylon Aktiv Frameset 2020 e-bike is equipped with 700c wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
