Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Integral RTM Carbon with Vibraser
Suspension Fork
Integral RTM Carbon with AKTIV Dampening
Drivetrain
Bottom Bracket
BB386
Cockpit
Headset
1 1/8" - 1 1/2"
Seat
Seatpost
Time Carbon Direct Link
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Top Tube Length | 516 mm | 531 mm | 541 mm | 556 mm | 571 mm | 581 mm |
| Seat Tube Angle | 74.7 ° | 73.7 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 435 mm | 450 mm | 480 mm | 500 mm | 530 mm | 550 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 73 ° | 73 ° | 73.5 ° |
| Head Tube Length | 122 mm | 133 mm | 149 mm | 166 mm | 186 mm | 204 mm |
| Chainstay Length | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

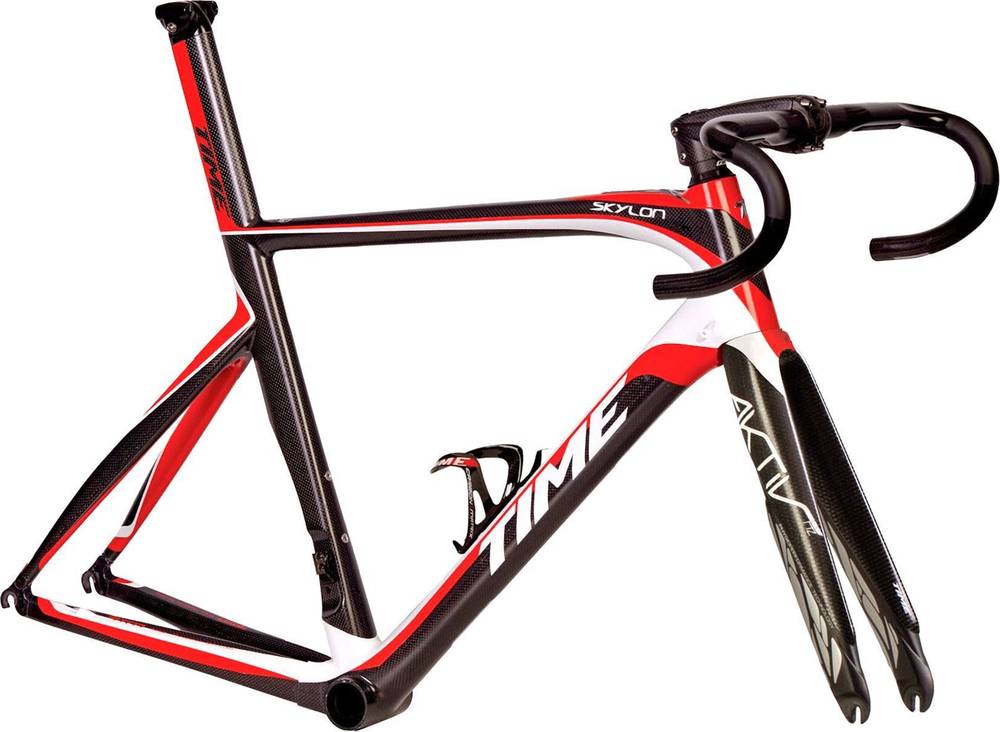

Skylon Aktiv Frameset is part of the Time Skylon model. Time released 2 frames variations of this model so far.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for General Road frames
If you want an acceptable General Road frame you should know that the average price is 2445$. However, even if your budget is less than the average, you might still be able to get a top-quality General Road frame. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
This frame was released in 2019 and its price was 6350$. If we compare this with the average General Road frame cost we notice that the price is 159.71% higher.
Overview of components
Fork material
Skylon Aktiv Frameset has a carbon fork, so, it won’t add up to much weight to your frame. However, the price you have to pay for a carbon fork is considerably higher.
