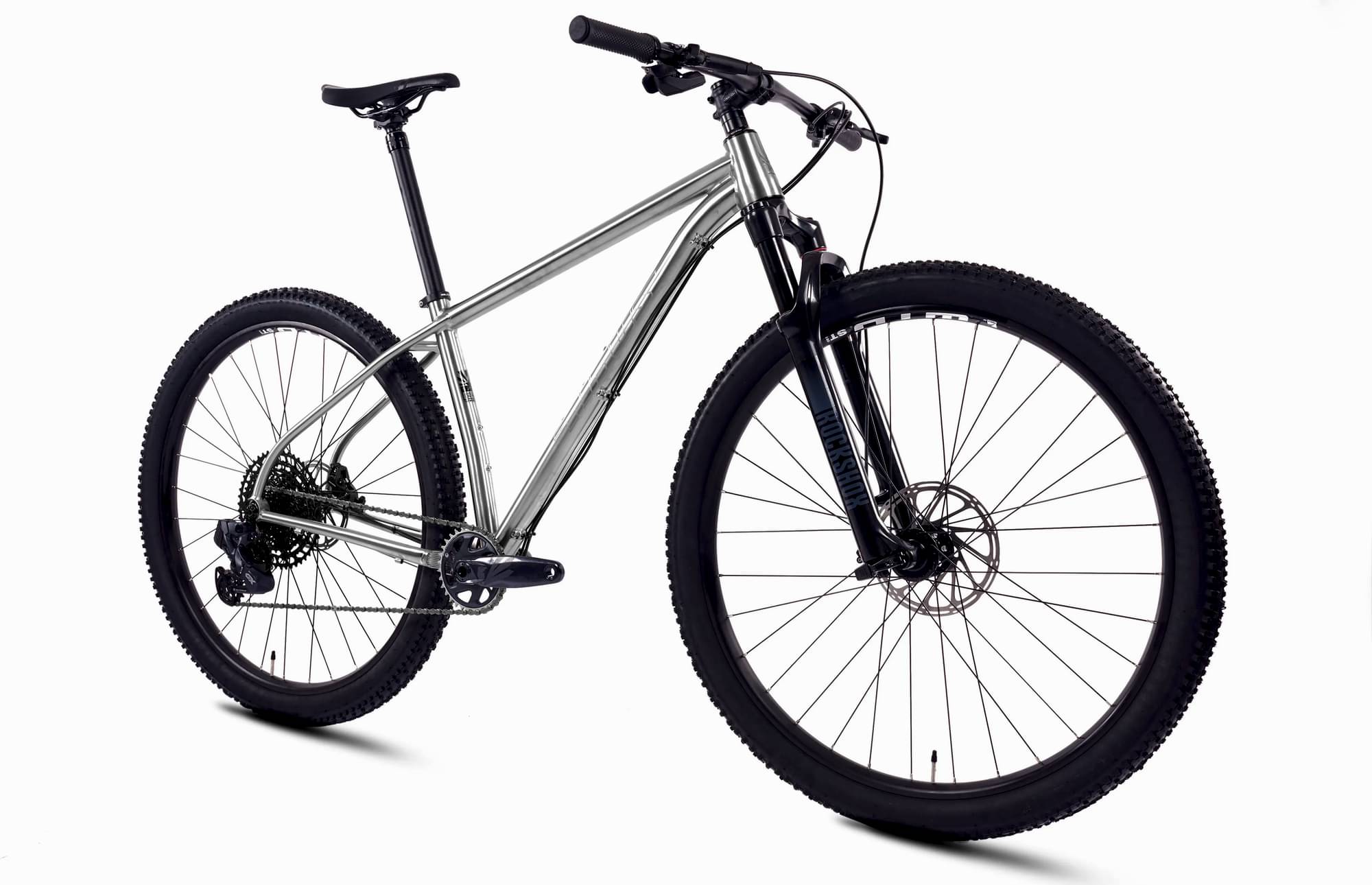

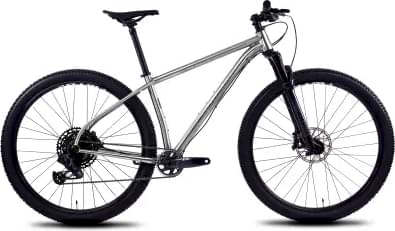

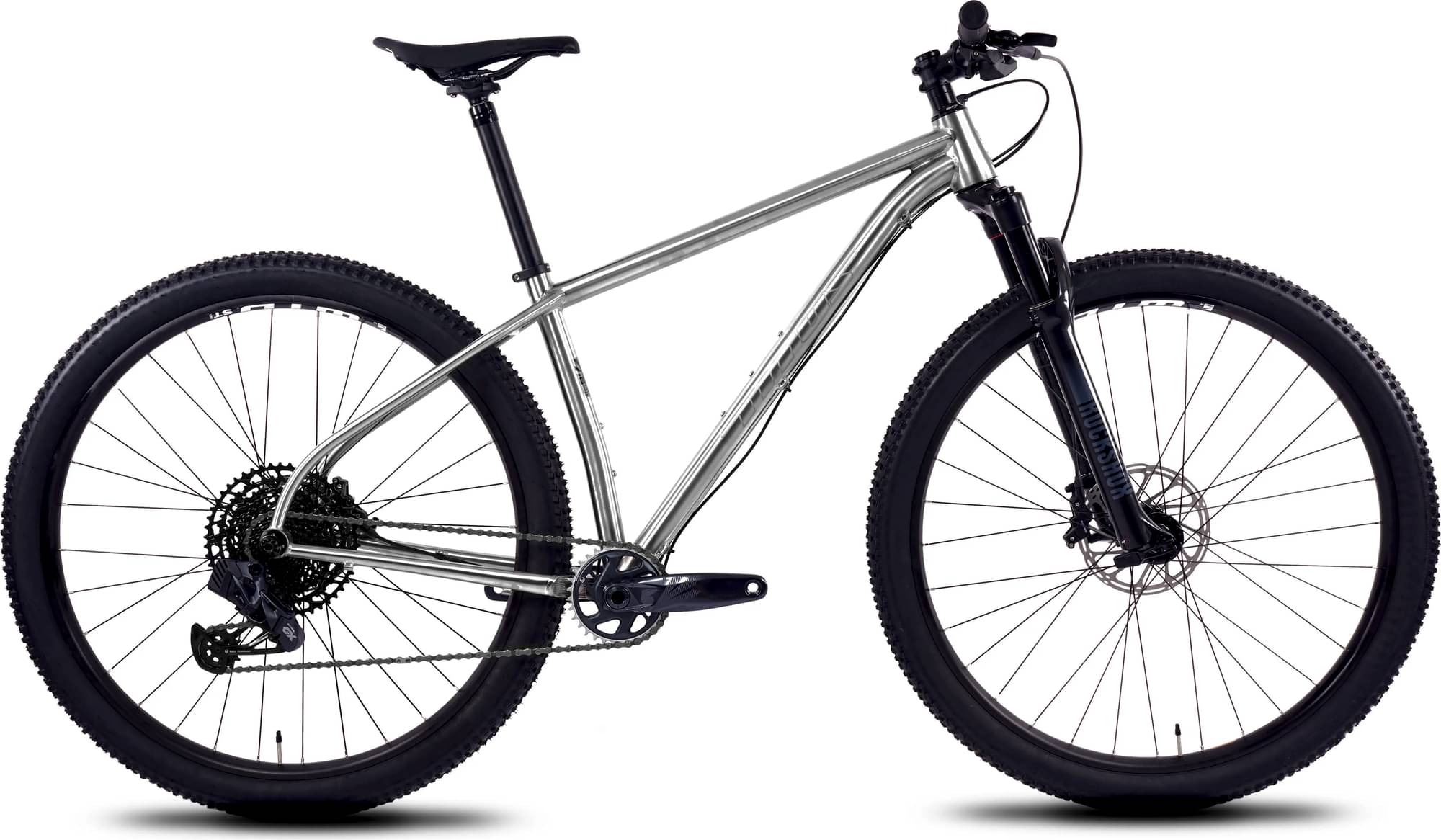

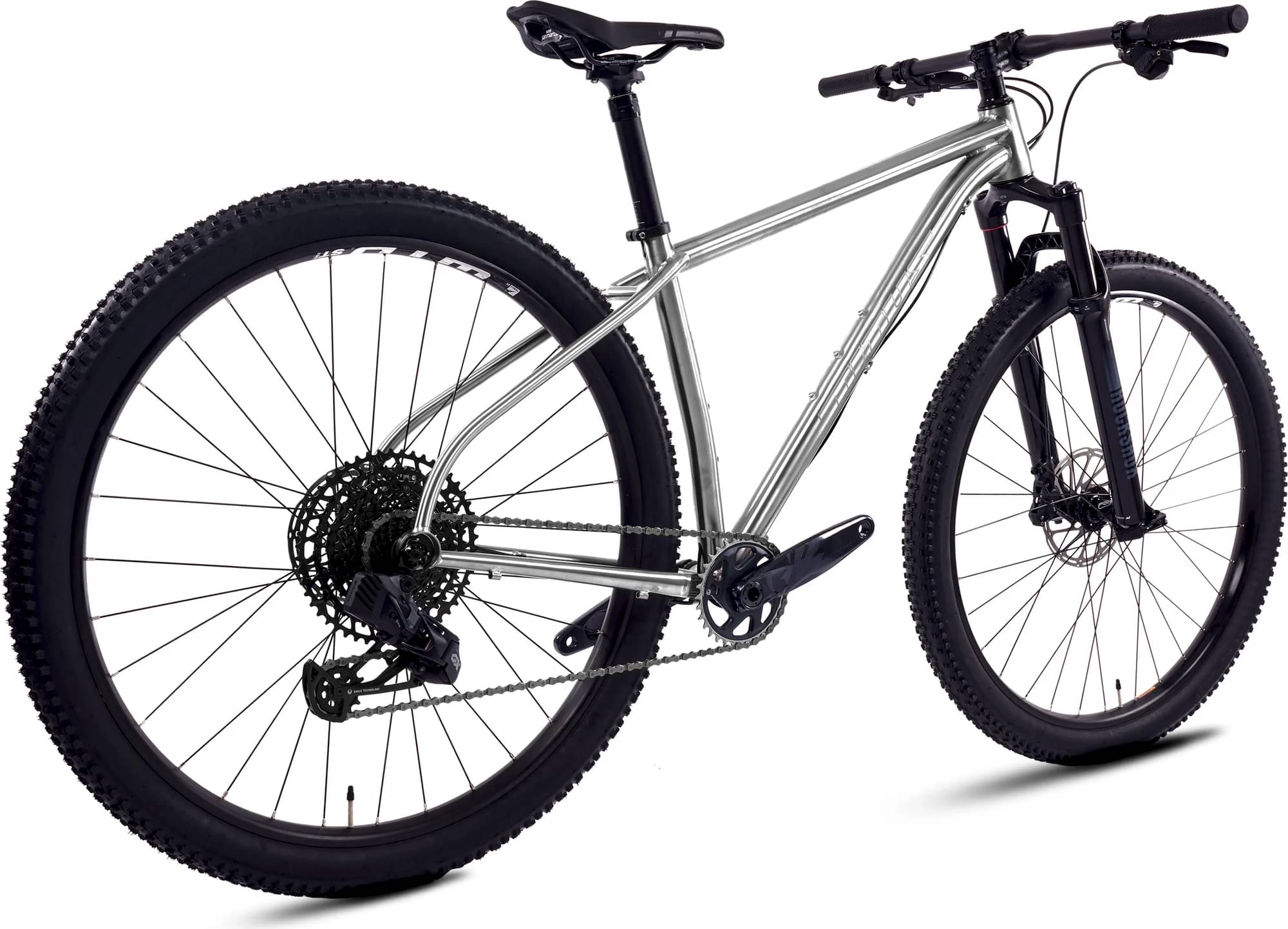

Titus El Viajero SRAM GX AXS 2024
2024 Mountain
Estimate price |
4,243$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Titanium -
Travel Front 110mm -
Fork RockShox SID
-
Groupset GX Eagle AXS -
Suspension Hardtail -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 170cm
MD
168cm - 178cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
RockShox SID 29" BOOST Fork / 110mm / 15x110mm / Black / Crown
Drivetrain
Rear Derailleur
SRAM GX Eagle AXS Rear Derailleur / Lunar / With Battery Protector
Cassette
SRAM XG-1275 Eagle 12 Speed Cassette / 10-52T
Crank
SRAM GX Eagle DUB Crankset (Lunar Colourway) / 170mm / 32T / BOOST
Bottom Bracket
SRAM DUB BSA Bottom Bracket / 73mm
Chain
SRAM Chain PC NX Eagle / 126 Links / 12 Speed
Wheels
Rims
WTB I30 29er On Selcof 150 Boost 6 Bolt Wheelset / SRAM XD
Tires
WTB Ranger 29" Wired Tyre / 2.3" / Black
Brakes
Brakes
SRAM Guide G2 R Hydraulic Disc Brake / Rear / 1800 / 20 Post to IS
Cockpit
Stem
Selcof Hot Box Stem / 50mm
Handlebar
Selcof Carbon Flat Handlebar / 780mm
Seat
Saddle
San Marco GND Full-fit Start Up Wide Saddle
Seatpost
Selcof Watchtower Dropper Post / 30.9mm / 150mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XSM 367mm | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.538 mm | 1.51 mm | 1.422 mm | 1.389 mm | 1.345 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm | 310 mm | 310 mm |
| Front Center | 641 mm | 667 mm | 692 mm | 723 mm | 753 mm |
| Rake | 43 mm | 42 mm | 32 mm | 42 mm | 42 mm |
| Trail | 101 mm | 102 mm | 113 mm | 102 mm | 102 mm |
| Stack | 592 mm | 610 mm | 610 mm | 629 mm | 643 mm |
| Reach | 385 mm | 404 mm | 429 mm | 453 mm | 478 mm |
| Top Tube Length | 555 mm | 579 mm | 604 mm | 633 mm | 662 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 367 mm | 400 mm | 430 mm | 470 mm | 520 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 95 mm | 95 mm | 95 mm | 115 mm | 130 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1074 mm | 1100 mm | 1114 mm | 1156 mm | 1186 mm |
| Bottom Bracket Drop | 64 mm | 64 mm | 64 mm | 64 mm | 64 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
