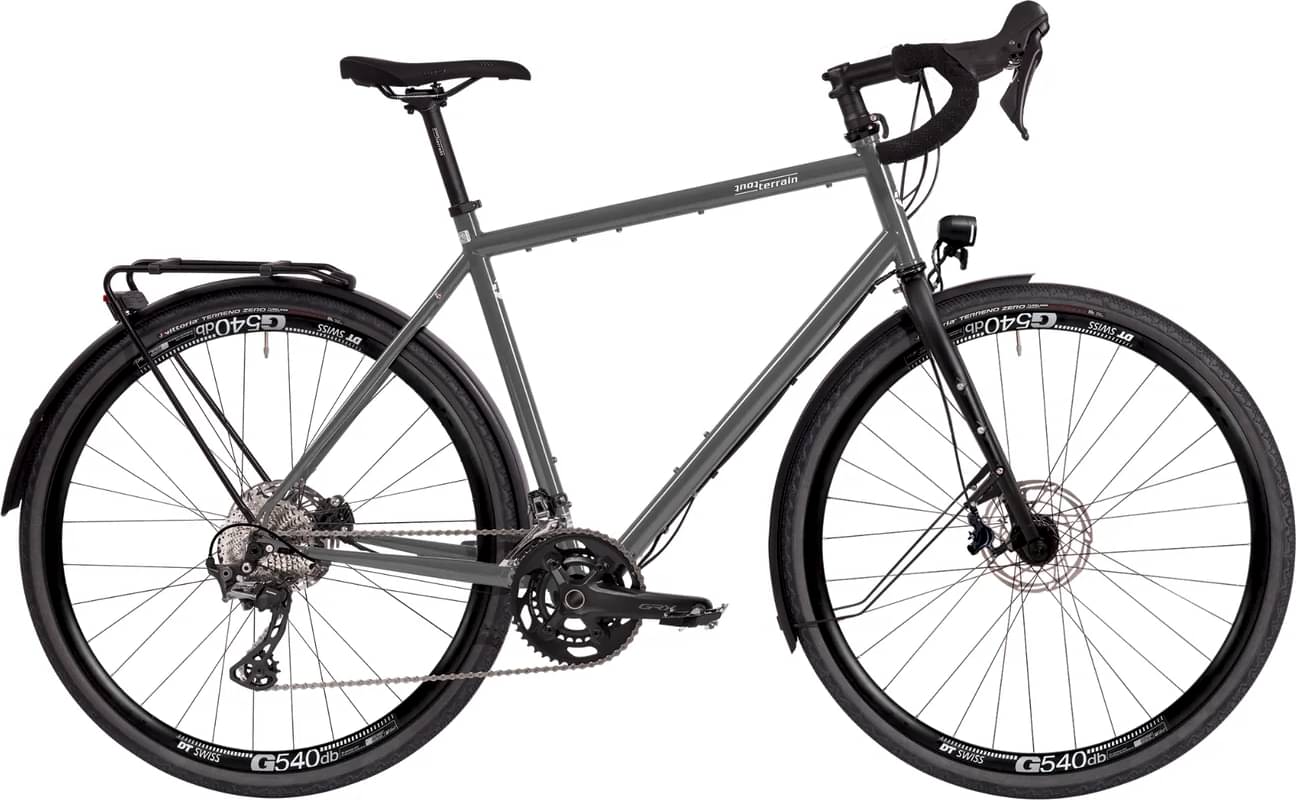

toutterrain Tout Terrain Nolita GT Select 4.2 2025
2025 Road
Estimate price |
3,518$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Groupset GRX 800, GRX 600 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Nolita steel frame | Tout Terrain Stratocrom tubing
Suspension Fork
Tout Terrain Allroad Fork | steel fork
Drivetrain
Rear Derailleur
Shimano GRX | RD-RX810 | 2x11
Front Derailleur
Shimano GRX | FD-RX810-F | 2x11
Crank
Shimano GRX | FC-RX600-11 | 46/30T | 172.5mm
Bottom Bracket
Shimano BB-RS500 | Hollowtech II | BSA 68mm
Pedals
Tout Terrain Urban Pedal
Wheels
Front Hub
Shutter PL-7 dynamo hub | Centerlock rotor interface
Rear Hub
Tout Terrain TK-R1 - 10/11/12S | Centerlock rotor interface
Rims
Ryde Andra 321
Tires
Vittoria Terreno Zero | 700Cx40mm / 40-622
Brakes
Brakes
Front: Flat Mount 140-160mm | Rear: Flat Mount 160-180mm
Cockpit
Stem
Tout Terrain | 70mm | +/- 6°
Grips
Fizik Microtex Performance bar tape
Headset
Cane Creek 10
Seat
Saddle
WTB Volt Medium
Seatpost
Tout Terrain SP1-Zero | 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Stack Reach Ratio | 1.548 mm | 1.556 mm |
| Bottom Bracket Height | 266 mm | 266 mm |
| Front Center | 585 mm | 605 mm |
| Rake | 46 mm | 45 mm |
| Trail | 67 mm | 68 mm |
| Stack | 562 mm | 585 mm |
| Reach | 363 mm | 376 mm |
| Top Tube Length | 535 mm | 555 mm |
| Seat Tube Angle | 73 ° | 73 ° |
| Seat Tube Length | 431 mm | 471 mm |
| Head Tube Angle | 71 ° | 71 ° |
| Head Tube Length | 125 mm | 150 mm |
| Chainstay Length | 435 mm | 435 mm |
| Wheelbase | 1010 mm | 1030 mm |
| Bottom Bracket Drop | 70 mm | 70 mm |
| Standover Height | 766 mm | 797 mm |
| Wheels | 700 | 700 |
