toutterrain Tout Terrain Outback Xplore II 29 2025
2025 Road
Estimate price |
5,500$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Groupset Pinion -
Suspension Rigid -
Brakes Magura MT5 Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Tout Terrain Adventure Fork II | Carbon fork
Drivetrain

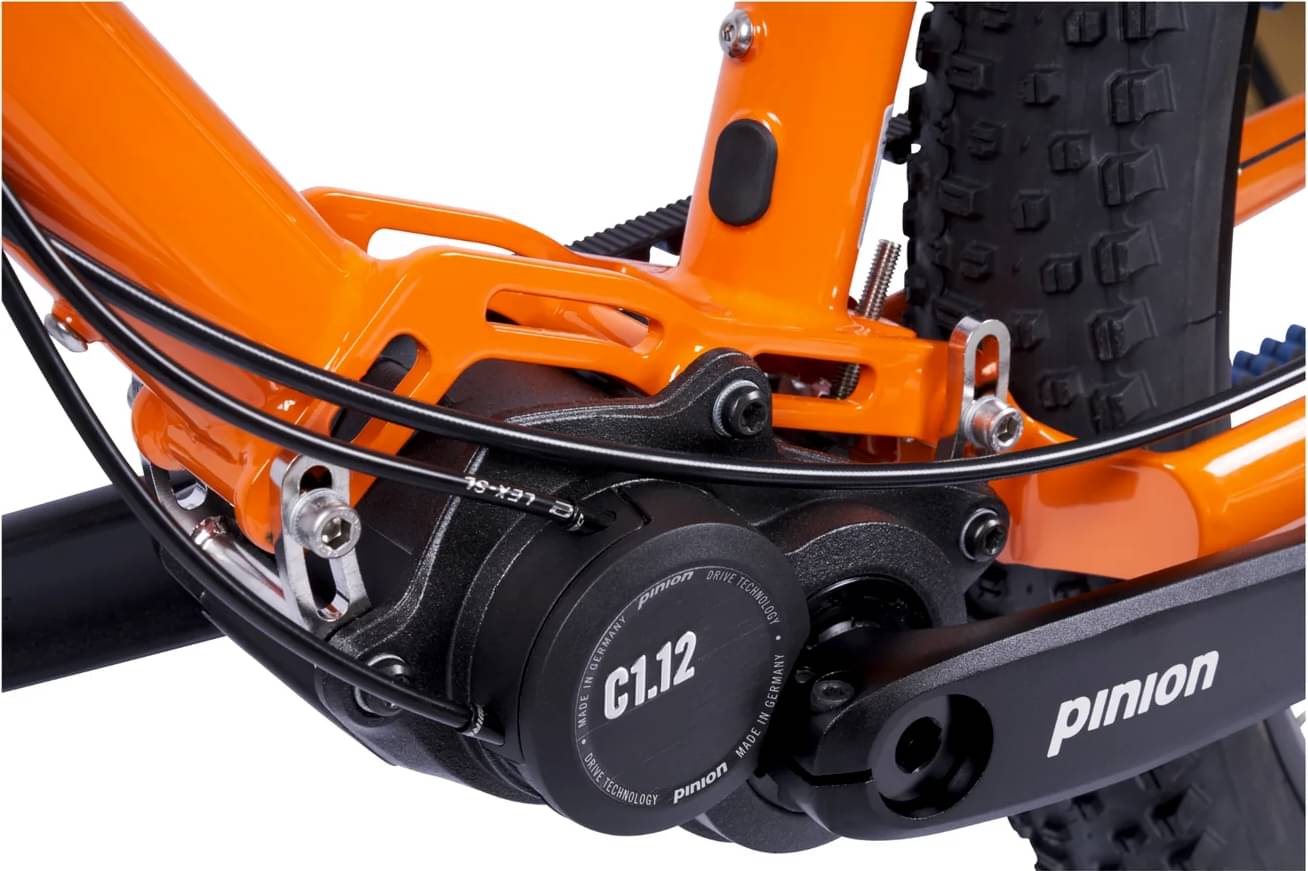

Crank
Pinion Boost Forged | CDX 32T Sprocket | 170mm
Bottom Bracket
Pinion
Wheels
Front Hub
Tout Terrain EX-F1 Boost| Centerlock rotor interface
Rear Hub
Tout Terrain EX-R2 - 1S | Centerlock rotor interface
Rims
WTB KOM tough i25
Tires
Vittoria Mezcal 29x2.35
Brakes
Brakes
Magura MT5
Cockpit
Stem
Tout Terrain | 70mm | +/- 6°
Handlebar
Tout Terrain Ergo 760
Grips
Tout Terrain Ergo Grips
Headset
Cane Creek 40 | ZS44 / EC44
Seat
Saddle
WTB Volt medium
Seatpost
Tout Terrain SP1-Zero | 30.9 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.594 mm | 1.527 mm | 1.471 mm | 1.404 mm |
| Front Center | 678 mm | 699 mm | 719 mm | 744 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 80 mm | 80 mm | 81 mm | 81 mm |
| Stack | 625 mm | 629 mm | 634 mm | 639 mm |
| Reach | 392 mm | 412 mm | 431 mm | 455 mm |
| Top Tube Length | 575 mm | 595 mm | 615 mm | 640 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 420 mm | 470 mm | 500 mm | 530 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 120 mm | 125 mm | 130 mm | 135 mm |
| Chainstay Length | 462 mm | 462 mm | 462 mm | 462 mm |
| Wheelbase | 1132 mm | 1153 mm | 1173 mm | 1199 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 792 mm | 817 mm | 826 mm | 848 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
