toutterrain Tout Terrain Tanami II 29 Select 3.1 2025

2025 Road
Estimate price | 5,883$
Open compare Use advisor

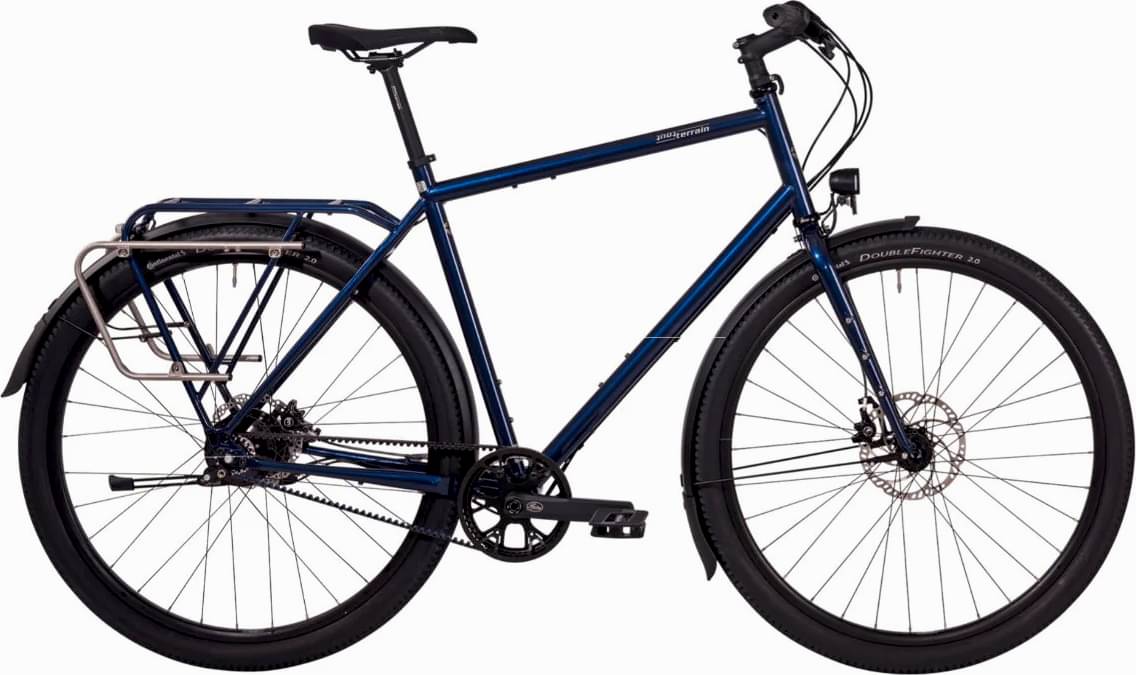

Toutterrain Tanami Ii 29 Select 3.1 2025

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Steel
  • Groupset Gates CDX
  • Suspension Rigid
  • Drivetrain Belt Drive
  • Brakes Magura MT4 Hydraulic Disc
Sizing

Recommended size guide.

  • MD

    165cm - 177cm

  • LG

    175cm - 188cm

  • XL

    185cm - 198cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

Tanami II steel frame | Tout Terrain Thermocrom tubing

Suspension Fork

Tout Terrain Expedition Fork | steel fork

Drivetrain

Crank

Gates Carbon Drive S550 | CDX 50T belt spider | 175mm

Bottom Bracket

FSA MegaExo | BSA 68mm

Pedals

Tout Terrain Urban Pedal

Wheels

Front Hub

Shutter PL-7 dynamo hub | Centerlock rotor interface

Rear Hub

Rohloff Speedhub 500/14 | 14-speed Internal Geared Hub for 12mm/142mm thru-axle | 4-Bolt brake mount

Rims

Ryde Andra 321

Tires

Vittoria Randonneur Tech | 29"x2.0" / 50-622

Brakes

Brakes

Magura MT4 | hydraulic disc brake

Cockpit

Stem

Tout Terrain | 100mm | +/- 6°

Grips

Tout Terrain Ergo lock-on grip

Headset

Acros AH-34 | EC34 / EC34

Seat

Saddle

WTB Volt Medium

Seatpost

Tout Terrain SP1-Zero | 27.2mm

Fit data

Geometry

Numbers for sizing and ride feel.

SizeMDLGXL
Stack Reach Ratio
1.587 mm1.643 mm1.667 mm
Front Center
631 mm641 mm649 mm
Rake
45 mm45 mm45 mm
Trail
71 mm68 mm65 mm
Stack
614 mm644 mm665 mm
Reach
387 mm392 mm399 mm
Top Tube Length
575 mm595 mm615 mm
Seat Tube Angle
73 °72.5 °72 °
Seat Tube Length
450 mm501 mm552 mm
Head Tube Angle
70.5 °71 °71.5 °
Head Tube Length
175 mm205 mm225 mm
Chainstay Length
455 mm455 mm455 mm
Wheelbase
1077 mm1087 mm1095 mm
Bottom Bracket Drop
70 mm70 mm70 mm
Standover Height
821 mm859 mm892 mm
Wheels29"29"29"
Rider Min Height165 cm175 cm185 cm
Rider Max Height177 cm188 cm198 cm
