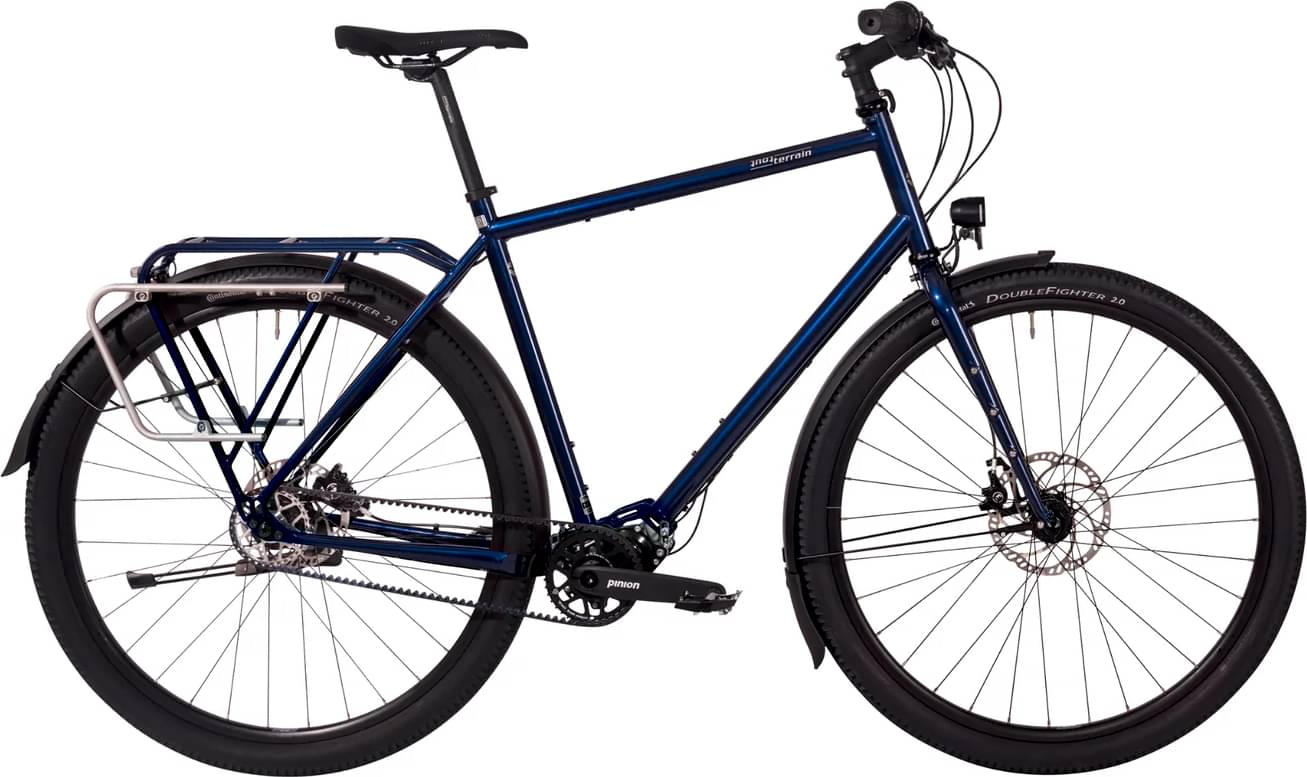

toutterrain Tout Terrain Tanami Xplore II 29 Select 3.1 2025
2025 Road
Estimate price |
5,663$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Groupset Pinion -
Suspension Rigid -
Drivetrain Belt Drive -
Brakes Magura MT4 Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Tanami Xplore steel frame | Tout Terrain Thermocrom tubing
Suspension Fork
Tout Terrain Expedition Fork | Steel fork
Drivetrain
Shift Levers
Pinion twist handle
Cassette
Gates Carbon Drive CDX Centertrack | 32T
Crank
Pinion forged | CDX:SL 39T pulley | 175mm
Bottom Bracket
Pinion, press-fit
Pedals
Tout Terrain Urban Pedal
Wheels
Rims
Ryde Andra 321
Tires
Vittoria Randonneur Tech | 29"x2.0" / 50-622
Brakes
Brakes
Magura MT4 | hydraulic disc brake
Cockpit
Stem
Tout Terrain | 100mm | +/- 6°
Handlebar
Tout Terrain Ergo | 720mm
Headset
Cane Creek 10 / Acros | EC34 / EC34
Seat
Saddle
WTB Volt Medium
Seatpost
Tout Terrain SP1-Zero | 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.587 mm | 1.643 mm | 1.667 mm |
| Front Center | 631 mm | 641 mm | 649 mm |
| Rake | 45 mm | 45 mm | 45 mm |
| Trail | 71 mm | 68 mm | 65 mm |
| Stack | 614 mm | 644 mm | 665 mm |
| Reach | 387 mm | 392 mm | 399 mm |
| Top Tube Length | 575 mm | 595 mm | 615 mm |
| Seat Tube Angle | 73 ° | 72.5 ° | 72 ° |
| Seat Tube Length | 450 mm | 501 mm | 552 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° |
| Head Tube Length | 175 mm | 205 mm | 225 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1077 mm | 1087 mm | 1095 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Standover Height | 821 mm | 859 mm | 892 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
