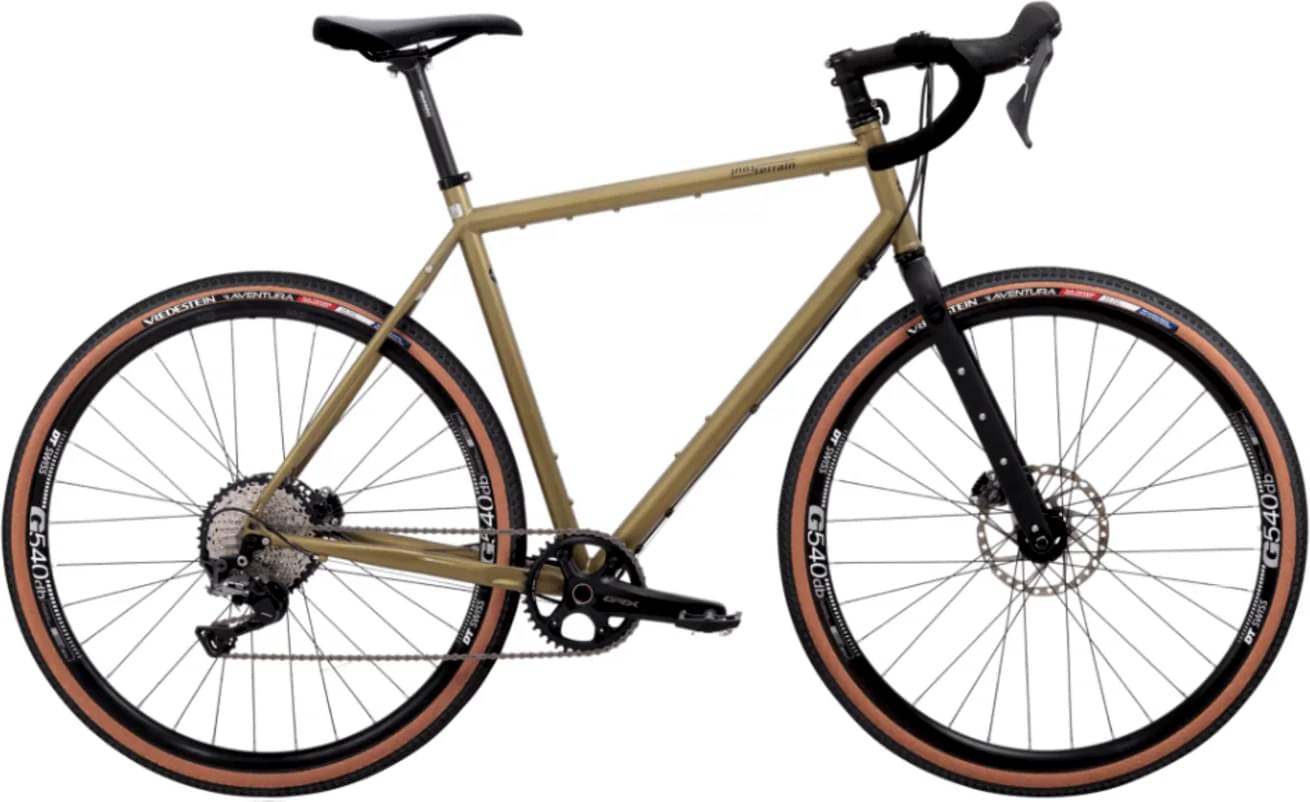

toutterrain Tout Terrain Vasco GT 28 Select 2.3 2025
2025 Road
Estimate price |
3,793$
Weight | 10.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Groupset GRX 800, GRX 600 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Shimano GRX 400 Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Vasco steel frame | Tout Terrain Stratocrom tube set
Suspension Fork
Cinq Touring Fork II | Carbon fork
Drivetrain
Rear Derailleur
Shimano GRX | RD-RX 812 | 1x11
Front Derailleur
n/a
Shift Levers
Shimano GRX | ST-RX600
Cassette
Shimano Deore | CS-M5100 | 11-42T | 11-Speed
Crank
Shimano GRX | FC-RX600-1 | 40T | 172.5mm
Bottom Bracket
Shimano BB-RS500 | Hollowtech II | BSA 68mm
Pedals
Tout Terrain Urban Pedal
Wheels
Rims
DT Swiss G540
Tires
Vredestein Aventura | 700Cx44mm / 44-622
Brakes
Brakes
Shimano GRX | BR-RX400 | Gravel disc brake
Cockpit
Stem
Tout Terrain | 100mm | +/- 6°
Handlebar
Tout Terrain Allroad racing handlebars | 440mm | 8° flare
Headset
Cane Creek 10 / Acros | EC34 / EC34
Seat
Saddle
WTB Volt Medium
Seatpost
Tout Terrain SP1-Zero | 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Stack Reach Ratio | 1.548 mm | 1.556 mm |
| Bottom Bracket Height | 266 mm | 266 mm |
| Front Center | 585 mm | 605 mm |
| Rake | 46 mm | 45 mm |
| Trail | 67 mm | 68 mm |
| Stack | 562 mm | 585 mm |
| Reach | 363 mm | 376 mm |
| Top Tube Length | 535 mm | 555 mm |
| Seat Tube Angle | 73 ° | 73 ° |
| Seat Tube Length | 431 mm | 471 mm |
| Head Tube Angle | 71 ° | 71 ° |
| Head Tube Length | 125 mm | 150 mm |
| Chainstay Length | 435 mm | 435 mm |
| Wheelbase | 1010 mm | 1030 mm |
| Bottom Bracket Drop | 70 mm | 70 mm |
| Standover Height | 766 mm | 797 mm |
| Wheels | 700 | 700 |
