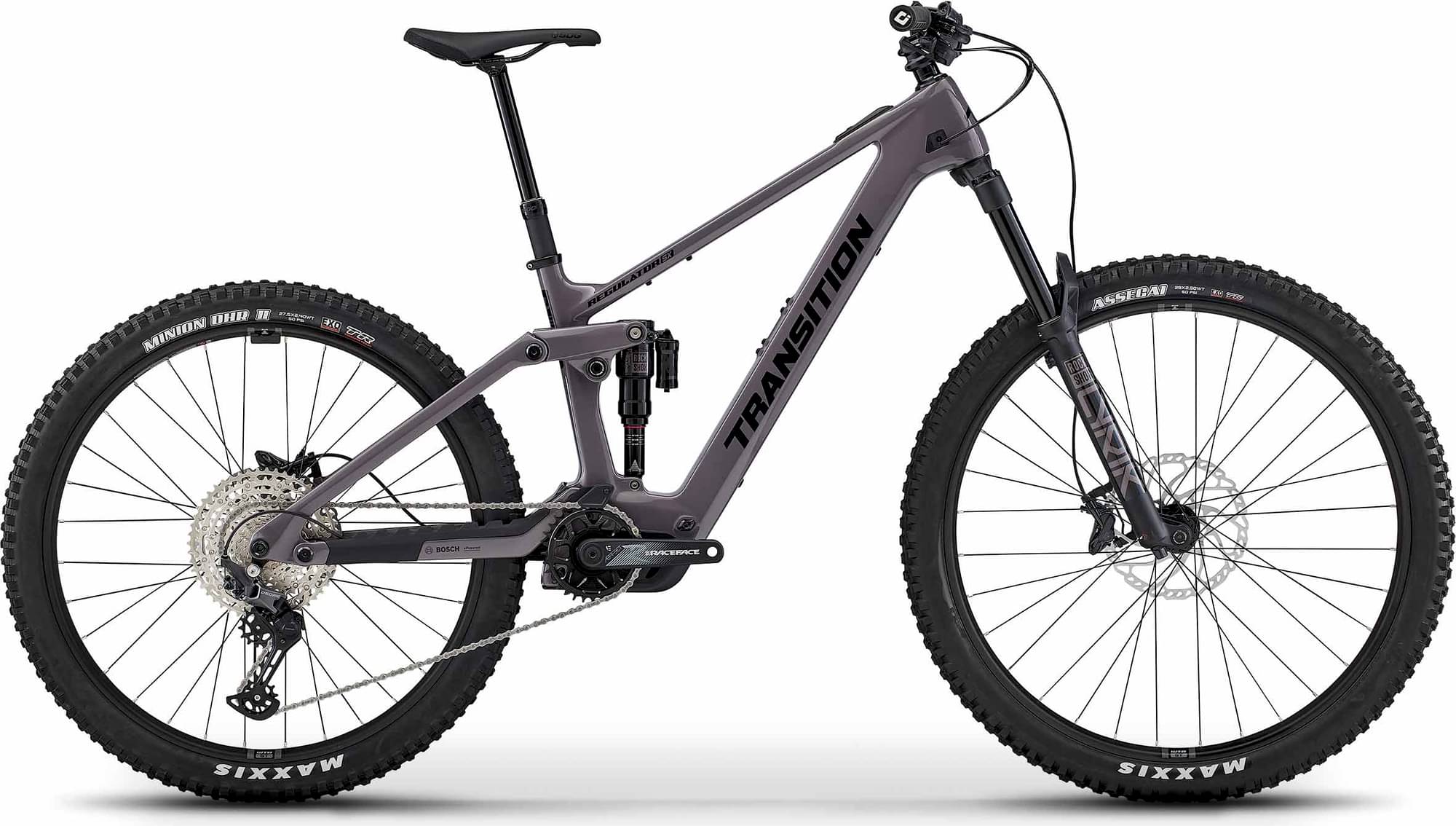

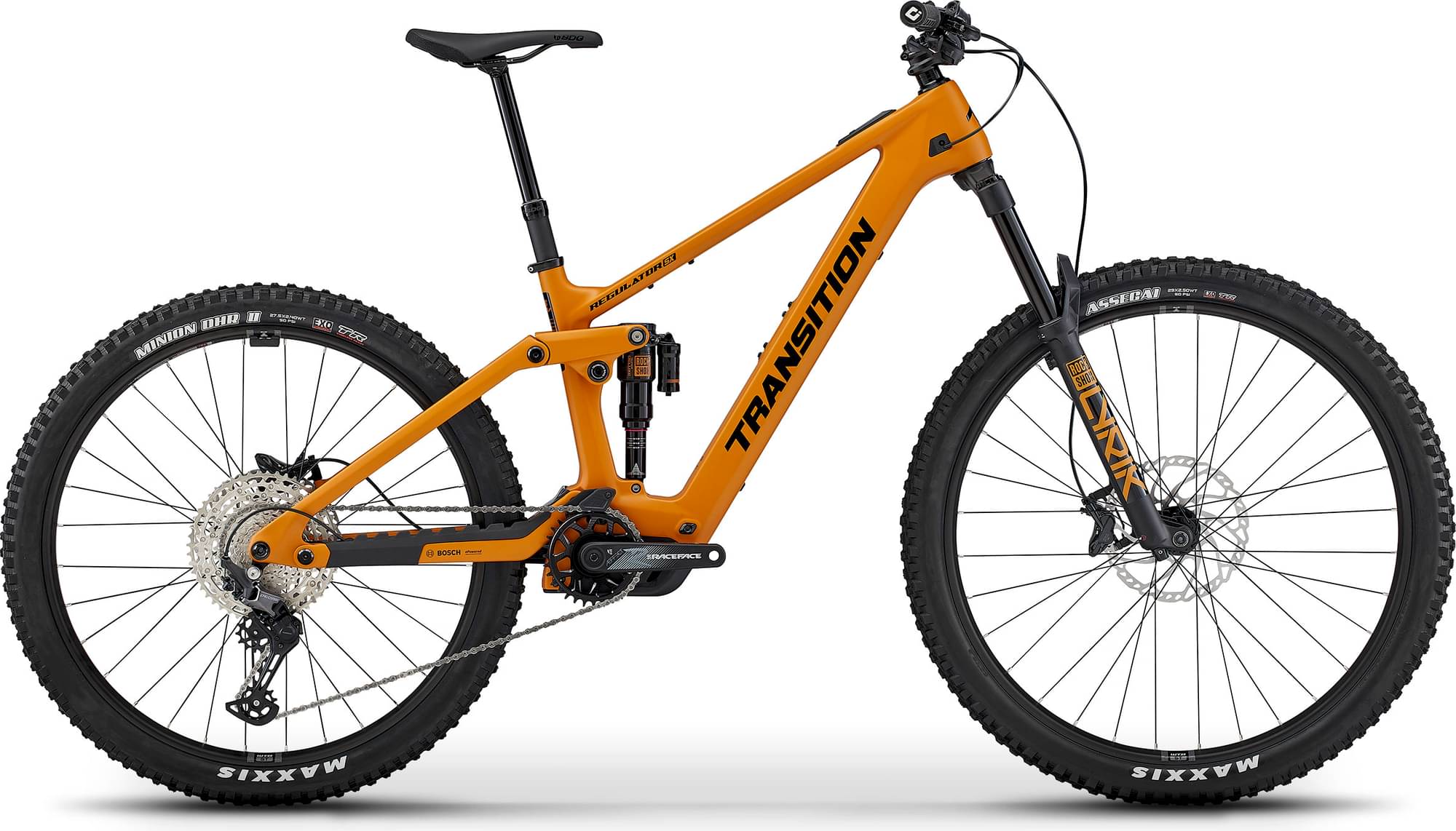

Transition Regulator SX Deore 2025
2025 E-bike
Estimate price |
7,299$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox Lyrik
-
Groupset Deore -
Suspension Full -
Motor Bosch 600W 55Nm mid-drive -
Battery Bosch CompactTube (400wh) -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Regulator SX Carbon 150mm
Suspension Fork
RockShox Lyrik Base, (160mm)
Rear Shock
RockShox SuperDeluxe Select, (205x60mm)
Drivetrain
Rear Derailleur
Shimano Deore M6100 SGS 12sp
Shift Levers
Shimano Deore M6100 iSpec EV
Cassette
Shimano Deore M6100 (10-51t)
Crank
RaceFace Aeffect R E-MTB (160mm)
Bottom Bracket
73mm BSA Threaded
Chain
Shimano Deore M6100
Chain Guide
Transition Integrated Top Guide
Wheels
Front Hub
Novatech D791SB/D902SB
Rear Hub
Novatech D791SB/D902SB
Rims
WTB ST i30
Spokes
Pillar Double Butted
Tires
Front: Maxxis Assegai 3C EXO/TR (2.5), Rear: Maxxis Minion DHRII 3C EXO/TR (2.4)
Brakes
Brakes
Shimano Deore M6120 4 Piston
Cockpit
Stem
RaceFace Aefect R (40mm)
Handlebar
RaceFace Chester 35, SM (780x20), MD/LG/XL (780x35)
Grips
ODI Elite Flow Lock-On
Headset
FSA No.57E
Seat
Saddle
SDG Bel Air 3
Seatpost
SDG Tellis, SM (150mm), MD (170mm), LG (200mm), XL (230mm)
Motor & Battery
Motor
Bosch Performance Line SX (BDU31)
Battery
Bosch CompactTube (400wh)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.466 mm | 1.389 mm | 1.335 mm | 1.276 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 760 mm | 794 mm | 824 mm | 858 mm |
| Rake | 45 mm | 44 mm | 45 mm | 44 mm |
| Trail | 129 mm | 130 mm | 129 mm | 130 mm |
| Stack | 623 mm | 632 mm | 641 mm | 651 mm |
| Reach | 425 mm | 455 mm | 480 mm | 510 mm |
| Top Tube Length | 551 mm | 583 mm | 610 mm | 643 mm |
| Seat Tube Angle | 78.8 ° | 78.5 ° | 78.2 ° | 77.9 ° |
| Seat Tube Length | 375 mm | 400 mm | 440 mm | 470 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 442 mm | 442 mm | 448 mm | 448 mm |
| Wheelbase | 1201 mm | 1235 mm | 1271 mm | 1305 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 164 cm | 175 cm | 184 cm |
| Rider Max Height | 170 cm | 182 cm | 190 cm | 200 cm |
