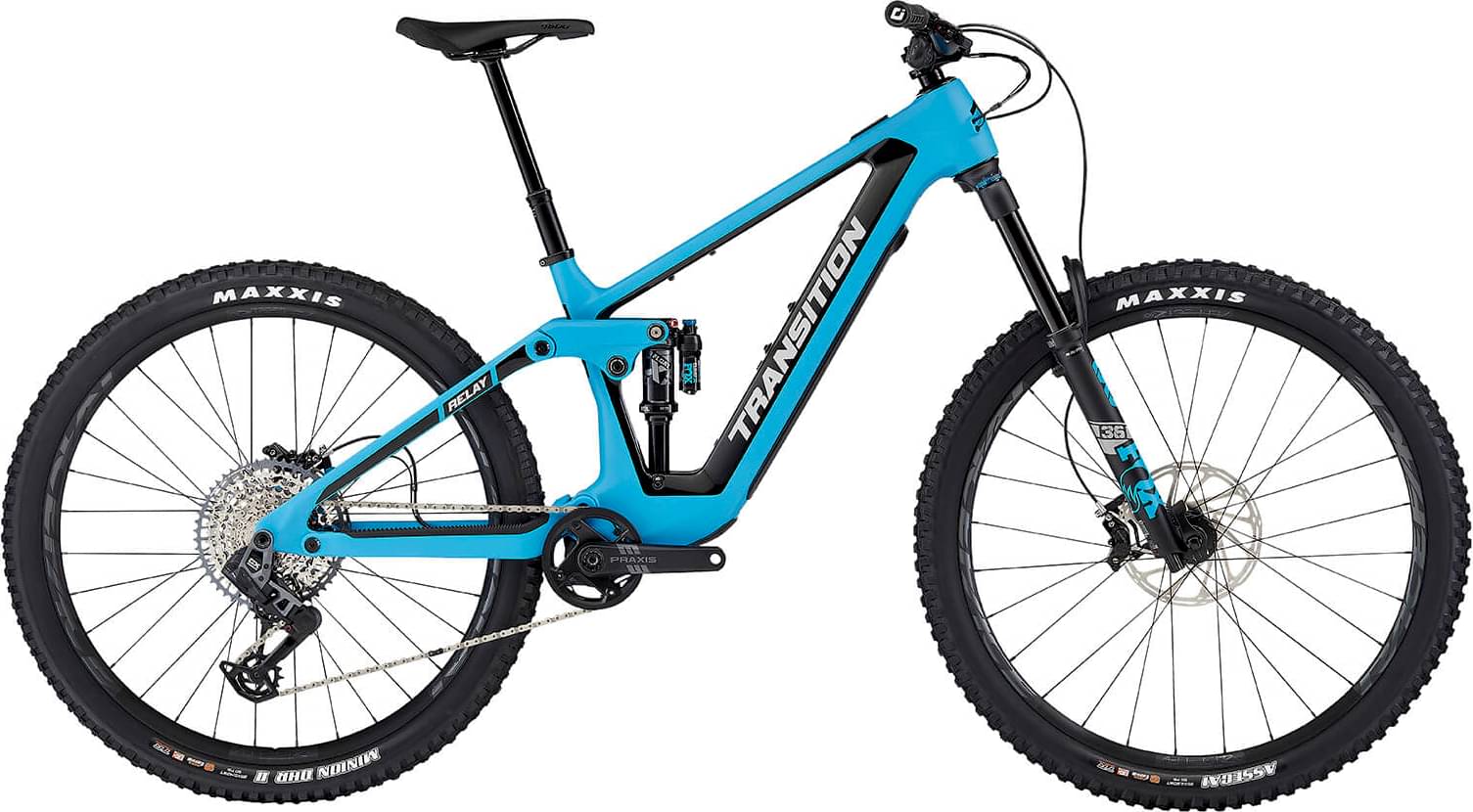

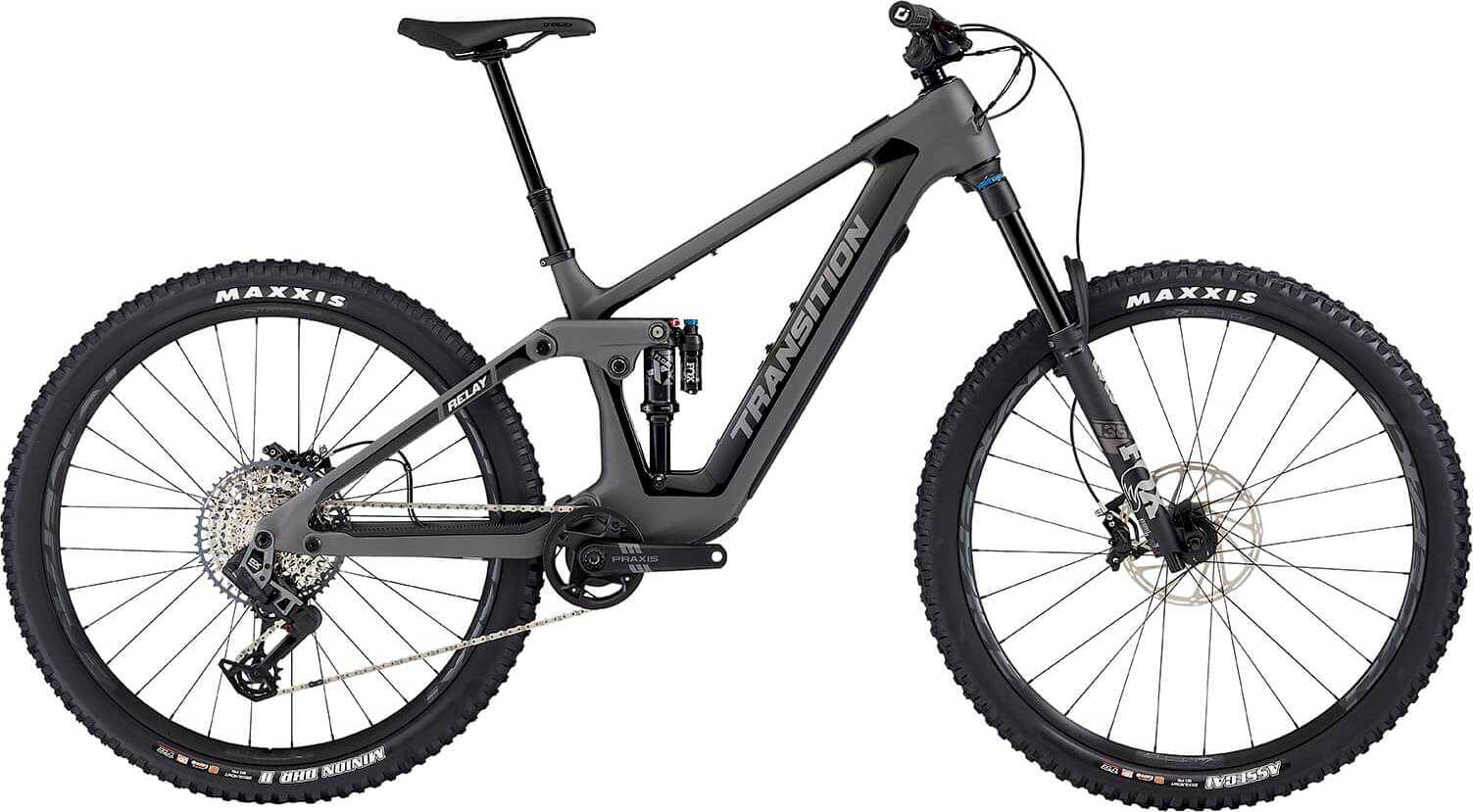

Transition Relay Carbon GX AXS 2024
2024 E-bike
Estimate price |
9,999$
Weight | 19.62 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Performance Elite Float 36
-
Groupset GX Eagle Transmission -
Suspension Full -
Motor Fazua 450W 60Nm mid-drive -
Battery Fazua Energy 430 Take Out -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
143cm - 160cm
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
XXL
190cm - 207cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Relay Carbon 160mm
Suspension Fork
Fox Float 36 Grip 2 Performance Elite, (160mm)
Rear Shock
Fox Float X Performance Elite, (205x60mm)
Drivetrain
Rear Derailleur
SRAM GX AXS Eagle Transmission
Shift Levers
SRAM POD Bridge MMX
Cassette
SRAM XS 1275 T-Type (10-52t)
Crank
Praxis Alloy ETOR, (165mm, X-Small 160mm)
Bottom Bracket
Fazua Ride 60 System
Chain
SRAM GX Eagle Transmission
Wheels
Front Hub
RaceFace Trace 28H
Rear Hub
RaceFace Trace 28H
Rims
RaceFace Aeffect R
Spokes
RaceFace 2.0/1.7/2.0
Tires
Front: Maxxis Assegai 3C EXO+ 2.5, Rear: Maxxis Minion DHRII 3C EXO+ 2.4
Brakes
Brakes
SRAM Code Silver Stealth
Cockpit
Stem
ANVL Swage (40mm)
Handlebar
ANVL Mandrel Alloy 35, XS/SM(800x20) MD/LG/XL(800x30) XXL (800x40)
Grips
ODI Elite Flow Lock-On
Headset
FSA No.55R
Seat
Saddle
SDG Bel Air 3
Seatpost
OneUp Dropper Post, XS(120mm) SM(150mm) MD(180mm) LG/XL/XXL(210mm)
Motor & Battery
Motor
Fazua Ride 60
Battery
Fazua Energy 430 Take Out
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.451 mm | 1.442 mm | 1.365 mm | 1.313 mm | 1.267 mm | 1.224 mm |
| Bottom Bracket Height | 340 mm | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 731 mm | 767 mm | 803 mm | 833 mm | 862 mm | 891 mm |
| Rake | 34 mm | 42 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 136 mm | 136 mm | 134 mm | 134 mm | 134 mm | 134 mm |
| Stack | 595 mm | 620 mm | 628 mm | 637 mm | 646 mm | 655 mm |
| Reach | 410 mm | 430 mm | 460 mm | 485 mm | 510 mm | 535 mm |
| Top Tube Length | 523 mm | 553 mm | 586 mm | 614 mm | 642 mm | 671 mm |
| Seat Tube Angle | 79.7 ° | 79.1 ° | 78.4 ° | 77.8 ° | 77.3 ° | 77 ° |
| Seat Tube Length | 410 mm | 410 mm | 410 mm | 430 mm | 460 mm | 490 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 105 mm | 105 mm | 115 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 436 mm | 442 mm | 442 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1167 mm | 1208 mm | 1244 mm | 1280 mm | 1309 mm | 1338 mm |
| Bottom Bracket Drop | 15 mm | 25 mm | 25 mm | 25 mm | 25 mm | 25 mm |
| Wheels | 27" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 143 cm | 154 cm | 164 cm | 175 cm | 184 cm | 190 cm |
| Rider Max Height | 160 cm | 170 cm | 182 cm | 190 cm | 200 cm | 207 cm |
