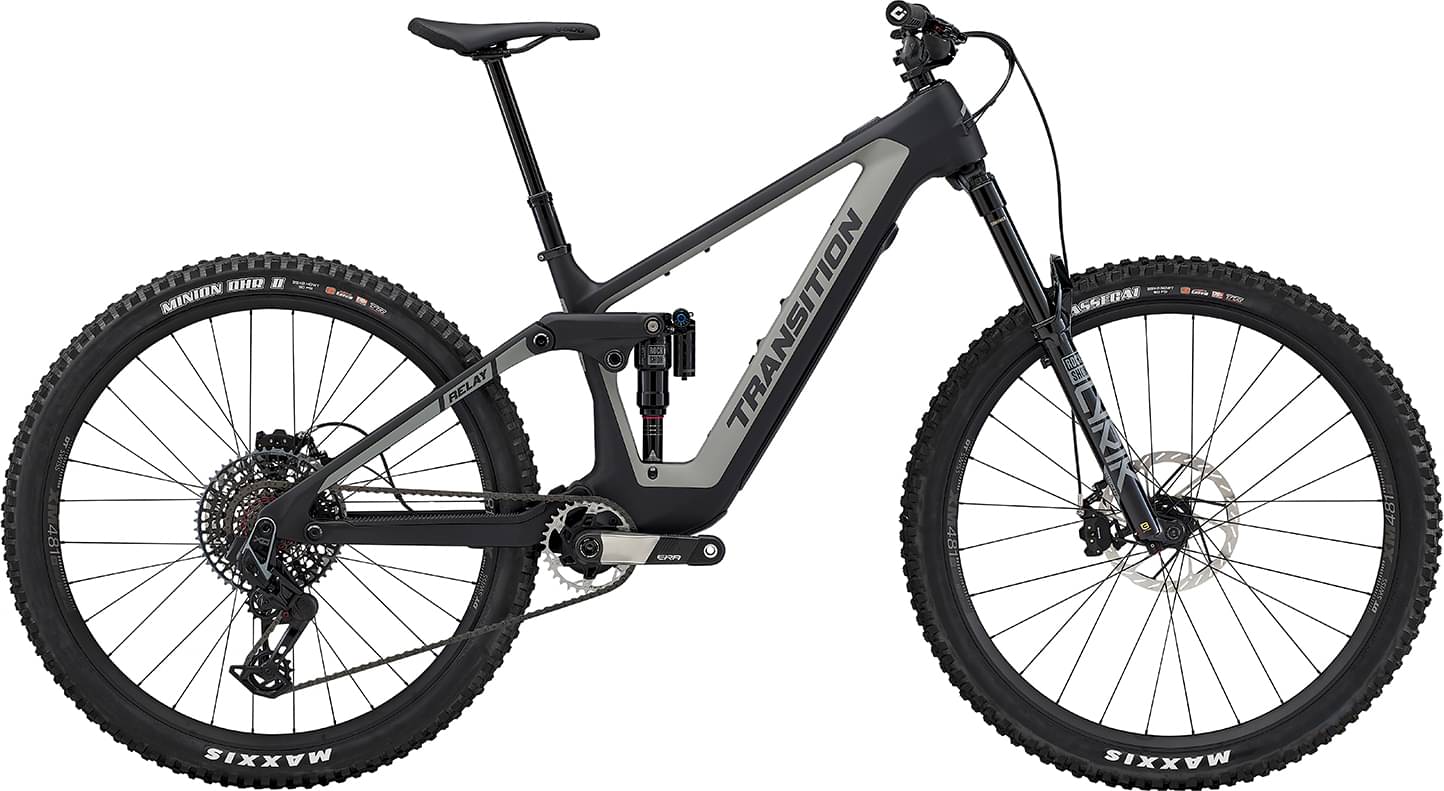

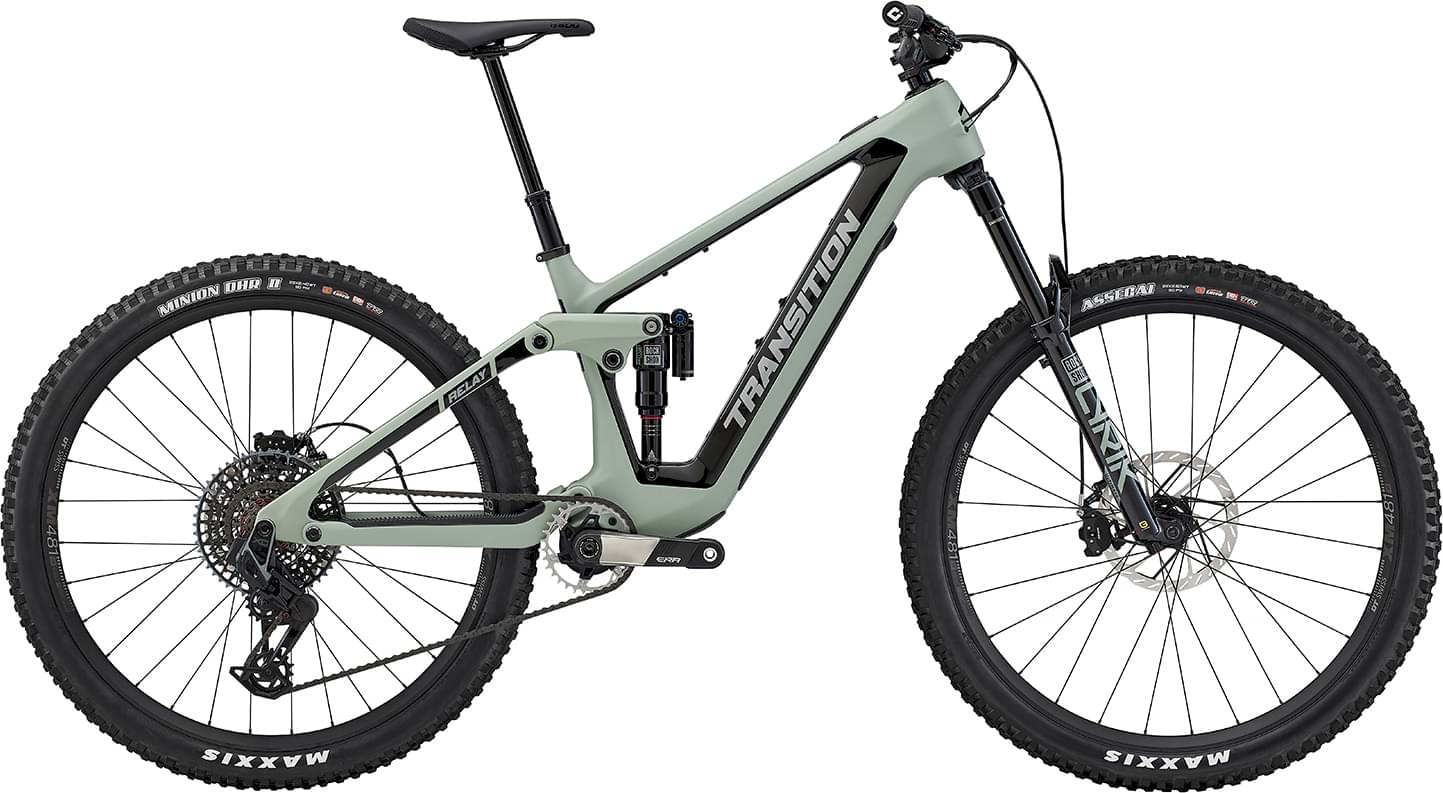

Transition Relay Carbon XO AXS 2025
2025 E-bike
Estimate price |
10,499$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Travel Rear 160mm -
Fork RockShox Lyrik Ultimate
-
Groupset X0 Eagle Transmission -
Suspension Full -
Motor Fazua 450W 60Nm mid-drive -
Battery Fazua Energy 430 Take Out -
Drivetrain 1 × 12 Electronic -
Brakes SRAM Maven Silver Hydraulic Disc
Sizing
Recommended size guide.
XS
143cm - 160cm
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
XXL
190cm - 207cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Relay Carbon 160mm
Suspension Fork
RockShox Lyrik Ultimate, (160mm)
Rear Shock
RockShox Super Deluxe Ultimate, (205x60mm)
Drivetrain
Rear Derailleur
SRAM XO AXS Eagle Transmission
Shift Levers
SRAM POD Ultimate Bridge MMX
Cassette
SRAM XS 1295 T-Type (10-52t)
Crank
RaceFace Era Carbon ETOR, (165mm, X-Small 160mm)
Bottom Bracket
Fazua Ride 60 System
Chain
SRAM XO Eagle Transmission
Wheels
Front Hub
DT Swiss 350 Classic DEG
Rear Hub
DT Swiss 350 Classic DEG
Rims
DT Swiss XM 481
Spokes
DT Swiss Competition
Tires
Front: Maxxis Assegai 3C EXO+ (2.5), Rear: Maxxis Minion DHRII 3C EXO+ (2.4)
Brakes
Brakes
SRAM Maven Silver
Cockpit
Stem
ANVL Swage (40mm)
Handlebar
OneUp Carbon, XS/SM (800x20mm), MD/LG/XL/XXL (800x35mm)
Grips
ODI Elite Flow Lock-On
Headset
FSA No.55R
Seat
Saddle
SDG Bel Air 3 LUX
Seatpost
OneUp Dropper Post, XS (120mm), SM (150mm), MD (190mm), LG (210mm), XL/XXL (240mm)
Motor & Battery
Motor
Fazua Ride 60
Battery
Fazua Energy 430 Take Out
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.451 mm | 1.442 mm | 1.365 mm | 1.313 mm | 1.267 mm | 1.224 mm |
| Bottom Bracket Height | 340 mm | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 731 mm | 767 mm | 803 mm | 833 mm | 862 mm | 891 mm |
| Rake | 34 mm | 42 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 136 mm | 136 mm | 134 mm | 134 mm | 134 mm | 134 mm |
| Stack | 595 mm | 620 mm | 628 mm | 637 mm | 646 mm | 655 mm |
| Reach | 410 mm | 430 mm | 460 mm | 485 mm | 510 mm | 535 mm |
| Top Tube Length | 523 mm | 553 mm | 586 mm | 614 mm | 642 mm | 671 mm |
| Seat Tube Angle | 79.7 ° | 79.1 ° | 78.4 ° | 77.8 ° | 77.3 ° | 77 ° |
| Seat Tube Length | 410 mm | 410 mm | 410 mm | 430 mm | 460 mm | 490 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 105 mm | 105 mm | 115 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 436 mm | 442 mm | 442 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1167 mm | 1208 mm | 1244 mm | 1280 mm | 1309 mm | 1338 mm |
| Bottom Bracket Drop | 15 mm | 25 mm | 25 mm | 25 mm | 25 mm | 25 mm |
| Wheels | 27" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 143 cm | 154 cm | 164 cm | 175 cm | 184 cm | 190 cm |
| Rider Max Height | 160 cm | 170 cm | 182 cm | 190 cm | 200 cm | 207 cm |
