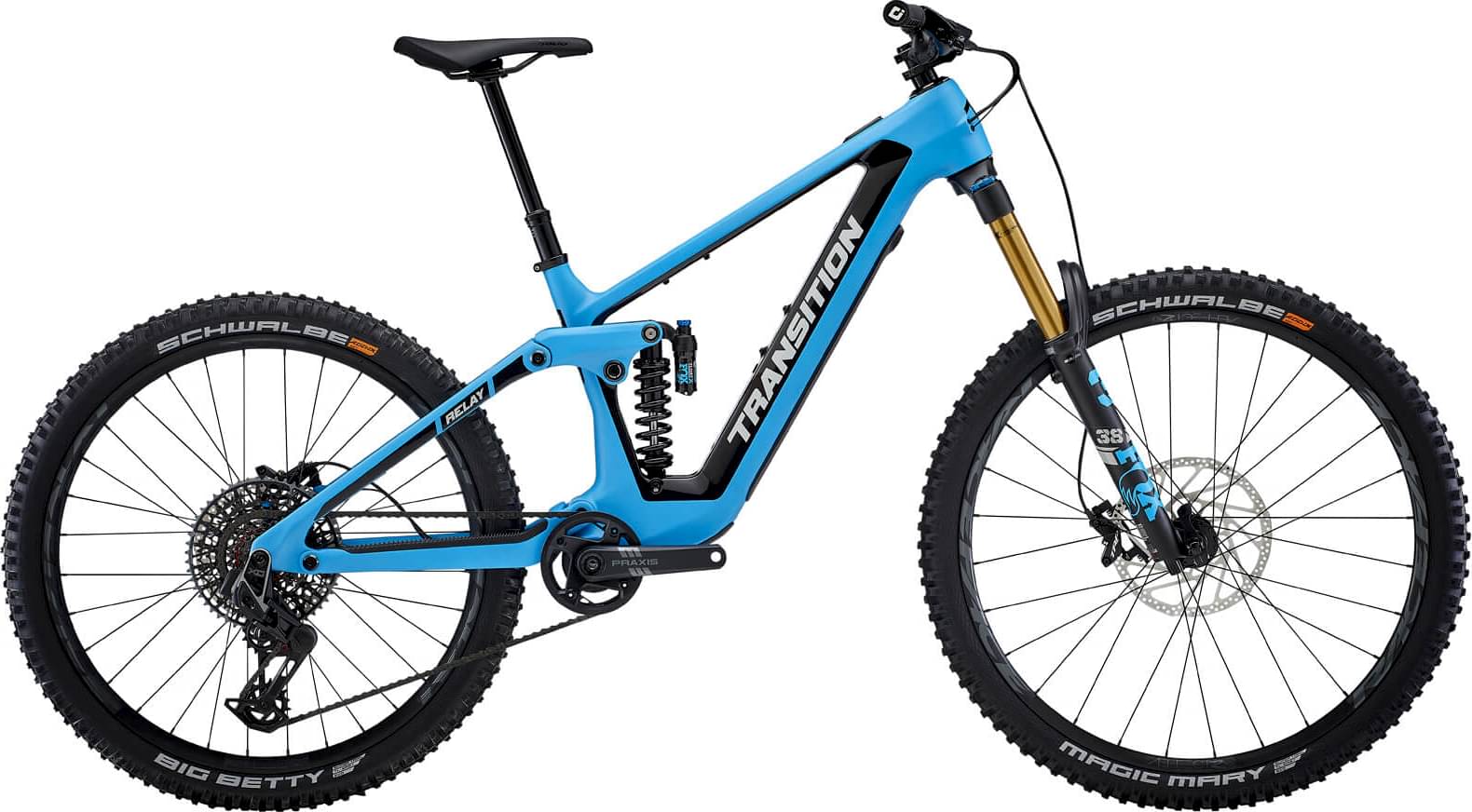

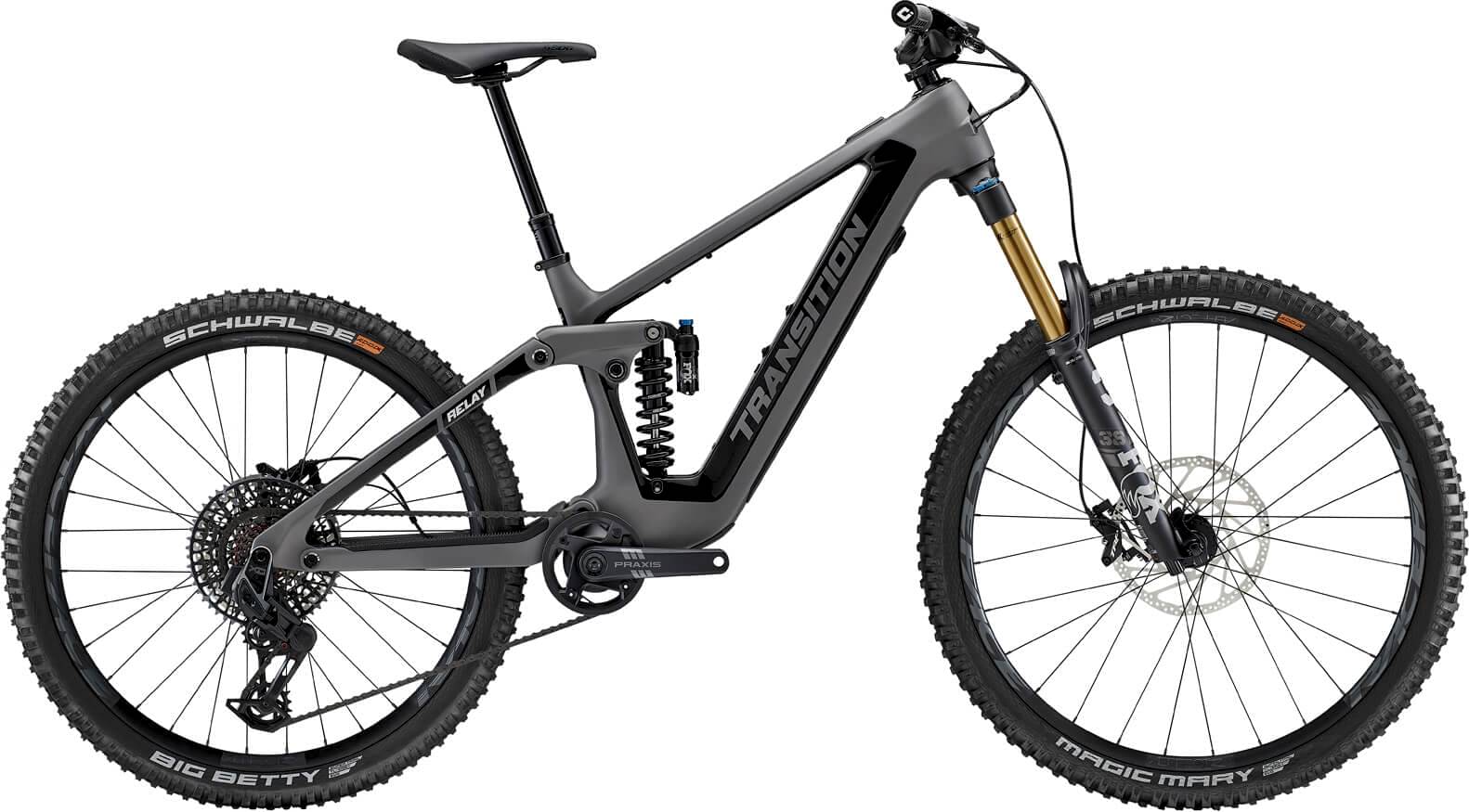

Transition Relay PNW Carbon XO AXS 2024
2024 E-bike
Estimate price |
10,999$
Weight | 20.64 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 170mm -
Fork Fox Factory Float 38
-
Groupset X0 Eagle Transmission -
Suspension Full -
Motor Fazua 450W 60Nm mid-drive -
Battery Fazua Energy 430 Take Out -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
143cm - 160cm
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
XXL
190cm - 207cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Relay Carbon 170mm
Suspension Fork
Fox Float 38 Grip 2 Factory, (170mm)
Rear Shock
Fox DHX Coil Factory, (205x65mm), XS/SM(350lb) MD(400lb) LG(450lb) XL(500lb) XXL(550lb)
Drivetrain
Rear Derailleur
SRAM XO AXS Eagle Transmission
Shift Levers
SRAM POD Ultimate Bridge MMX
Cassette
SRAM XS 1295 T-Type (10-52t)
Crank
Praxis Alloy ETOR, (165mm, X-Small 160mm)
Bottom Bracket
Fazua Ride 60 System
Chain
SRAM XO Eagle Transmission
Wheels
Front Hub
RaceFace Trace 28H
Rear Hub
RaceFace Trace 28H
Rims
RaceFace Aeffect R
Spokes
RaceFace 2.0/1.7/2.0
Tires
Front: Schwalbe Magic Mary, Super Trail, Soft 2.4, Rear: Schwalbe Big Betty, Super Trail, Soft 2.4
Brakes
Brakes
TRP DH-R EVO
Cockpit
Stem
ANVL Swage (40mm)
Handlebar
ANVL Mandrel Alloy 35, XS/SM(800x20) MD/LG/XL(800x30) XXL (800x40)
Grips
ODI Elite Flow Lock-On
Headset
FSA No.55R
Seat
Saddle
SDG Bel Air 3
Seatpost
OneUp Dropper Post, XS(120mm) SM(150mm) MD(180mm) LG/XL/XXL(210mm)
Motor & Battery
Motor
Fazua Ride 60
Battery
Fazua Energy 430 Take Out
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.464 mm | 1.469 mm | 1.403 mm | 1.348 mm | 1.299 mm | 1.254 mm |
| Bottom Bracket Height | 343 mm | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 736 mm | 772 mm | 808 mm | 837 mm | 867 mm | 896 mm |
| Rake | 38 mm | 45 mm | 44 mm | 44 mm | 45 mm | 45 mm |
| Trail | 134 mm | 138 mm | 139 mm | 139 mm | 137 mm | 137 mm |
| Stack | 593 mm | 620 mm | 634 mm | 643 mm | 652 mm | 661 mm |
| Reach | 405 mm | 422 mm | 452 mm | 477 mm | 502 mm | 527 mm |
| Top Tube Length | 532 mm | 564 mm | 597 mm | 631 mm | 665 mm | 696 mm |
| Seat Tube Angle | 79.3 ° | 78.4 ° | 77.7 ° | 77.1 ° | 76.6 ° | 76.3 ° |
| Seat Tube Length | 410 mm | 410 mm | 410 mm | 430 mm | 460 mm | 490 mm |
| Head Tube Angle | 63.6 ° | 63.3 ° | 63.3 ° | 63.3 ° | 63.4 ° | 63.4 ° |
| Head Tube Length | 105 mm | 105 mm | 115 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 436 mm | 440 mm | 440 mm | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1172 mm | 1211 mm | 1247 mm | 1282 mm | 1312 mm | 1341 mm |
| Bottom Bracket Drop | 11 mm | 25 mm | 25 mm | 25 mm | 25 mm | 25 mm |
| Wheels | 27" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 143 cm | 154 cm | 164 cm | 175 cm | 184 cm | 190 cm |
| Rider Max Height | 160 cm | 170 cm | 182 cm | 190 cm | 200 cm | 207 cm |
