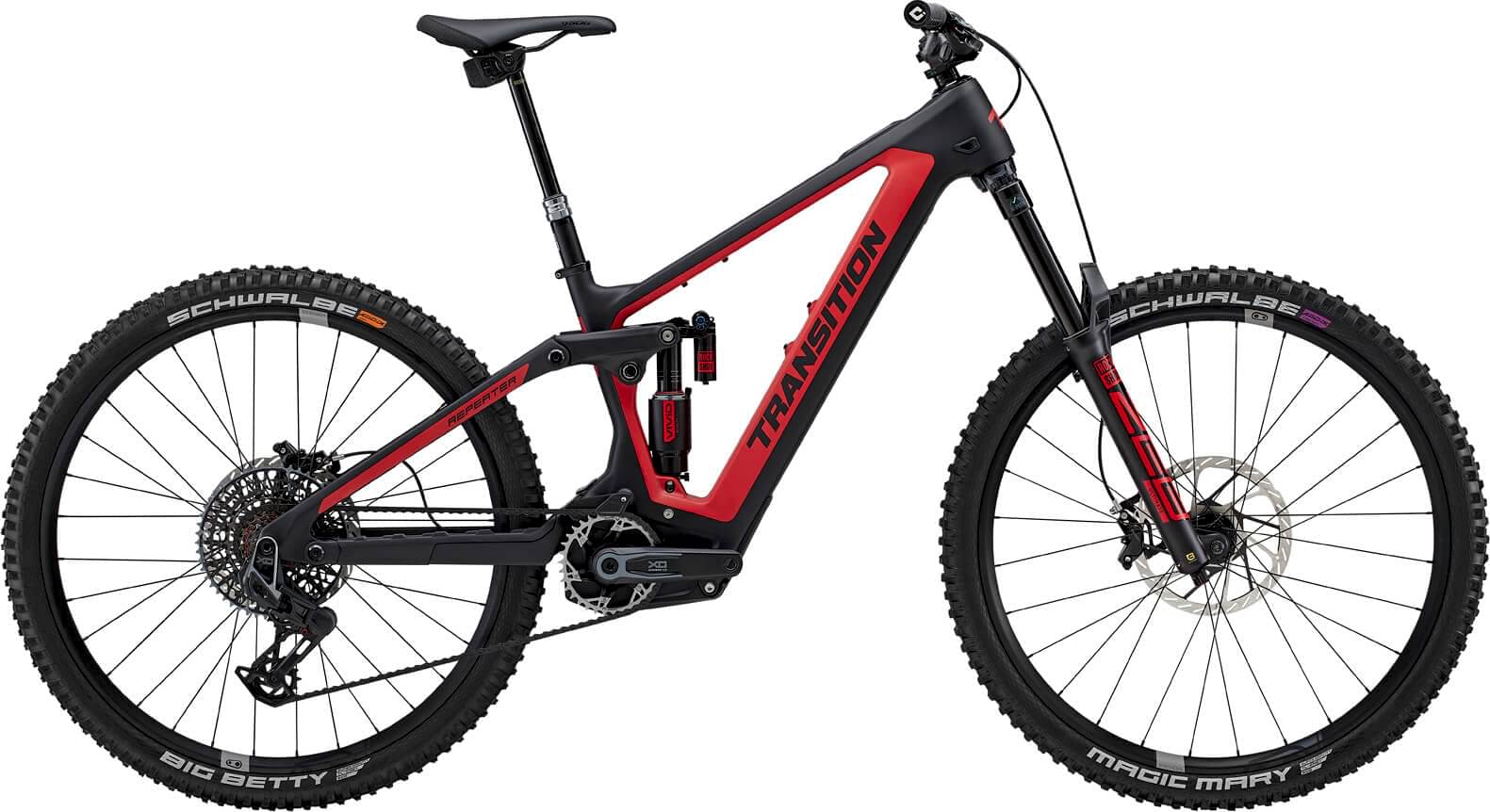

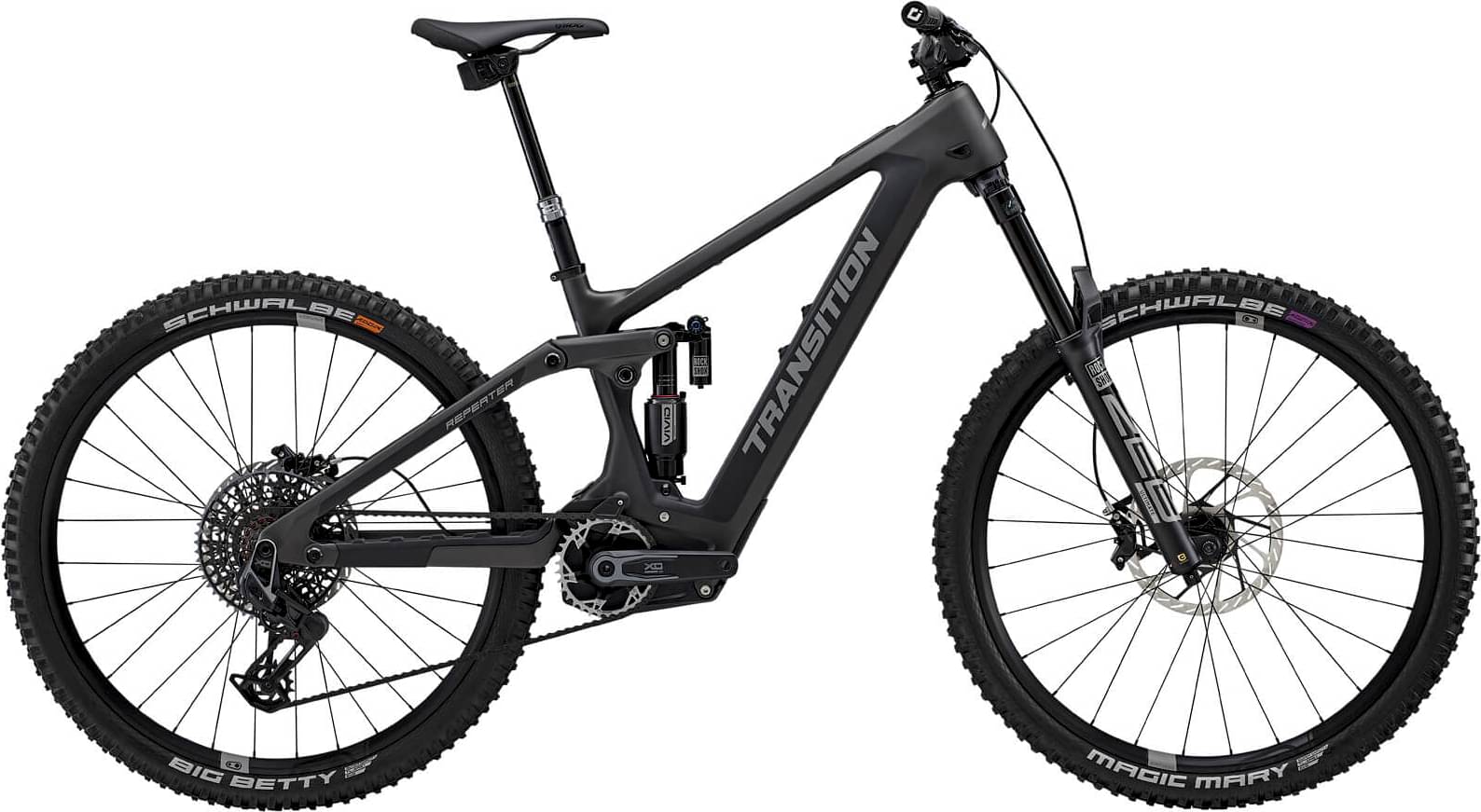

Transition Repeater PT XO AXS 2025
2025 E-bike
Estimate price |
11,999$
Weight | 23.95 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 170mm -
Fork RockShox ZEB Ultimate
-
Groupset X0, X0 Eagle Transmission -
Suspension Full -
Motor SRAM 90Nm hub-drive -
Battery SRAM Eagle Powertrain Full-Size (720wh) -
Drivetrain 1 × 12 Electronic -
Brakes SRAM Code Silver Stealth Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Repeater PT Carbon 170mm
Suspension Fork
Rockshox ZEB Ultimate, (170mm)
Rear Shock
Rockshox Vivid Ultimate, (205x65mm)
Drivetrain
Rear Derailleur
SRAM XO AXS Eagle Transmission
Shift Levers
SRAM POD Ultimate Bridge MMX
Cassette
SRAM XS 1295 T-Type (10-52t)
Crank
SRAM XO Eagle E-MTB (160mm)
Chain
SRAM XO Eagle Transmission
Chain Guide
Transition Integrated Top Guide
Wheels
Front Hub
Industry Nine 1/1, 28 (Front), 32 (Rear)
Rear Hub
Industry Nine 1/1, 28 (Front), 32 (Rear)
Rims
Crankbrothers Synthesis E-Bike Alloy
Spokes
Sapim E-Light (Front), Sapim Strong (Rear)
Tires
Front: Schwalbe Magic Mary, Super Gravity, Ultra Soft (2.4), Rear: Schwalbe Big Betty, Super Gravity, Soft (2.4)
Brakes
Brakes
SRAM Code Silver Stealth
Cockpit
Stem
ANVL Swage (40mm)
Handlebar
OneUp Carbon, SM (800x20mm), MD/LG/XL (800x35mm)
Grips
ODI Elite Flow Lock-On
Headset
FSA NO.55R/44
Seat
Saddle
SDG Bel Air 3
Seatpost
Rockshox Reverb AXS, SM (150mm), MD/LG/XL (170mm)
Motor & Battery
Motor
SRAM Eagle Powertrain (90nm)
Battery
SRAM Eagle Powertrain Full-Size (720wh)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.482 mm | 1.396 mm | 1.34 mm | 1.278 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 776 mm | 808 mm | 838 mm | 872 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 138 mm | 139 mm | 138 mm | 138 mm |
| Stack | 630 mm | 635 mm | 643 mm | 652 mm |
| Reach | 425 mm | 455 mm | 480 mm | 510 mm |
| Top Tube Length | 551 mm | 584 mm | 615 mm | 654 mm |
| Seat Tube Angle | 79.2 ° | 78.5 ° | 78.2 ° | 77.5 ° |
| Seat Tube Length | 380 mm | 400 mm | 440 mm | 470 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 110 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1230 mm | 1262 mm | 1292 mm | 1326 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 710 mm | 720 mm | 730 mm | 740 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 164 cm | 175 cm | 184 cm |
| Rider Max Height | 170 cm | 182 cm | 190 cm | 200 cm |
