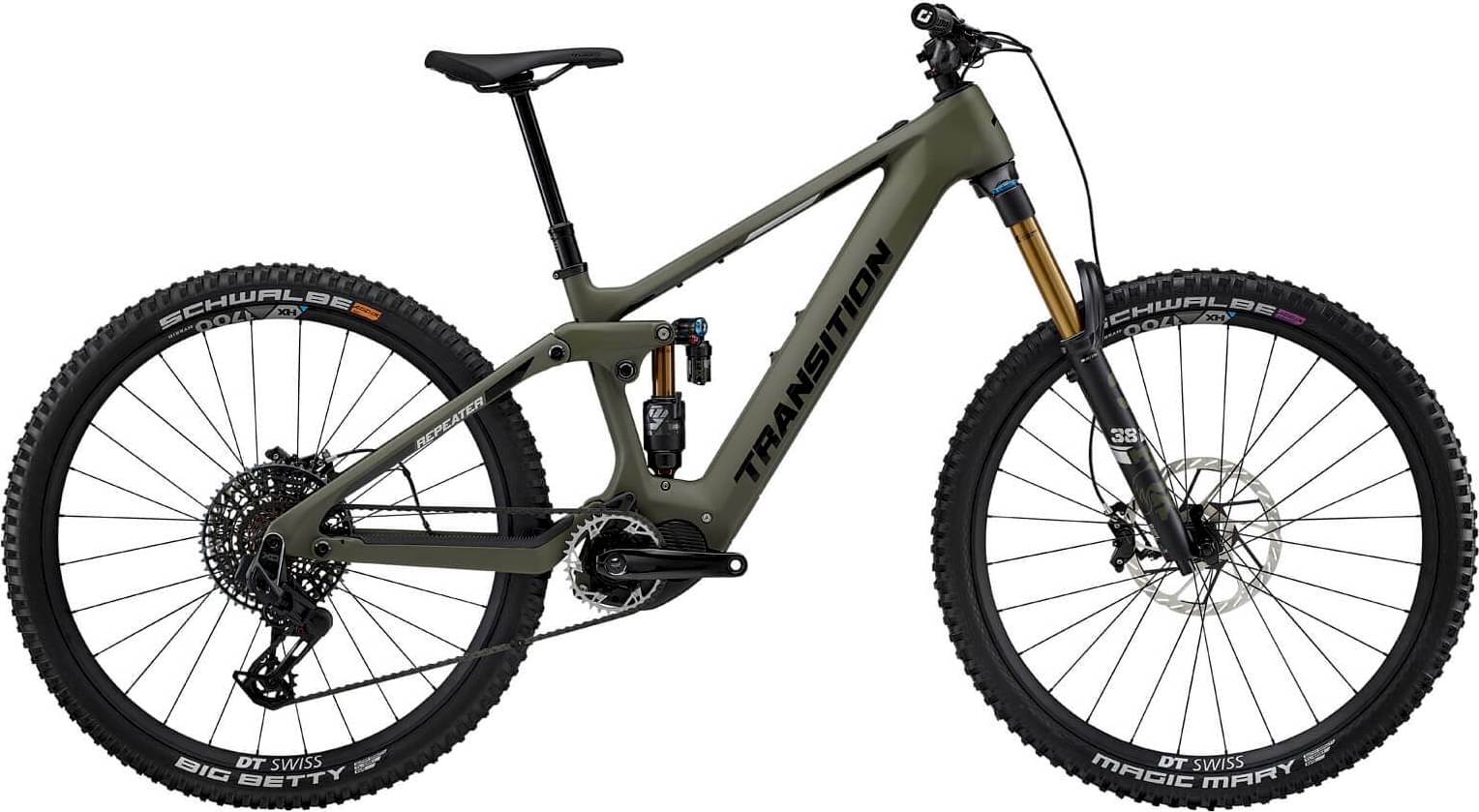

Transition Repeater XO AXS 2024
2024 E-bike
Estimate price |
9,999$
Weight | 22.59 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Factory Float 38
-
Groupset X0 Eagle Transmission -
Suspension Full -
Motor Shimano 500W 85Nm mid-drive -
Battery Shimano BT-E8036 (630Wh) -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Repeater Carbon 160mm
Suspension Fork
Fox Float 38 Factory, (160mm, 1.5 Taper)
Rear Shock
Fox Float X2 Factory, (205x65mm)
Drivetrain
Rear Derailleur
SRAM XO AXS Eagle Transmission
Shift Levers
SRAM POD Ultimate Bridge MMX
Cassette
SRAM XS 1295 T-Type (10-52t)
Crank
Shimano EM900 (160mm)
Chain
SRAM XO AXS
Chain Guide
OneUp STEPS
Wheels
Front Hub
DT Swiss Hybrid 350
Rear Hub
DT Swiss Hybrid 350
Rims
DT Swiss Hybrid HX 1700
Spokes
DT Swiss Hybrid 1
Tires
Front: Schwalbe Magic Mary, Super Gravity, Ultra Soft (2.4), Rear: Schwalbe Big Betty, Super Gravity, Soft (2.4)
Brakes
Brakes
SRAM Code Silver Stealth
Cockpit
Stem
ANVL Swage (40mm)
Handlebar
OneUp Carbon, SM/MD(800x20) LG/XL(800x35)
Grips
ODI Elite Flow Lock-On
Headset
Acros ICR Alloy
Seat
Saddle
SDG Bel Air V3
Seatpost
OneUp Dropper Post, SM(150mm) MD(180mm) LG/XL(210mm)
Motor & Battery
Motor
Shimano DU-EP800
Battery
Shimano BT-E8036 (630Wh)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.485 mm | 1.387 mm | 1.333 mm | 1.273 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 768 mm | 798 mm | 827 mm | 862 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 134 mm | 134 mm | 134 mm | 134 mm |
| Stack | 631 mm | 631 mm | 640 mm | 649 mm |
| Reach | 425 mm | 455 mm | 480 mm | 510 mm |
| Top Tube Length | 559 mm | 589 mm | 617 mm | 650 |
| Seat Tube Angle | 78.4 ° | 77.9 ° | 77.4 ° | 77.1 ° |
| Seat Tube Length | 375 mm | 400 mm | 440 mm | 470 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1221 mm | 1251 mm | 1280 mm | 1315 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 705 mm | 715 mm | 720 mm | 725 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 164 cm | 175 cm | 184 cm |
| Rider Max Height | 170 cm | 182 cm | 190 cm | 200 cm |
