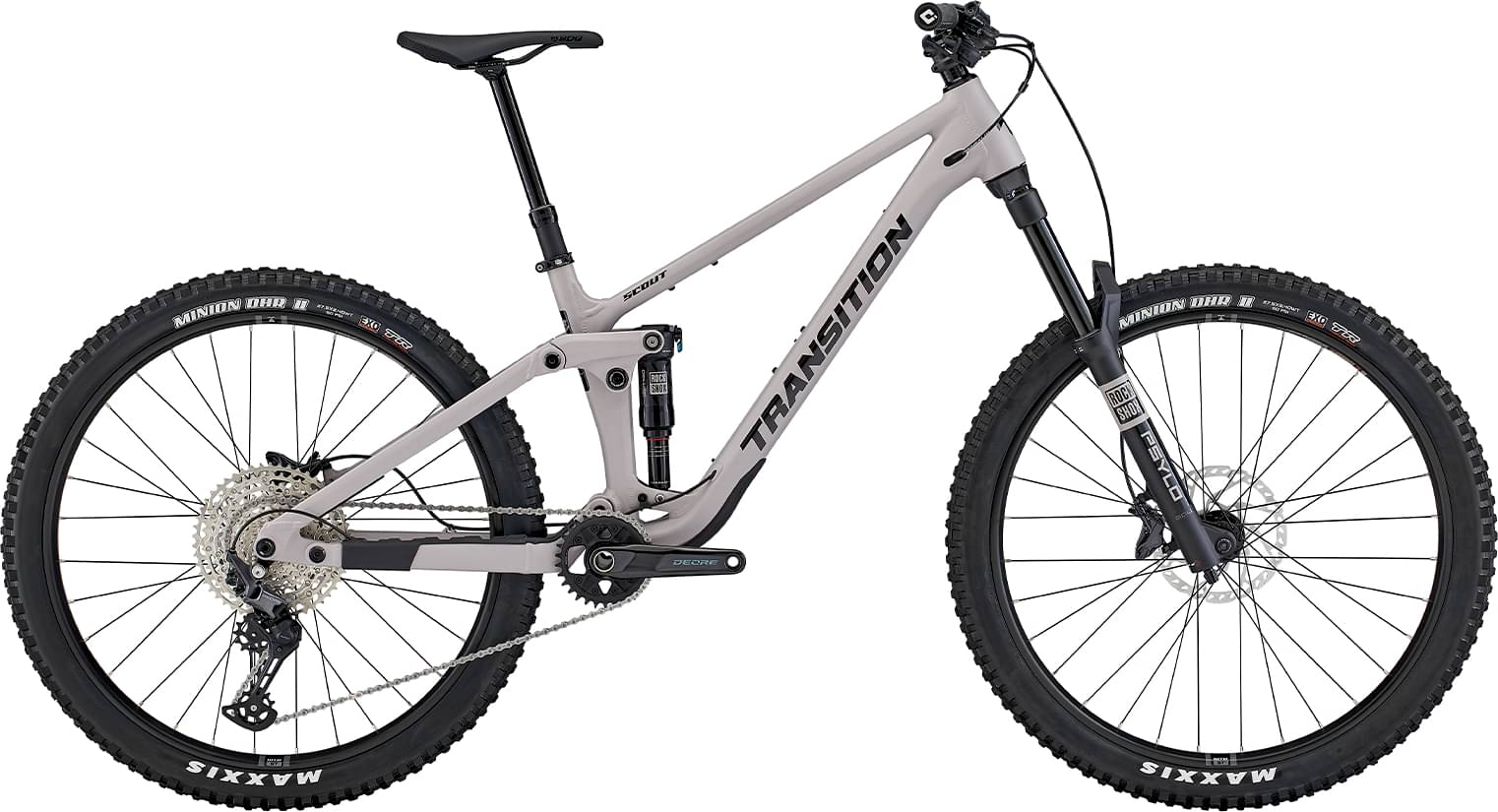

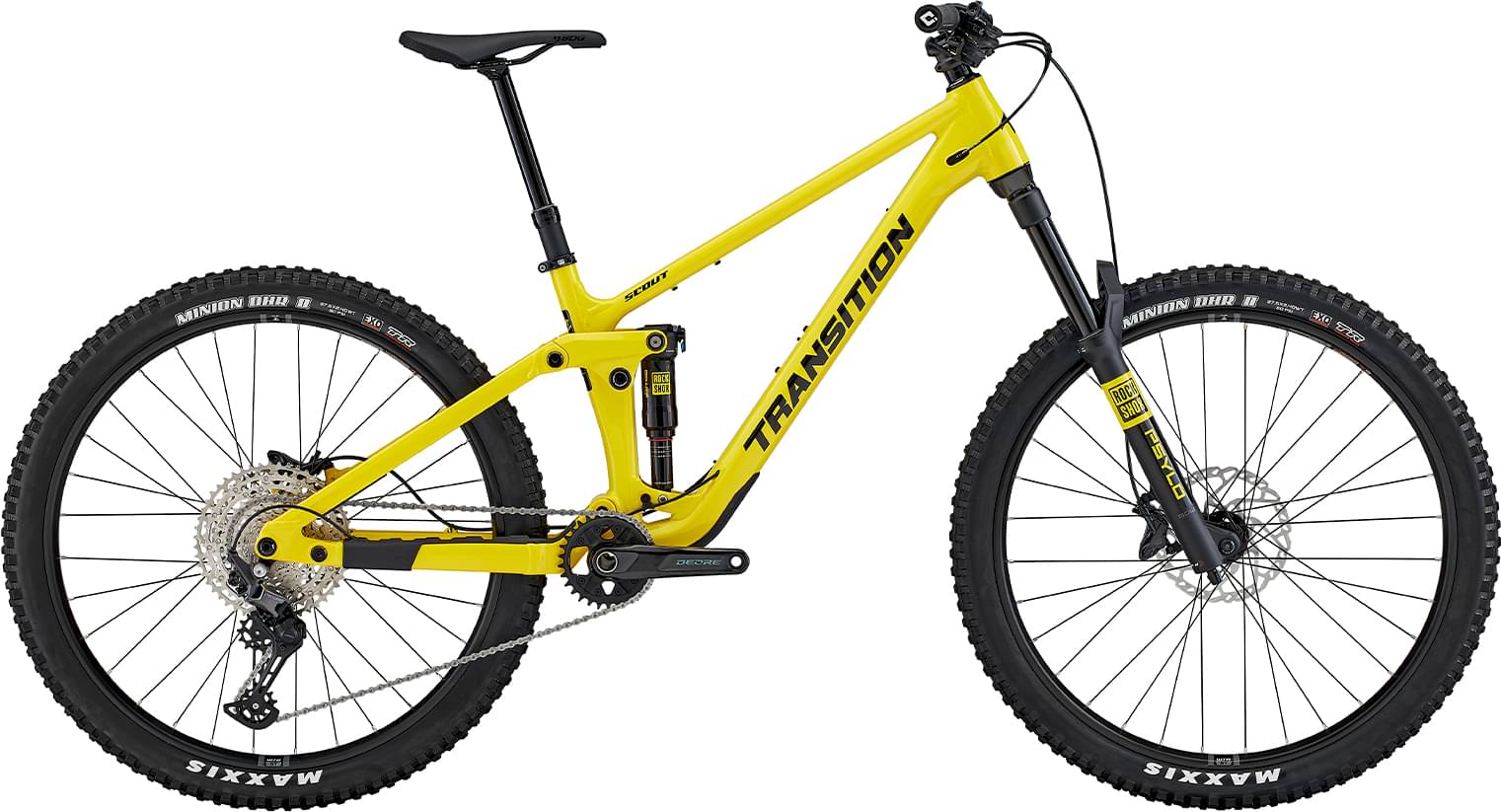

Transition Scout Alloy Deore 2025
2025 Youth
Estimate price |
3,499$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 150mm -
Travel Rear 150mm -
Fork RockShox Psylo
-
Groupset Deore -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
XS
143cm - 160cm
SM
154cm - 170cm
MD
164cm - 182cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Scout Alloy 150mm
Suspension Fork
RockShox Psylo Gold RC, (150mm)
Rear Shock
RockShox Deluxe Select+, (205x57.5mm)
Drivetrain
Rear Derailleur
Shimano Deore M6100 SGS 12sp
Shift Levers
Shimano Deore M6100 iSpec EV
Cassette
Shimano Deore M6100 (10-51t)
Crank
Shimano Deore M6100 (30t/165mm)
Bottom Bracket
73mm BSA Threaded
Chain
Shimano Deore M6100
Wheels
Front Hub
Novatech D791SB/D902SB
Rear Hub
Novatech D791SB/D902SB
Rims
WTB ST i30
Spokes
Pillar Double Butted
Tires
Front: Maxxis Minion DHRII 3C EXO/TR (2.4), Rear: Maxxis Minion DHRII 3C EXO/TR (2.4)
Brakes
Brakes
Shimano Deore M6120 4 Piston
Cockpit
Stem
RaceFace Aeffect R (40mm)
Handlebar
RaceFace Chester, XS/SM (780x20mm), MD (780x35mm)
Grips
ODI Elite Flow Lock-On
Headset
FSA No.57E
Seat
Saddle
SDG Bel Air 3
Seatpost
SDG Tellis Dropper, XS(125mm), SM (150mm), MD (170mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.407 mm | 1.356 mm | 1.313 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm |
| Front Center | 724 mm | 756 mm | 788 mm |
| Rake | 37 mm | 37 mm | 37 mm |
| Stack | 577 mm | 590 mm | 604 mm |
| Reach | 410 mm | 435 mm | 460 mm |
| Top Tube Length | 534 mm | 564 mm | 593 mm |
| Seat Tube Angle | 78.2 ° | 77.7 ° | 77.2 ° |
| Seat Tube Length | 350 mm | 360 mm | 390 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 95 mm | 110 mm | 125 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1153 mm | 1185 mm | 1217 mm |
| Bottom Bracket Drop | 18 mm | 18 mm | 18 mm |
| Standover Height | 665 mm | 665 mm | 673 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 143 cm | 154 cm | 164 cm |
| Rider Max Height | 160 cm | 170 cm | 182 cm |
