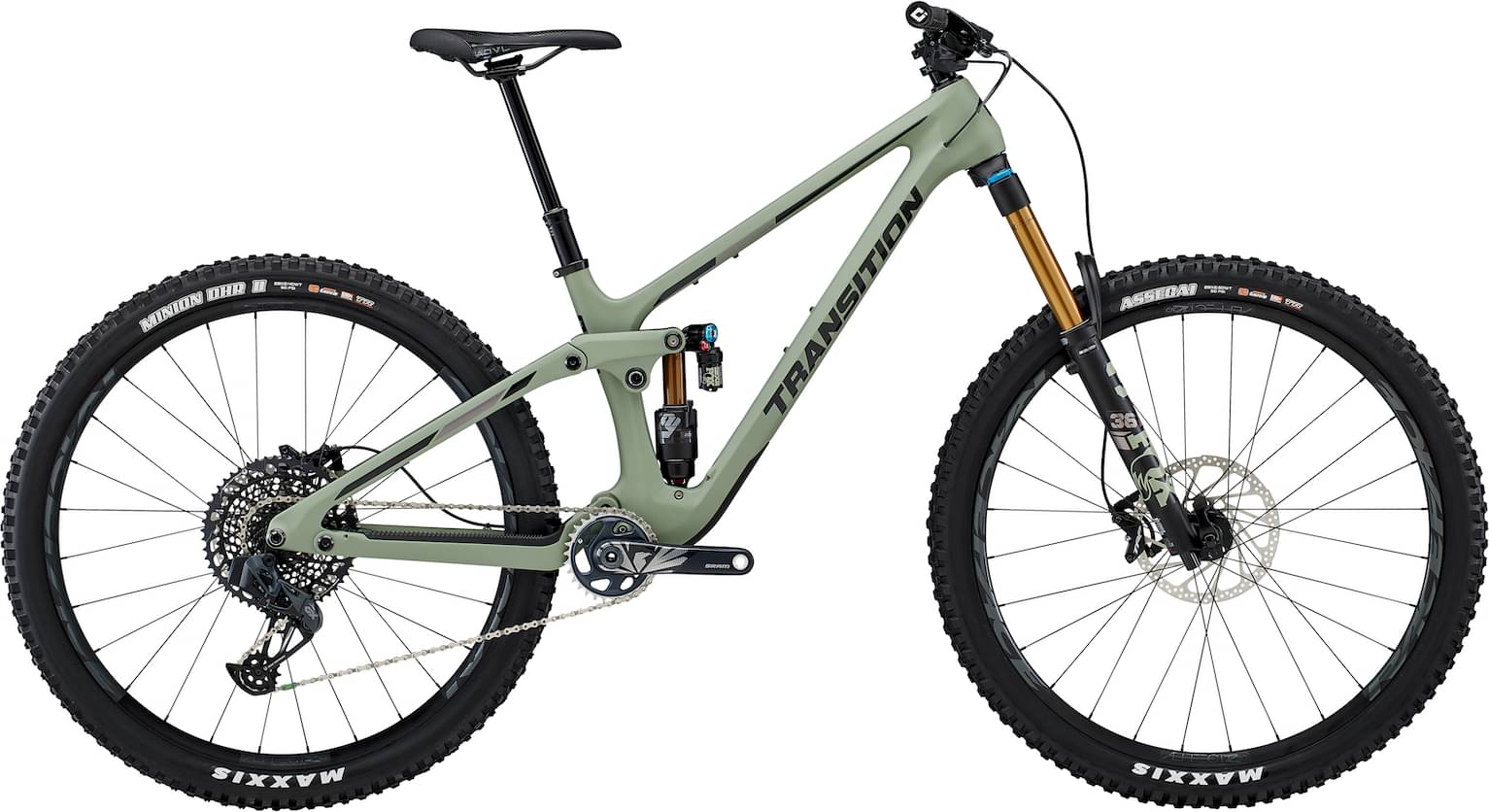

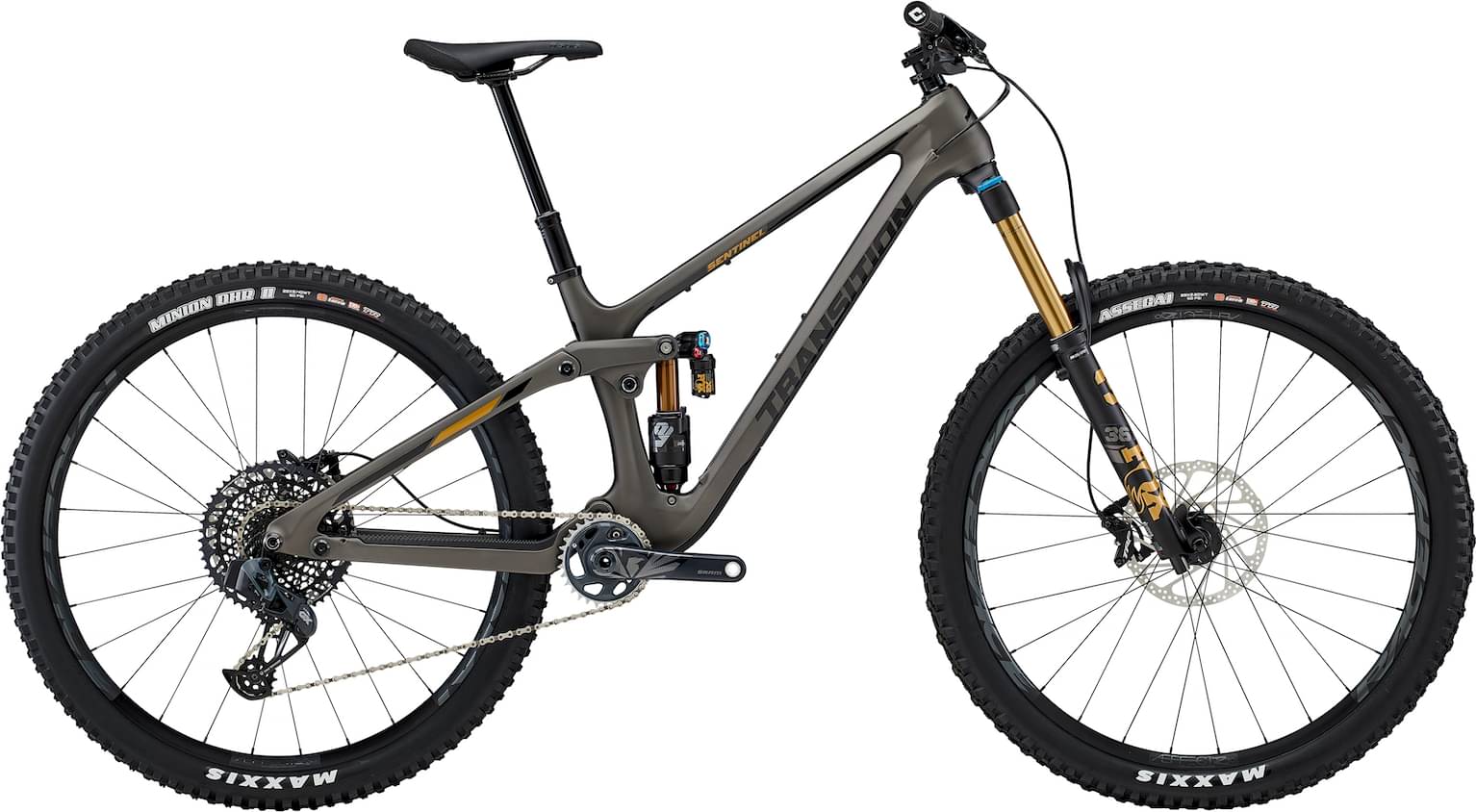

Transition Sentinel Carbon AXS 2024
2024 Mountain
Estimate price |
7,999$
Weight | 14.33 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Factory Float 36
-
Groupset X1, GX Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
XXL
190cm - 207cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Sentinel Carbon 150mm
Suspension Fork
Fox Float 36 Grip 2 Factory, (160mm)
Rear Shock
Fox Float X2 Factory, (205x62.5mm)
Drivetrain
Rear Derailleur
SRAM GX AXS
Shift Levers
SRAM GX AXS (Rocker Paddle)
Cassette
SRAM XG 1295 (10-52t)
Crank
SRAM X1 Carbon DUB, (30t/170mm)
Bottom Bracket
73mm BSA Threaded
Chain
SRAM XO1 Eagle
Wheels
Front Hub
RaceFace Trace 28H
Rear Hub
RaceFace Trace 28H
Rims
RaceFace Aeffect R
Spokes
RaceFace 2.0/1.7/2.0
Tires
Front: Maxxis Assegai 3C EXO+ (2.5), Rear: Maxxis Minion DHRII 3C EXO+ (2.4)
Brakes
Brakes
TRP DH-R-Evo
Cockpit
Stem
ANVL Swage (40mm)
Handlebar
OneUp Carbon Bar, SM/MD(800x20) LG/XL/XXL(800x35)
Grips
ODI Elite Flow
Headset
FSA No.57E
Seat
Saddle
ANVL Forge Cromo, or, SDG Bel Air 3
Seatpost
OneUp Dropper Post, SM(150mm) MD(180mm) LG/XL/XXL(210mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.382 mm | 1.326 mm | 1.277 mm | 1.246 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 347 mm | 347 mm |
| Front Center | 761 mm | 794 mm | 824 mm | 853 mm | 877 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 136 mm | 137 mm | 137 mm | 137 mm | 138 mm |
| Stack | 613 mm | 622 mm | 631 mm | 640 mm | 649 mm |
| Reach | 420 mm | 450 mm | 476 mm | 501 mm | 521 mm |
| Top Tube Length | 552 mm | 585 mm | 613 mm | 641 mm | 665 mm |
| Seat Tube Angle | 78.2 ° | 77.5 ° | 76.9 ° | 76.4 ° | 76 ° |
| Seat Tube Length | 350 mm | 390 mm | 430 mm | 460 mm | 490 mm |
| Head Tube Angle | 63.6 ° | 63.6 ° | 63.6 ° | 63.6 ° | 63.6 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1199 mm | 1233 mm | 1263 mm | 1292 mm | 1316 mm |
| Bottom Bracket Drop | 29 mm | 29 mm | 29 mm | 29 mm | 29 mm |
| Standover Height | 671 mm | 688 mm | 700 | 712 mm | 722 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 164 cm | 175 cm | 184 cm | 190 cm |
| Rider Max Height | 170 cm | 182 cm | 190 cm | 200 cm | 207 cm |
