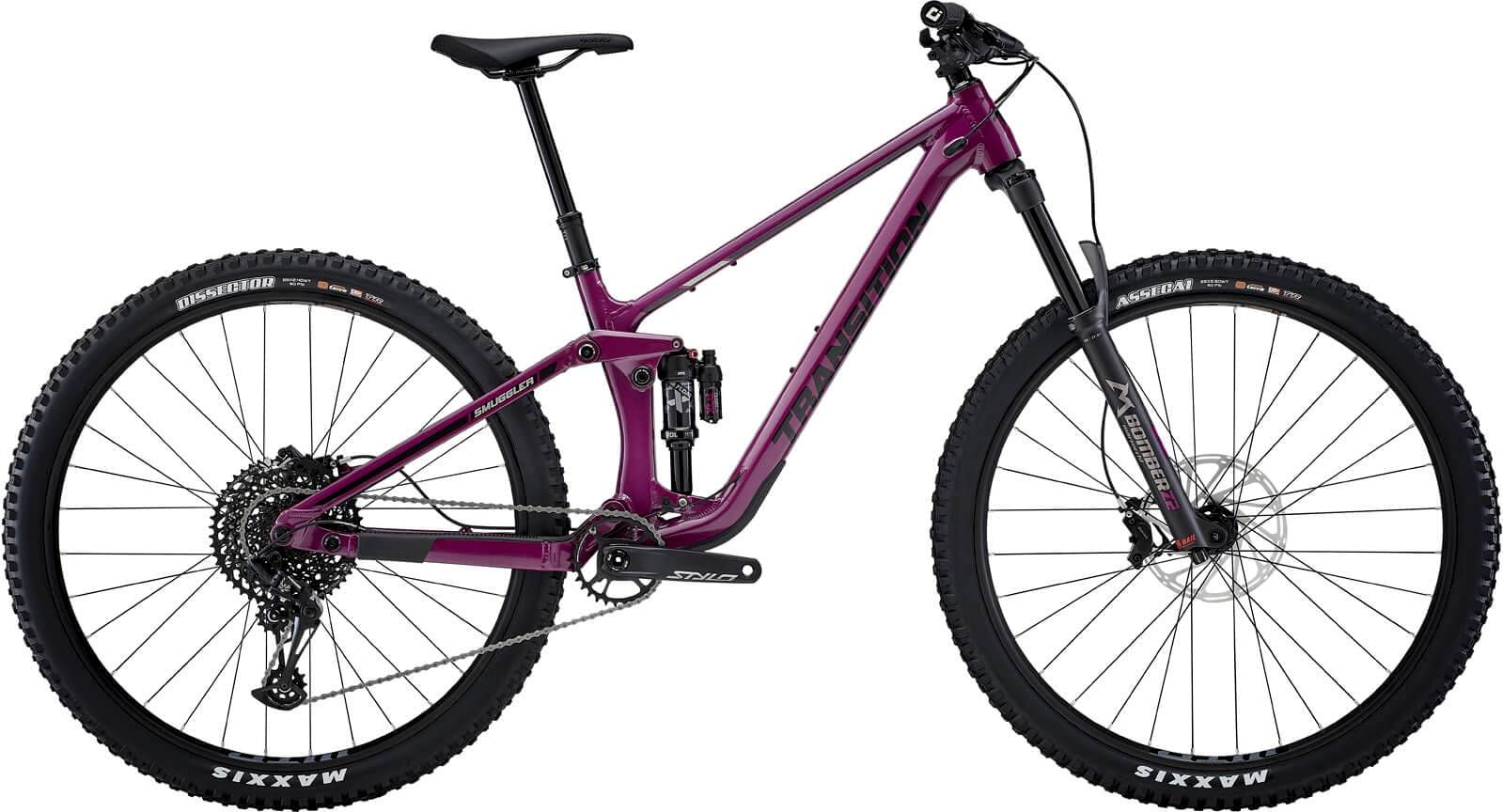

Transition Smuggler Alloy NX 2024
2024 Mountain
Estimate price |
3,999$
Weight | 15.65 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -
Travel Rear 130mm -
Fork Marzocchi Bomber Z2
-
Groupset NX Eagle, Truvativ Stylo -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
XXL
190cm - 207cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Smuggler Alloy 130mm
Suspension Fork
Marzocchi Z2, (140mm)
Rear Shock
Fox Float X Performance, (210x50mm)
Drivetrain
Rear Derailleur
SRAM NX Eagle
Shift Levers
SRAM NX Eagle MMX
Cassette
SRAM XG 1275 (10-50t)
Crank
SRAM Stylo 6K DUB, (170mm x 30t)
Bottom Bracket
73mm BSA Threaded
Chain
SRAM NX Eagle
Wheels
Front Hub
Novatech D791SB/D902SB
Rear Hub
Novatech D791SB/D902SB
Rims
WTB ST i30
Spokes
Pillar Double Butted
Tires
Front: Maxxis Assegai EXO+ (2.5), Rear: Maxxis Dissector 3C EXO+ (2.4)
Brakes
Brakes
SRAM Code R
Cockpit
Stem
RaceFace Aeffect R (40mm)
Handlebar
RaceFace Chester 35, SM(780x20) MD/LG/XL/XXL(780x35)
Grips
ODI Elite Flow
Headset
FSA No.57E
Seat
Saddle
SDG Bel Air V3
Seatpost
OneUp Dropper Post, SM(150mm) MD(180mm) LG/XL/XXL(210mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.412 mm | 1.339 mm | 1.289 mm | 1.245 mm | 1.204 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 746 mm | 780 mm | 809 mm | 839 mm | 868 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 126 mm | 126 mm | 126 mm | 126 mm | 126 mm |
| Stack | 607 mm | 616 mm | 625 mm | 635 mm | 644 mm |
| Reach | 430 mm | 460 mm | 485 mm | 510 mm | 535 mm |
| Top Tube Length | 555 mm | 588 mm | 617 mm | 645 mm | 670 mm |
| Seat Tube Angle | 79.3 ° | 78.6 ° | 78.1 ° | 77.6 ° | 77.3 ° |
| Seat Tube Length | 375 mm | 390 mm | 430 mm | 460 mm | 490 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 437 mm | 437 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1181 mm | 1215 mm | 1250 mm | 1280 mm | 1309 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 164 cm | 175 cm | 184 cm | 190 cm |
| Rider Max Height | 170 cm | 182 cm | 190 cm | 200 cm | 207 cm |
