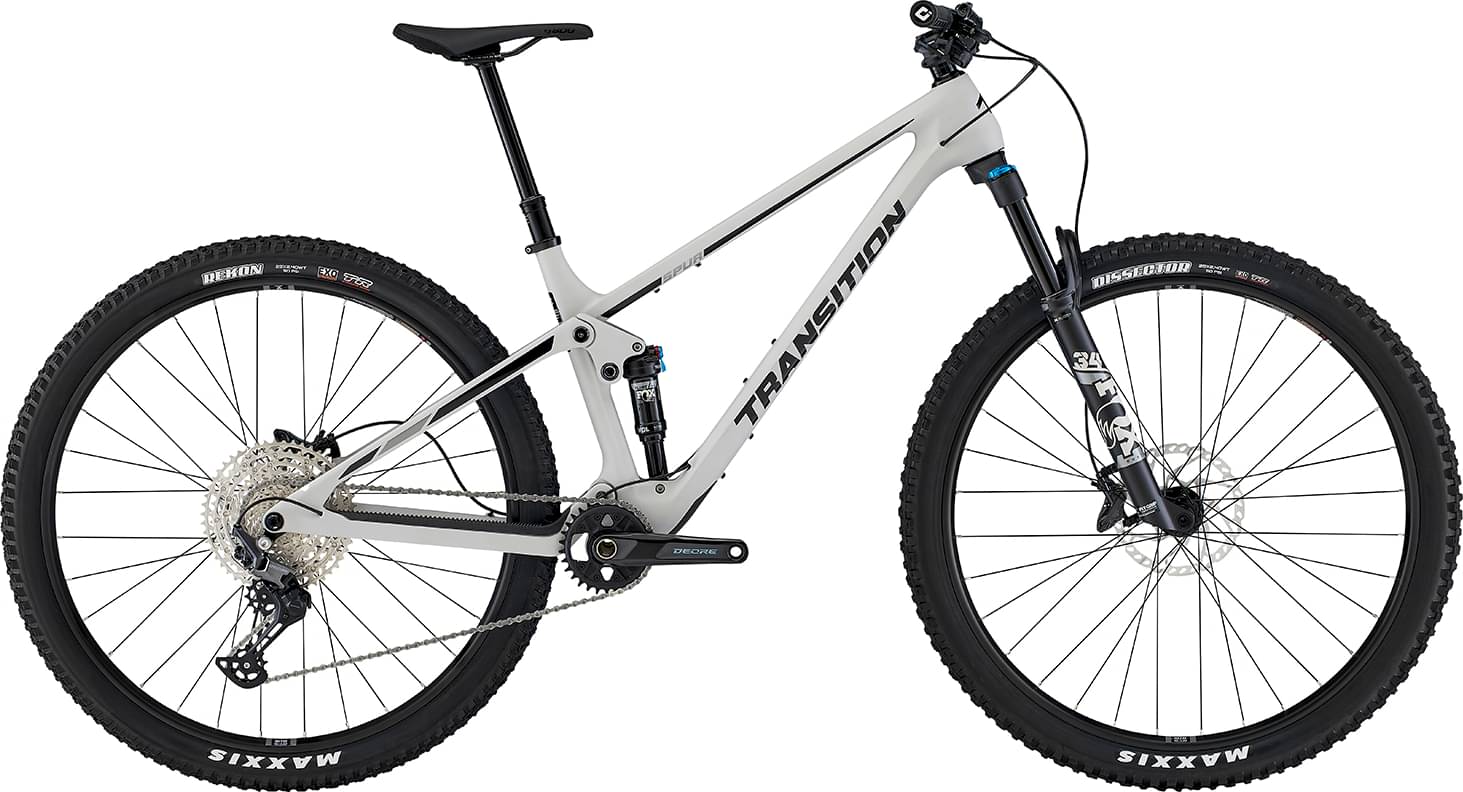

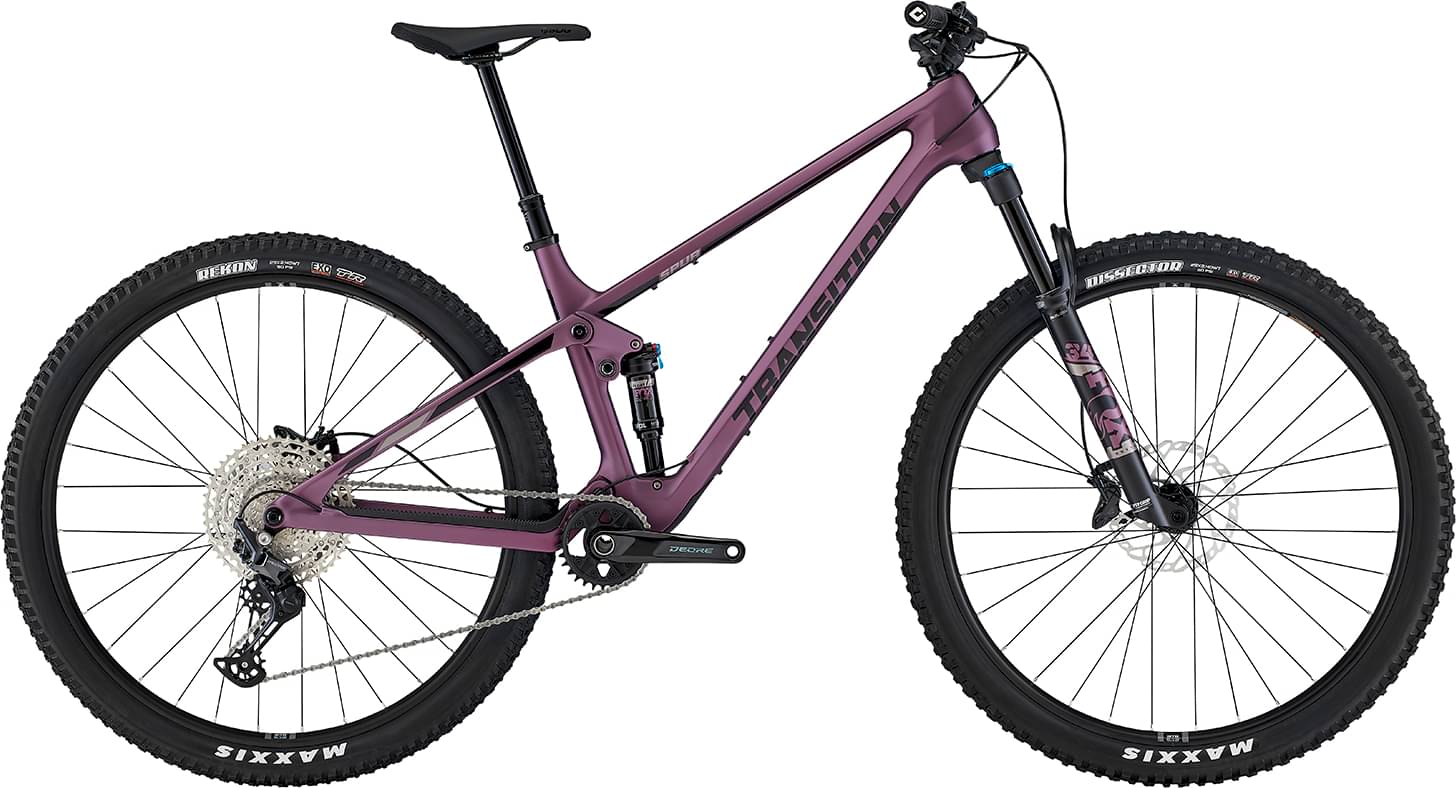

Transition Spur Carbon Deore 2025
2025 Mountain
Estimate price |
4,799$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox Rhythm Float 34
-
Groupset Deore -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Spur Carbon 120mm (UDH)
Suspension Fork
Fox Float 34 Rhythm, (120mm)
Rear Shock
Fox DPS Performance, (190x45mm)
Drivetrain
Rear Derailleur
Shimano Deore M6100 SGS 12sp
Shift Levers
Shimano Deore M6100 iSpec EV
Cassette
Shimano Deore M6100 (10-51t)
Crank
Shimano Deore M6100, (30t/170mm)
Bottom Bracket
73mm BSA Threaded
Chain
Shimano Deore M6100
Wheels
Front Hub
Novatech D791SB/D902SB
Rear Hub
Novatech D791SB/D902SB
Rims
WTB ST i27
Spokes
Pillar Double Butted
Tires
Front: Maxxis Dissector 3C EXO (2.4), Rear: Maxxis Rekon 3C EXO (2.4)
Brakes
Brakes
Shimano Deore M6120 4 Piston
Cockpit
Stem
RaceFace Aeffect R (40mm)
Handlebar
RaceFace Aeffect R, SM/MD/LG/XL(780x20mm)
Grips
ODI Elite Flow Lock-On
Headset
FSA No.57E
Seat
Saddle
SDG Bel Air 3
Seatpost
OneUp Dropper Post, SM (150mm), MD (180mm), LG (210mm), XL (240mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.412 mm | 1.341 mm | 1.29 mm | 1.239 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 724 mm | 758 mm | 787 mm | 823 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 119 mm | 119 mm | 119 mm | 119 mm |
| Stack | 600 mm | 610 mm | 619 mm | 632 mm |
| Reach | 425 mm | 455 mm | 480 mm | 510 mm |
| Top Tube Length | 569 mm | 602 mm | 630 mm | 664 mm |
| Seat Tube Angle | 76.7 ° | 76.2 ° | 75.9 ° | 75.6 ° |
| Seat Tube Length | 380 mm | 410 mm | 460 mm | 500 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 135 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1156 mm | 1190 mm | 1219 mm | 1255 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 662 mm | 667 mm | 670 mm | 677 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 164 cm | 175 cm | 184 cm |
| Rider Max Height | 170 cm | 182 cm | 190 cm | 200 cm |
