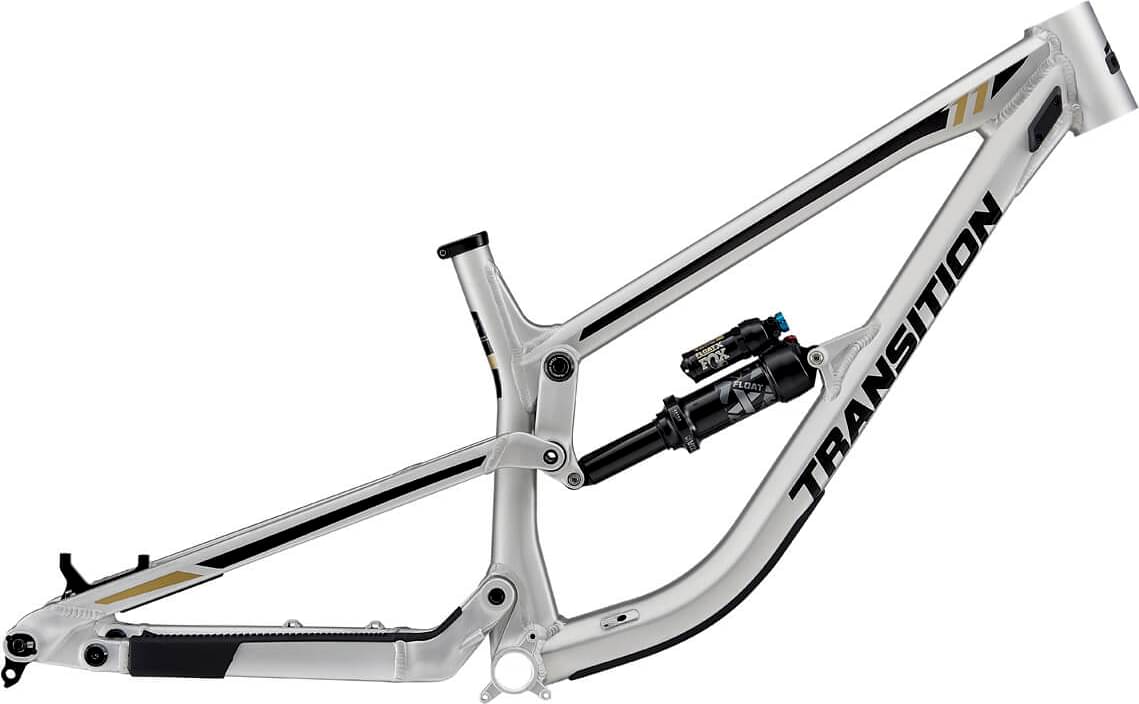

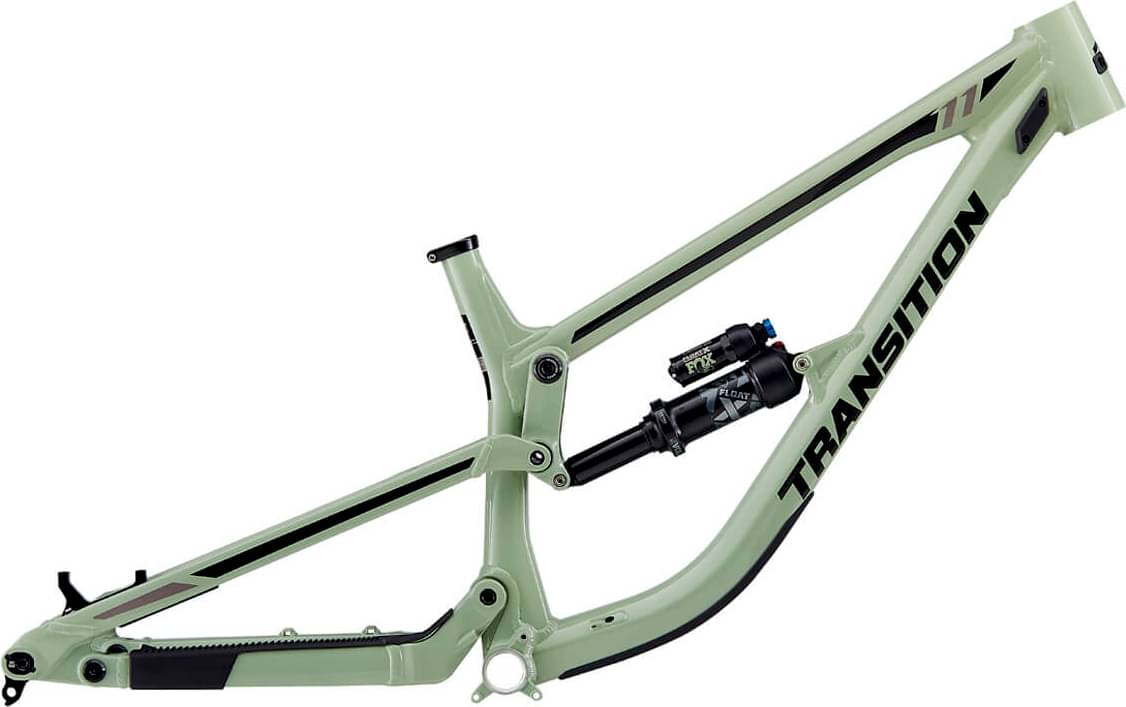

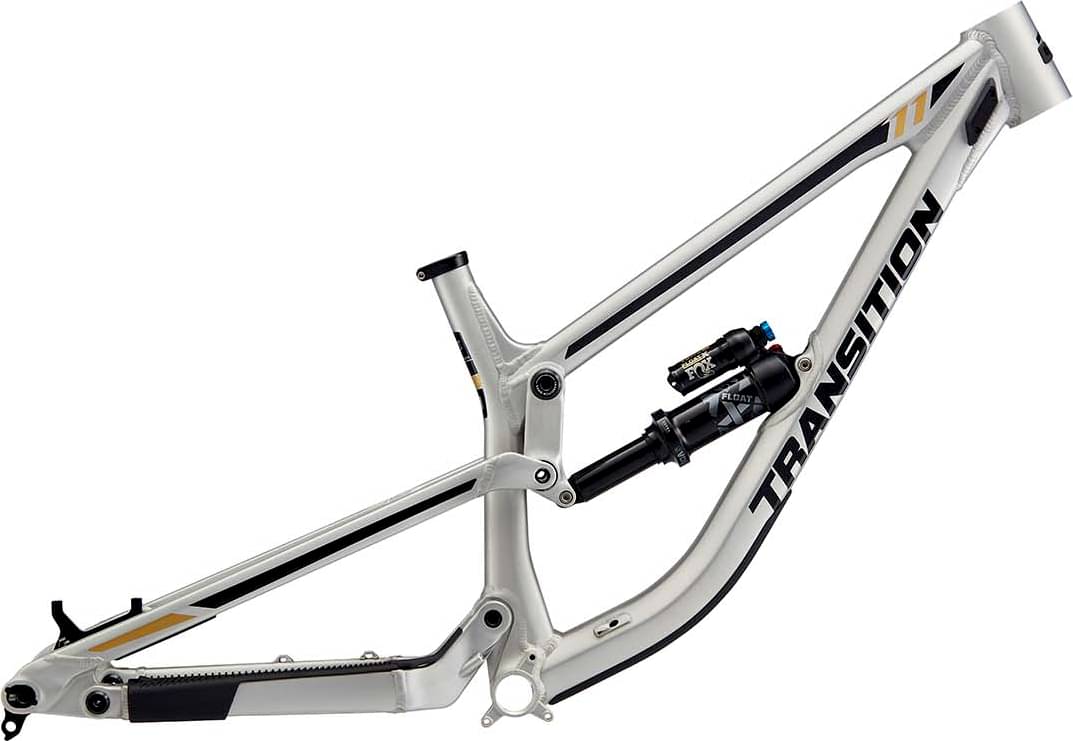

Transition TR11 Alloy Frameset 2024
2024 Mountain
Estimate price |
2,299$
Weight | 4.7 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Aluminum -
Travel Rear 200mm -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TR11 Alloy 200mm
Rear Shock
Fox Float X Performance Elite, (250x75mm)
Drivetrain
Bottom Bracket
83mm BSA Threaded
Wheels
Tires
27.5 x 2.5
Brakes
Brakes
200mm Post Mount, 223 Max Rotor Size
Cockpit
Headset
Transition Reach Adjust
Seat
Seatpost
31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.522 mm | 1.418 mm | 1.333 mm | 1.241 mm |
| Bottom Bracket Height | 352 mm | 352 mm | 352 mm | 352 mm |
| Front Center | 798 mm | 828 mm | 863 mm | 898 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 141 mm | 141 mm | 146 mm | 146 mm |
| Stack | 624 mm | 624 mm | 633 mm | 633 mm |
| Reach | 410 mm | 440 mm | 475 mm | 510 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 400 mm | 400 mm | 400 mm | 400 mm |
| Head Tube Angle | 62 ° | 62 ° | 62 ° | 62 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 110 mm |
| Chainstay Length | 440 mm | 440 mm | 445 mm | 445 mm |
| Wheelbase | 1238 mm | 1268 mm | 1308 mm | 1343 mm |
| Bottom Bracket Drop | 3 mm | 3 mm | 3 mm | 3 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 164 cm | 175 cm | 184 cm |
| Rider Max Height | 170 cm | 182 cm | 190 cm | 200 cm |
