Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Claris -
Suspension Rigid -
Drivetrain 2 × 8 -
Brakes Rim
Sizing
Recommended size guide.
47cm
151cm - 159cm
50cm
156cm - 164cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
60cm
183cm - 191cm
62cm
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
100 Series Alpha Aluminum
Suspension Fork
Trek aluminum road
Drivetrain
Rear Derailleur
Shimano 2300
Front Derailleur
Shimano 2300, 34.9mm clamp
Shift Levers
Shimano 2300 STI, 8 speed
Cassette
Sun Race CSR86 12-25, 8 speed
Crank
Vuelta Corsa, 50/34 (compact)
Pedals
Nylon body w/alloy cage
Wheels
Rims
Alloy hubs w/Bontrager Approved alloy rims
Tires
Bontrager T1, 700x23c
Brakes
Brakes
Alloy dual-pivot brakes w/Shimano 2300 STI lever
Cockpit
Stem
Bontrager Sport, 26.0mm, 10 degree
Handlebar
Bontrager SSR VR-C, 26.0mm
Headset
1-1/8" semi-cartridge bearings
Seat
Saddle
Bontrager Affinity 1, steel rails
Seatpost
Bontrager SSR, 12mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 156 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm | 188 cm |
| Rider Max Height | 159 cm | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
About this model

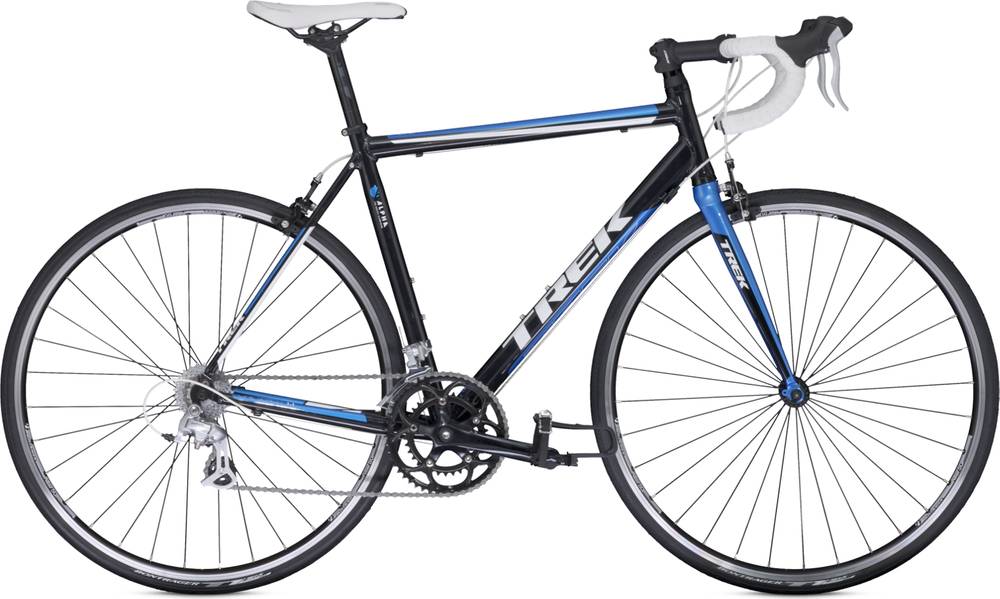

1.1 H2 (Compact) belongs to the Trek 11 model. 10 bikes variations carry this model name so far.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Race bikes
Our math shows that the average cost of a dependable Race bike is 3350$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Race bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Fork material
The fork is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
The wheels on 1.1 H2 (Compact) are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Rim brakes deliver an average performance overall. However, they are not nearly as effective as hydraulic brakes are.
Sizes
This bike is available in 8 sizes. They vary from 151 cm – 195 cm (4.95 ft – 6.4 ft). In short, you can easily find one that suits you.
